Metal detection sensor Proximity switch for metal inspection SN04-N SN04-N2 SN04-P SN04-P2 SN04-D1 D2 Y1 Y2 NPN PNP NC NO
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 7.
- • Strong customer signal: 5.0★ from 5 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: CNMAWAY
- Sales: 16
- Package size: 4 × 4 × 2 cm
- Package weight: 0.06 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
To buy in bulk, please click the link below
SN04-P1: PNP Normally Open 3-Line type 4mm detection distance

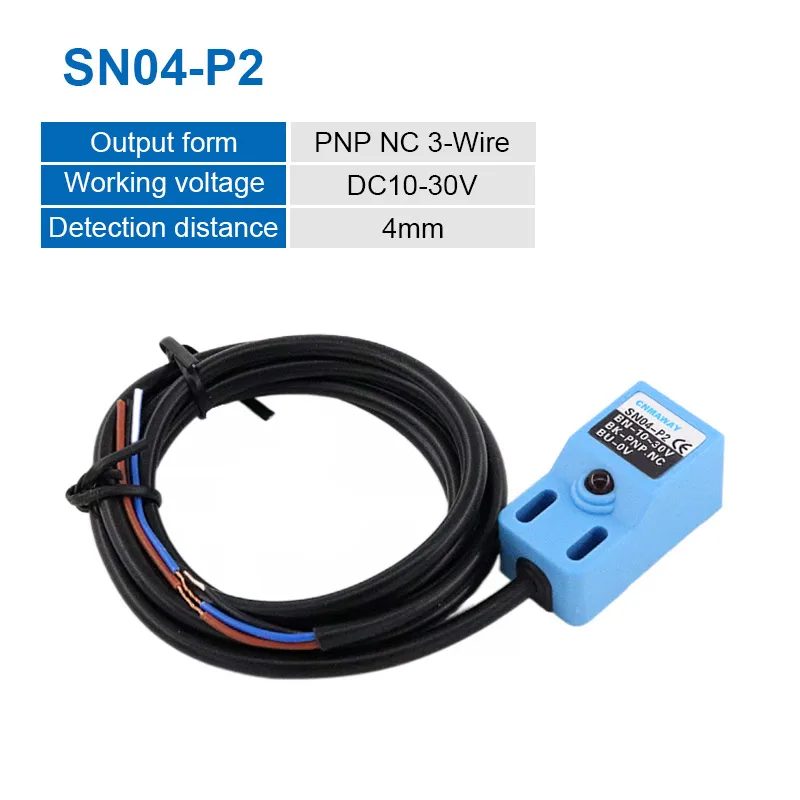

SN04-P2: PNP Normally Close 3-Line type 4mm detection distance

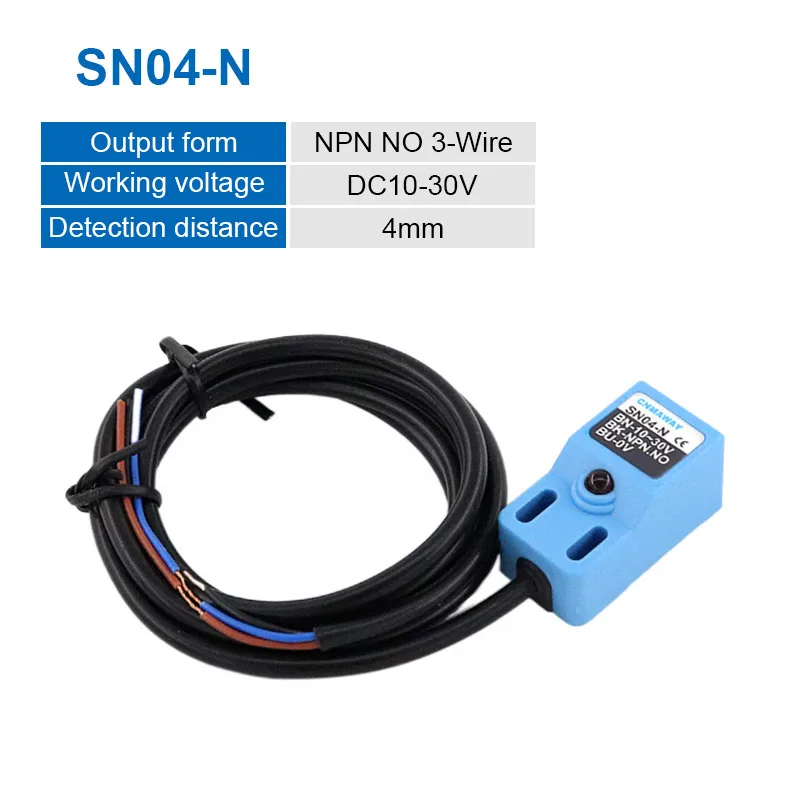

SN04-N1: NPN Normally Open 3-Line type 4mm detection distance
SN04-N2: NPN Normally Close 3-Line type 4mm detection distance
[Main Parameter]
Detection distance:4mm ± 10%
Set distance:0~3.8mm
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 18*18*1mm
Response frequency:DC:0.5kHz
Supply voltage:DC type:DC12V DC24V DC36V(DC6~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
Protection influence:IP67(IEC specification)
This product can be applied to control relays, counters,PLC, etc.!
