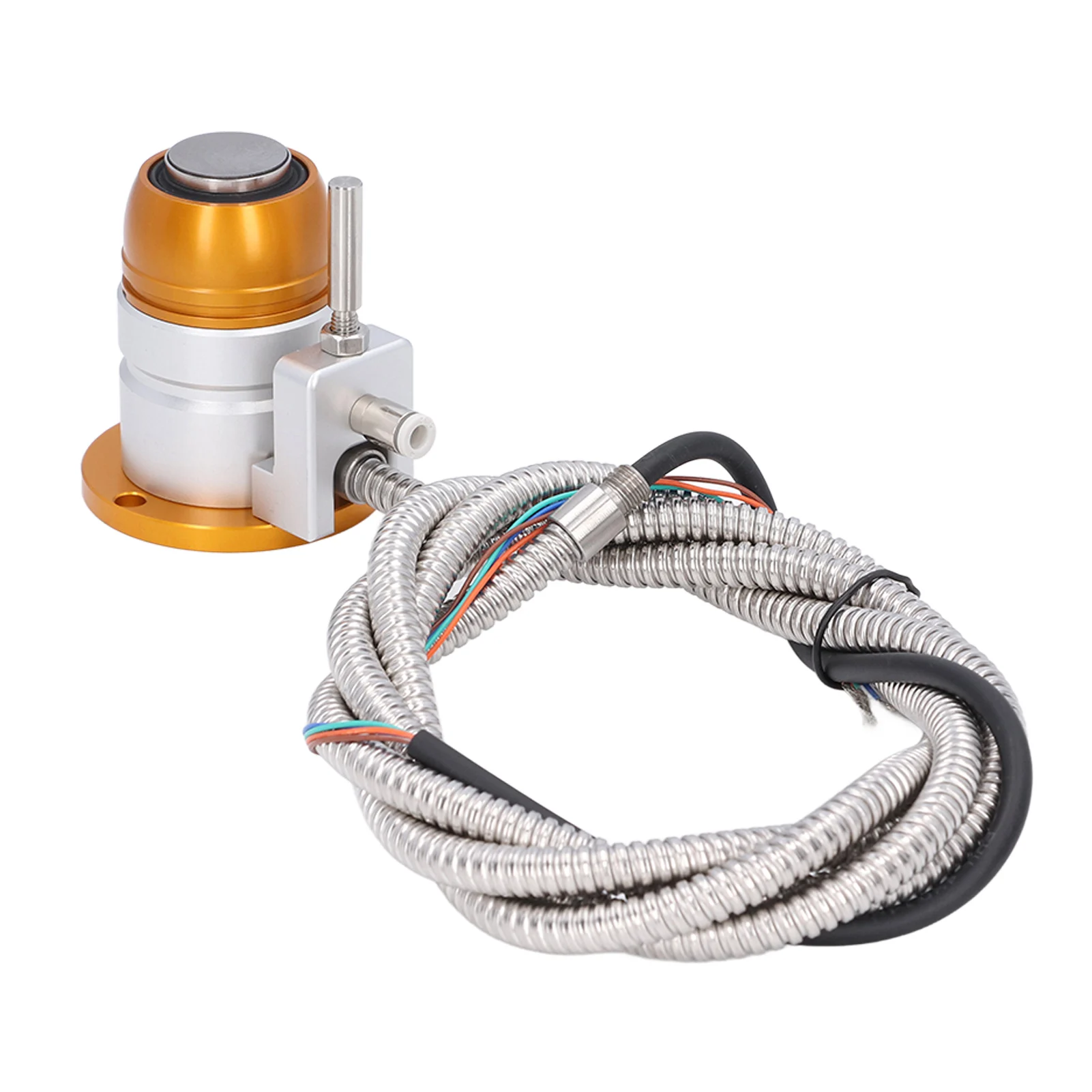

Normally Closed Tool Setter Axes Touch Tool Setter Normally Closed CNC Tool Setting Accessory with Cable 24V
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
Oferta AI para tu mercado
Selección optimizada según categoría, ruta de envío, velocidad de entrega y popularidad en tu mercado.
Por qué este producto encaja con tu mercado
- • Entrega estimada: 7.
- • Las recomendaciones se centran en esta categoría y en la disponibilidad para tu mercado.
Especificaciones del producto
Descripción detallada del producto
Este producto se muestra con opciones disponibles, precio para el mercado seleccionado y especificaciones verificadas.
- Marca: KKMOON
- Tamaño del paquete: 15 × 10 × 7 cm
- Peso del paquete: 0.497 kg
- Valoración: 0.0 / 5
Antes de añadir al carrito, selecciona una opción disponible y revisa la cantidad.
Z Axes Touch Tool Setter Normally Closed CNC Tool Setting Accessory with Cable DC 24V
Feature

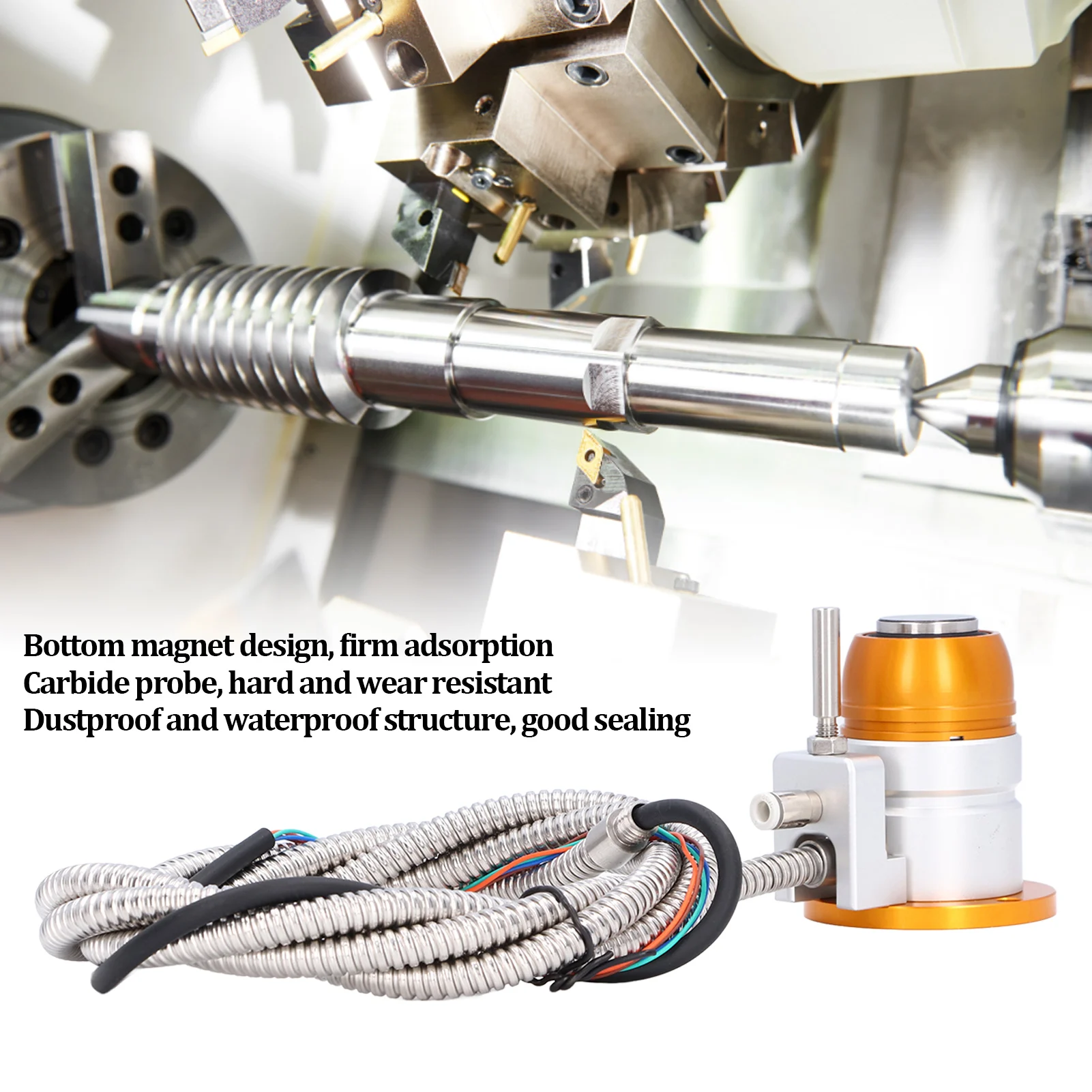

1. STRONG MAGNET: Bottom magnet design, can be directly connected to the machine, firmly attached to the body.
2. CARBIDE PROBE: The tool probe is made of cemented carbide, with fine processing, hard and wear resistant.
3. GOOD SEALING: With dustproof and waterproof structure, has strong durability in the existence of coolant and iron filings.
4. HIGH EFFICIENCY: Repeated positioning accuracy of 0.001mm, with high accuracy and sensitivity, efficient and durable.
5. FOR CNC DEVICES: The tool setter is normally closed design, with cable, and can be used with most CNC equipments.
Specification
Item Type: Touch Tool Setter
Product Material: Aluminum Alloy
Tool Head Material: Carbide Alloy
Product Model: MY20-20-2
Voltage: DC 24V
Current: 20MA (Maximum)
Output Mode: NC (Normally Closed)
Stroke: Approx. 5mm / 0.2in
Repeat Positioning Accuracy: 0.001mm
Life: 3 million times

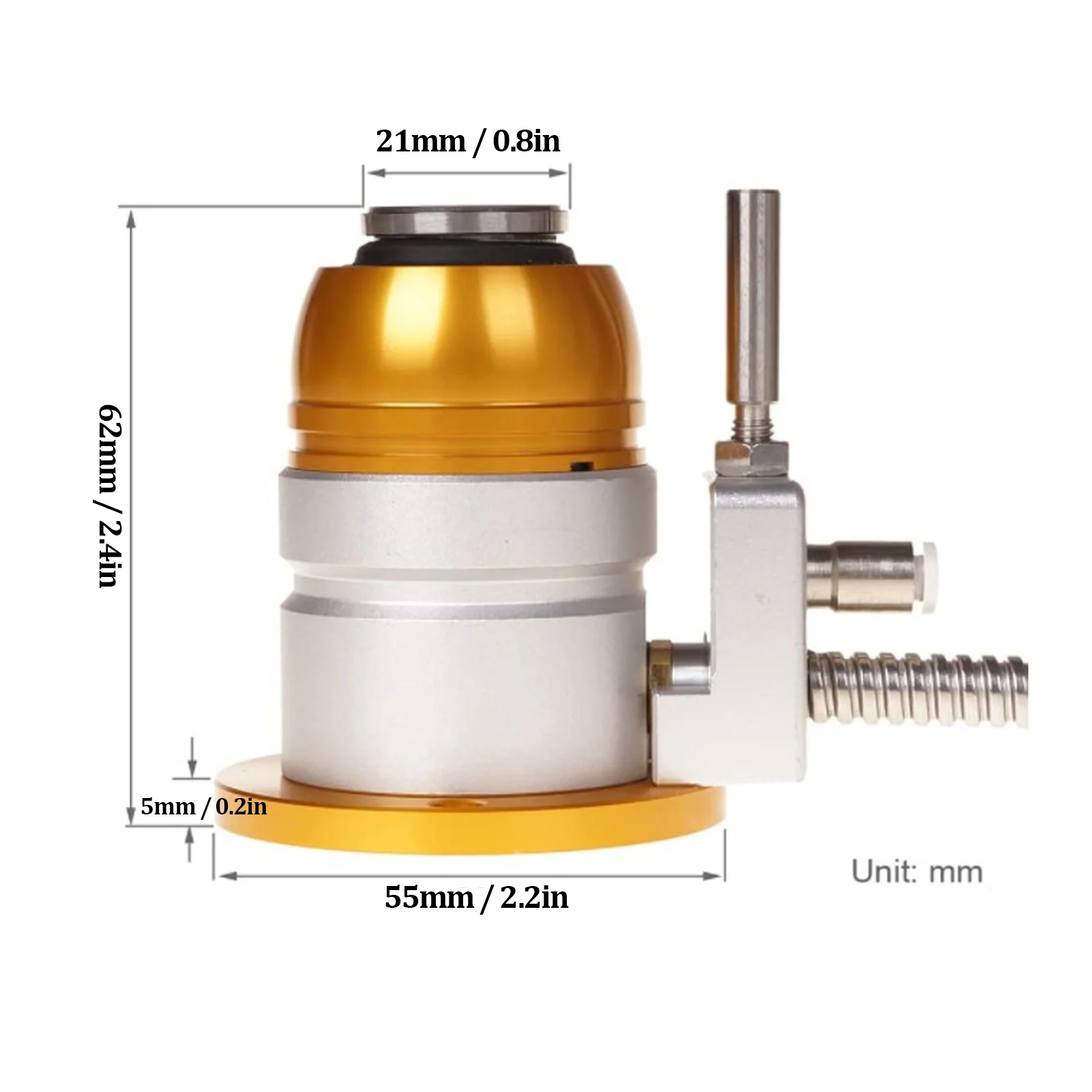

Tool Head Diameter: Approx. 20mm / 0.8in
Package List
1 x Tool Setter
Note

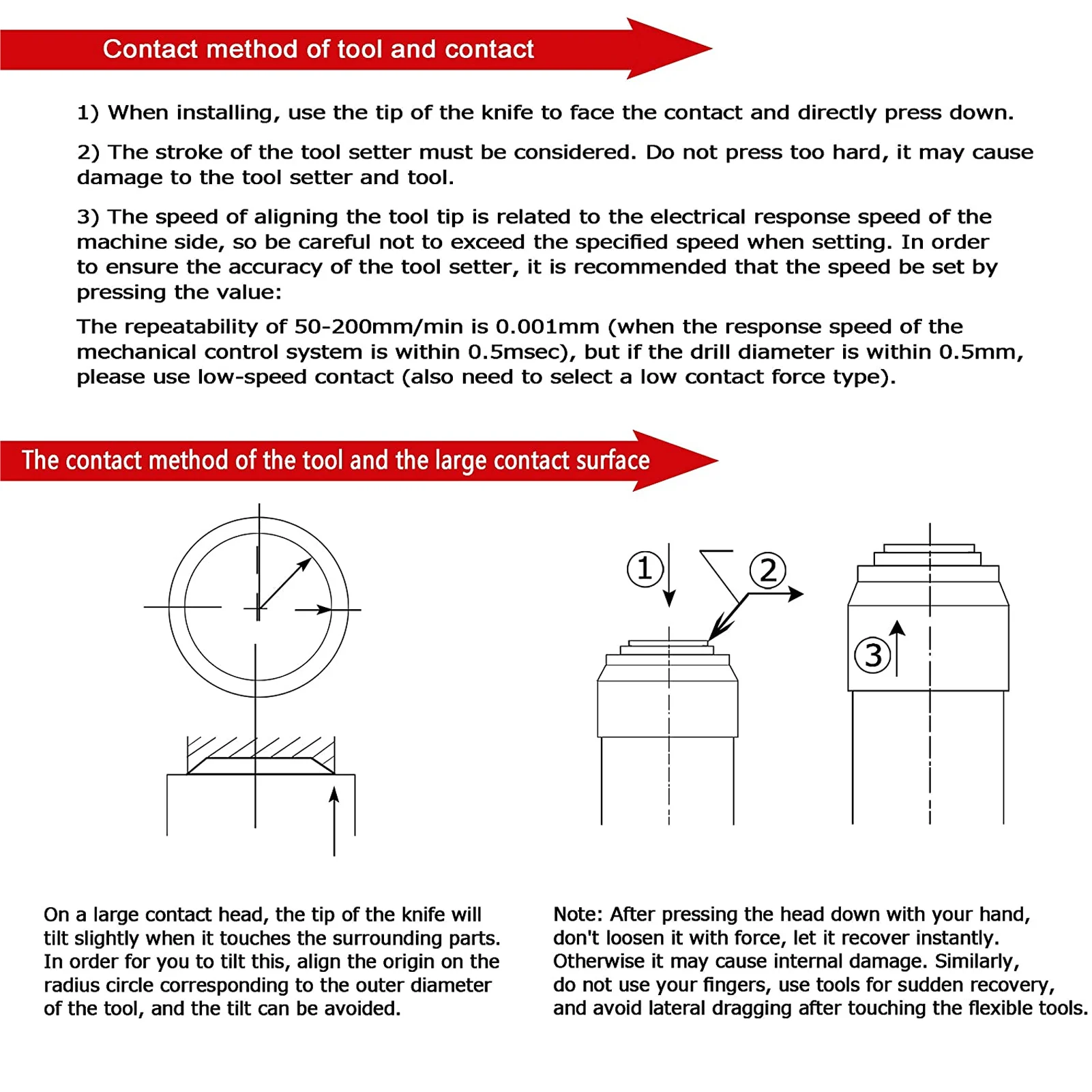

1. Please control the tool setting speed at 50‑200mm/min.
2. Ambient temperature range is 0‑80℃.
3. Please control the voltage at DC24V and the current below 20MA.
