PowMr USA 25A 35A 45A MPPT Solar Charge Controller 12V 24V Auto for 100V Panel Intelligent Regulator Lead-acid/Lithium Battery
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
Oferta AI para tu mercado
Selección optimizada según categoría, ruta de envío, velocidad de entrega y popularidad en tu mercado.
Por qué este producto encaja con tu mercado
- • Entrega estimada: 7.
- • Fuerte señal de clientes: 4.9★ de 16 reseñas.
- • Las recomendaciones se centran en esta categoría y en la disponibilidad para tu mercado.
Especificaciones del producto
Descripción detallada del producto
Este producto se muestra con opciones disponibles, precio para el mercado seleccionado y especificaciones verificadas.
- Marca: PowMr
- Ventas: 71
- Tamaño del paquete: 20 × 14 × 7 cm
- Peso del paquete: 12 kg
- Valoración: 4.9 / 5
Antes de añadir al carrito, selecciona una opción disponible y revisa la cantidad.
Reading before ordering!
When the item is in stock in US warehouse, the package will be shipped directly from the US warehouse, and the package will arrive in 3-7 days.
Please check the product information and description carefully before placing an order, especially the output voltage and input voltage, and consider carefully before purchasing the right product. We do not accept returns and refund disputes that are not related to product quality!

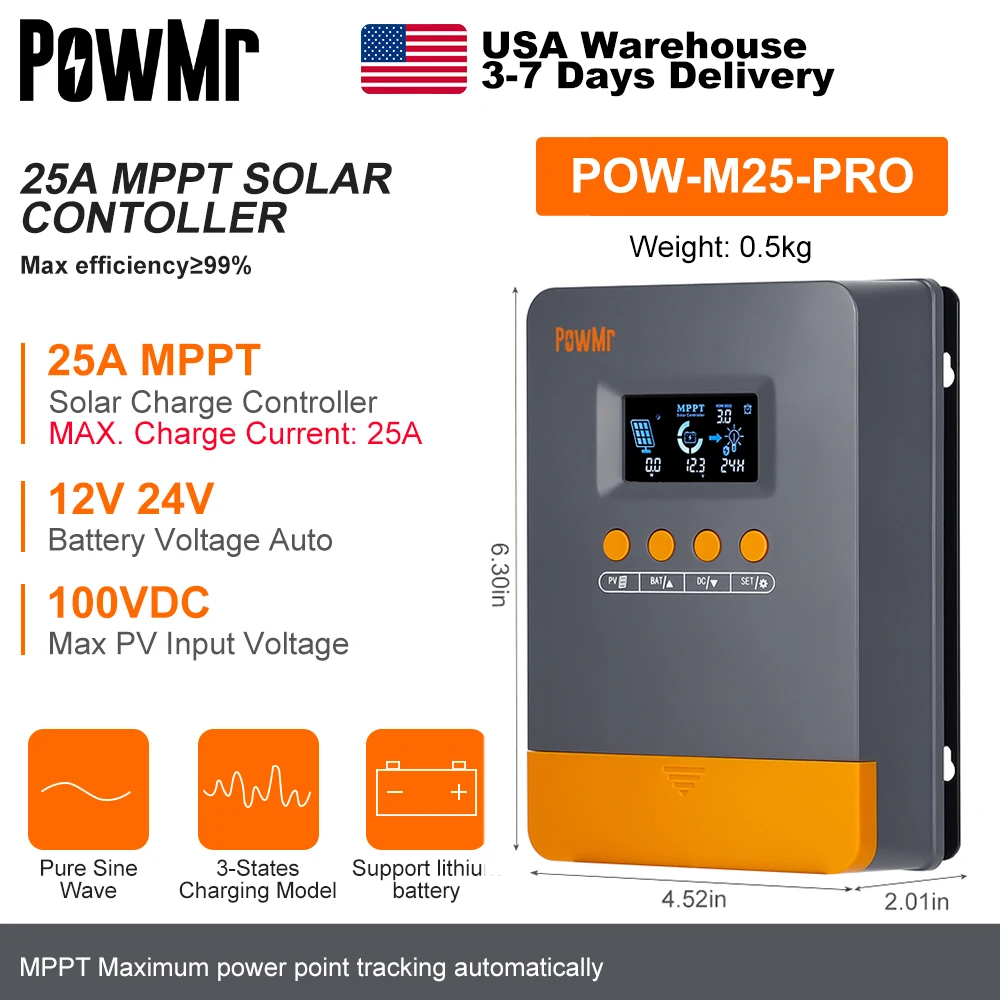

PowMr USA 25A 35A 45A MPPT Solar Charge Controller 12V 24V Auto for 100V Panel Intelligent Regulator Lead-acid/Lithium Battery
Introduction
POW-M25/M35/M45-PRO solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 98%.
Feature
* MPPT 25A 35A 45A solar charge controller.

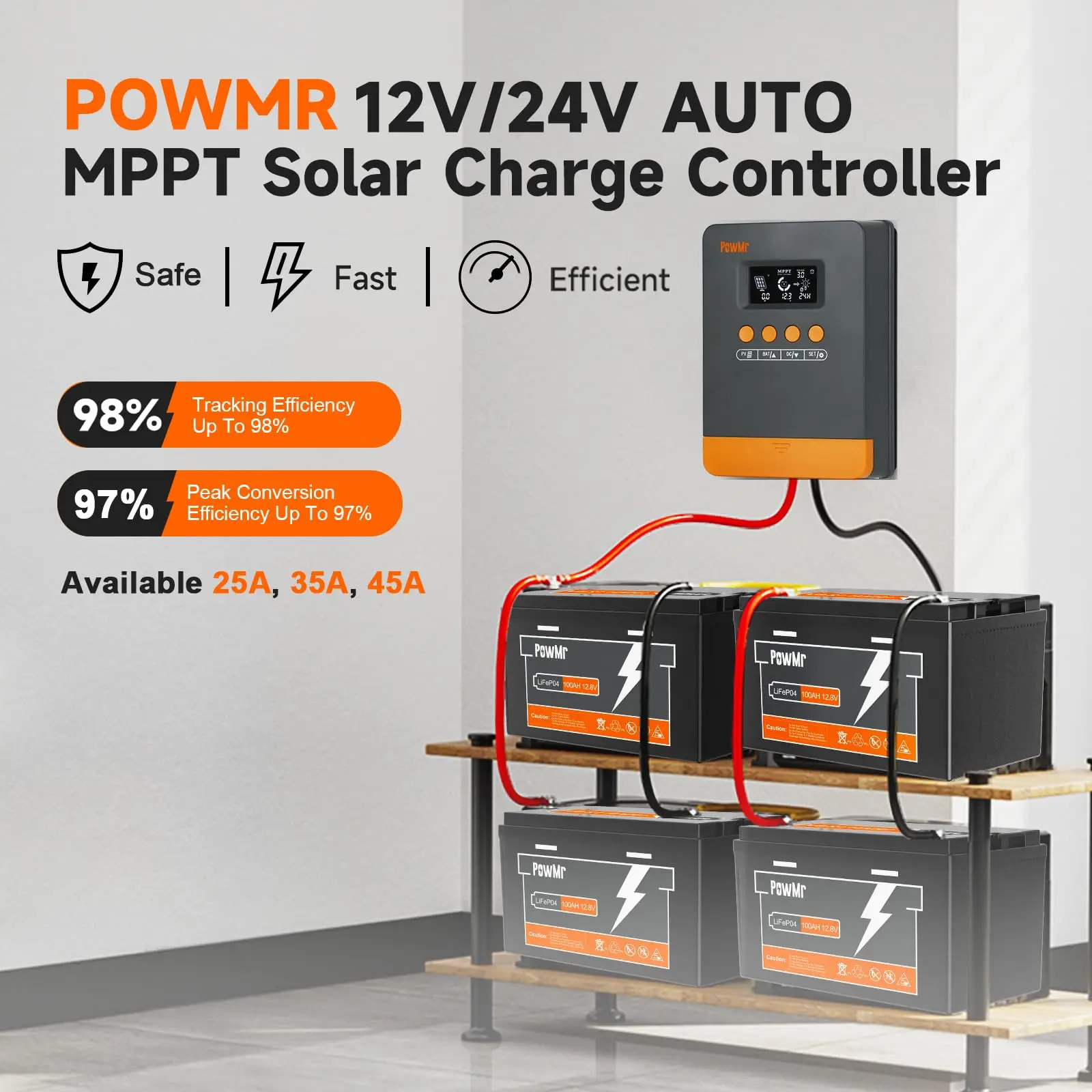

* Innovative MPPT technology with a tracking efficiency of up to 99% and a peak conversione fficiency of up to 97%.
* Built-in DSP controller with high performance.

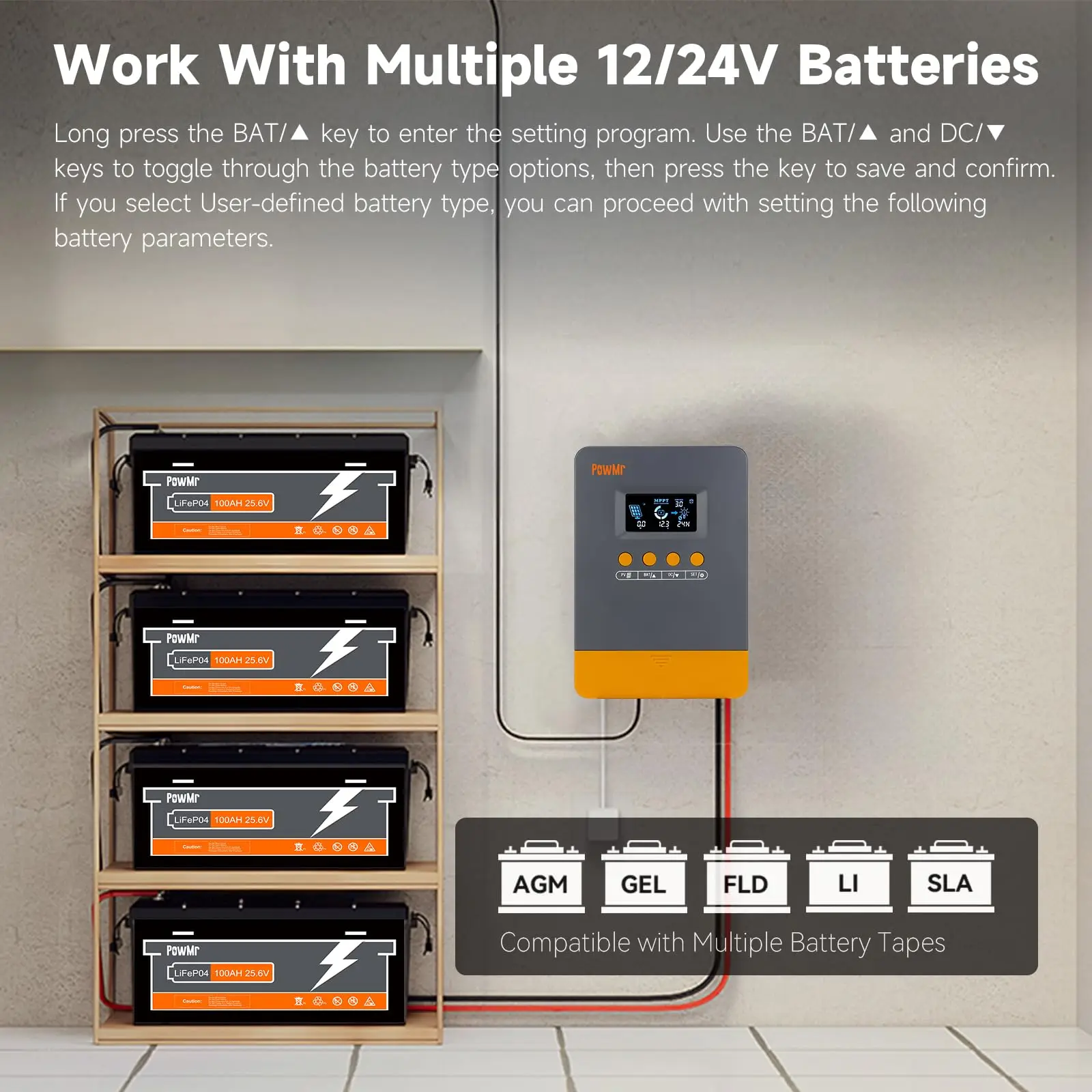

* Automatic switch for 12V/24V battery bank.
* 3-stage charging optimizes battery performance.

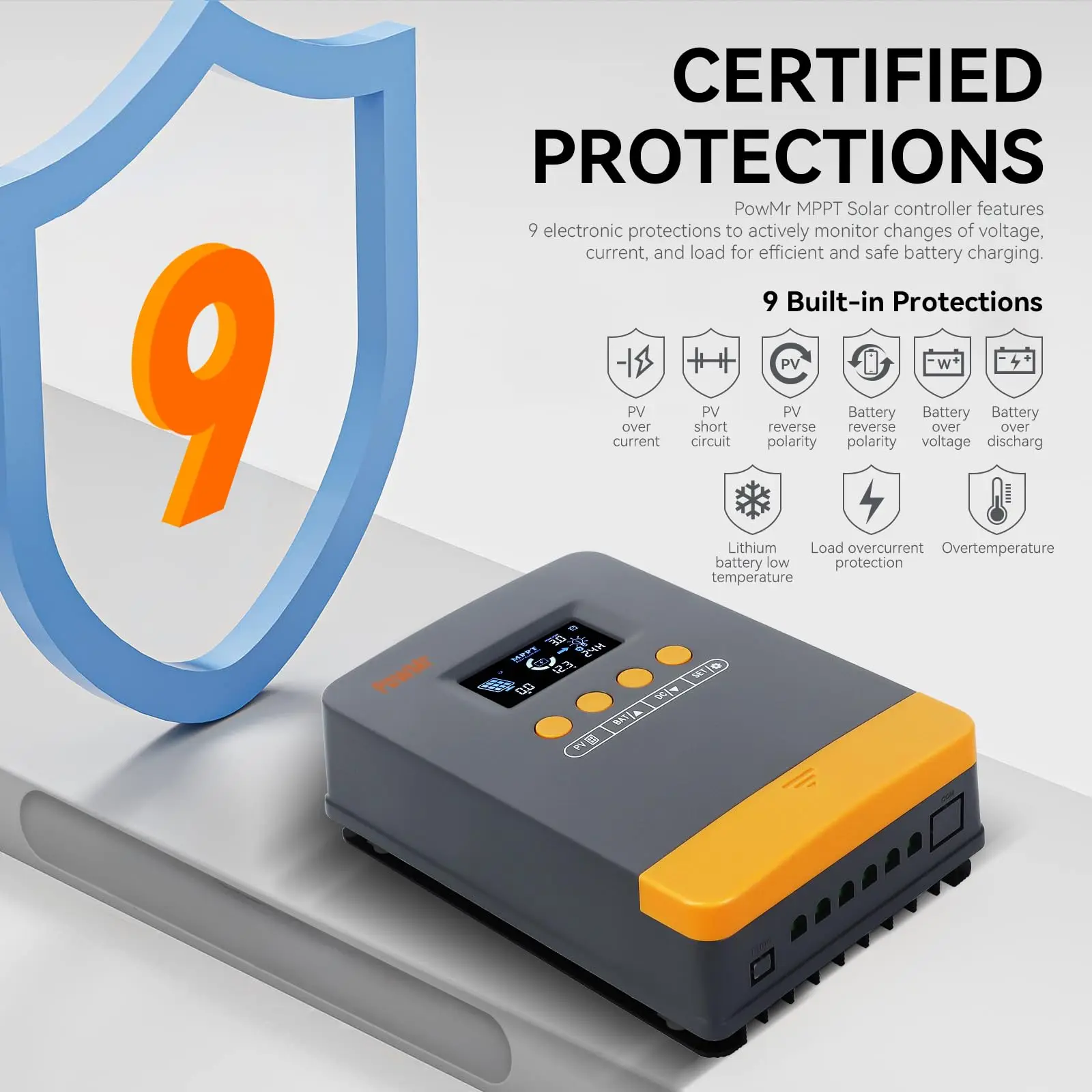

* Overcharge protection, Input PV polarity reverse protection, Output limited current protection.
* Over-temperature protection.
* Troubleshooting promotion function.
* Easy to be mounted.
Specification
POW-M25-PRO
POW-M35-PRO
POW-M45-PRO
Model
25A
35A
45A
Solar Input Parameters
Max. PV Open-Circuit Voltage
100V
Max. Input Power
For 12V System
300W
420W
540W
For 24V System
600W
840W
1080W
Input Voltage Range
Battery Charging Parameters
Charging Technology
MPPT
Charging Algorithm
3 Stages
Nominal System Voltage
12V/24V
Battery Voltage Range
9~30V
Rated Charging Current
Conversion Efficiency
Max. Power Point Tracking Efficiency
>99%
Temperature Compensation
3mV/℃/2V (default)
Self-Consumption
44mA/12V; 26mA/24V
DC Output Parameters
Rated DC Output Current
15A
20A
General Parameters
IP Class
IP32
Operating Temperature Range
35℃~+45℃
Humidity Range
Altitude
Dimensions
160x115x51mm
195x135x65mm
Net Weight
500g
900g
1035g
Product Overview
