THINKCAR THINKDIAG Nuevo arranque Thinkdiag Todo el sistema Herramientas de diagnóstico en español Codificación ECU Prueba activa IMMO TPMS 15 Reinicio Coche OBD2 Escáner pk ELM327

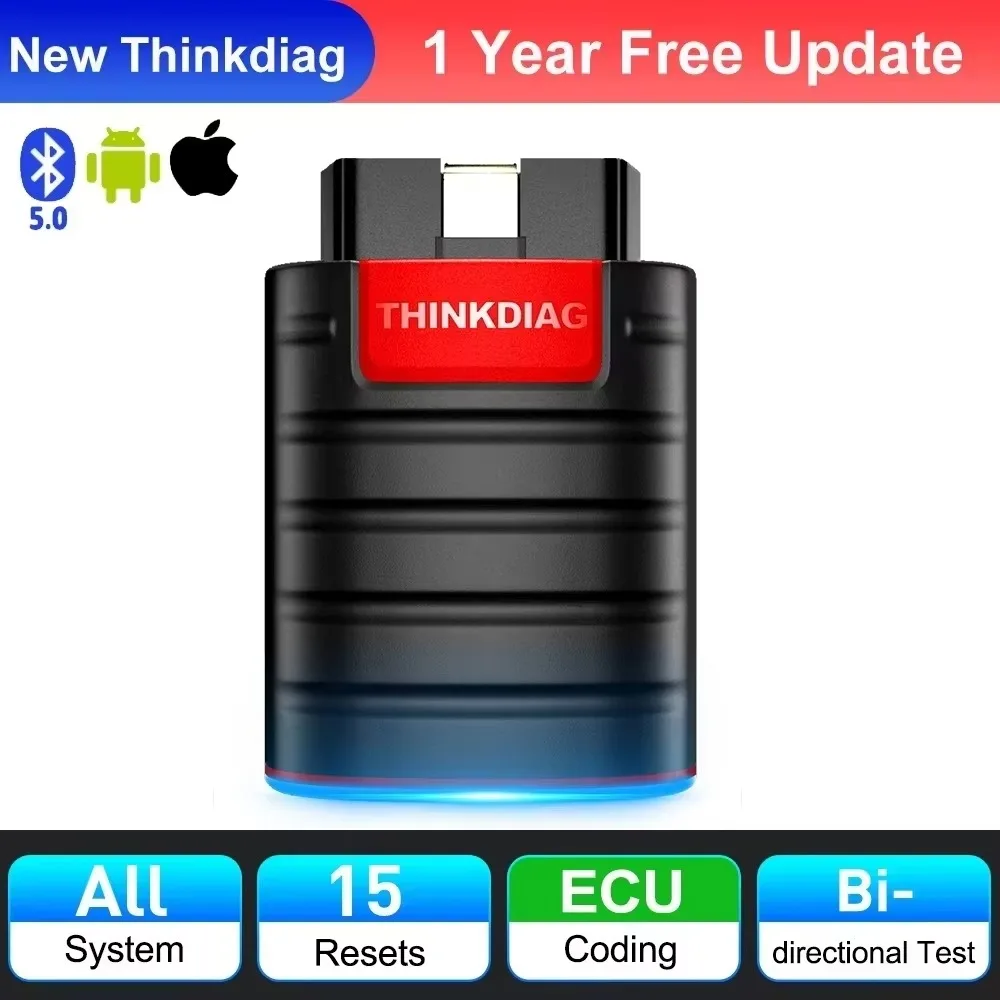

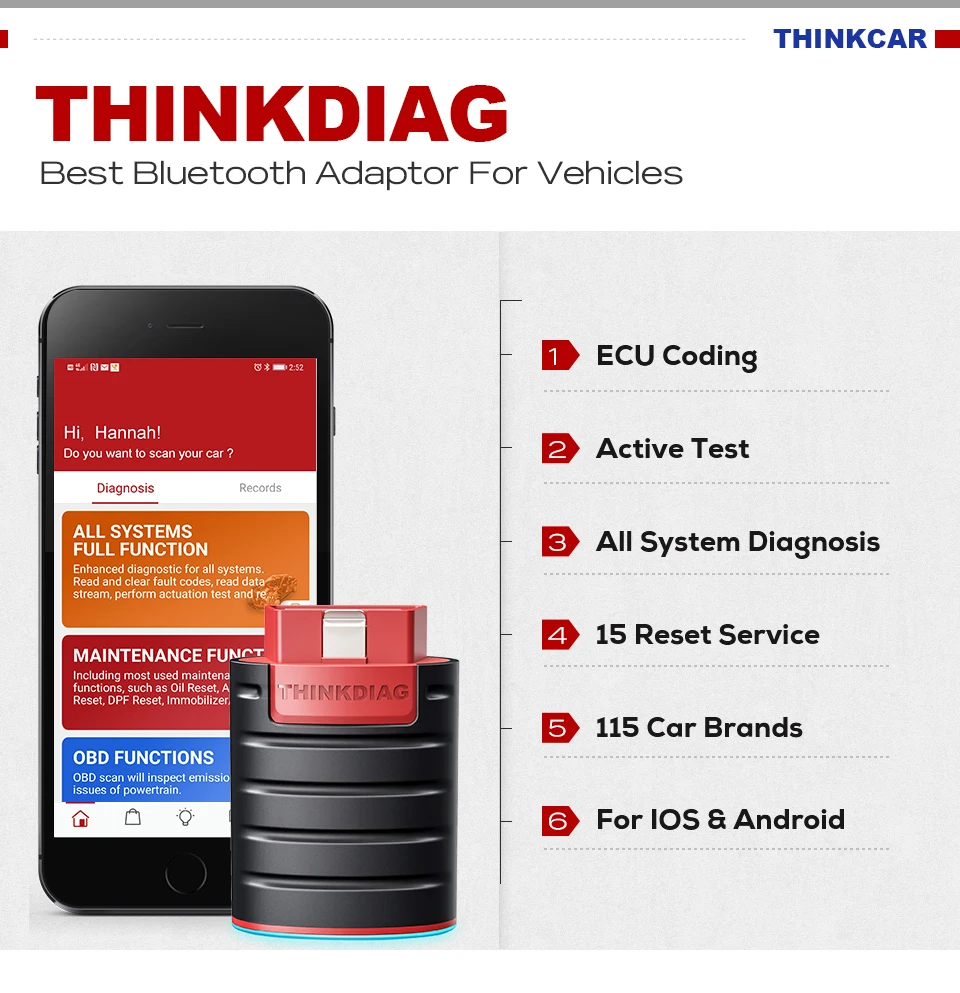

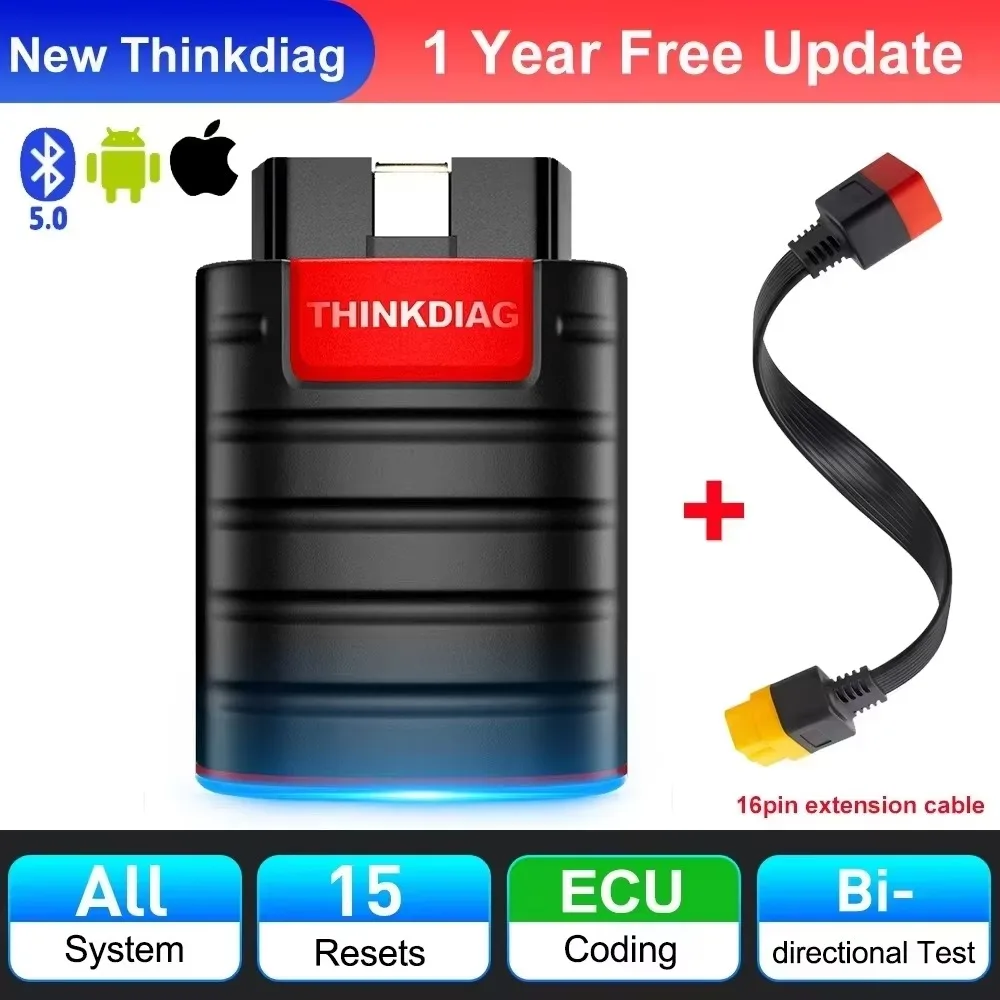

THINKCAR New Thinkdiag, with All Software 1 Year Free (including 115 Car Brands, All system Diagnostic tools,15 kind of Resets, ECU Coding, Active Test (Bi-directional control))OBDII Diagnostic Tool

2. 【11 Languages supported】 English,, Russian, Turkish, German, Italian, French, Japanese, Portuguese, Spanish, Polish, Traditional Chinese.

3. 【All systems diagnosis】Select All Systems All Functions Diagnosis, reading system fault codes, and clear system fault codes. Such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System, etc.

4. 【ECU Coding】Uses the ThinkDiag App to modify the adaptive data for vehicle control modules.

5. 【Active Test, Actuation Test】Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness

6. 【15 Maintenance Functions】SAS Reset, Brake Reset, Gear Reset, Oil Reset, IMMO Reset, Inject Reset, Tpms Reset, BMS/Battery Match, Bleed Reset, ETS/ELEC.TH ROTTLE RLRN Reset, DPF Reset, Air level calibration Reset, AFS Reset, Sunroof Reset, Gearbox Learn, EGR Adaption

7. 【All OBD II and EOBD functions Lifetime Free】you can use the OBD2/EOBD function lifetime free

8. 【Auto VIN Scan】Thinkdiag can automatically scan the car's information, include VIN number, release year, model and engine type.

9. 【Other Main Function】Live Data Stream Graphing, Data Record, Print Vehicle Health Report, Remote Diagnostic, diagnostic feedback

11. 【Compatible with both Android and iOS smartphone and tablets】

12. 【Palm-sized, portable, and powerful 】

10 Languages supported

Russian, English, French, German, Spanish, Italian, Portuguese, Japanese, Turkish

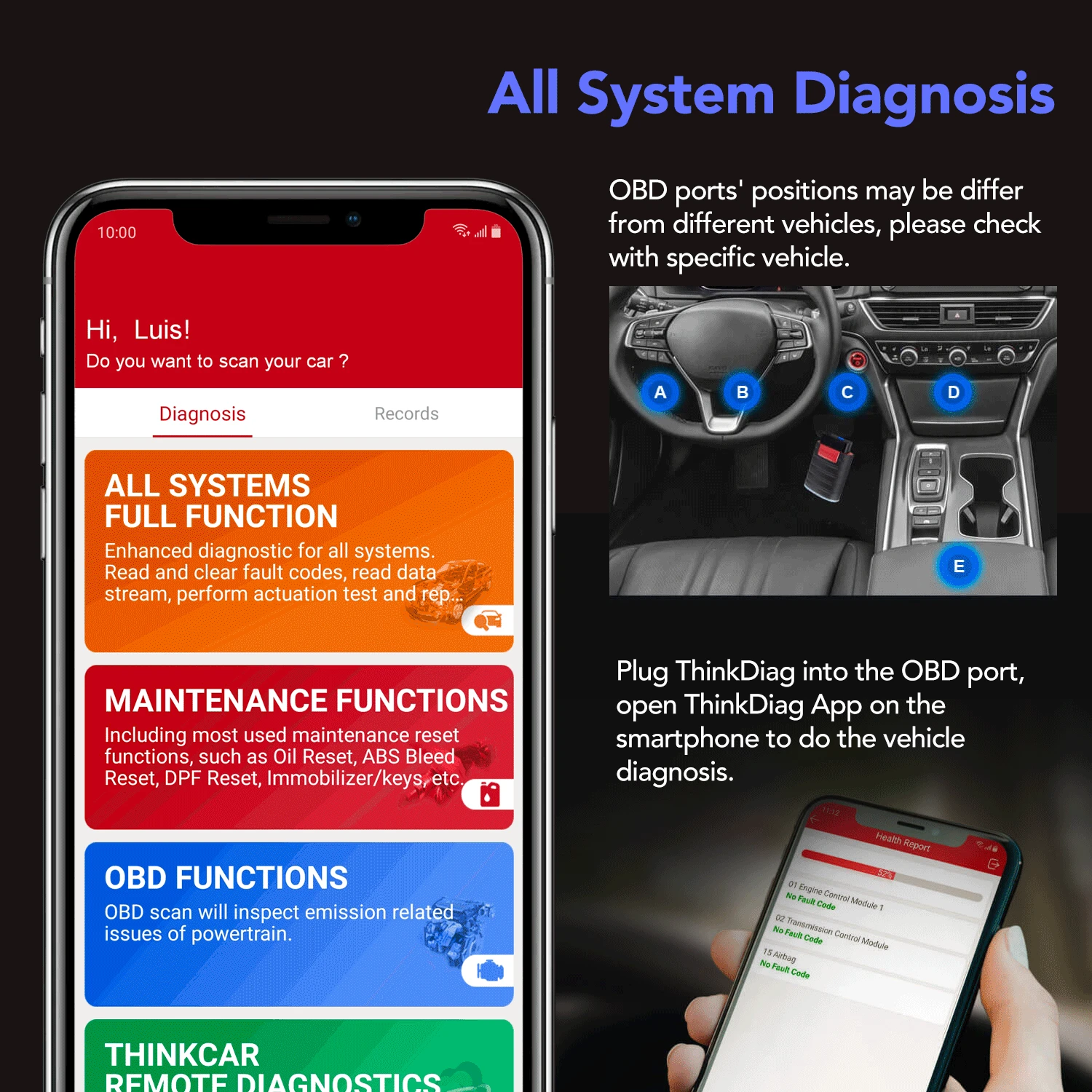

Thinkdiag support All System Diagnostics, the Bluetooth OBD2 scanner preferred by millions of car owners

Thinkdiag can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.

Include: ABS system, Engine system, SAS system, TPMS system, IMMO system, Battery system, Oil service system, SRS system, ect...

Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Actuation Test, ECU coding and 15 Special Function ect...

ECU Coding (Customize)

Uses the ThinkDiag App to modify the adaptive data for vehicle control modules, after repairs or replacements of vehicle parts including

[ Power Window | Illuminated Entry | Warning | Light Control | Slide Roof | Air Conditioner | Display | Unit Conversion | Entry & Start | PSD & PBD Operation | Seat … ]

Active Test (Actuation Test)

Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness

[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

15 Reset Functions (to meet the maintenance vehicle repair and after-sales maintenance)

Please note that not all models support all reset functions.

If you are not sure whether this function is supported, please send us your model and year to help you check.

1. Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset themileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Brake Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.

3. Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

4. IMMO Reset

To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. When the ignition switch key, ignition switch, combined instrument panel, ECu, BCM, or remote control battery is replaced, anti-theft key matching must be performed.

5. Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder soas to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identifyinjectors to accurately control fuel injection.

6. TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.

7. TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.

8. Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

9. ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity. lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

10. Elec.Throttle Adaption

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.

11. DPF Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

12. Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.

13. AFS Reset

This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

14. Sunroof Initialization

This function can set the sunroof lock off, closed when it rains, sliding/tilting sunroof memory function, temperature threshold outside the car etc.

15. Gearbox Learn

16. EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

THINKDIAG OBD2/EOBD Function Lifetime Free

This diagnostic software can test vehicle Engine systems. All models with engine meeting SAE J1850, ISO9241-2, ISO14230-4, ISO15765 Standard in OBD2 & EOBD.

* View freeze frame date

* support graph data stream

* O2 Sensor test

* Evap system test

* On-Board monitor test

* Read & Clear DTCs

* Identify VIN information

* DTC code look up

* Turn off MIL(Malfunction Indicator Lights)

* I/M Readiness status test

Auto Scan Car VIN Code

Thinkdiag can automatically scan the car's information, include VIN number, release year, model and engine type.

4 Data display in 1 Graph

Thinkdiag will Read vehicle’s live data, and present by graph. Optional combination of multiple data.

Print diagnostic Report

View and print online diagnostic reports, VIC diagnostic reports, which helps you analyze the trouble when driving and solve it.

Other Functions

1. Auto Detect car's vin in 1o seconds

2. Support printed car health report

3. Remote Diagnosis
