10.36" AHD 4 Channel Monitor Recording DVR 1080P Black Box Rear View Camera Truck Vehicle Touch Screen Support

Camera night vision principle

1: Starlight night vision: At night, only a little light, such as street lights, car lights, etc., can be used to obtain high-definition color images. Suitable for installation inside and outside the car. (Recommended)

2: Infrared night vision: At night, if it is pitch black and there is no light at all, black and white high-definition images can be obtained. Suitable for installation outside the car.

Note

Things to know before buying

The camera with LED light is an infrared night vision camera

The camera without LED light is a starlight night vision camera

한국어 지원, 적외선 야간 투시

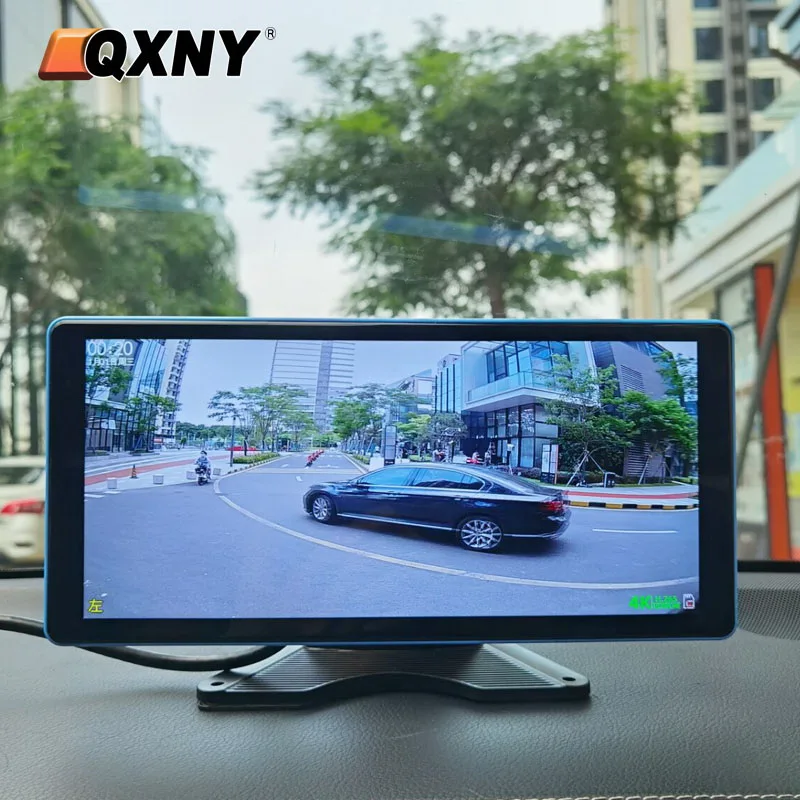

Monitor Features

IPS Screen

Excellent 178° Full-view display technology

Loop Recording

* Parking video recording and playback, it will record the parking video in 24/7 mode when you are not inside of the car. The storage support up to 128GB. Automatically overwrite the previous recordings with new files when the memory card is full.

* Adopt Time-lapse video recording technology, save more space and no need to format the memory card often. (Note: Time-lapse video recording is only available during parking period, the monitor will always support normal video recording during driving.)

* H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means it saves more storage space, store more videos and the videos quality are smoother.

Reversing Trigger

When reversing, activate the large screen of the camera behind the car to see more clearly.

Connect U disk, play movie music

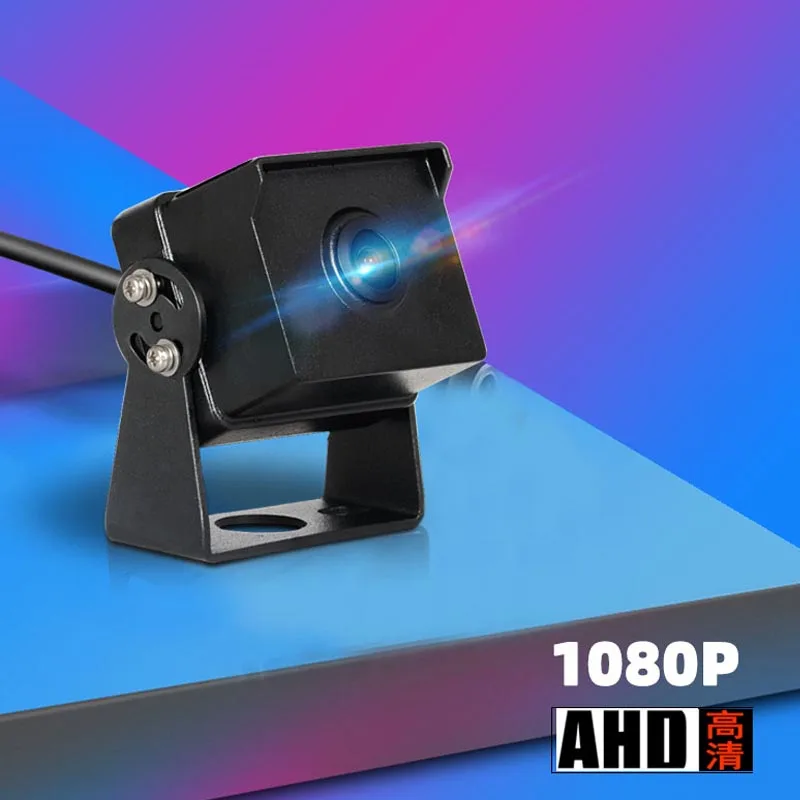

QXNY AHD HD Camera

* With AHD 1080P Camera lens, the quality of shooting video is delicate and clear even in low light conditions at night.

* Truck-Specific Aviation Cable, Default 1pcs 15 meters extending cable for rear view, 3pcs 5 meters extending cable for front, left and right view. Support to customize the cable as you need.

* Support waterproof IP68.

* QXNY store has many types of AHD cameras, ha have different lengths of custom cables, welcome to buy.

QXNY AHD HD Camera* With AHD 1080P Camera lens, the quality of shooting video is delicate and clear even in low light conditions at night.* Truck-Specific Aviation Cable, Default 1pcs 15 meters extending cable for rear view, 3pcs 5 meters extending cable for front, left and right view. Support to customize the cable as you need.* Support waterproof IP68.* QXNY store has many types of AHD cameras, ha have different lengths of custom cables, welcome to buy.

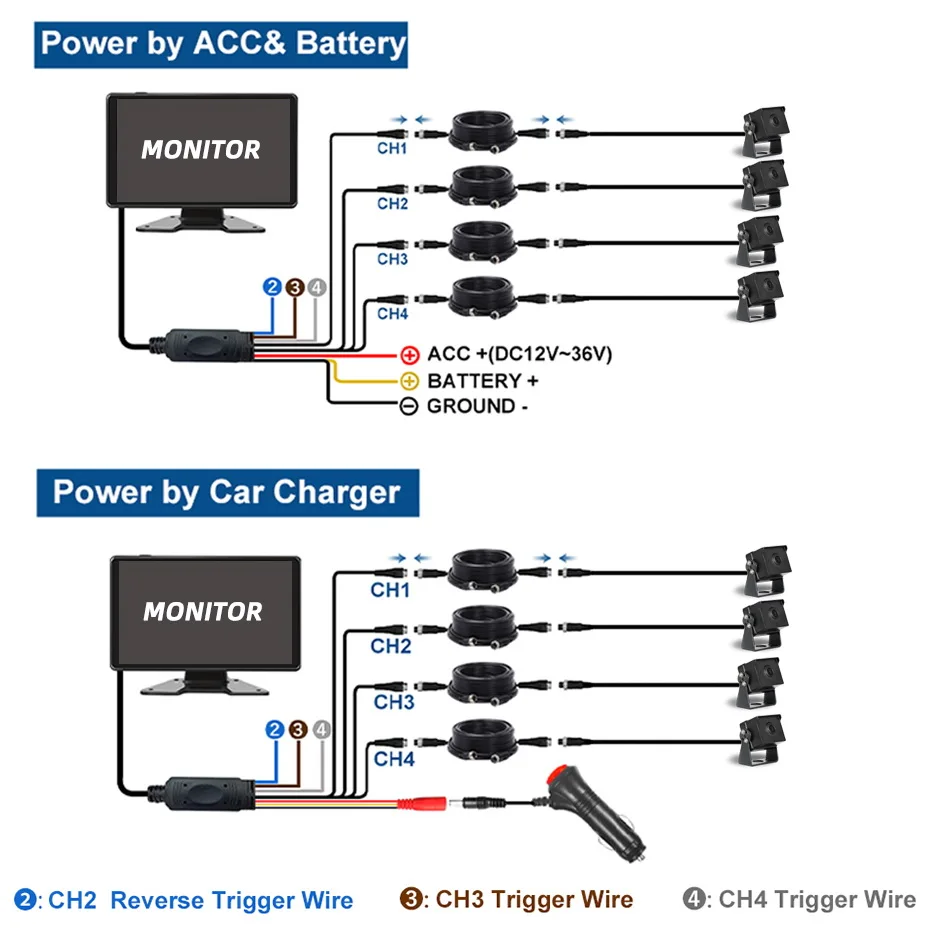

Wiring Diagram

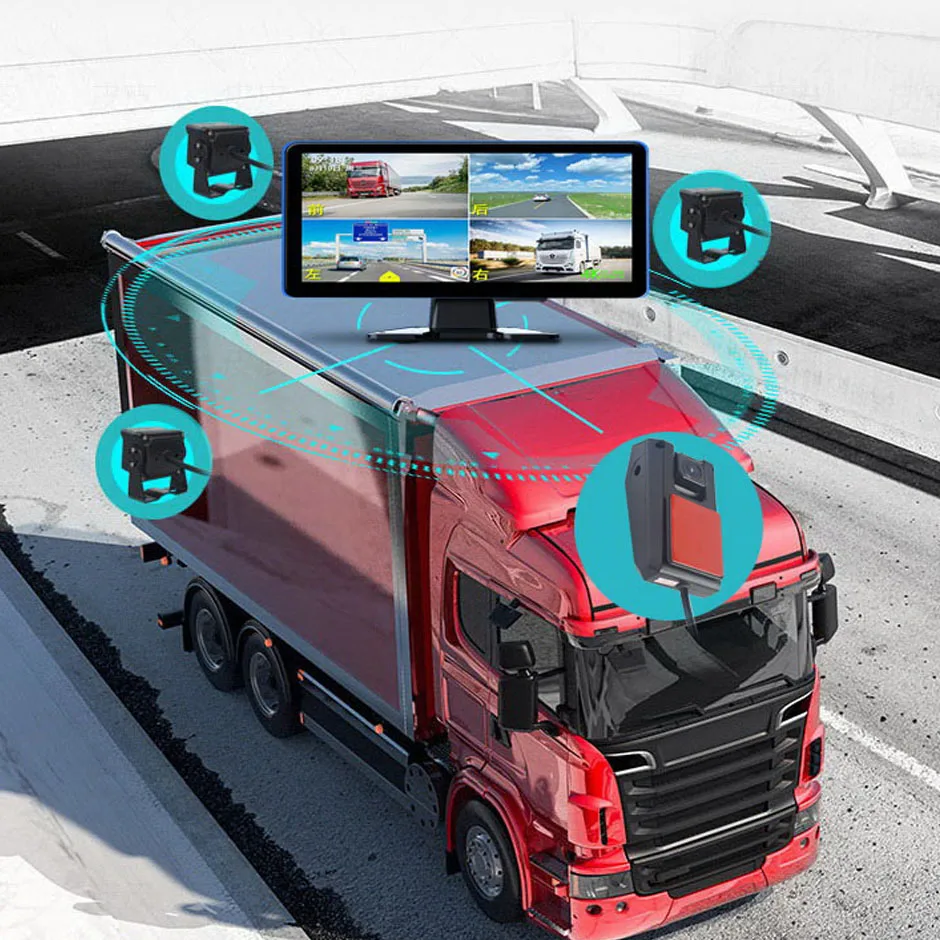

* Install four AHD cameras on the front, left, right and rear side of the vehicle, respectively connected to the monitor. You will enjoy real-time driving monitoring, driving assistance, parking monitoring, and driving records anytime, anywhere

Red Cable → Connect to ACC positive (+)

Yellow Cable → Connect to battery positive (+)

Black Cable → Connect to battery negative (-)

Q：Why can't I set the time and date?

R: The yellow cable on the product needs to be connected to the positive terminal of the battery. It is responsible for powering the time and date module! If the power is lost, the time and date must be reset.If you use the cigarette lighter as a power source, the time and date will not be saved and updated.

Q：Why does the monitor power on and then shut down immediately?

R: Please ensure that both the yellow and red cables are connected to the same voltage (12V or 24V). If only the red and black cables are connected, the monitor will power on and then shut down.
