12V/24V 80lbs/85lbs Outboard Brush Engine Heavy Duty Electric Trolling Motor For Fishing Boat Dinghy Ship Propeller

12V 80lbs

Description

Do you like fishing on the river? Do you want to go boating with your family? But are you worried about manual boating is too tired? With our electric trolling outboard motor, you don't have to worry about this problem. This motor has sufficient power and can drive the boat at a fast speed. The 1.5 HP electric trolling outboard motor is suitable for all kinds of small boats, such as rubber boats, fishing boats, and wooden boats.

Application

It is suitable for small boats of different materials, such as inflatable boats, iron boats, plastic boats, wooden boats, fishing boats, and sailboats.

Specification

Material: Aluminum, Composite Fibreglass, Nylon, Alloy, ABS

Input Voltage: 12v

Output power: 800w

Horsepower: 1.2HP

Suitable Number: 6-8 People

Speed Regulation: Forward 5 Gears, Backward 3 Gears

Motor Type: Brush

Number of Propeller Blades: 3

No-load Speed: 1900r/min

Control Method: Manual Control

The Fixing Method of the Hull and the Propeller: Suspended

Power Mode: Motor Drive (Battery Needs to be Purchased Locally)

Thrust: 36kg/80lbs

Net Weight: 10kg/22lbs

Gross weight: 12kg/26.45lbs

Traction Force: 1850kg/4078lbs

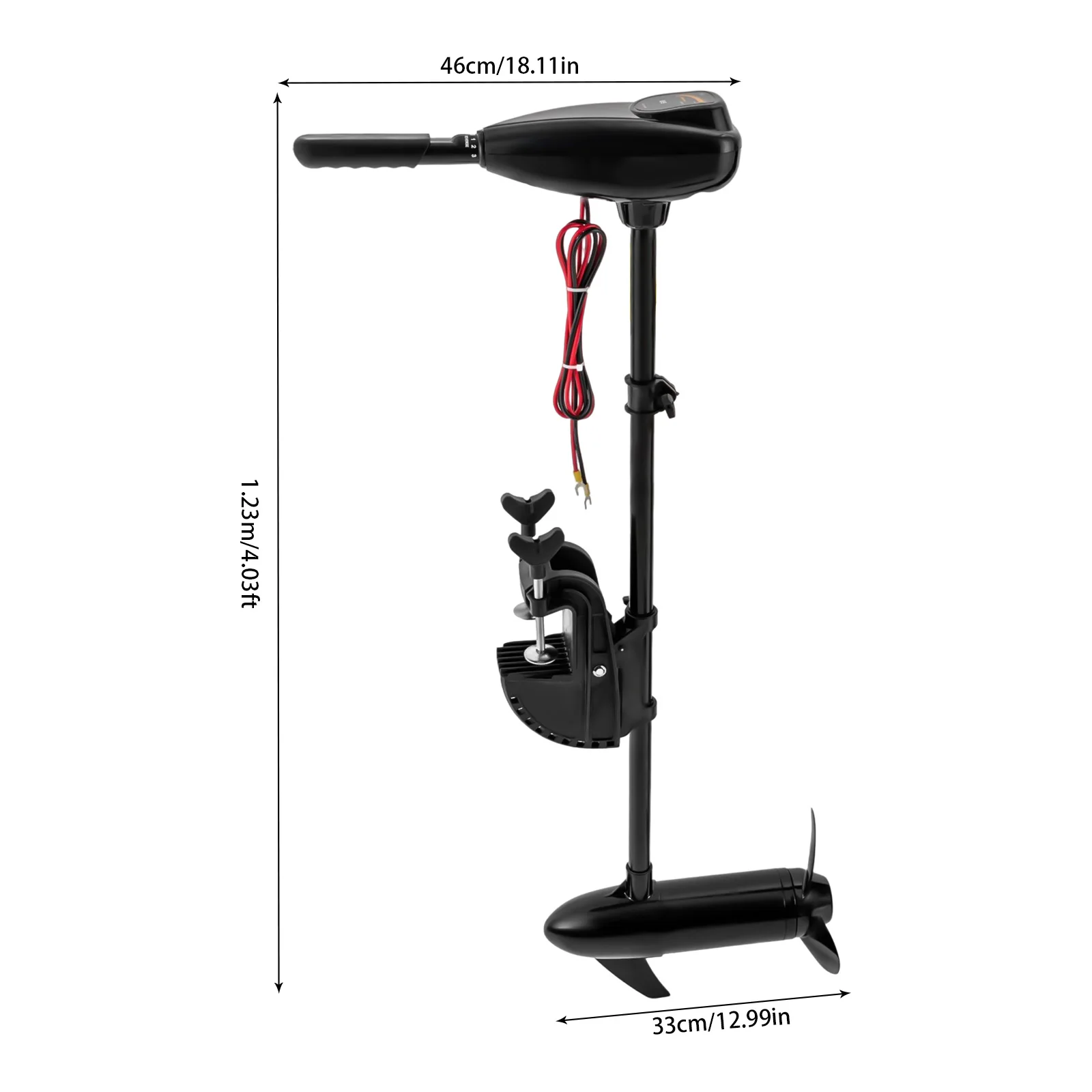

Packing Size: 130*48*17cm/51.18*18.89*6.69in

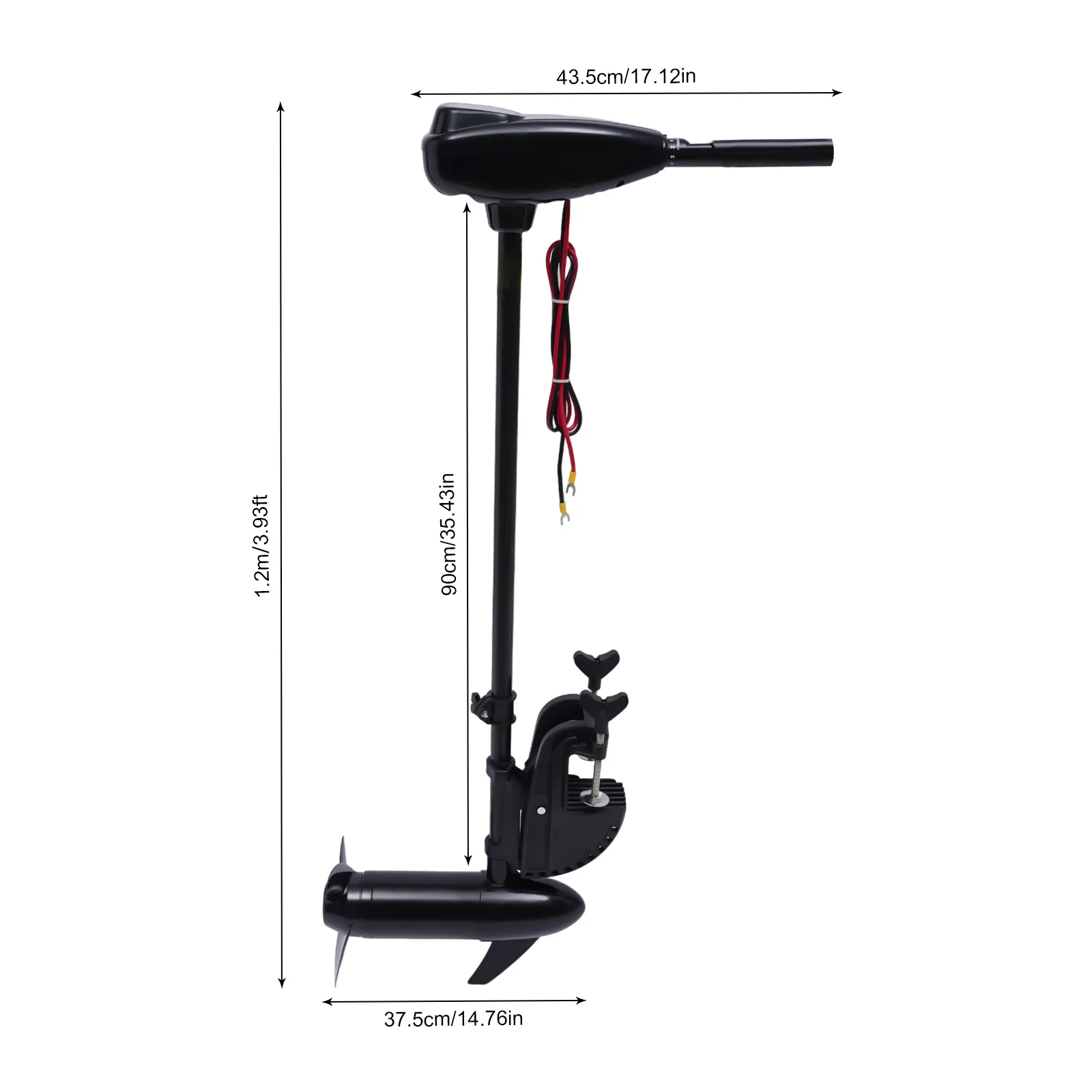

Main Pole Length: 91cm/36in

Handle Length: 19cm/7.48in (Can Be Stretched to 28.5cm/11.22in)

Key Features

Adjustable Gears: The fixed tiller has 5 forward and 3 reverse speeds. You can smoothly switch the speed and change the direction during driving.

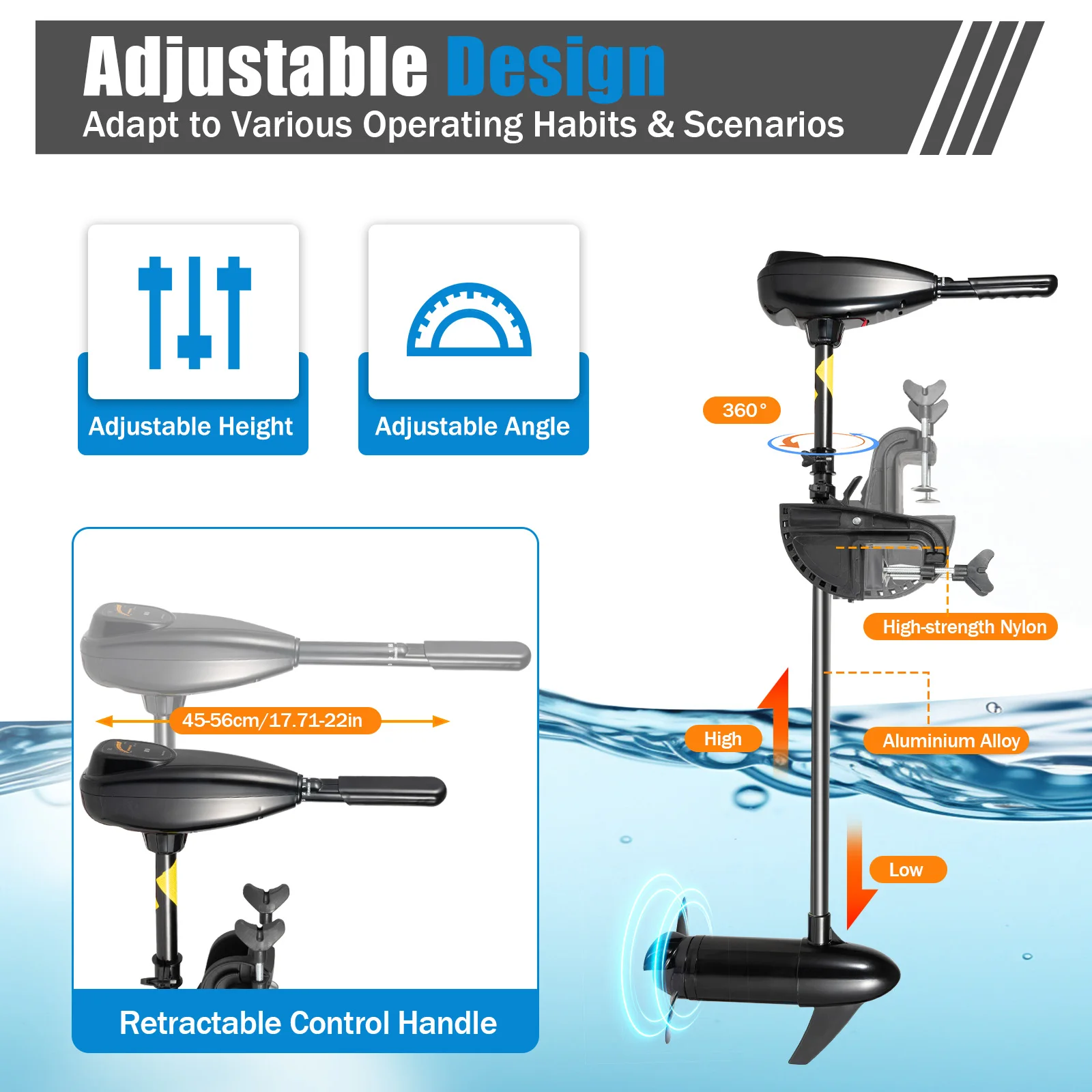

Adjustable Support Bar: The height of the support bar can be adjusted via a knob in the middle to accommodate people of different heights to drive the boat, giving you a more comfortable experience.

High Efficiency: With a horsepower of 1.2hp and a no-load speed of up to 1900r/min, this electric trolling outboard motor guarantees great power and high driving speed to increase its efficiency.

Powerful Traction: With its high-quality pure copper motor, it has a powerful tractive effort of up to 4078lbs which can be used by 6 to 8 people.

Non-slip Handle: The handle is ergonomically designed for easy grip, while the uneven surface is designed to be non-slip.

Real-time Battery Monitoring: A display on the top of the outboard motor shows real-time battery power, making it easy for you to check the battery level at any time and prepare for charging in advance to avoid running out of power during the voyage.

Retractable Control Handle: The handle of this motor is retractable. You can choose the right length(7.48in-11.22in) according to your operating habits.

Adjustable Angle:There are 10 levels of angle adjustment to suit different water depths(deeper than 0.7m/2.29ft) and also greatly reduce the probability of underwater rocks hitting the motor.

Easy to Carry: The net weight of this engine is only 22lbs. You can easily take the electric trolling outboard motor outdoors to go fishing on the river.

Details

Pure Copper Motor: It is equipped with a high-performance all-copper motor underwater motor system with low heat loss and more power-saving, allowing it to work more efficiently.

Three-Blade Propeller: This motor uses an anti-tangle three-blade propeller to replace the traditional manual boat propeller. This propeller has a fast speed and allows the boat to be driven quickly.

Mounting Bracket:The electric trolling outboard motor has a mounting bracket on the rod, which is used to secure the engine firmly on the boat. It is also very easy to install.

Power wiring: The connecting wire is made of the full copper inner core, which is effectively waterproof, and corrosion-proof, with quality assurance.

High-quality Main Pole: The main rod is made of fiberglass, which is light, tough, and corrosion resistant, ensuring a long service life.

Package Included

1* Electric Trolling Outboard Motor

1* Fan Blade

1* English User Manual

All Accessories Necessary for Installation

Notes

1. Be sure all switches are in the OFF position before connecting to the battery. Electrical arcing near the battery could ignite hydrogen gas and cause the battery to explode.

2. Before the installation, Make sure the area between the column and bracket is clear.

3. Please do not allow children to operate the electric outboard motor.

4. Please do not modify the unit in any way or add accessories not intended for this product.

5. Never fully submerse the unit, if the unit is accidentally submersed disconnect the battery and leave it to dry.

6. Always disconnect power from the motor when replacing the propeller, removing debris around the prop, charging batteries, transporting the boat or when the motor is not in use.

7. To prevent accidental damage of the fiberglass shaft, do not over tighten the mounting bracket. Only use this product between the temperatures of -20C to +45C (-4F to +113F).

8. The motor can only be used in water that is deeper than 0.7m/2.29ft.

9. Remember to wash the motor using fresh water after using it in salt water as it can greatly reduce the possibility of corrosion.

10. Remember always disconnect from batteries once the motor leaves water as a rotating propeller can cause personal injury.

11. Please choose a 12v 30-120AH battery, and choose the corresponding ampere hour battery according to the usage time. Please note that the battery is not included in the package.

12. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

24V 85lbs

With its strong load-bearing capacity and high efficiency, this 24V electric trolling motor is a great machine for a variety of applications. The forward&reverse regulation and the Its various considerate designs improve the stability and performance of this motor. With the large LED display, you can see the power allowance clearly. It is an ideal tool for you!

It is suitable for most boats with 9.84-19.68ft lengths such as inflatable boats, canoes, and aluminum fishing boats. It can be used in fresh water and saline water forfishing, aquaculture, outdoor adventure, etc

Specifications

Color: Black

Material: Nylon, Glass Fiber Composite, Copper

Surface Treatment: Plastic Spraying

Mounting Type: Transom

Recommended Uses: For Inflatable Boats, Canoes, Fishing Boats

Power Mode: Motor Drive

Fuel Type: Electric

Batteries Included: No

Motor Type: Brush Motor

Voltage: 24V

Rated Power: 1152W

Horsepower: 1.6HP

No-load Speed: 1900rmp

Thrust: 37.2kg/85lbs

Traction Force: 2050kg/4519lbs

Applicable Boats: 3-6m/9.84-19.68ft

Handle Length: 19-28.5cm/7.48-11.22inch
