12V 24V Solar Charge Controller Solar Regulator for Lithium Lead-Acid(White 30A)
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Package size: 17 × 10 × 4 cm
- Package weight: 0.23 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.

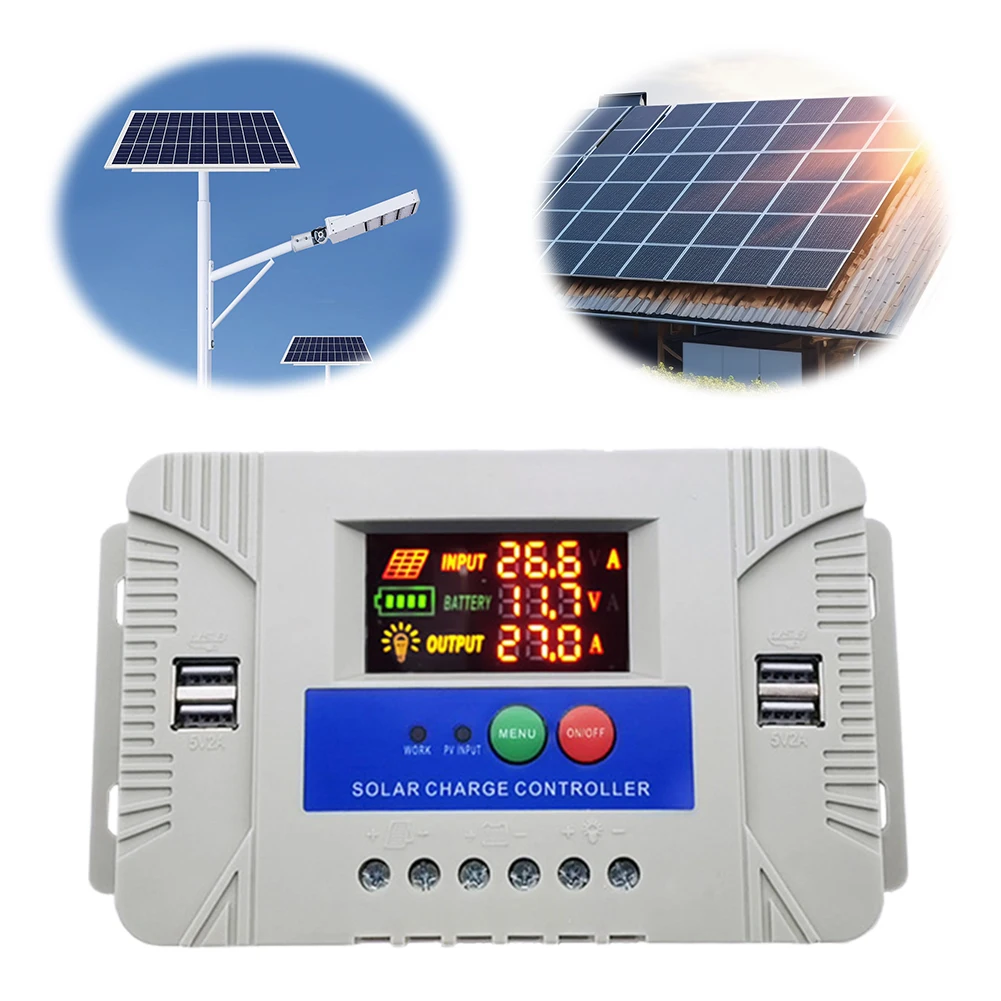

12V 24V Solar Charge Controller Charge Controller LED Display Solar Controller for Home and Outdoor Energy Solution
Features

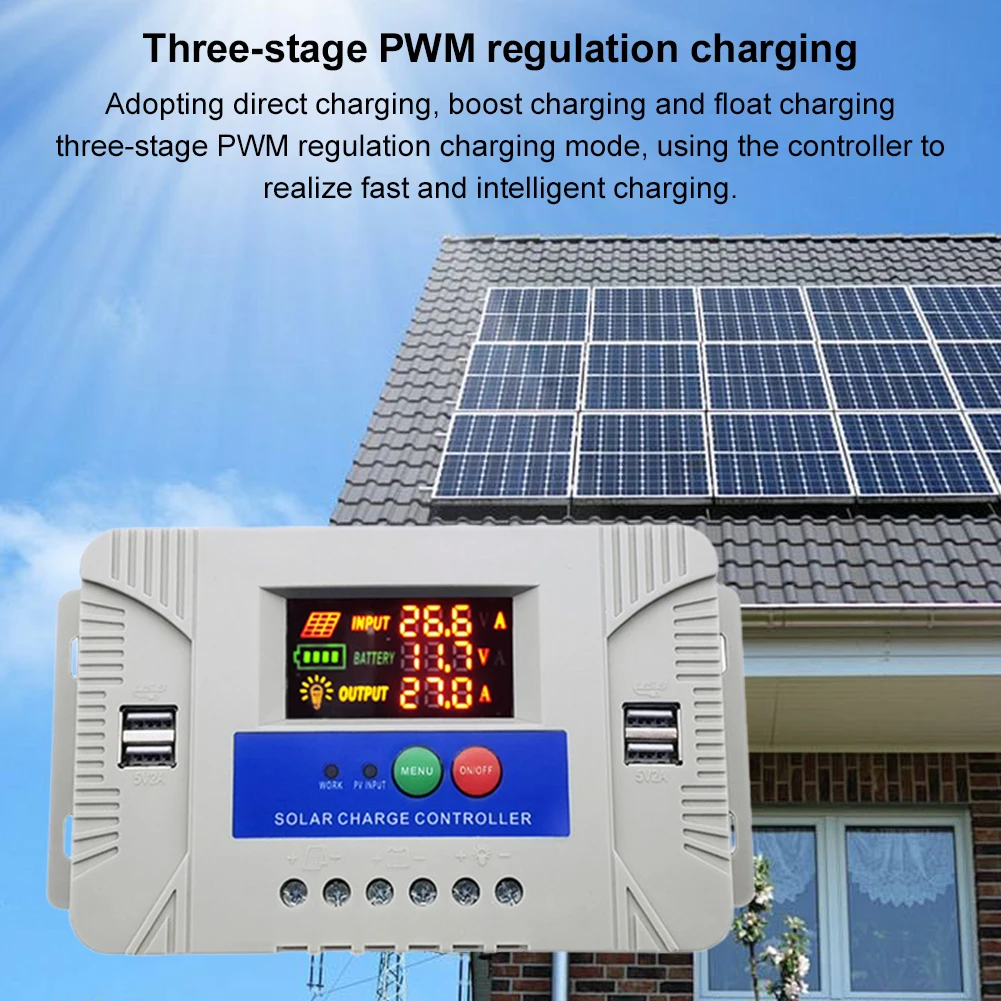

1.Three-Stage PWM Charging: Utilizing a direct, boost and float charging method, the solar charge controller enables fast and intelligent charging while extending battery life.

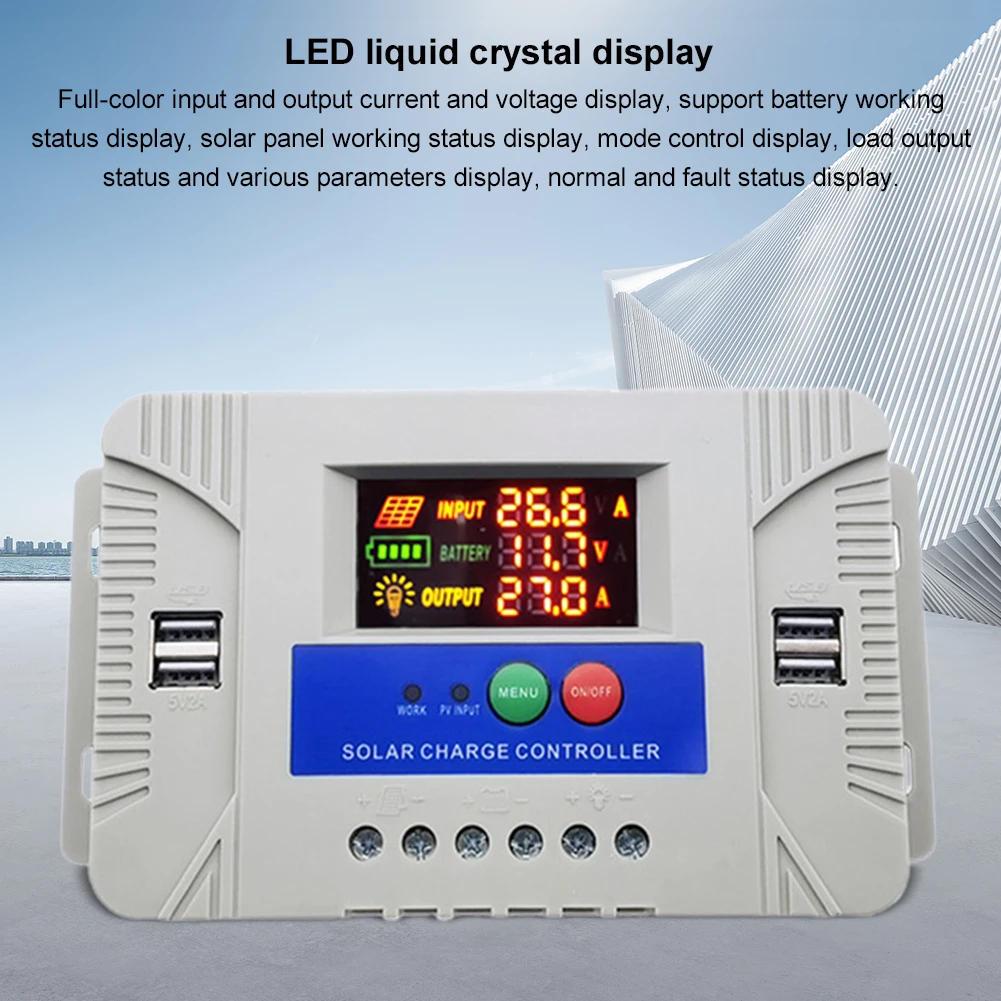

2.LED LCD Display: Featuring a high-definition display, this auto solar regulator provides clear system status at a glance, displaying input/output current and voltage, battery status, solar panel controller mode, and load output conditions.
3.Alloy Heat Dissipation: With enhanced MOS silicon gel heat pipes closely attached to the thickened heat dissipation backplate, the solar power controller ensures optimal performance even in 60° environments.

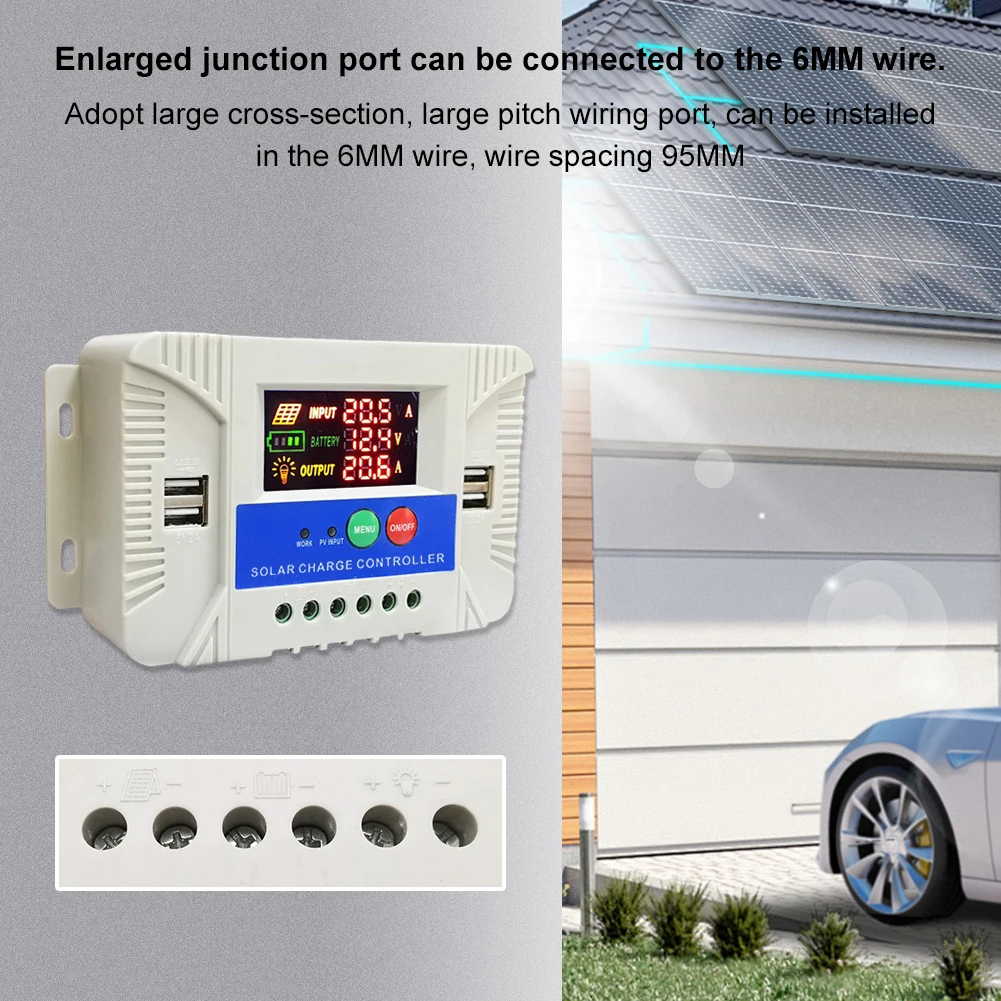

4.Enlarged Terminal for 6MM Wire: The charge controller includes large terminal ports supporting 6MM wires with 95MM spacing, ensuring enhanced insulation, reduced voltage drop, and installation reliability.
5.ABS Engineering Plastic Shell: Crafted from ABS engineering plastic, the external casing of the solar charge controller offers high impact resistance, superior point, corrosion resistance, ensuring longevity and.
Specification
Origin: Mainland China
Product Size
20A/30A: 168x95x38mm, 234g
Product Material: ABS Engineering Plastic + Alloy Heat Dissipation Backplane
Cooling Method: Heat Sink Self-Cooling
Operating Environment Temperature: 0~40 Degrees Celsius
Storage Environment Temperature: -15~50 Degrees Celsius
Operating/Storage Environment Temperature: 0~90% Without Condensation
Photovoltaic Panel Input Voltage Range (Vdc): 15v-23v Photovoltaic Panel For 12v Battery 30v-45v For 24v Battery
Protection Function: Prevent Overcharge/Overvoltage/Dc Output Low Voltage/High Voltage Protection/Reverse Connection Protection, etc.
System Connection
1. Connect the positive and negative poles of the battery to the controller as shown in the figure, and the controller will automatically detect the battery voltage.
2. Connect the positive and negative poles of the load to the controller as shown in the figure, and be careful not to reverse.
3. Connect the solar panel to the controller as shown in the figure.
Note: Please connect strictly in the above order, otherwise the controller may be damaged.
The disassembly order is opposite to the wiring order.
Note
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
1 x Solar Charge Controller
