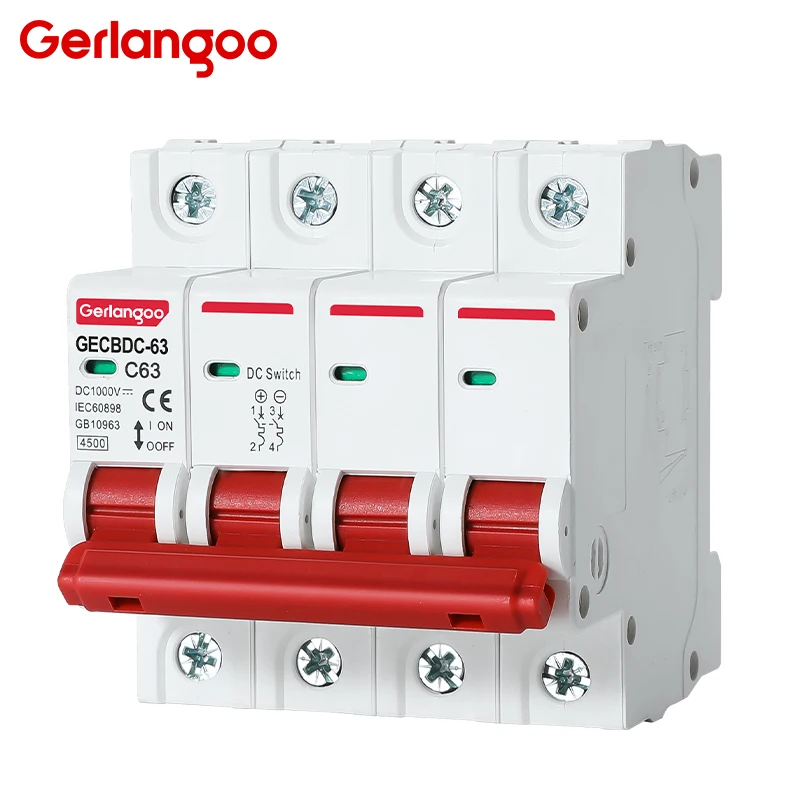

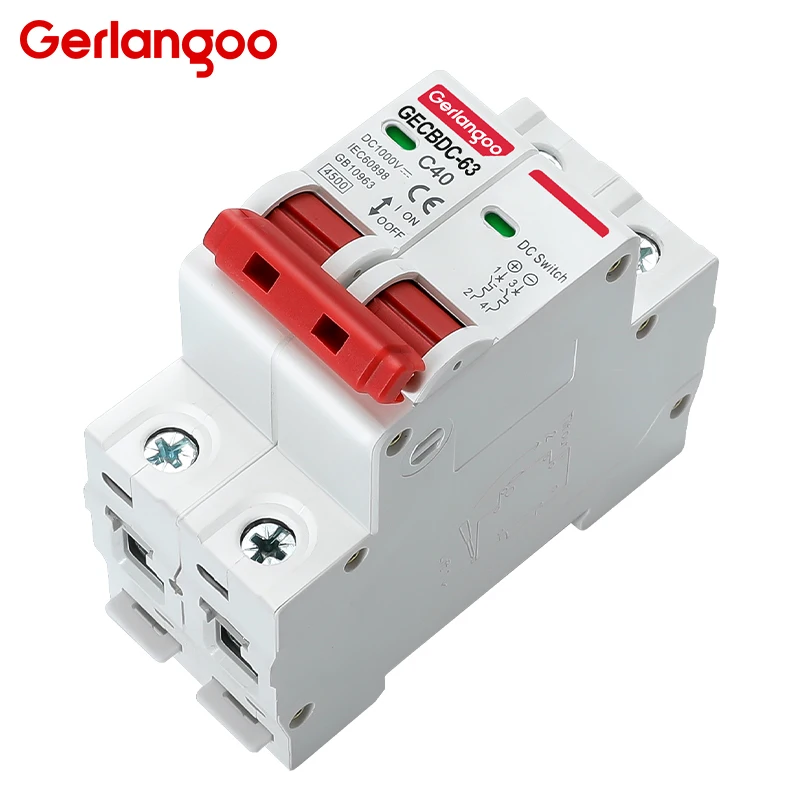

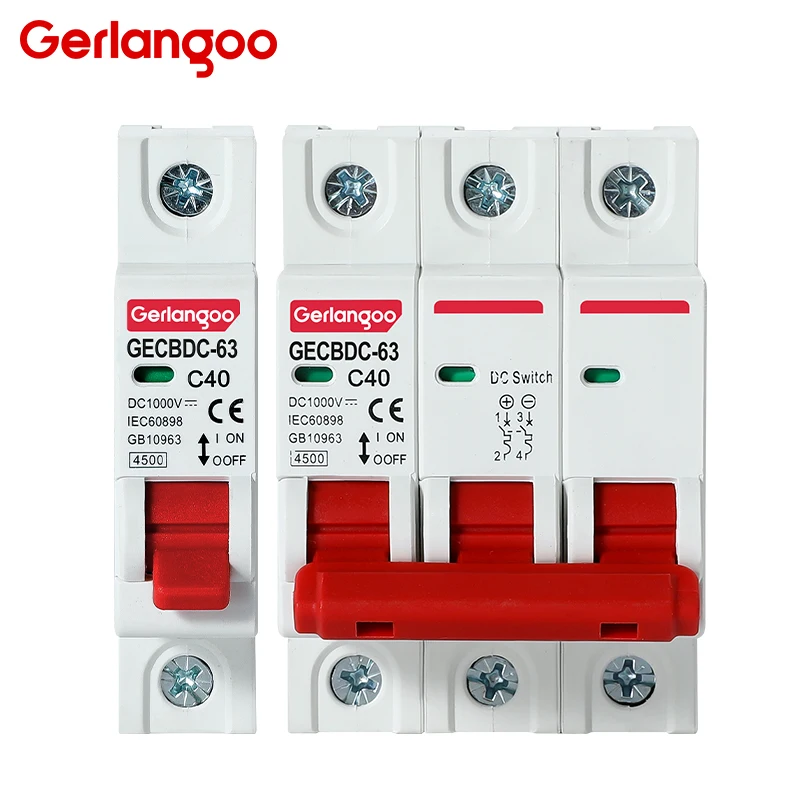

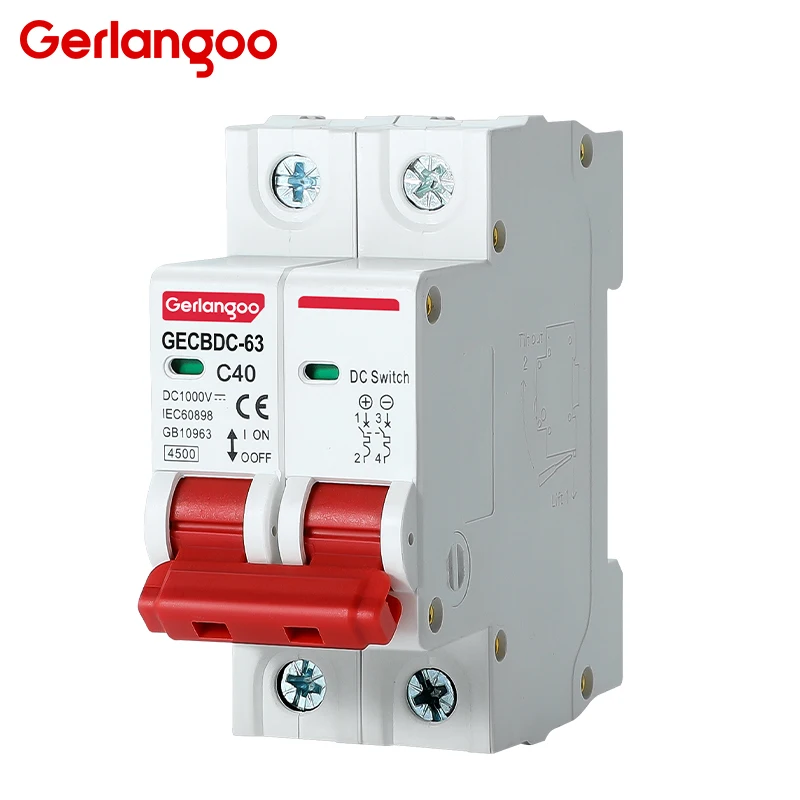

1P 2P 3P 4P DC 1000V MCB Solar Mini Circuit Breaker Overload Protection Switch 6A 10A 16A 20A 25 32A 40A 50A 63A Photovoltaic PV
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.9★ from 13 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Gerlangoo
- Sales: 62
- Package size: 15 × 11 × 8 cm
- Package weight: 0.33 kg
- Rating: 4.9 / 5
Before adding to cart, choose an available option and check the quantity.
Application
GECBDC-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage is 1000V for 1P 2P 3P 4P. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products. Products according IEC60898-1 standard.
DC Circuit Breaker Features
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
Specificaatios
Pole:1P,2P.3P,4P
Rated Current:6A-63A
Rating Voltage:DC 1000V
Breaking Capacity:4500A
Rated Breaking Capacity:6.0kA IEC60898(0.5~63A) 6,10,15A IEC60947-2(0.5~63A)
Characteristic Curve:C
Max. fuse that can be connected to:100AgL(>10kA)
Electrical Life:Not less than 8000 times
Mechanical Life:Not less than 20000 times
Selective Grade:3
Working Ambient Temperature:-10℃~+40℃
Enclosed Protective Class:IP20
