Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: HXCONTROLLER
- Package size: 20 × 20 × 20 cm
- Package weight: 3 kg
- Rating: 0.0 / 5
- Current: MPPT80A 230VDC
Before adding to cart, choose an available option and check the quantity.
MPPT controller features
This controller is used in solar off-grid power generation system to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage.
The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to allow you to better use all the functions of the controller and improve your photovoltaic system, please read the instructions and instructions in this manual carefully.
Features：

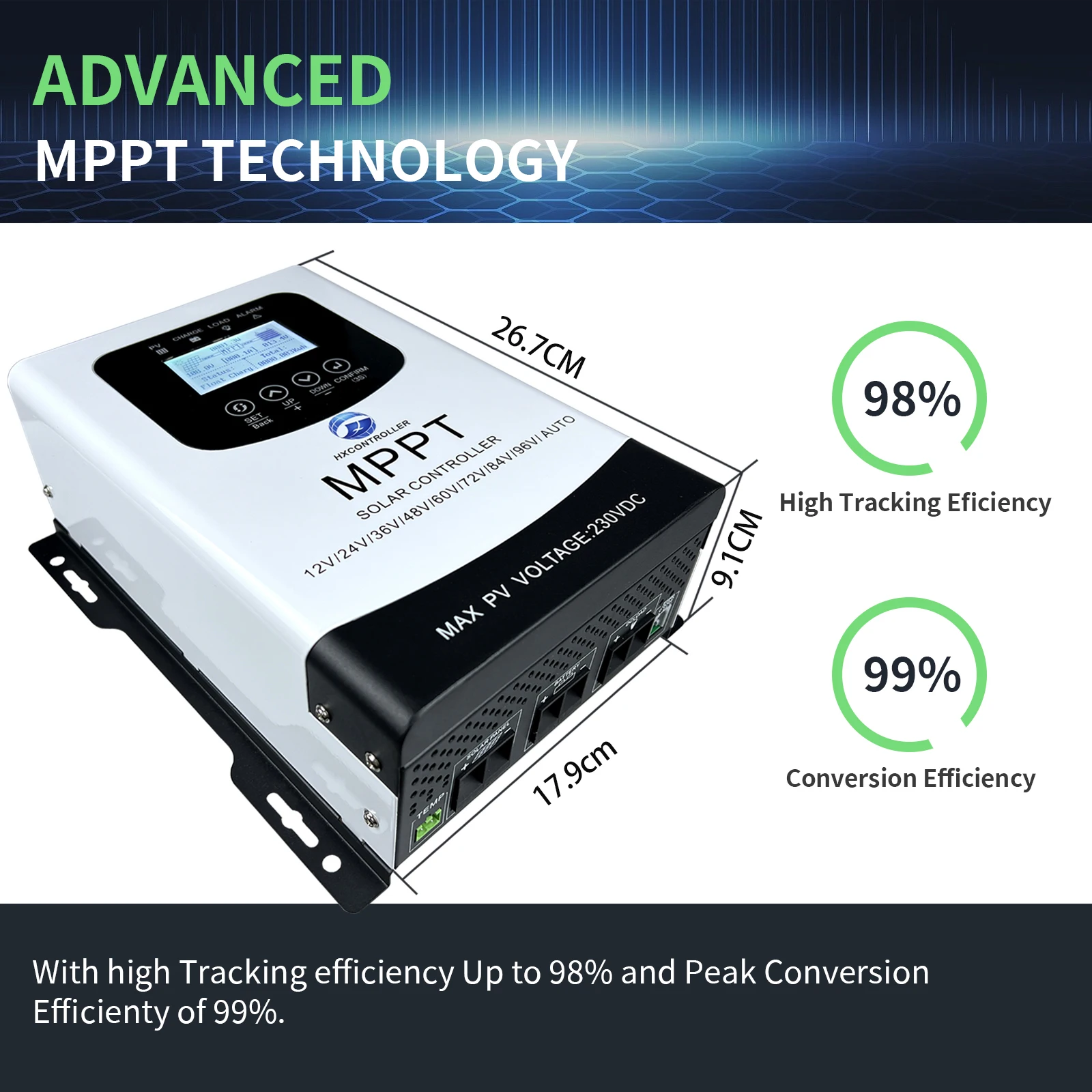

1. Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.

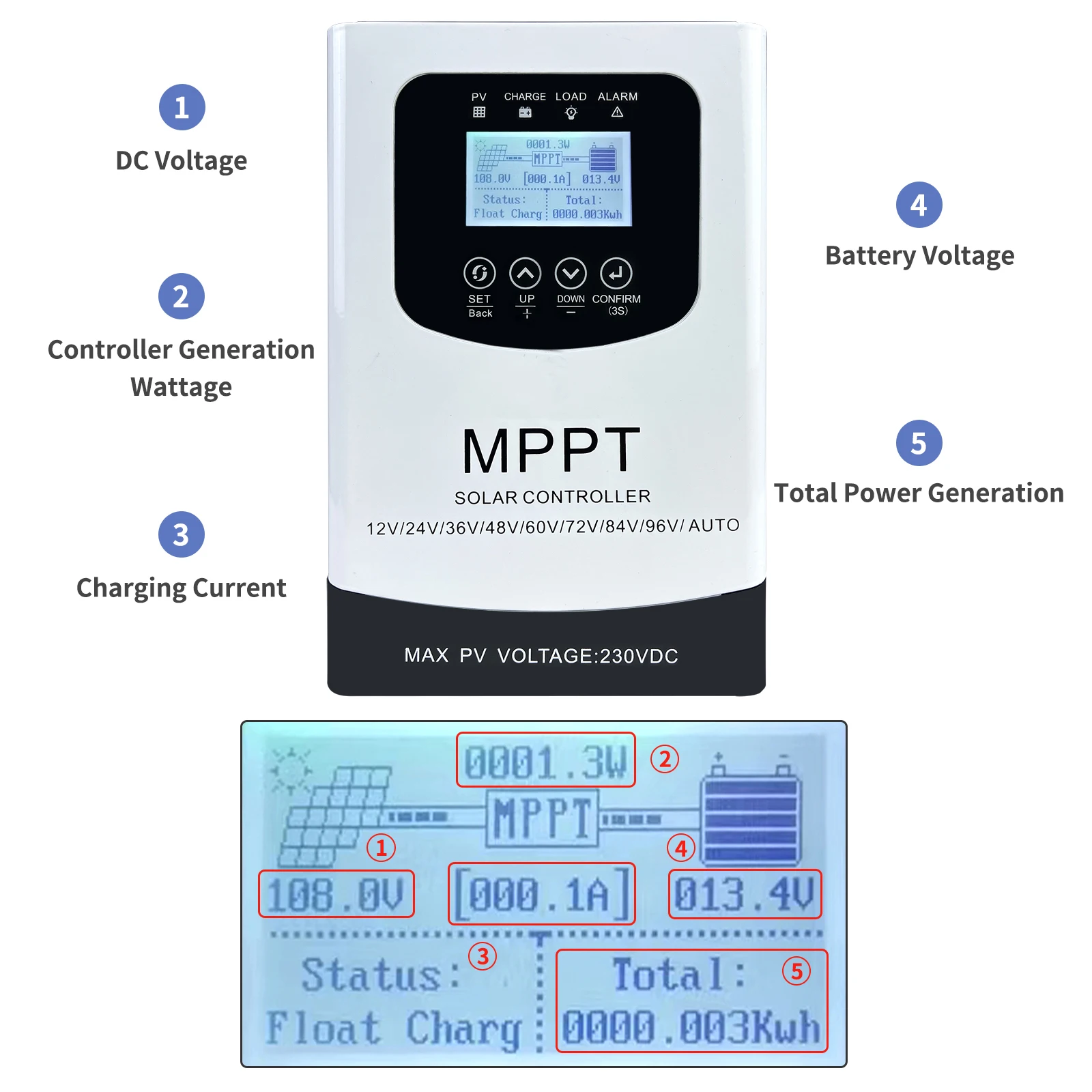

2. The LCD is designed to dynamically display the operation data and working status of the equipment.

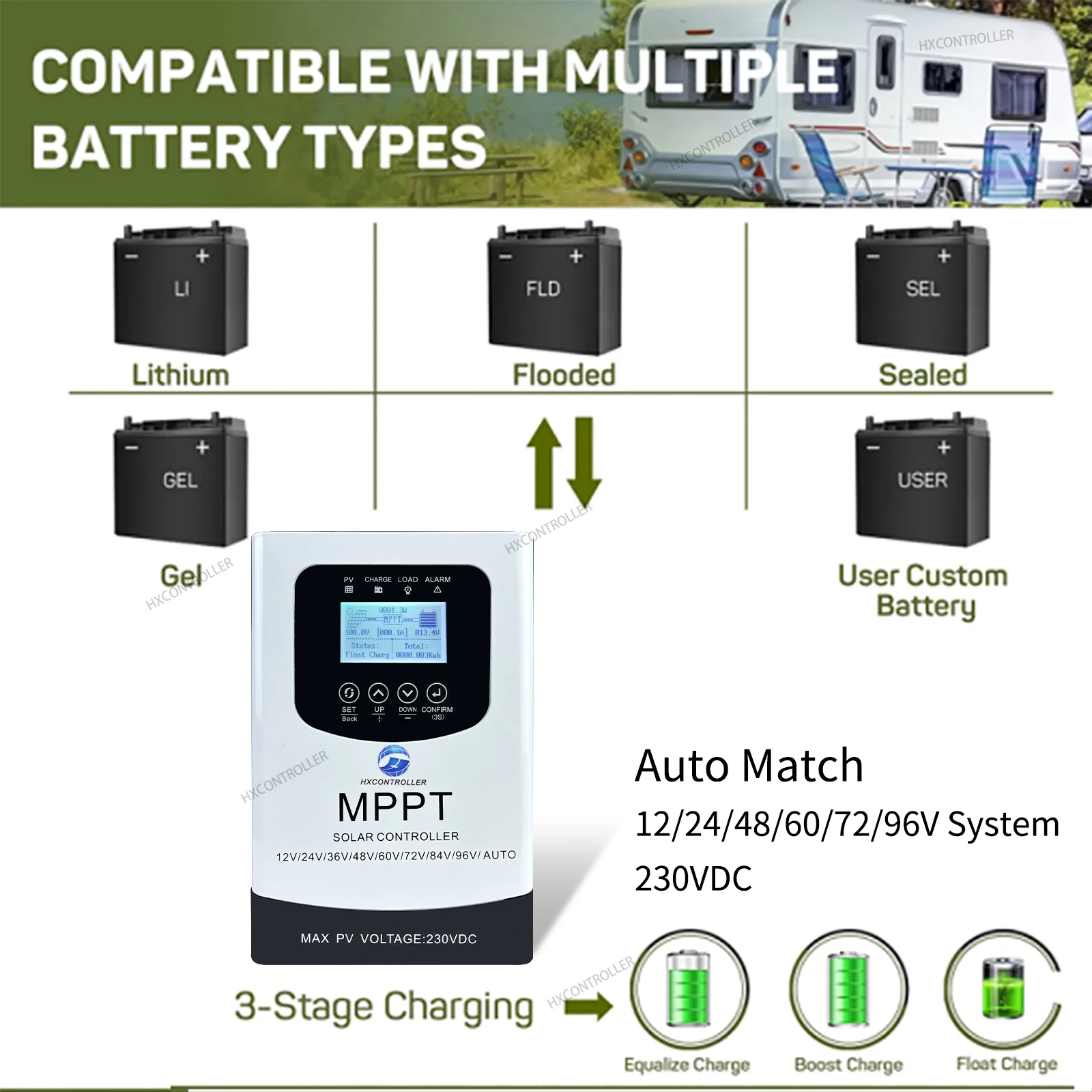

3. Compatible with Seal, GEL, Flooded, LifePO4 battery charging(user battery can adjust charging by yourself.)
4. Dual USB 5V charging ports
5. 12V/24V/36V/48V/60V/72V/84V/96V automatic identification

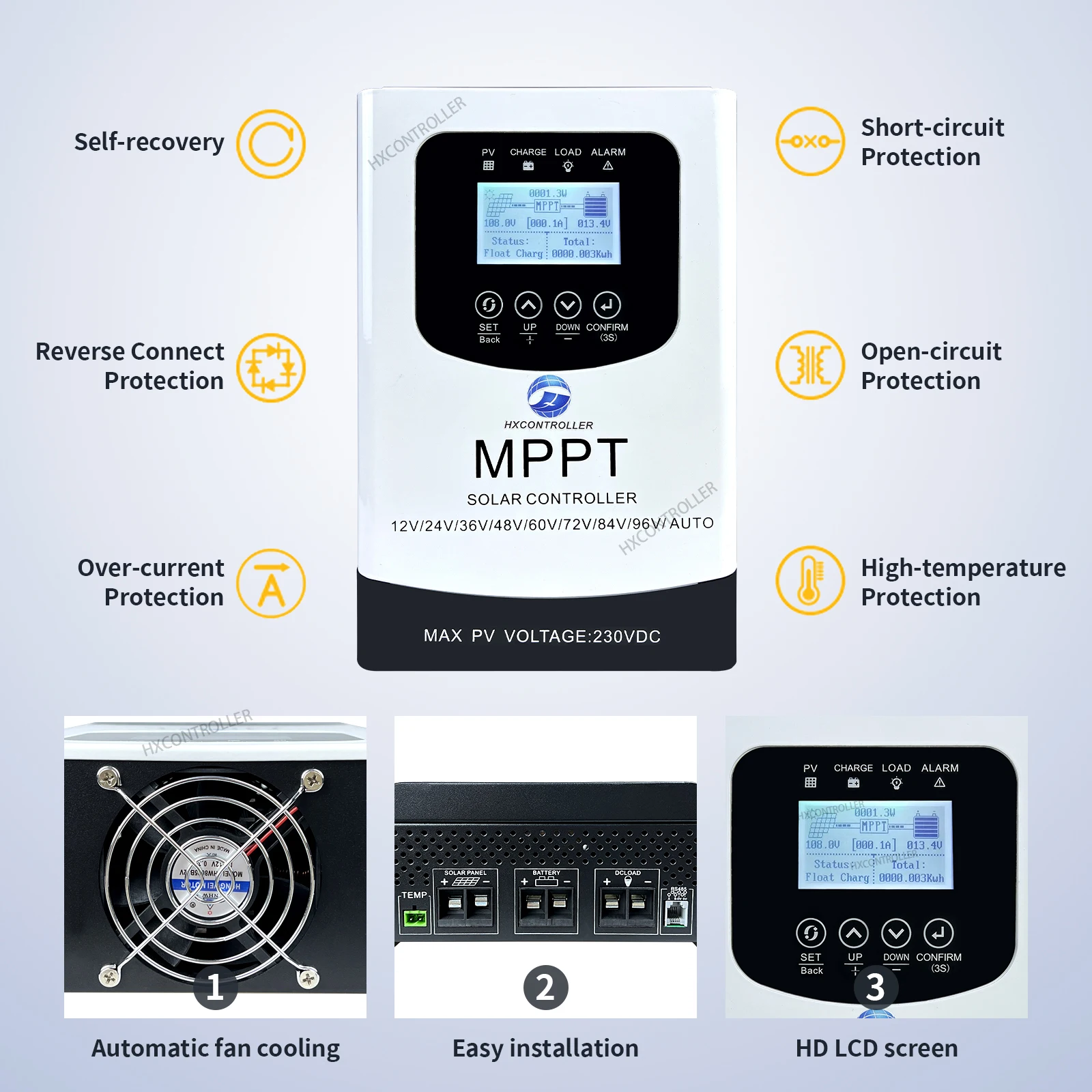

6. Over-voltage protection
7. Over-current protection
8. Over temperature protection
9. Controller parameters display
10. With backlight display
11. Max input solar panel voltage is 230Vdc( this is voc voltage)
12. Support RS485 WIFI Device( If you need our wifi device, please buy it seperately)
MPPT model
30A
40A
60A
80A
100A
120A
Rated charging current
Maximum PV Input Power
12v system
36ow
480w
720w
960w
1200w
1440w
24v system
1920w
2400w
2880w
36v system
1080w
2160w
3600w
4320w
48V system
3840w
4800w
5760w
6ov system
1800w
6000w
7200w
72v system
43200w
8640w
84v system
2520w
3360w
6720w
8400w
10080w
96v system
7680w
9600w
11520w
Charging mode
MPPT automatic maximum power tracking
MPPT tracks maximum power, fast charging, balanced charging and floating charging
Battery type
Lead acid battery
(12V / 24v / 36v / 48v / 96v automatic identification) +(12v / 24v / 36v / 48v / 6ov /72v/ 84v / 96v adjustable)
Gel Battery
12v / 2av/ 36v /48v / 6ov / 72v / 84v / 96v adjustable
Lithium iron phosphate
Unit voltage 3.2 * number of strings (2-45 adjustable)
Ternary lithium battery
Unit voltage 3.7 * number of strings (2-45 adjustable)
User defined
Equalizing charge, floating charge, DC discharge limit voltage adjustable: 8v -- 170v
with lithium activation function
with photovoltaic input, there is charging voltage (activate lithium battery), and Dcoutput can be used without battery
Photovoltaic minimumvoltage start Charging
The photovoltaic voltage is greater than + 3v of the battery voltage (it can also be charged with small current in rainy days)
