230VDC MPPT Solar Battery Charge Controller 40A 60A 80A, 12V 24V 48V 60V 72V 96V Solar Panel Charge Regulator with WIFI Monitor
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: JYYHSRPOWER
- Package size: 29 × 25 × 15 cm
- Package weight: 3 kg
- Rating: 0.0 / 5
- Current: MPPT60A 230VDC
Before adding to cart, choose an available option and check the quantity.
Why Choose Our 230V High-Voltage MPPT Controller?
【🔥 True High-Efficiency MPPT Charging】
Experience industry-leading performance with a ≥98.1% conversion efficiency and ≥99% PV utilization. Powered by a high-speed DSP chip, this intelligent controller automatically detects and adapts to 12V–96V battery banks (including 24V, 48V, 60V, 72V, and 84V). Whether you have a small RV or a large off-grid array, the 40A–120A model options ensure you harvest the maximum possible power from your solar panels every day.

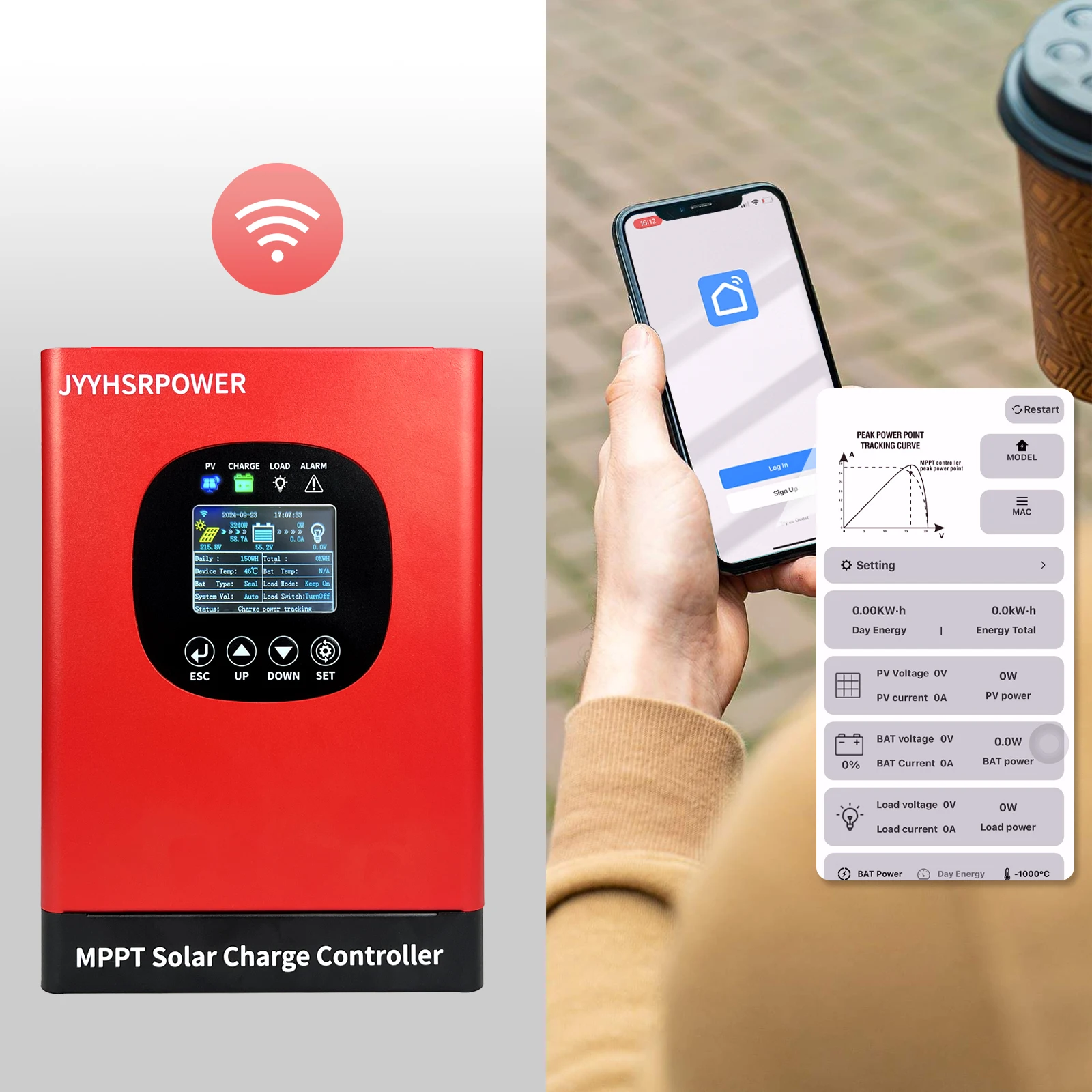

【📱 Built-in WiFi & App Control (No Extra Cost)】
Unlike competitors who charge extra for monitoring modules, we include a built-in WiFi device at no additional cost. Monitor your system remotely via our iOS/Android app from anywhere in the world.

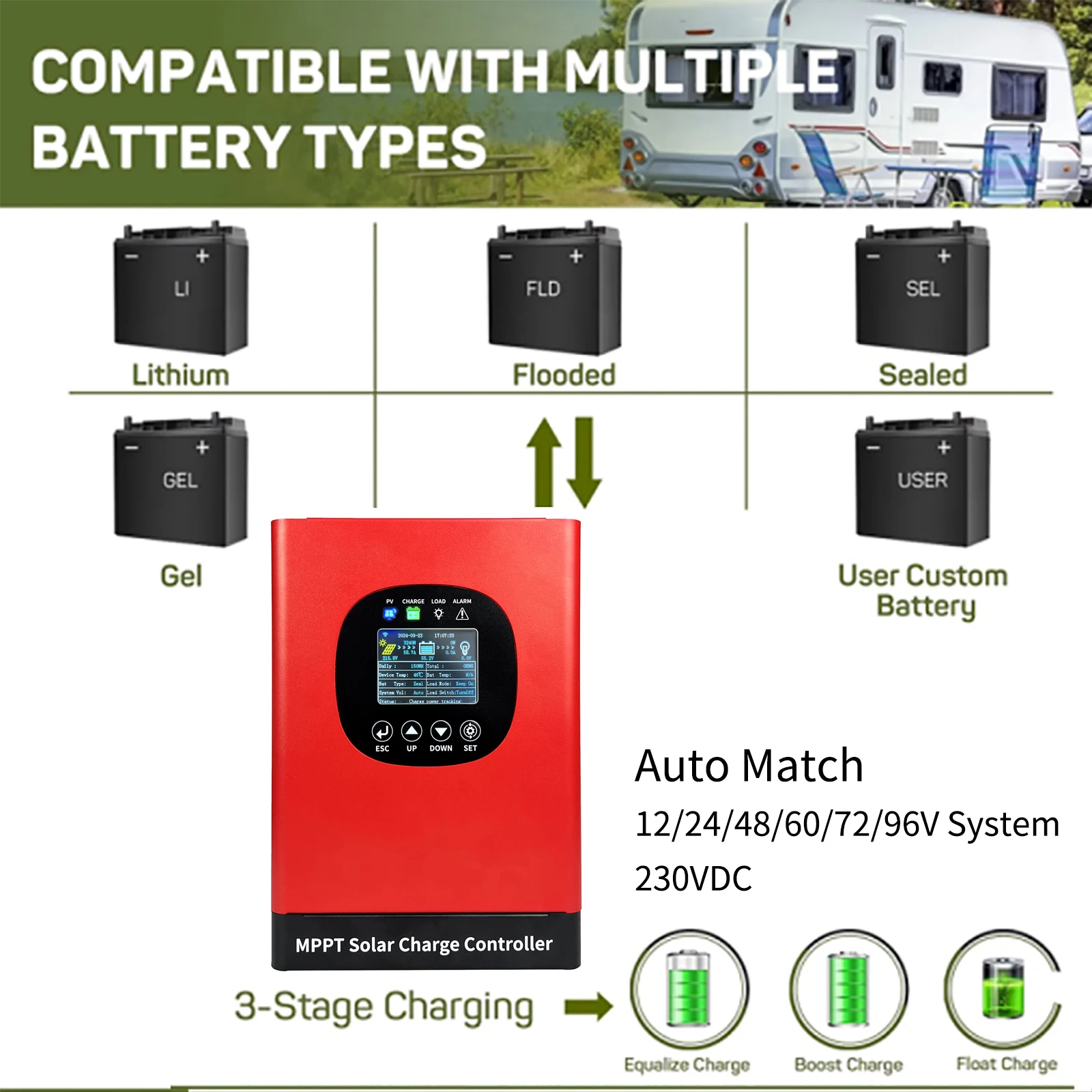

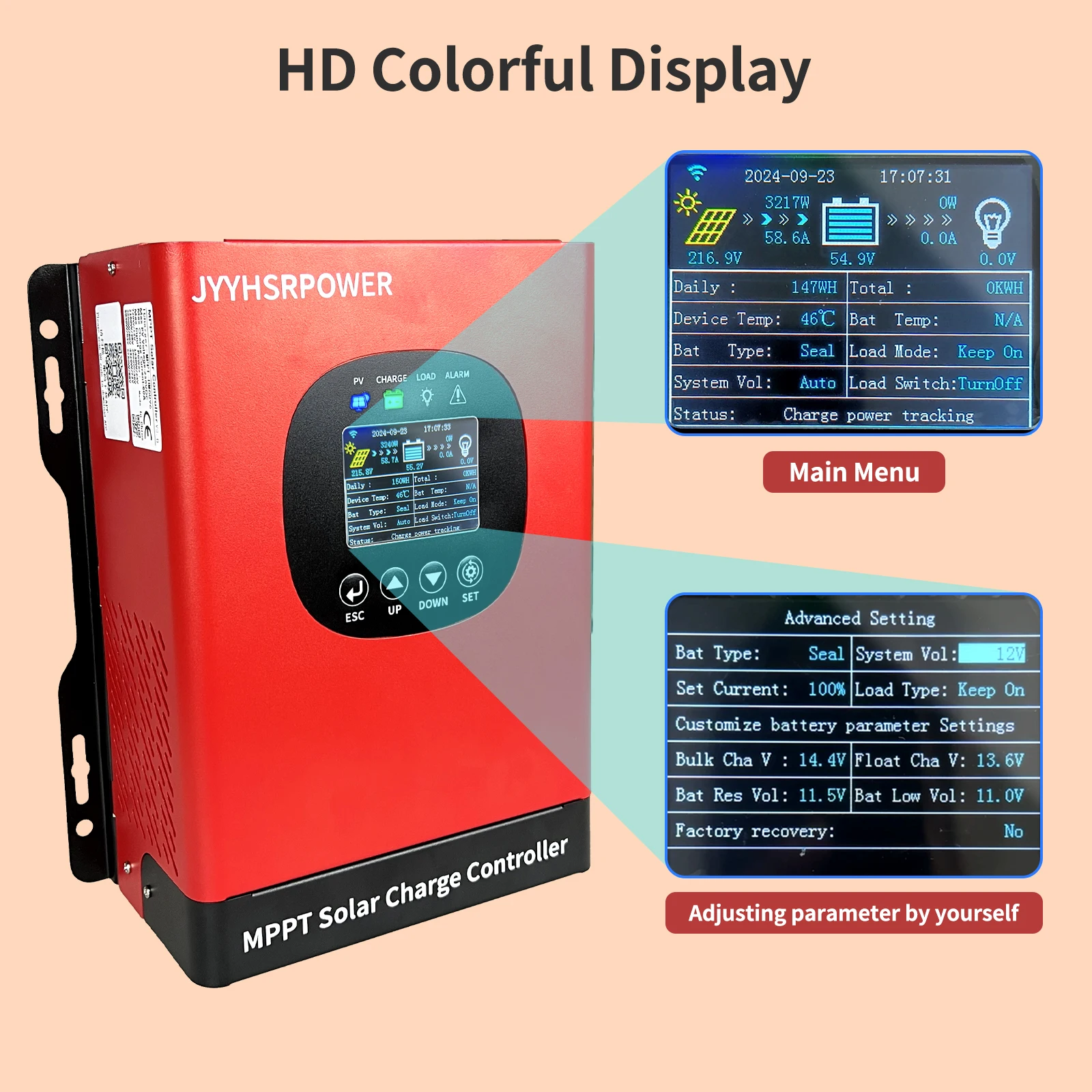

【🔋 Universal Battery Compatibility & Color Screen】
Stop settling for black-and-white displays. Our premium Color LCD Screen offers superior clarity, showing real-time stats, energy flow charts, and historical data. It supports ALL battery types

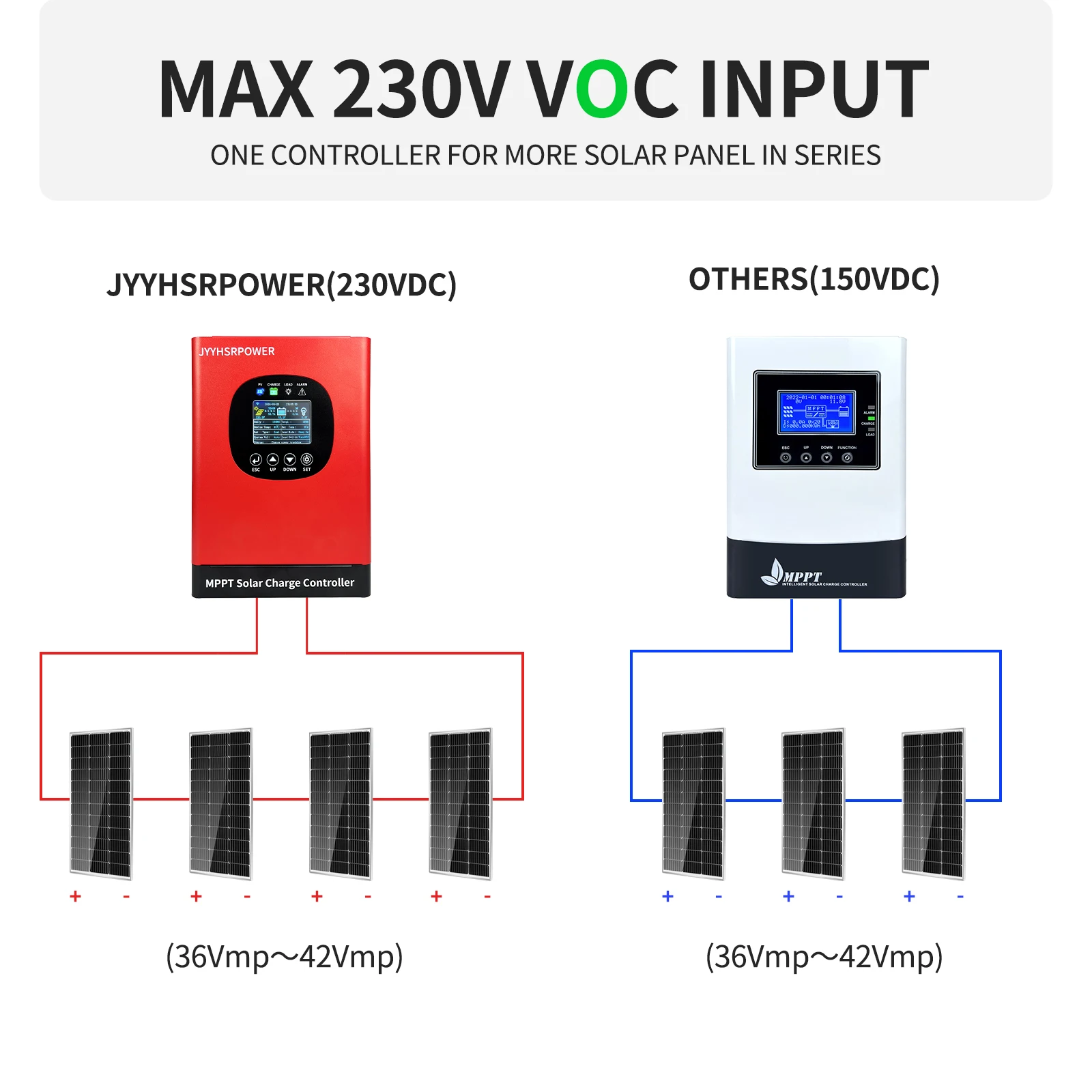

【⚡ 230V Max Input & Flexible Configuration】
Designed for large systems, this controller handles a Max PV Input of 230V Voc. This allows you to wire up to 4 panels in series (based on 38–42V Vmp panels), drastically reducing current and minimizing power loss over long cable runs. You can even use a high-voltage 230V solar array to charge a low-voltage 12V battery safely.
【🌬️ Intelligent Cooling & Rugged Design】
Overheating kills electronics. Our controller features intelligent temperature-controlled fans (ON >45°C / OFF

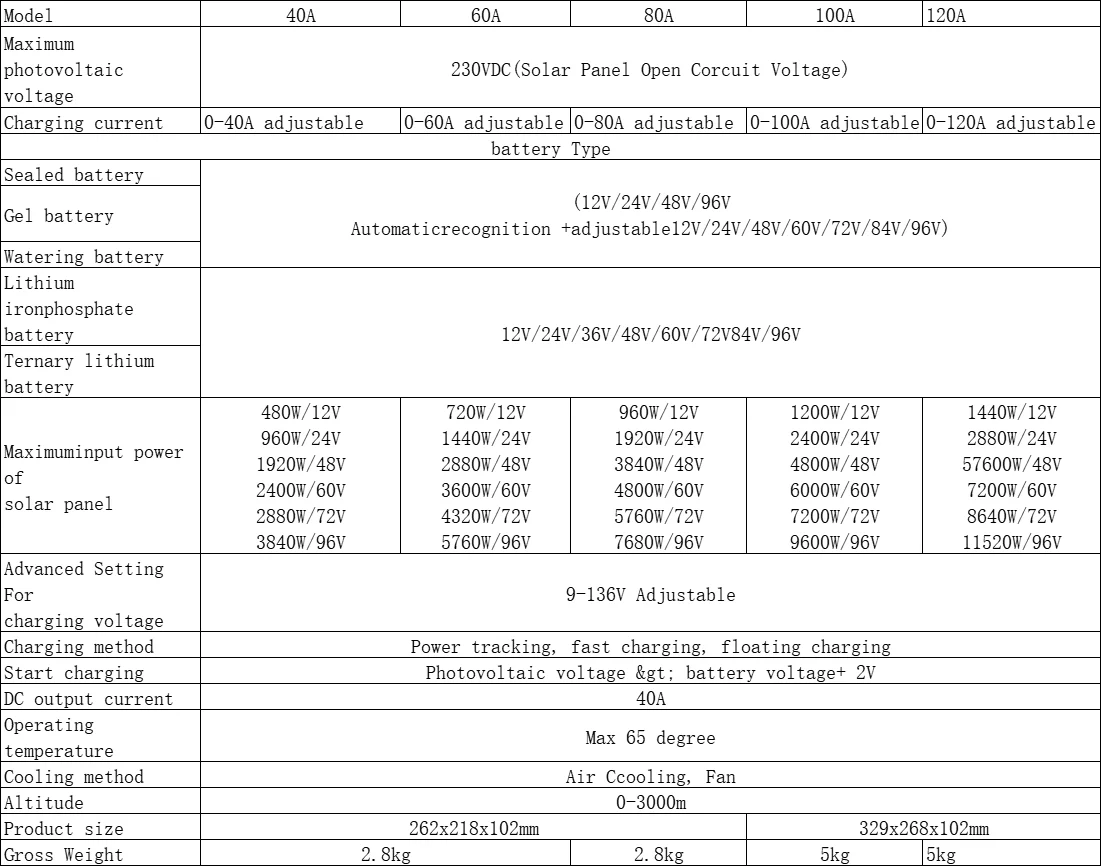

Model
40A
60A
80A
Maximum photovoltaic
voltage
230VDC(Solar Panel Open Corcuit Voltage)
Charging current
0-40A adjustable
0-60A adjustable
0-80A adjustable
battery Type
Sealed battery
(12V/24V/48V/96V
Automaticrecognition +adjustable12V/24V/48V/60V/72V/84V/96V)
Gel battery
Watering battery
Lithium ironphosphate
battery
12V/24V/36V/48V/60V/72V84V/96V
Ternary lithium
Maximuminput power of
solar panel
480W/12V
960W/24V
1920W/48V
2400W/60V
2880W/72V
3840W/96V
720W/12V
1440W/24V
2880W/48V
3600W/60V
4320W/72V
5760W/96V
960W/12V
1920W/24V
3840W/48V
4800W/60V
5760W/72V
7680W/96V
1200W/12V
2400W/24V
4800W/48V
6000W/60V
7200W/72V
9600W/96V
1440W/12V
2880W/24V
57600W/48V
7200W/60V
8640W/72V
11520W/96V
Advanced Setting For
charging voltage
9-136V Adjustable
Charging method
Power tracking, fast charging, floating charging
Start charging
Photovoltaic voltage > battery voltage+ 2V
DC output current
Operating
temperature
Max 65 degree
Cooling method
