25mm/58mm Mini Compression Load Cell Sensor, 10kg-5t Optional,mV/V Output with Digital Force Display Indicator Meter 220V Supply
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 5.0★ from 17 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: BENGBUZZYQ
- Sales: 47
- Package size: 20 × 20 × 10 cm
- Package weight: 0.9 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Technicalparameter
Rated load
10kg~5t
0utputsensitivity
1.0~2.0±0.05 mV/V
Non-linearity
±0.3~±0.5 %F.S
Lag error
±0.3 %F.S
Repeatability
Creep
±0.1 %F.S
Zerotemperaturecoefficient
±0.1%F.S/10℃
Sensitivitytemperaturecoefficient
Inputresistance
380±30Ω
0utputresistance
350±5Ω
Workingtemperature
20℃~+70℃
Safeoverload
120 %F.S
Insulationresistance
Incentivevoltage
5V~12V
Protectionclass
IP66
Material
Alloy steel, stainless steel

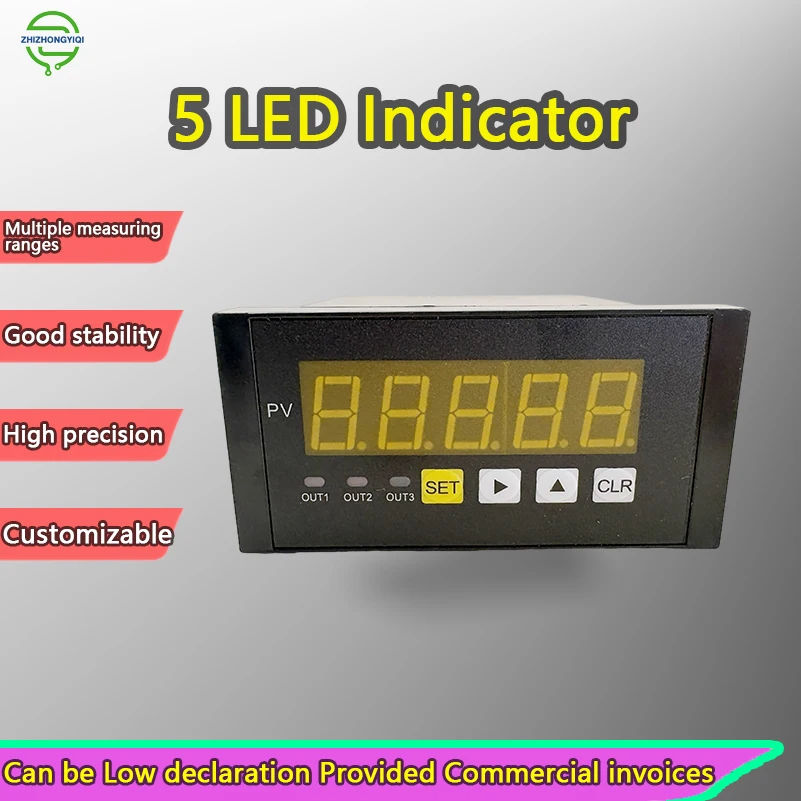

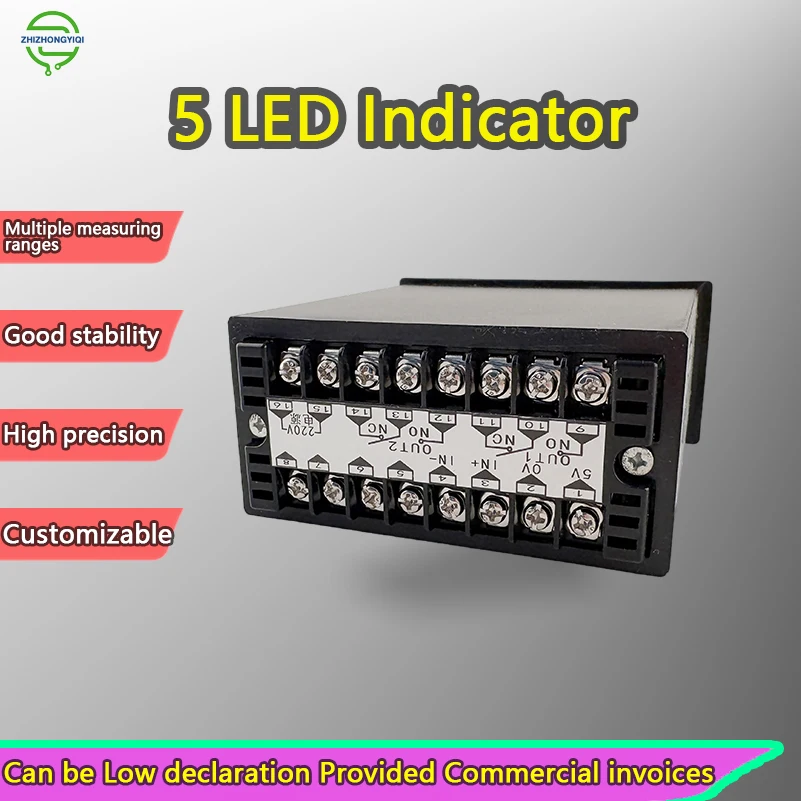

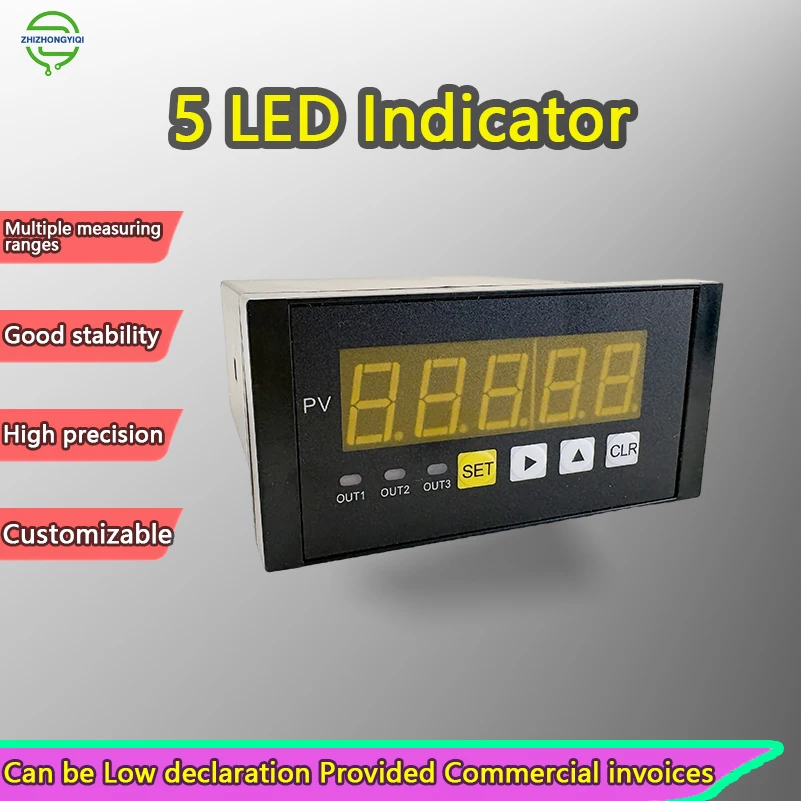

This product is an industrial button compression load cell + digital force indicator solution for force measurement, weighing, press monitoring, and structural load supervision. The sensor provides a strain-gauge mV/V output, with 25mm / 58mm size options and 10kg–5t capacity selections to fit various fixtures and press structures. The matching 5-digit high-bright panel meter offers fast update speed, clear readings, and built-in 5V sensor excitation, making it easy to build a reliable force monitoring system on-site.
