3S 4S 5S 65W 100W Power Bank Double C Port Two way Fast Charge Mobile Power Module 18650 Charging Temperature Protection

Product Selling Points

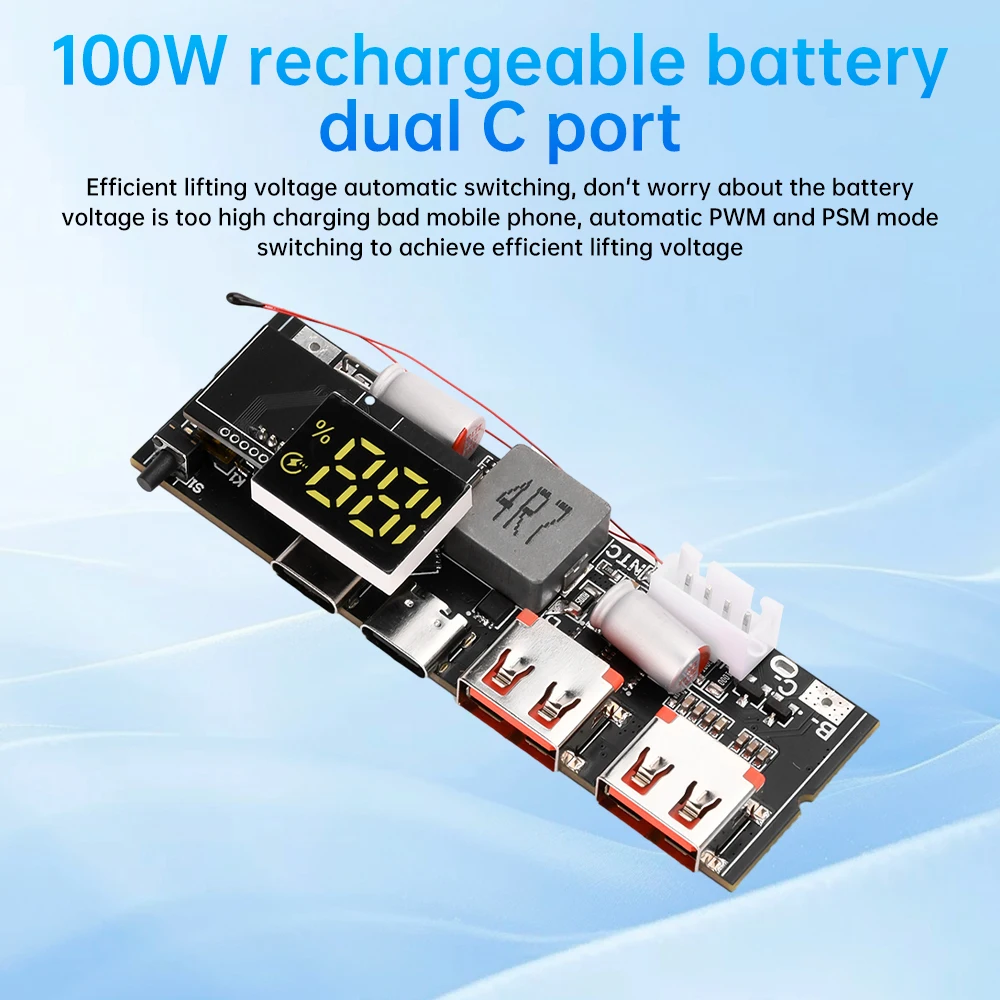

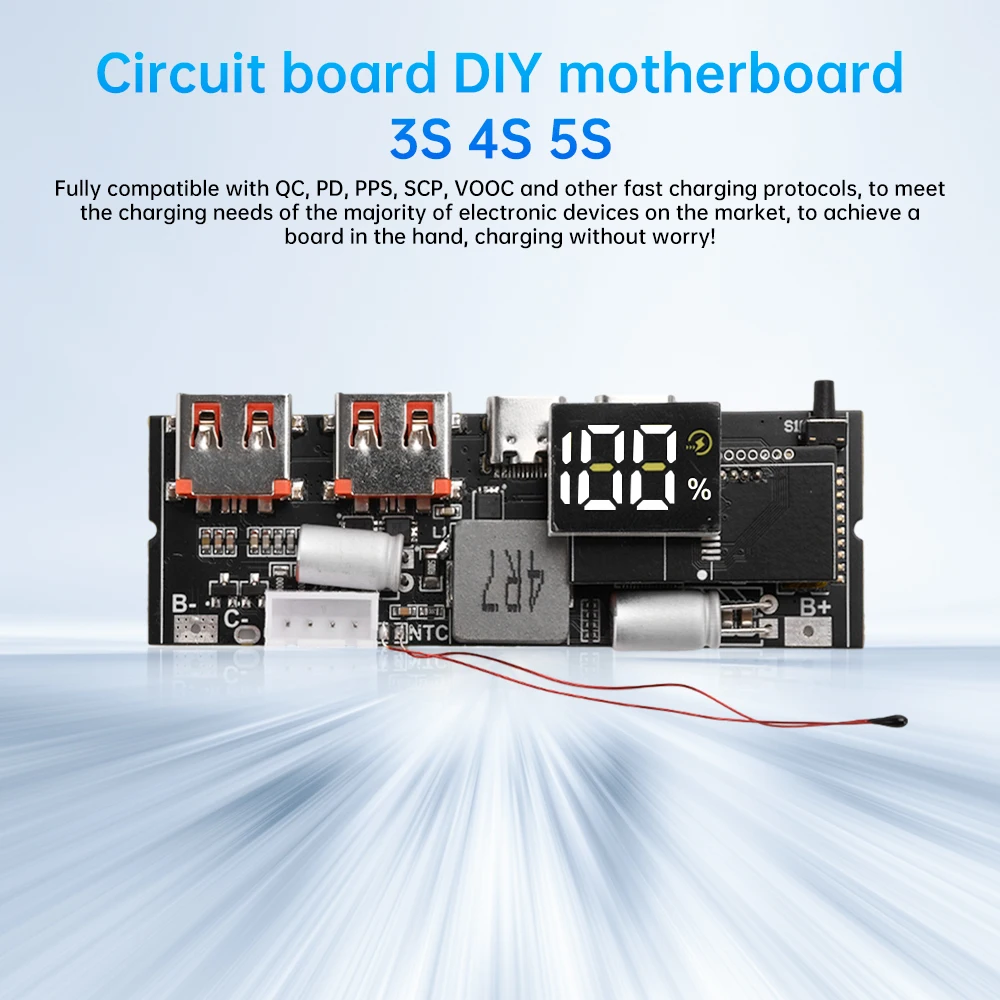

1. It is fully compatible with multiple fast charging protocols such as QC, PD, PPS, SCP, VOOC, etc., meeting the charging needs of the vast majority of electronic devices on the market. With it in hand, you don't have to worry about charging.

2. It supports the MPPT function and can be connected to solar panels for charging.

4. The product supports various protection mechanisms, such as over-current/over-voltage/short-circuit/over-temperature protection, making it safer and more reliable to use.

5. Not only does it have fast output charging, but its own charging is also rapid. It supports PD bidirectional fast charging, greatly shortening the self-charging time and improving usability.

6. It features large-capacity solid-state capacitor filtering with low ripple output. The Vpp of the Type-C port is as low as 6 - 9mV, which can protect electronic devices more effectively.

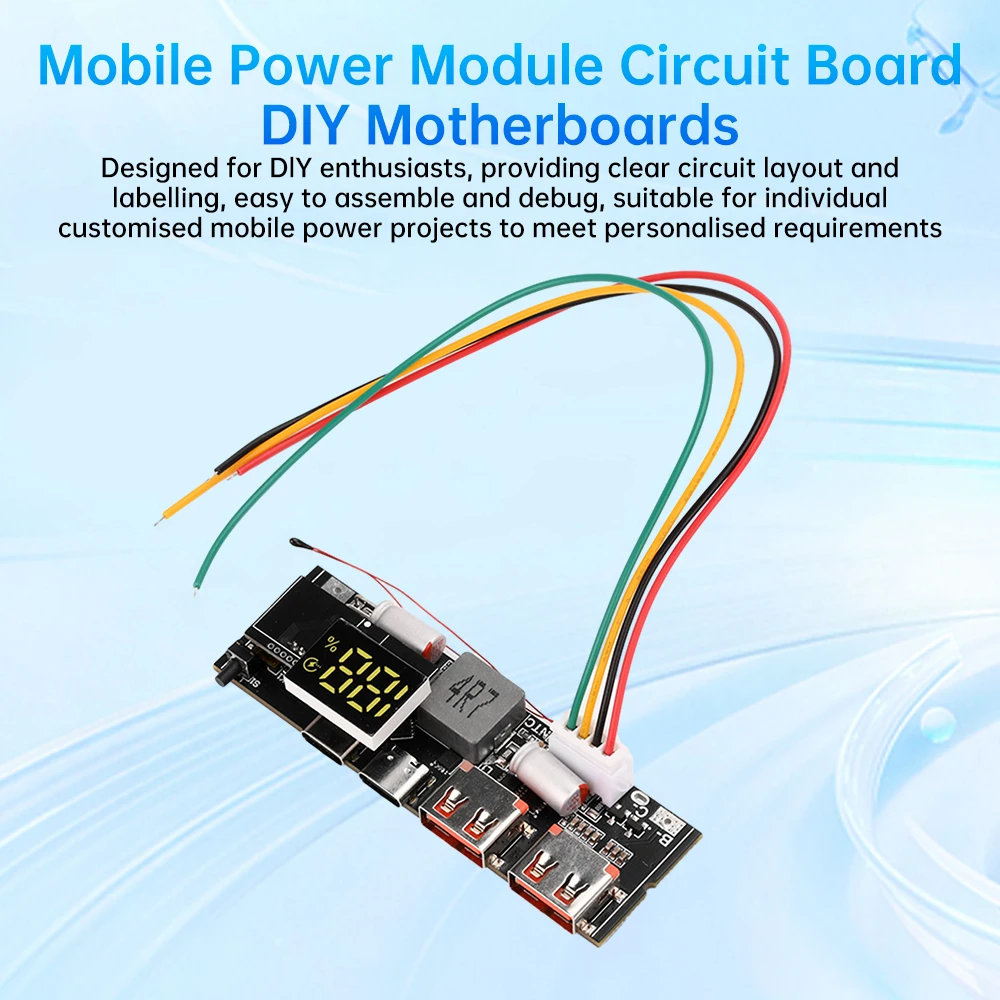

7. Specially designed for DIY enthusiasts, it provides a clear circuit layout and markings, is easy to assemble and debug, suitable for personal customized power bank projects and meets personalized needs.

Product Parameters

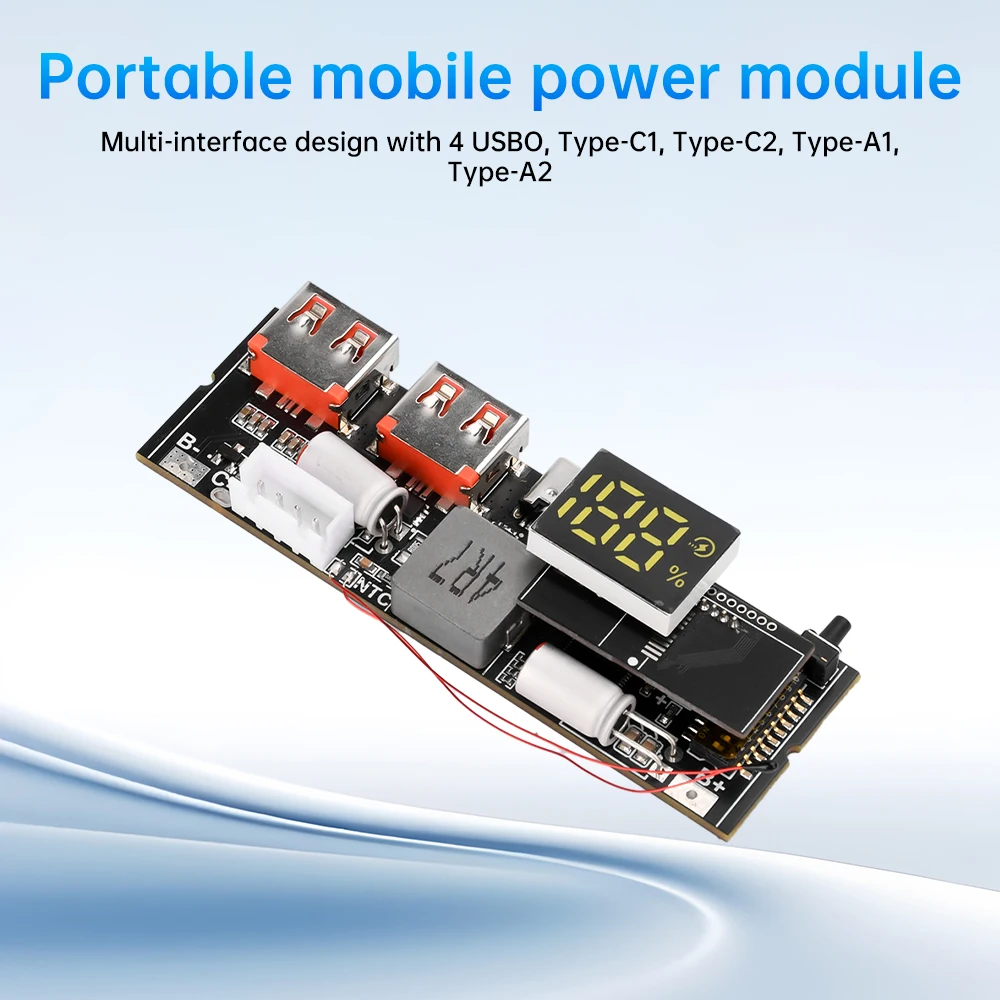

The motherboard has 4 USB ports by default, namely Type-C1, Type-C2, Type-A1, and Type-A2.

Type-C1 and Type-C2 support AFC/FCP/SCP/PD3.1 input protocols and support PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols.

Type-A1/Type-A2 support UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols.

Voltage, Current and Power

PPS/PD3.1: 20V@5A, 3.3V - 21V@5A, Maxin100W/Maxout60W

UFCS: 3.4 - 21V@5A, Maxin100W/Maxout60W

QC2.0: 5V3A/9V3A/12V2.8A/20V1.5A

QC3.0: 3.6V - 20V@200mV/step, 5V@3A/9V@3A/12V@2.8A/20V@1.5A

QC3+: 3.6V - 20V@20mV/step, 5V@3A/9V@3A/12V@2.8A/20V@1.5A

AFC: 5V3A/9V3A/12V2.8A

FCP: 5V3A/9V3A/12V2.8A

SCP: OUT 3.3V - 12V, IN 5V/9V/10V/12V, supports 10V4A

PE1.1: 5V/7V/9V/12V

PE2.0: 5V - 12V@500mV/step

SFCP: 5V/9V/12V

The motherboard must be connected to the battery according to the wiring diagram shown. If the battery has its own protection board, you only need to connect the positive and negative poles of the battery to the B+ and C- solder pads on the motherboard. Otherwise, if the motherboard has integrated protection, you must wire according to the diagram and connect the equalization wire, otherwise it cannot be activated and used normally!!!

Precautions

1. The wire connecting the motherboard to the external battery must be able to pass a current of 10A. Use copper wire with a cross-sectional area of at least 1 square millimeter. For ordinary wires, use 1.5 square millimeters. It doesn't need to be too thick, but it can't be too thin either. If it's too thin, there will be safety hazards. (Because the current at the battery end is large.) It is recommended to use wires of 16AWG specification.

2. The motherboard has its own protection chip and only supports 2 - 5 series-connected batteries. For 6 or 7 series-connected batteries, the battery must have its own protection board, and the over-current protection current of the self-provided protection board must be greater than 15A, otherwise it cannot work normally and may even damage the motherboard chip seriously.

3. Due to the large current at the battery end, you must use thick wires to solder to the battery for testing. You can't use alligator clips to clamp the solder pads for testing charging and discharging.

5. The batteries connected to this motherboard must meet the requirements and be connected in series.

Package List

Power Bank Module * 1

15cm Equalization Wire * 1
