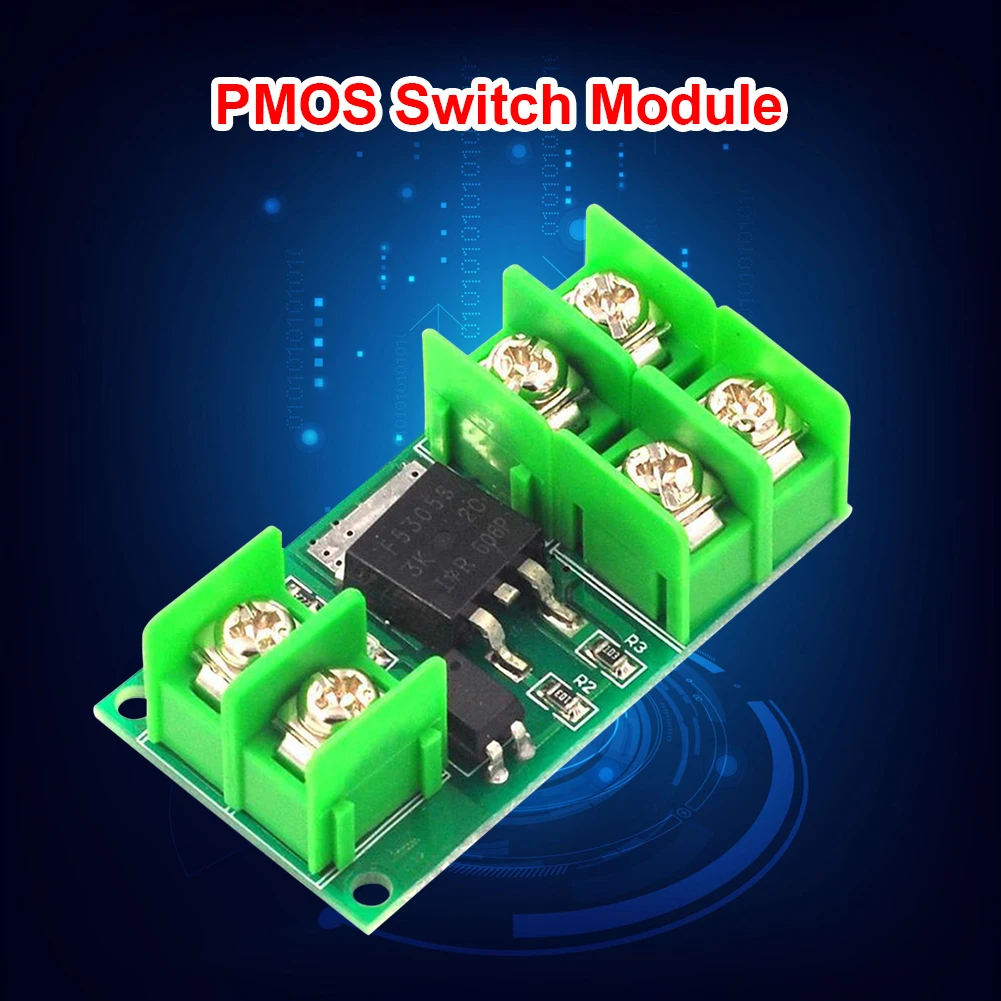

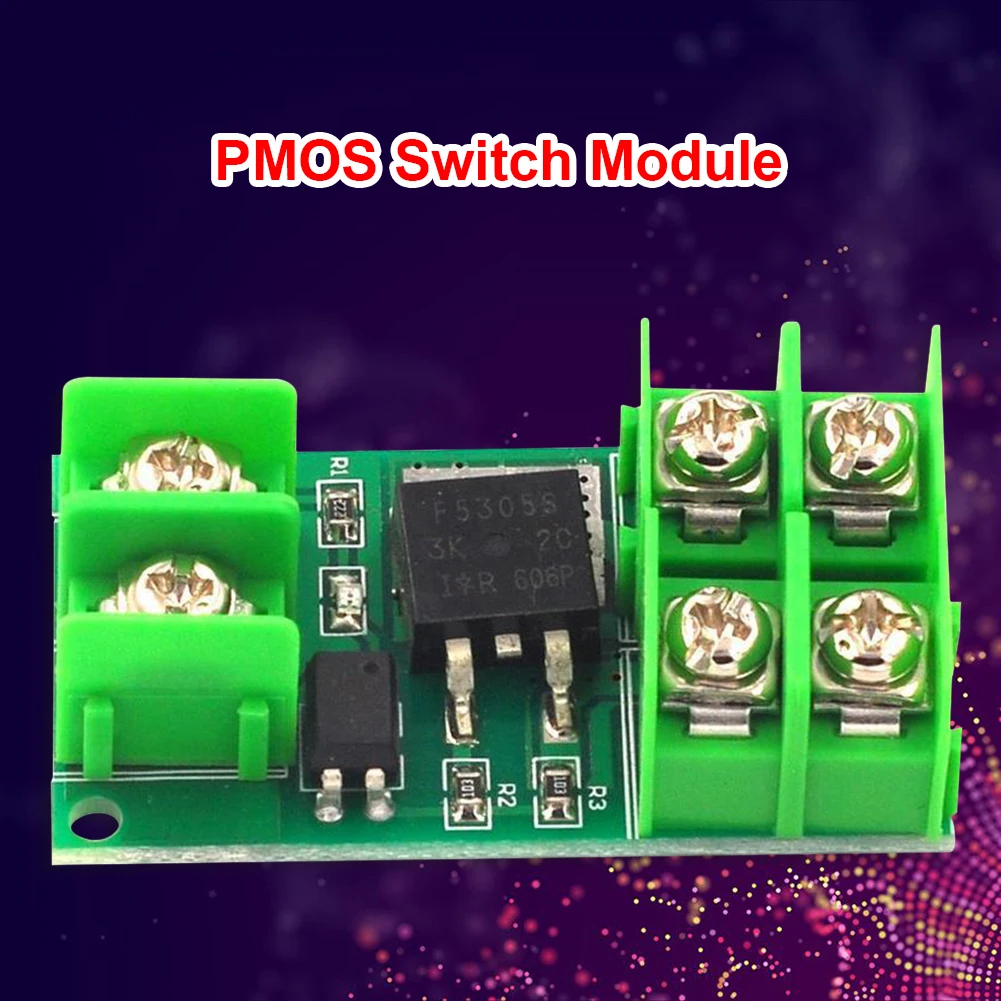

F5305S PMOS Pulse Trigger Switch Board FET MOS Field Effect Transistor Switch Module 3V 5V 12V 24V 36V
Feature
1. Field effect transistor switch module, input and output are completely isolated.
2. Signal trigger terminal: digital high and low level. Can be connected to MCU IO port, PLC interface, DC power supply, etc.
3. Input signal voltage: 3V~24V; current: about 5mA.
4. The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc.
5. Output controlled voltage: 5V~36V. Current: less than 5A, more than 5A need to add a heat sink, the maximum can not exceed 20A.
6. Using F5305S power field effect transistor, you can input PWM, control the motor speed, the brightness of the lamp, etc.
Specification
Product weight: 15g

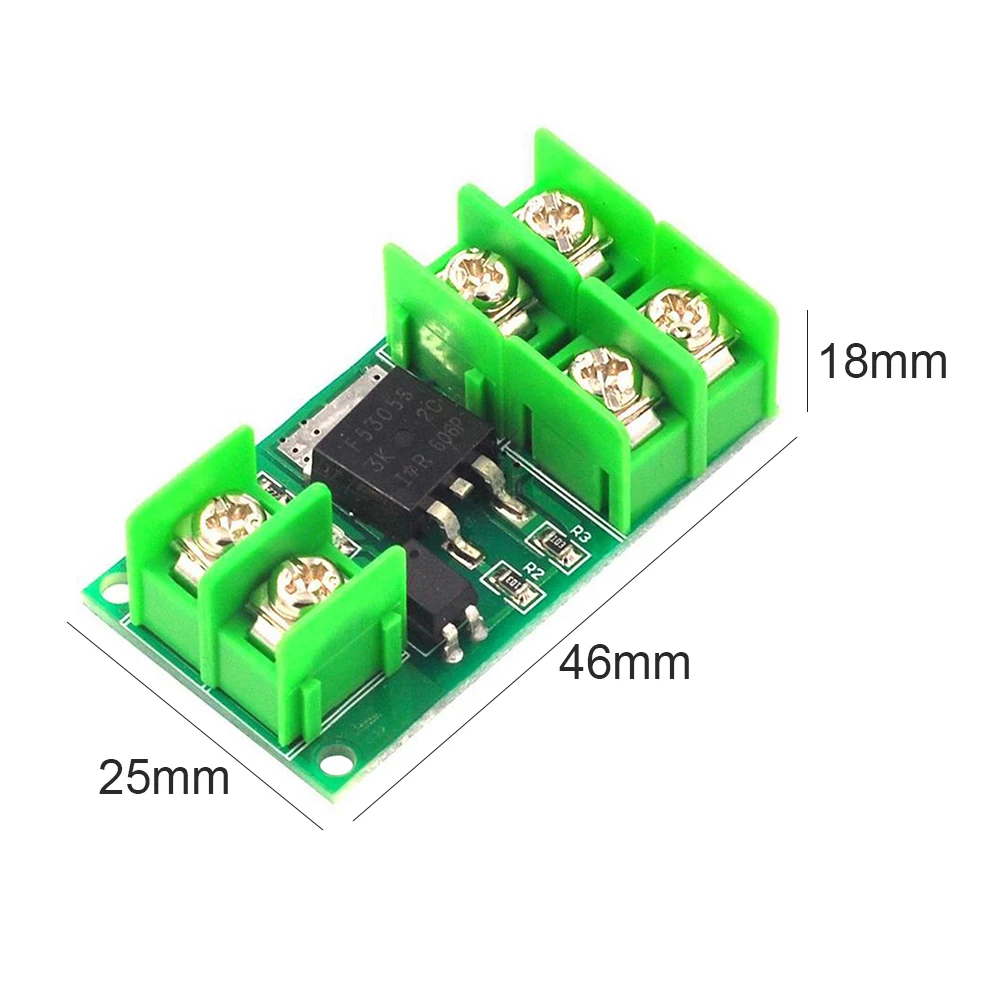

Product size: 46*25*18mm
Note
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
1 X PMOS Switch Board
