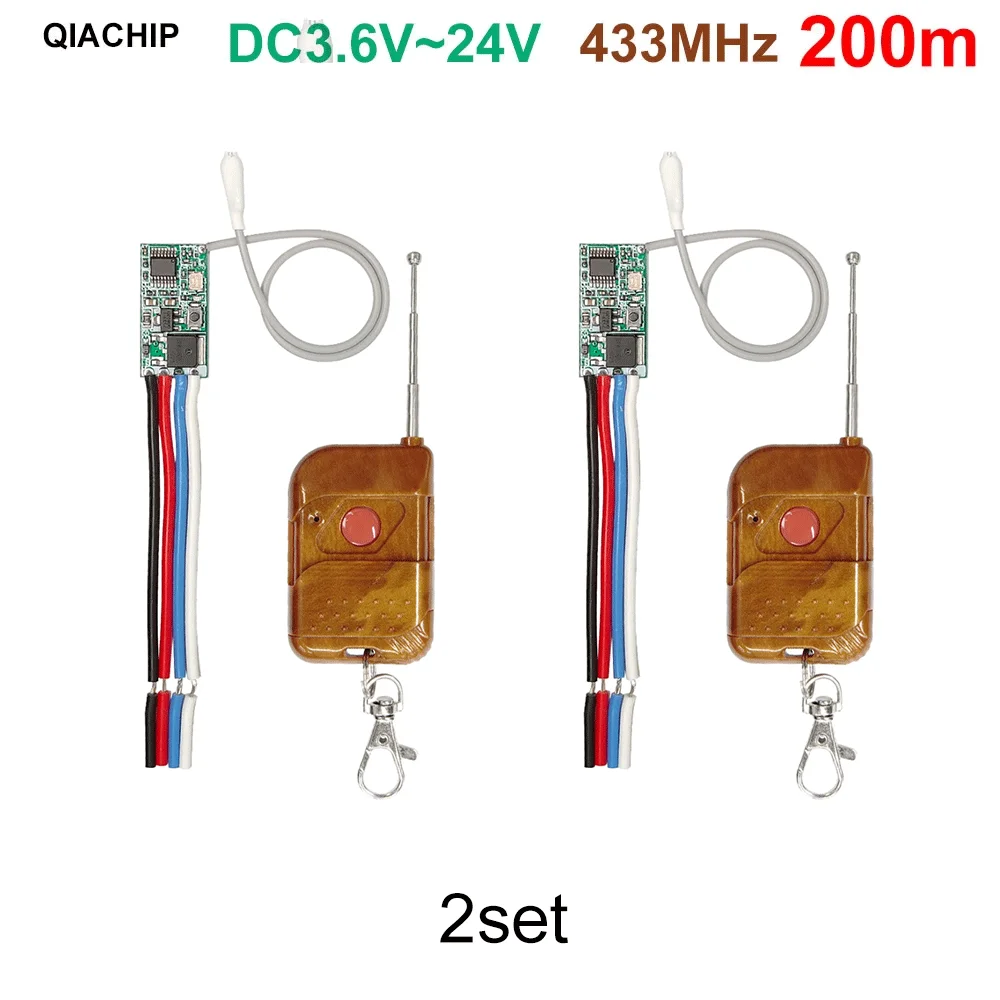

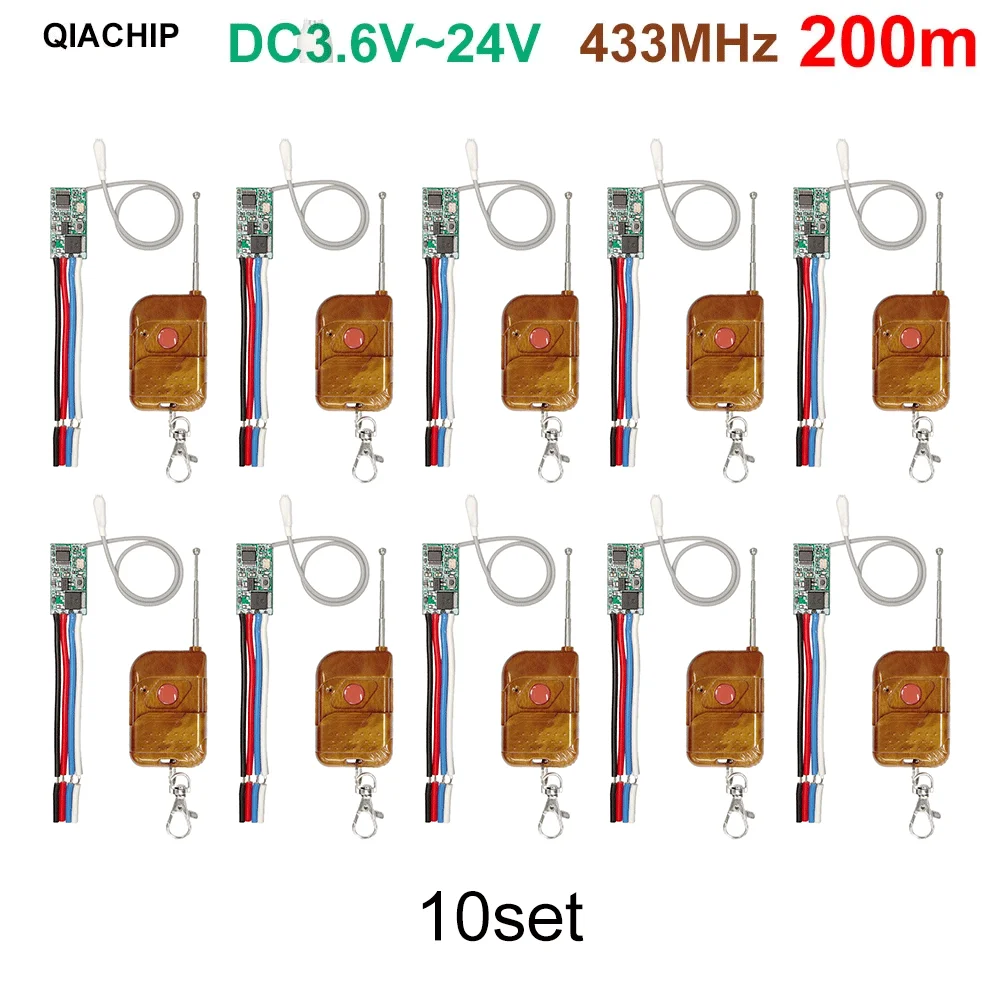

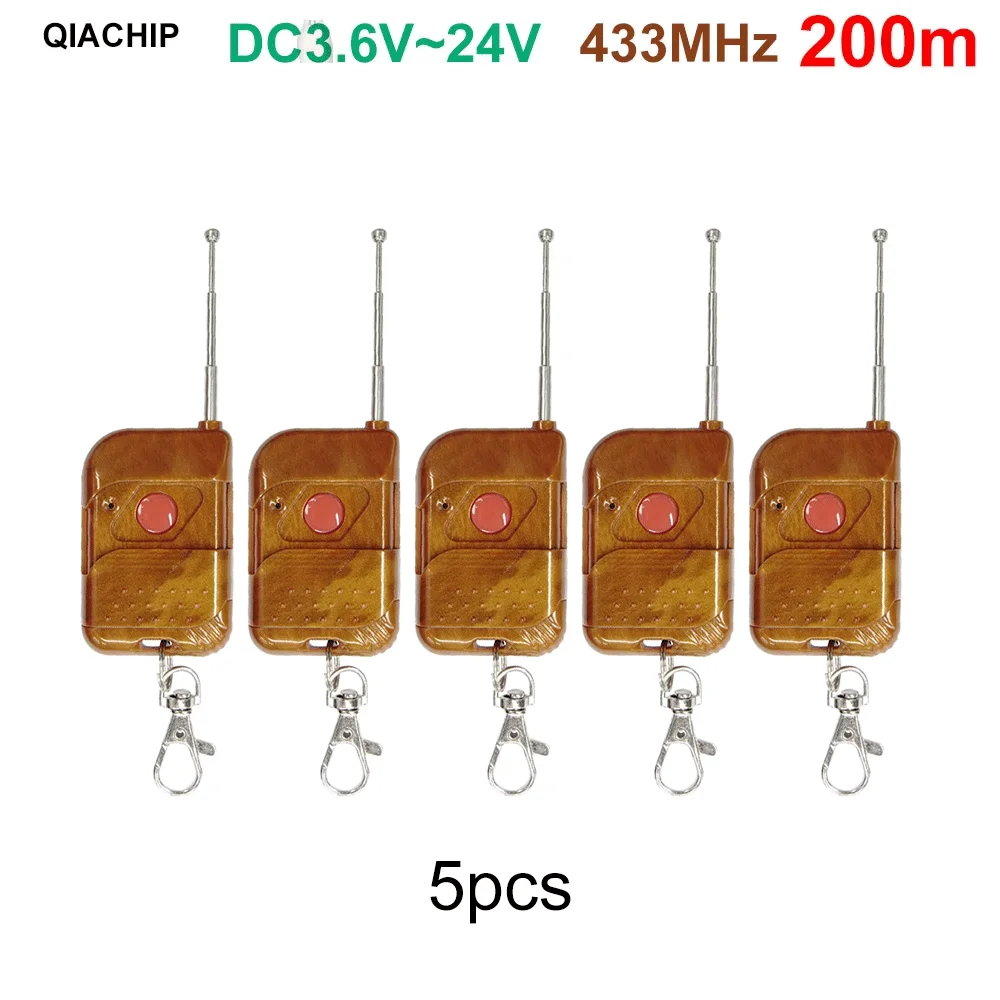

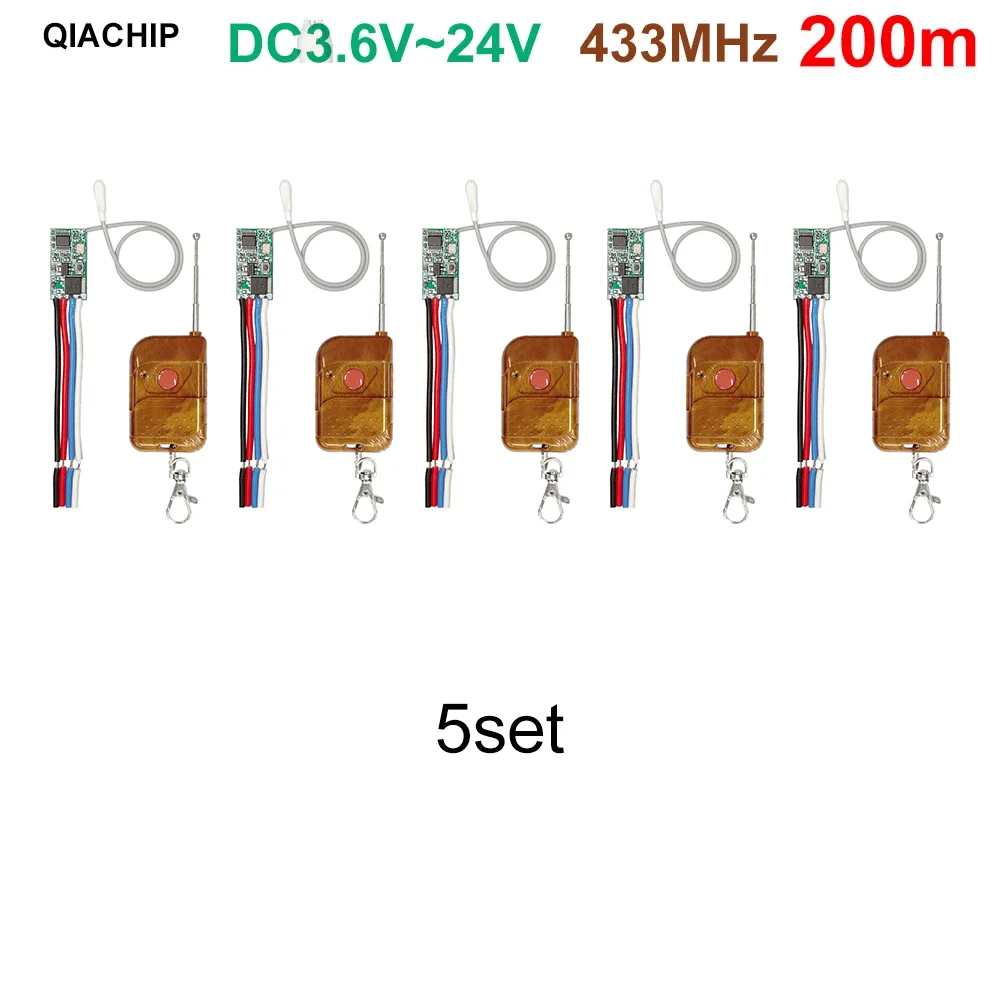

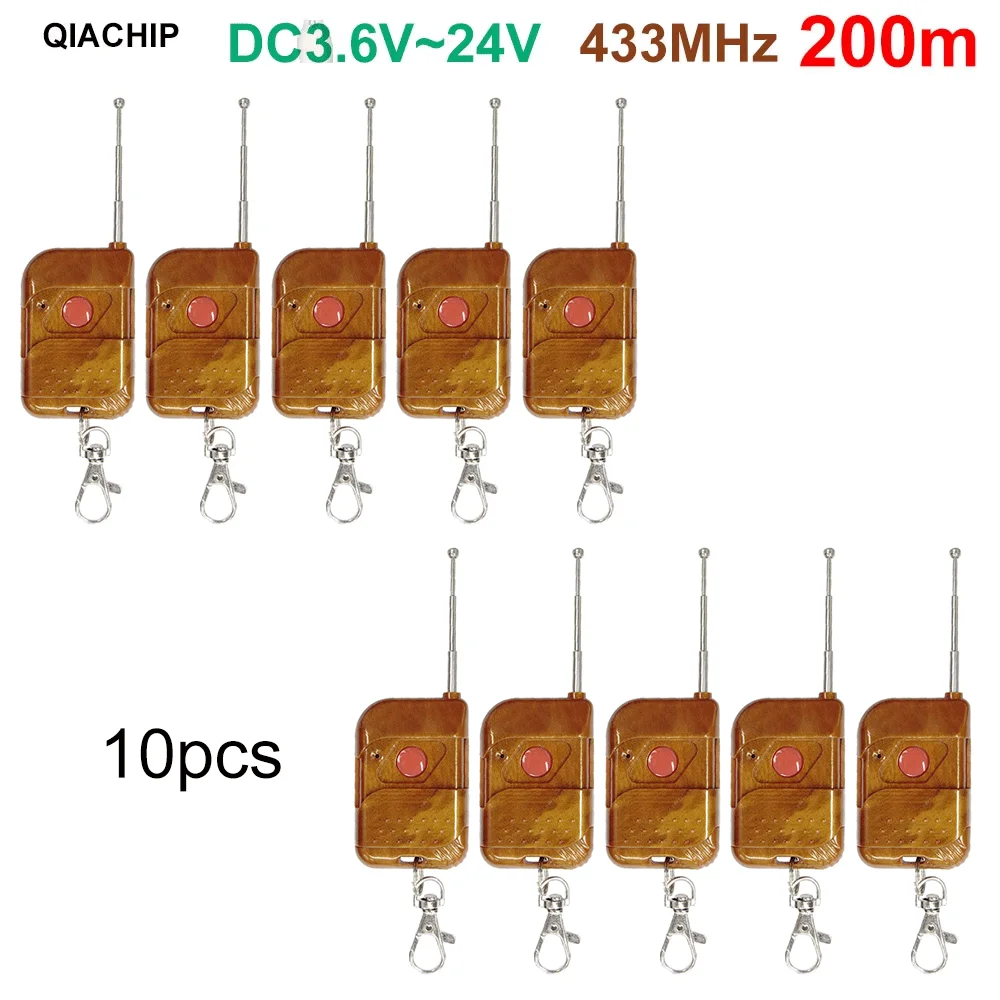

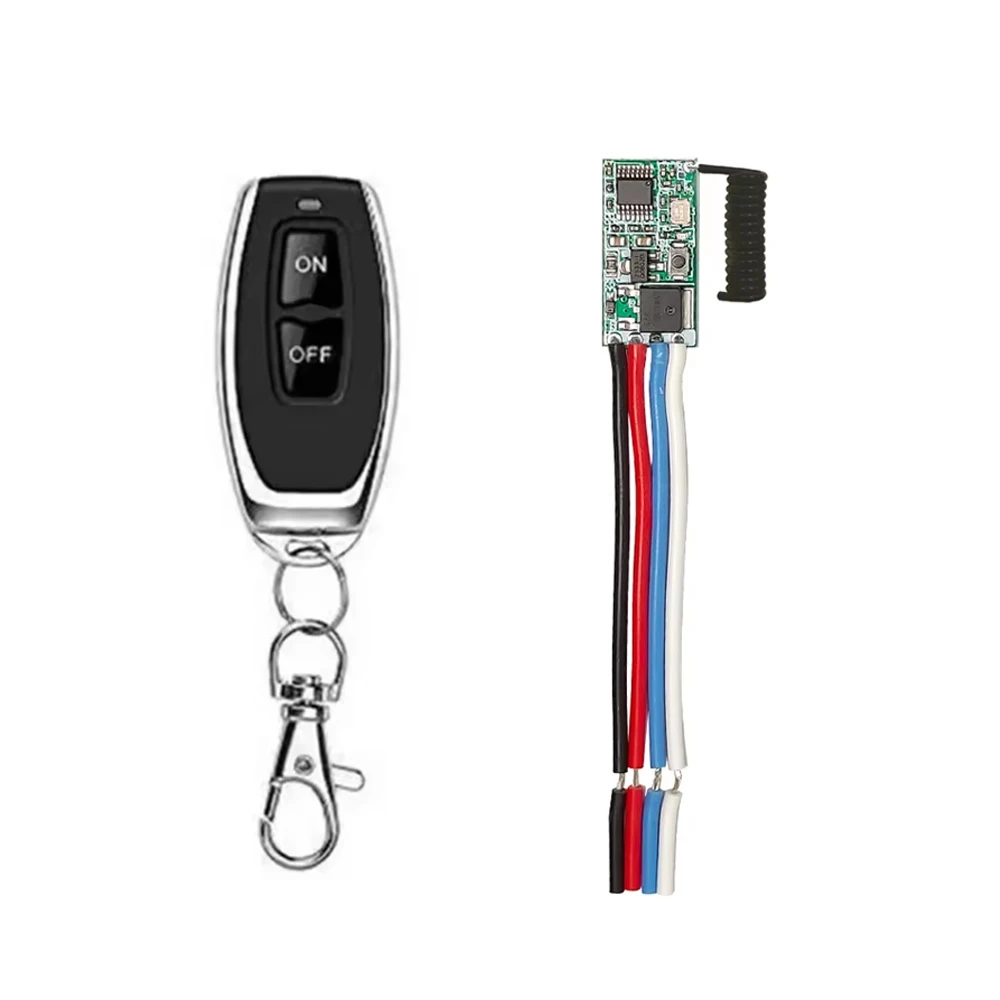

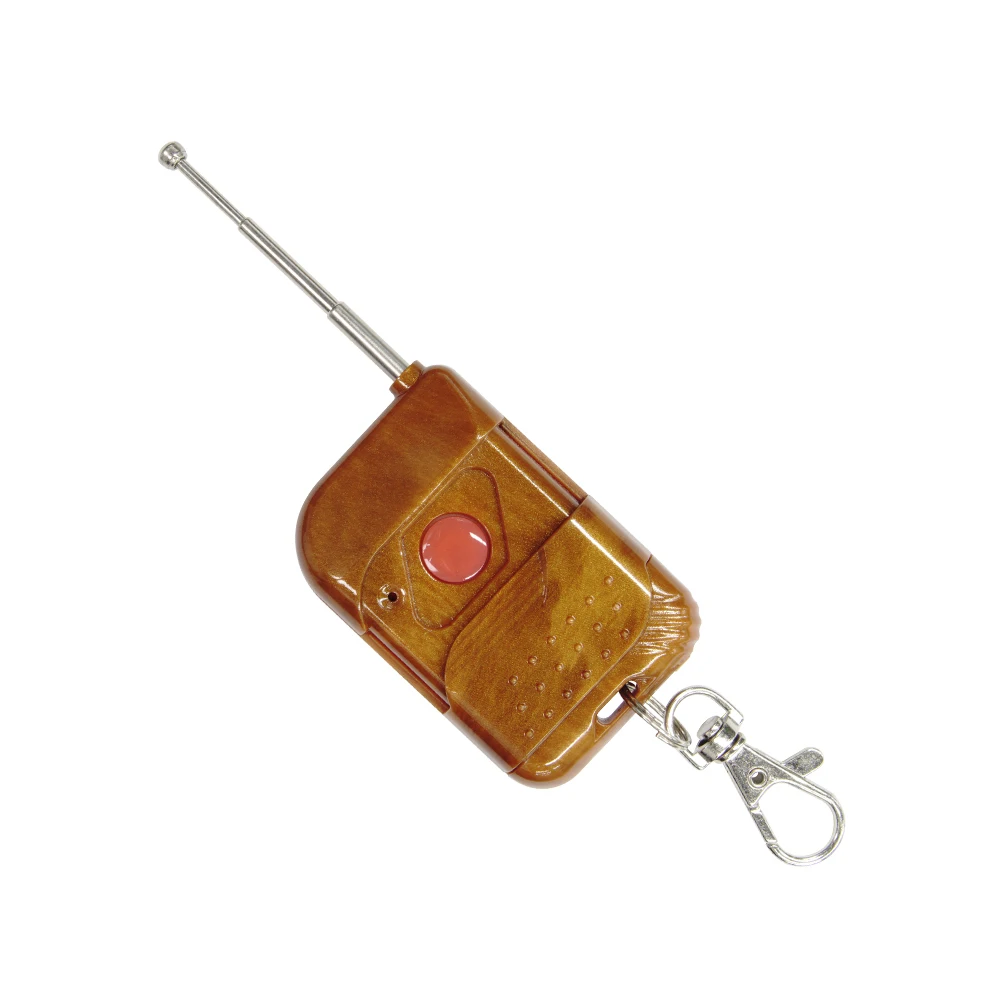

433mhz Wireless RF Remote Control DC 3.6V 5V 9V 12V 24V 1CH Mini Relay Switch LED Lamp Controller Micro Receiver Transmitter DIY

Application environment

Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

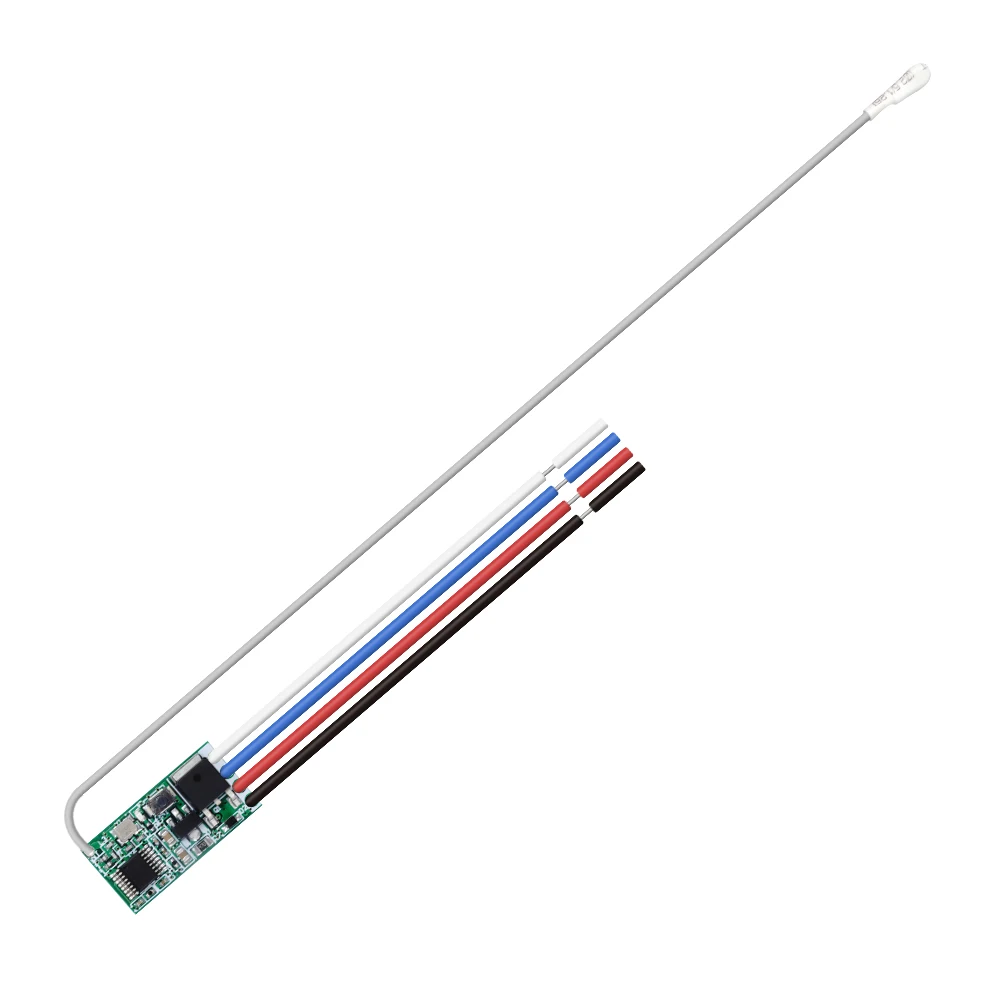

Specifications Of The Receiver

Model Number:QA-R-011

Working Voltage: DC 3.6V~24V.

Maximum Load: 2A.

Static Current:3.6mA ~ 7mA.

Working Frequency: 433MHz.

Reception Sensitivity: ≥ -107dBm.

Modulation Mode:ASK (superheterodyne).

Number Of Stored Remote Controls: ≤ 10.

Working Mode: Momentary, Toggle, Latching Mode.

Learning Style: Learning Button.

Working Temperature: -20 degrees 80 degrees.

Appearance Size: 26mmx 13mm x 1mm (length × width × high).

Clearing the code

After push the receiver's learning button 8 times, the receiver Clear all the

remote control data in its memory.

When the LED flashes for 5 few times, it indicates that the clear function is

completed.

(After cleared the code in the receiver,all the remote control must study from

receiver once again to restart).

About Working mode

Momentary

Push the remote button, the relay connects, release the remote button, the

relay dis-connects.

Toggle

Push once the remote button, the relay connects, push twice the remote

button, the relay dis-connects.

Latching

Push the remote button A, the relay connects, push the remote button B

the relay dis-connect.

Time delay mode

Push the remote control button, the relay connects, from when release

the remote button, after 5s or 10s or 15s or 20s, the relay disconnect

automatically

Automatic energize when power

When power supply, the relay connects.

RECEIVER OPERATING MODE SETTINGS

How to Set Momentary Mode

Push the learning key on the receiver once time, it comes into momentary setting

mode.

Wait for a moment, the LED will be on, it comes into learning state. Push the

remote button

LED indicator on the receiver board will flash 3 times and then come off,learning

successfully

How to Set Toggle Mode

Push the learning key on the receiver twice time, it comes into toggle setting mode

Wait for a moment, the LED will be on, it comes into learning state.Push the remote

button, LED indicator on the receiver board will flash 3 times and then come off

learning successfully

How to Set Latching Mode

Note: When you choose for latching mode, in order to learn more remote control

you need to learn two different button, the first time learning is for “ON”, the

second time learning for“OFF”.

For example: button A = ON, button B = OFF, Push the learning key on the

receiver triple time, it comes into latching mode. Wait for a moment, the LED

indicator on the receiver board will be on

Push the remote button A, LED flash for 3 times.

Push the remote button B. LED indicator flash for 3 times and then come

off, learning successfully.

How to Set Time delay Mode

Push the learning key on the receiver forth time, the time dealy for 5 seconds.

Push the learning key on the receiver fifth time, the time delay for 10seconds.

Push the learning key on the receiver sixth time, the time delay for 15seconds.

Push the learning key on the receiver seven time, the time delay for 20seconds.

The LED indicator will be off.Push the remote button, LED flashes and off

learning successfully.

How to Set Automatic energize when power

the receiver's learning button for more than 5 seconds until the indicator light

flashes, then the power-on setting is successfully configured (after successful

configuration, regardless of the state before power off, it will always be in the

powered-on state when powered on again).
