5-6000MHz RF Wideband Amplifier Gain 20dB Ultra-wideband Radio Frequency Amplifier Module DC 5V RF Signal Power Amplifier Board
Feature
1. Wide Frequency Range: This RF signal power meter operates within a broad frequency range of 5-6000MHz, making it suitable for amplifying various RF signals. It ensures reliable signal amplification for a wide range of applications.
2. High Gain: With a gain of 20dB, this logarithmic detector provides significant signal amplification, enhancing the strength and integrity of the RF signals. It improves signal quality and allows for better transmission or reception performance.
3. Powerful Output: The radio frequency detection module offers a large output power of +21dBm (100mW) at 1dB compression point. This high output power enables signal transmission and reception, ensuring optimal performance even in challenging environments.
4. Low Power Consumption: Despite its powerful capabilities, this RF power detector has low power consumption, operating at only 85mA with a 5V DC power supply. It helps conserve energy while delivering stable and reliable amplification.
5. Compact Design: Measuring just 53 x 25 x 5mm, this RF power analyzer board is compact and space-saving. Its small form factor allows for easy integration into various RF systems without occupying excessive space.
Specification
Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Model Number: RF Amplifier Module
Type: RF Wideband Amplifier
Operating frequency: 5-6000MHz
Amplifier gain: 20dB
High output power: +21dBm (100mW) @ 1dB compression point
Operating current: 85mA (5V)
Supply voltage: 5VDC
System impedance: 50 ohms

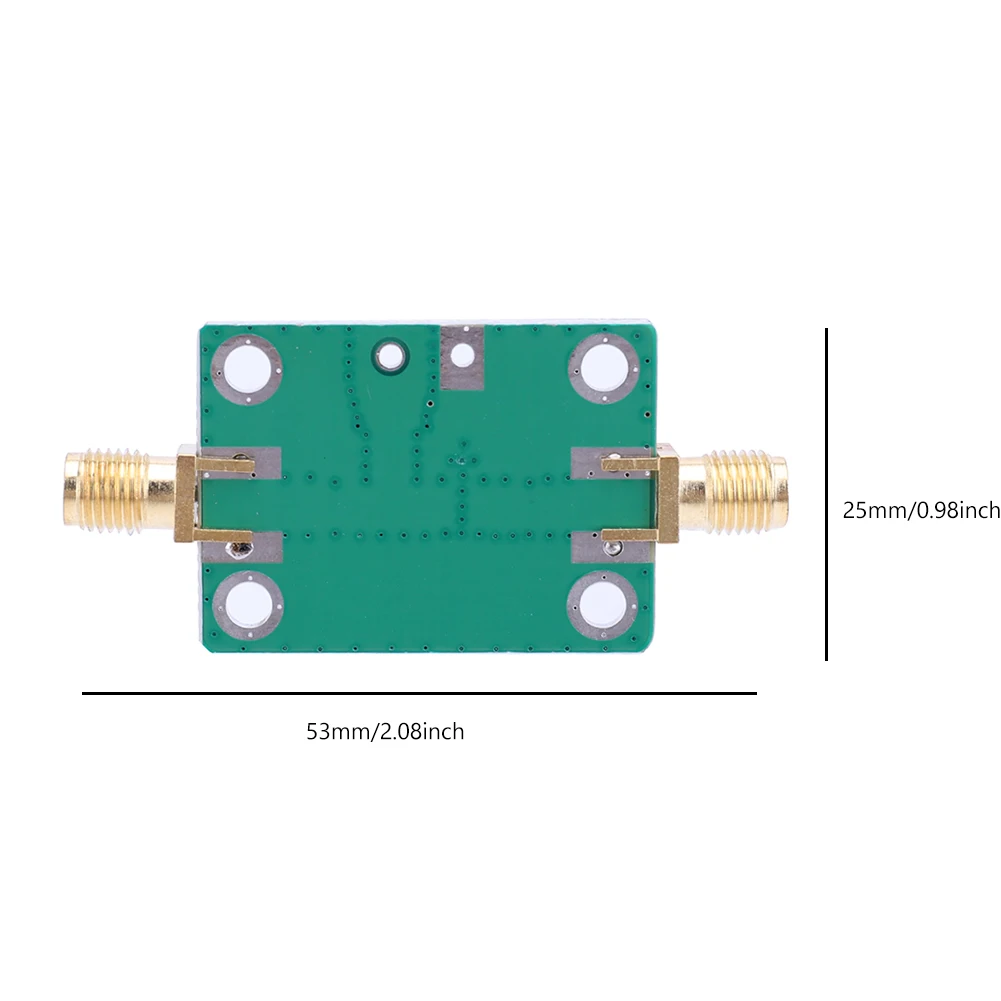

Product size: 53 x 25 x 5mm/2.1 x 1.0 x 0.2inch
Product Application
The amplifier is a 5 - 6000MHz (20dB) amplifier with a large dynamic range and a wide operating frequency range, suitable for fixed gain amplification of all types of RF signals.
Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x RF Amplifier Module
