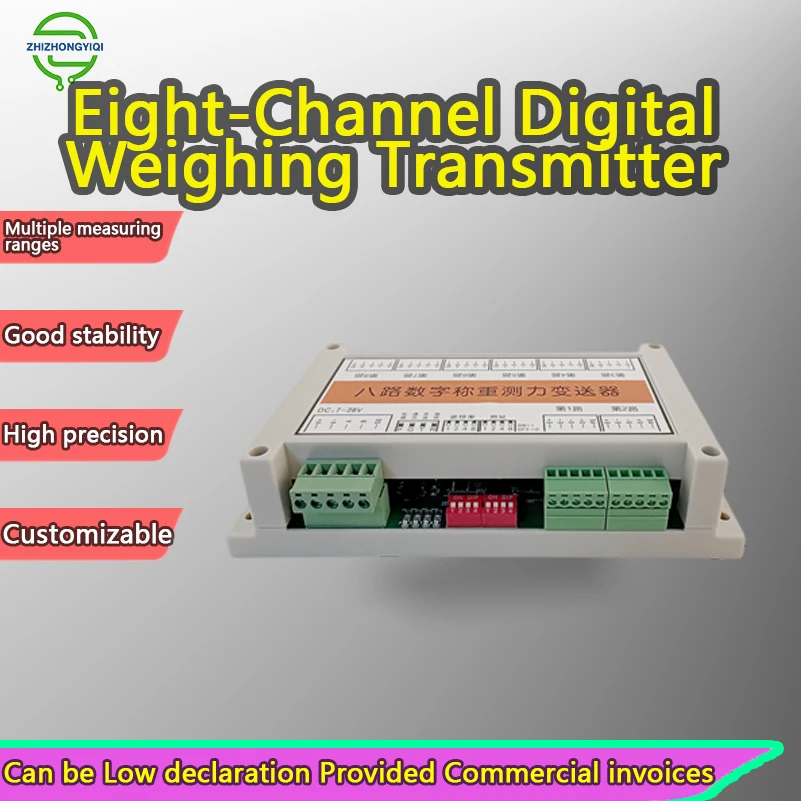

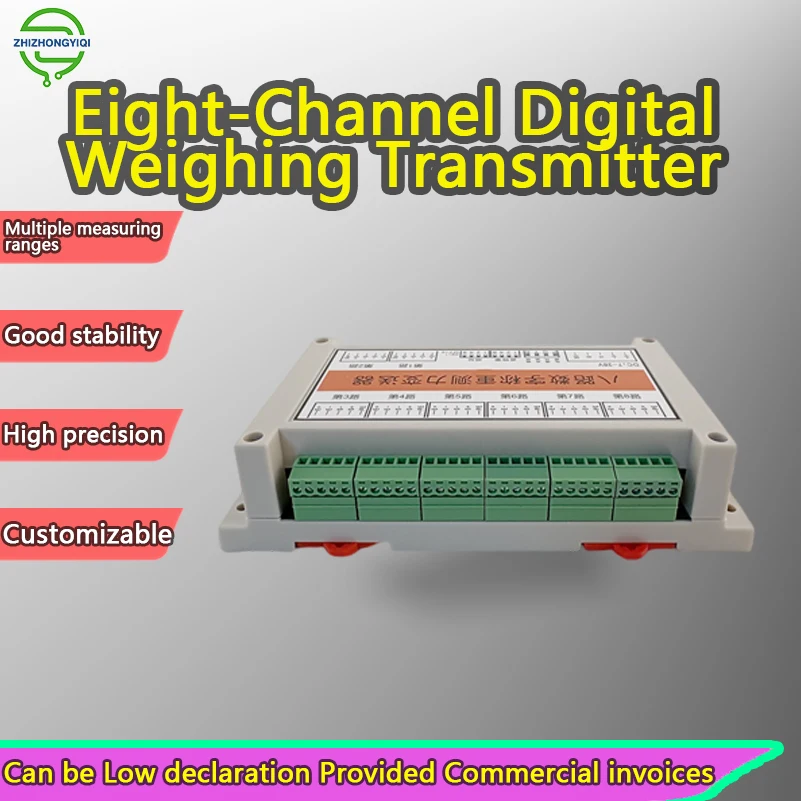

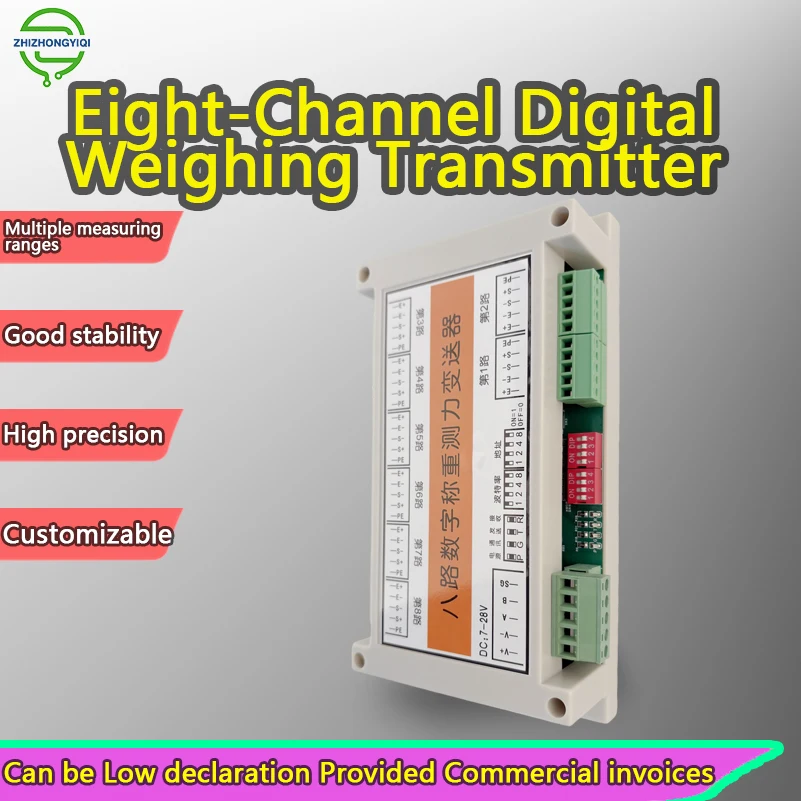

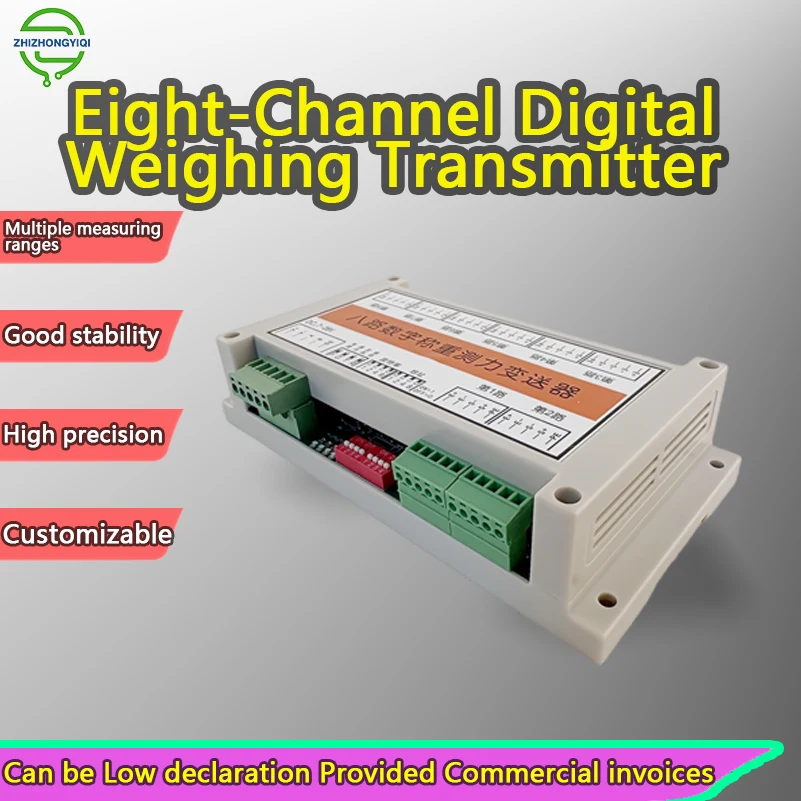

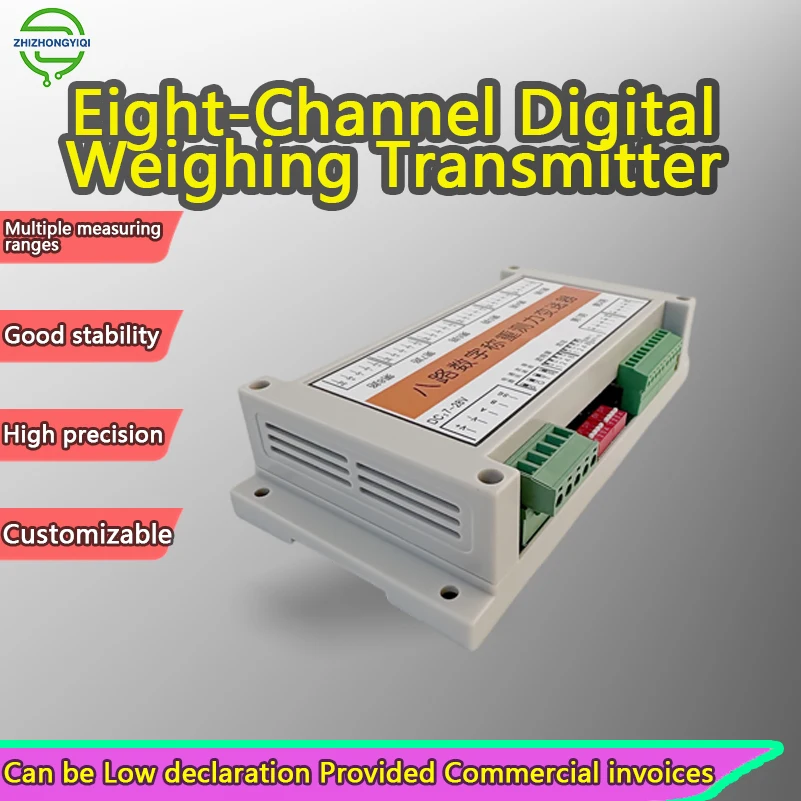

8 Channel Digital Weighing Transmitter RS485 Modbus RTU, Supports 10-Point Calibration, High Accuracy Sensor Signal Module
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 5.0★ from 18 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: BENGBUZZYQ
- Sales: 35
- Package size: 20 × 20 × 10 cm
- Package weight: 0.35 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Item
Specification
Power Supply
DC 7–28VDC
Power Consumption
< 2W
Operating Current
Depends on sensors; drive capacity 500 mA
Operating Temperature
Humidity
0–95% RH, non-condensing
Protection Level
IP65
Supported Sensors
Wheatstone bridge strain load cells
Excitation Voltage
5VDC ±3%
Channels
6–8 channels
Input Signal Range
0 – ±30 mV
Resolution
1/500,000
Sampling Rates
10Hz, 40Hz, 640Hz, 1280Hz
Communication Interface
RS485, Modbus RTU
Baud Rates
2400–600000 (configurable)
Addresses
DIP 0–15, software 1–255, broadcast 254
Technical Specifications
1 General Technical Specifications
Power Supply: DC 10–28VDC
Power Consumption: < 2W
Operating Current: Varies with the number of external sensors and supply voltage; drive capability 500 mA
Operating Environment: Temperature −40~85°C; Humidity 0%~95% RH, non-condensing
Isolation & Protection: Opto-isolation, power isolation, surge protection (not included in the basic version)
Protection Level: IP65
Mounting Method: Mounting holes / rail mounting
Weight:≈ 250 g
2 Sensor Interface Performance
Supported Sensor Types: All Wheatstone bridge strain-type sensors
Sensor Excitation Voltage: 5VDC ±3%
Sensor Drive Capability: 4 × 350Ω sensors per channel
Number of Channels: 6–8 channels
Input Signal Range: 0 – ±30 mV
Temperature Coefficient:≤ 0.01% of reading + 0.3 d/°C
Non-linearity Error:≤ 0.003% F.S.
Stable Resolution: 1/500000
Sampling Rates: 10Hz, 40Hz, 640Hz, 1280Hz
Sampling Method: Sigma-Delta AD
3 Communication Interface
Communication Method: RS485
Communication Protocol: Standard Modbus RTU protocol; supports function codes 03, 06, 16 (0x10)
Baud Rates: 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 128000, 230400, 256000, 460800, 500000, 512000, 600000 (configurable by software and DIP switches)
Slave Software Address: 1–255; Broadcast address 254
Slave DIP Address: 0–15
Baud Rate: 115200
Data Bits: 8
Stop Bits: 1
Parity: None
Module Address: 1
CRC Byte Order: Little-endian
Data Byte Order: 2143
Register Description
All registers are located in the non-volatile holding register area of the Modbus protocol. Each register contains a 16-bit number. Some functions of the module are represented in 32-bit format; for example, the real-time weight register is represented as a 32-bit signed value. A 32-bit value uses two adjacent registers combined into a 32-bit number, where the lower-address register is the low word of the 32-bit number. When programming the host, pay attention to the configuration of high and low words; otherwise the numbers read will be incorrect. All 32-bit registers must be read and written as 32-bit signed values. Although sometimes reading only the low word of a 32-bit register (in 16-bit mode) may display correctly, this often causes abnormal display for negative or large numbers.
