8 Ton/13ton Hydraulic Rebar Cutter 4-16mm/4-22mm Cutting tool

Attention

Please don’t stand on both sides when it working, not safety

This tool is suitable only for Rebar! It is not usable for cutting hardened materials like Stainless Steel, Chain or Padlocks etc.

1, 8TON 4-16MM

Specifics

Tonnage: 8 Ton

Rebar min.diameter: 4mm

Rebar max.diameter: 16mm

Rebar min-max diameter: 4-16mm

Package Content

1 x Hydraulic cutter

1 x Allen wrench

2, 13Ton 4-22mm

HY-22 Professional Handheld Hydraulic Rebar Cutter

Specifications

Model: HY-22

Tonnage: 13Ton

Rebar max.diameter: 22mm

Package size: 54x21x12cm/22x9x5inch

Rebar min-max diameter:4-22mm

Heavy duty, light weight

Portable, handed

Package Included

Description

This hydraulic rebar cutter is compact in structure and easy to operate. We also presented a portable toolbox, which can provide strong protection for products and make them easier to store and carry. This hydraulic rebar cutter has high strength and excellent durability, and it will be your powerful cutting tool.

Key Features

Good Sealing: Double-layer sealing ring makes the oil cylinder have stronger sealing for stronger shear force.

High-quality Material: The cutting head made of high-quality metal and treated with 12 chromium has high hardness and strong compression resistance, which can effectively prolong the service life of the product.

Easy to Use: On/Off control can realize quick operation, easy crimping, and arm retraction. The C-shaped head makes it easier to change the mold at the side entrance.

Large Cutting Range: 0.16-0.63 inches cutting range can provide you with more cutting options. It can meet a large number of your cutting needs.

Powerful Cutting Force: The pressure generated by the hydraulic pump has a more powerful cutting force. The crimping power of 8T allows you to cut more high-hardness steel bars.

Easy to Carry: The portable toolbox can provide strong protection for the product and make it easier to store and carry.

Installation-free: The integrated structure of this product allows you to start using it directly after receiving the product without an additional installation.

Fashionable Appearance: The classic combination of black and yellow adds more vitality to your work. It not only provides you with powerful cutting force but also shows its fashionable appearance.

Details

Non-slip Handle: The non-slip pattern on the handle can make you hold it more firmly, thus making your cutting work easier.

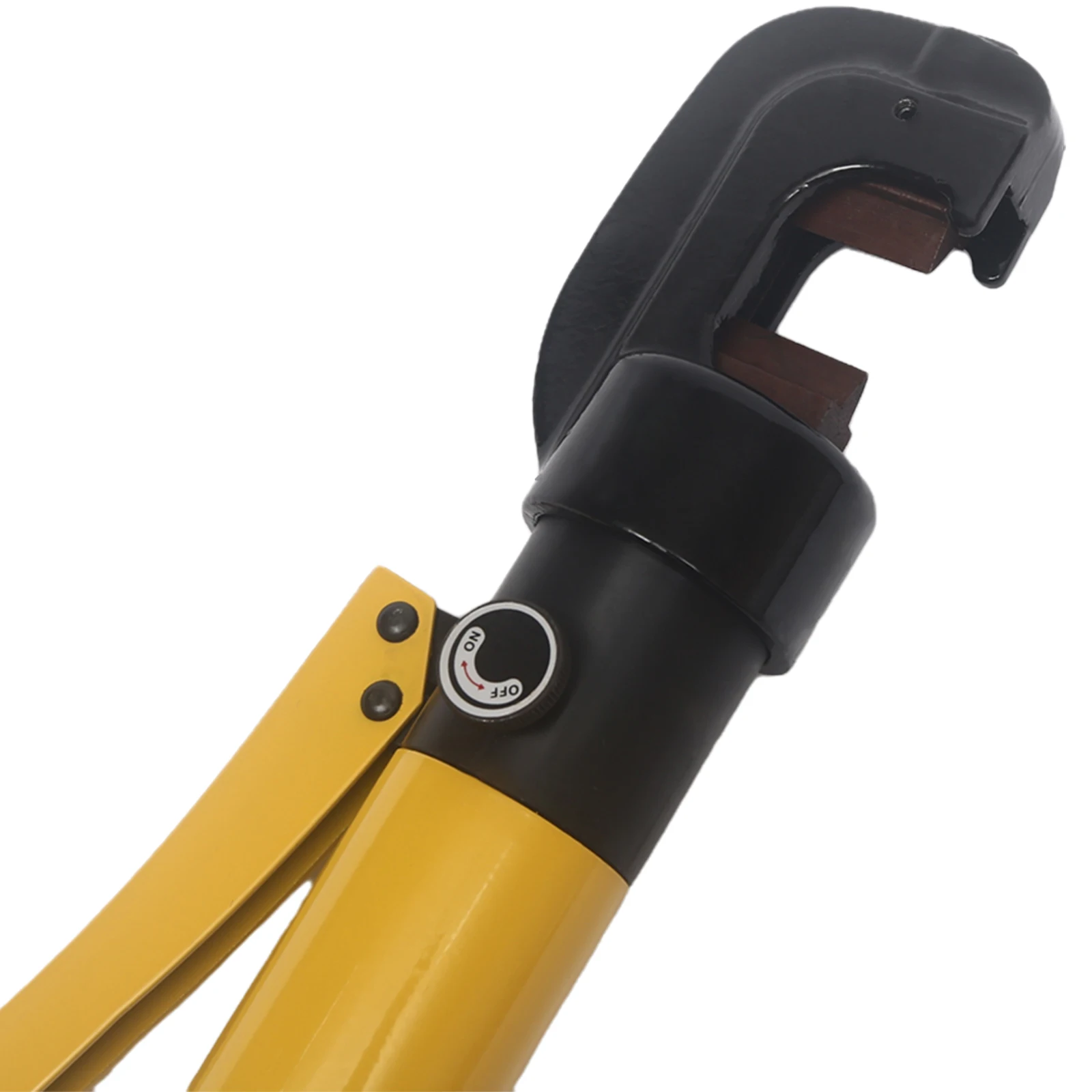

Twist Valve: The twist valve can easily control the hydraulic switch, and the clear logo on the valve can make you operate more accurately.

Hex Key: The hex key in the package can help you easily remove and replace the cutter head.

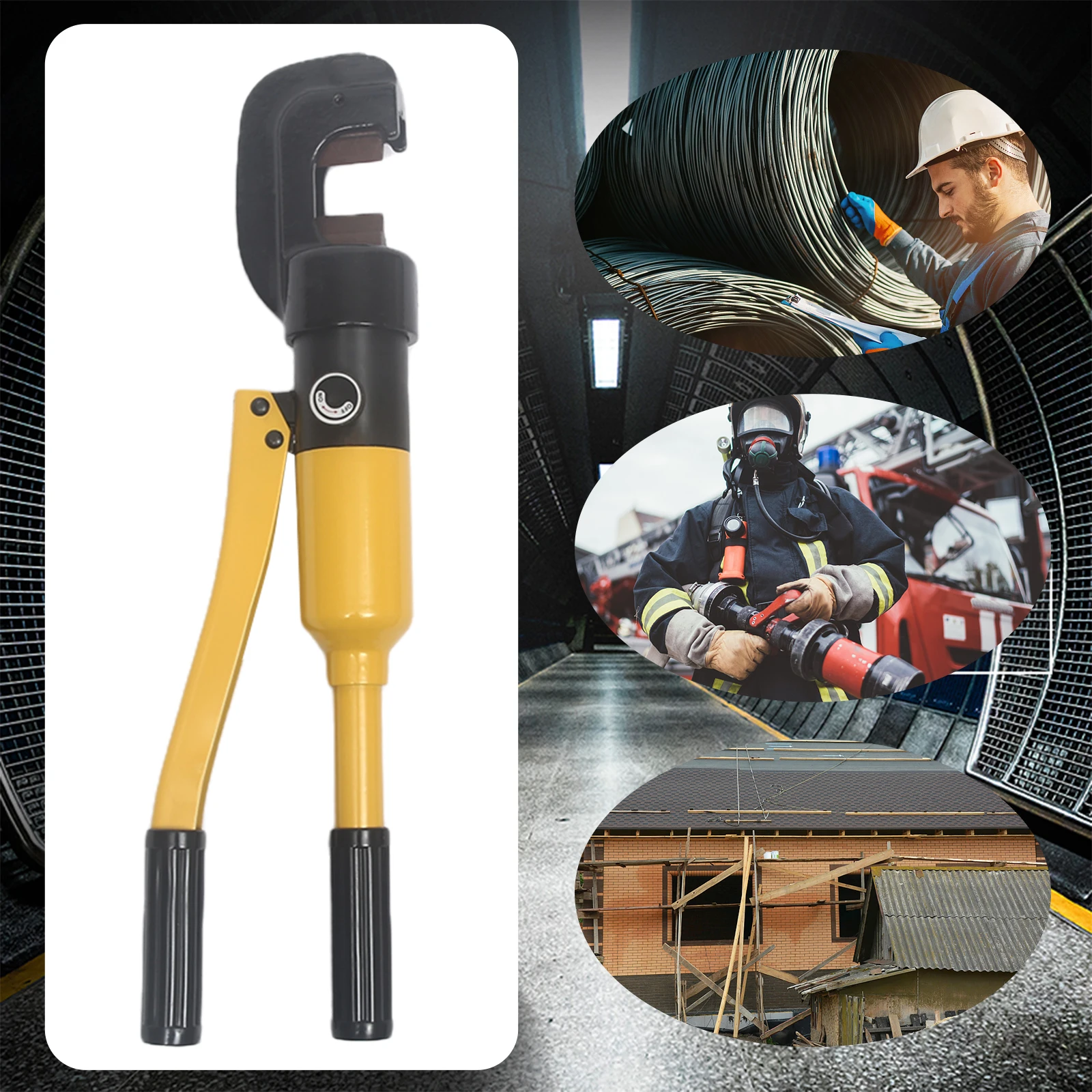

Application

The rebar cutter hydraulic-driven is ideal for making roll cages, frames, furniture, and other rebar works, widely used in construction, electricity, transportation, oil, fire protection, construction site, traffic etc. It can cut screw thread steel, round steel, low carbon steel and medium carbon steel.

Notes

1. It can't cut anchor chain, U-shaped lock, high hardness round steel, alloy with unknown composition, flat iron and stainless steel.

2. When using it, align the upper and lower cutter heads with the straight line of the blade, put the rebar in the middle of the knife, close the oil return switch in a clockwise direction, repeatedly pull the movable handle until the rebar is cut off, then release the oil return switch to reset the upper and lower cutter heads, and finally the operation is completed.

3. This product is strictly forbidden to be used under empty pressure and must be used in the presence of objects.

4. Please make sure that the cutting range of this product meets the material you want to cut before buying.

5. Please read the instructions in the package carefully before use, and pay special attention to the matters needing attention.

6. Tools should be maintained by personnel, and should not be disassembled arbitrarily, not knocking collision. When disassembling, attention should be paid to the cleanliness of the site. After using the product for a long time, the oil quantity will be reduced. You should spin off the fixed handle, pull out the oil plug at the end of the oil bag and loosen the oil return switch after the oil is filled. Toggle the active handle empty pressure repeatedly several times, so that all the air in the oil pipe out, and then the oil plug plug tight and screwed on the fixed handle.

7. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
