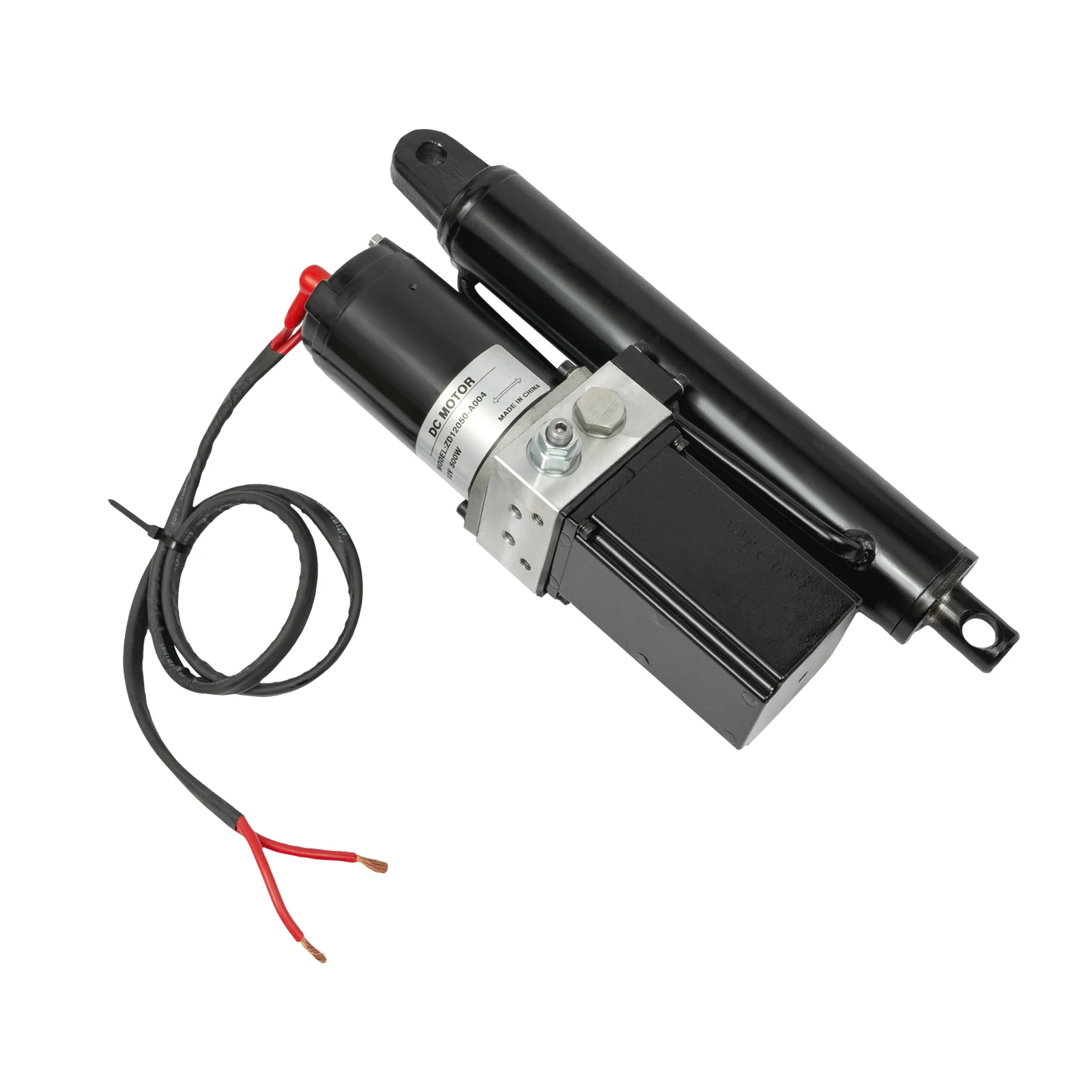

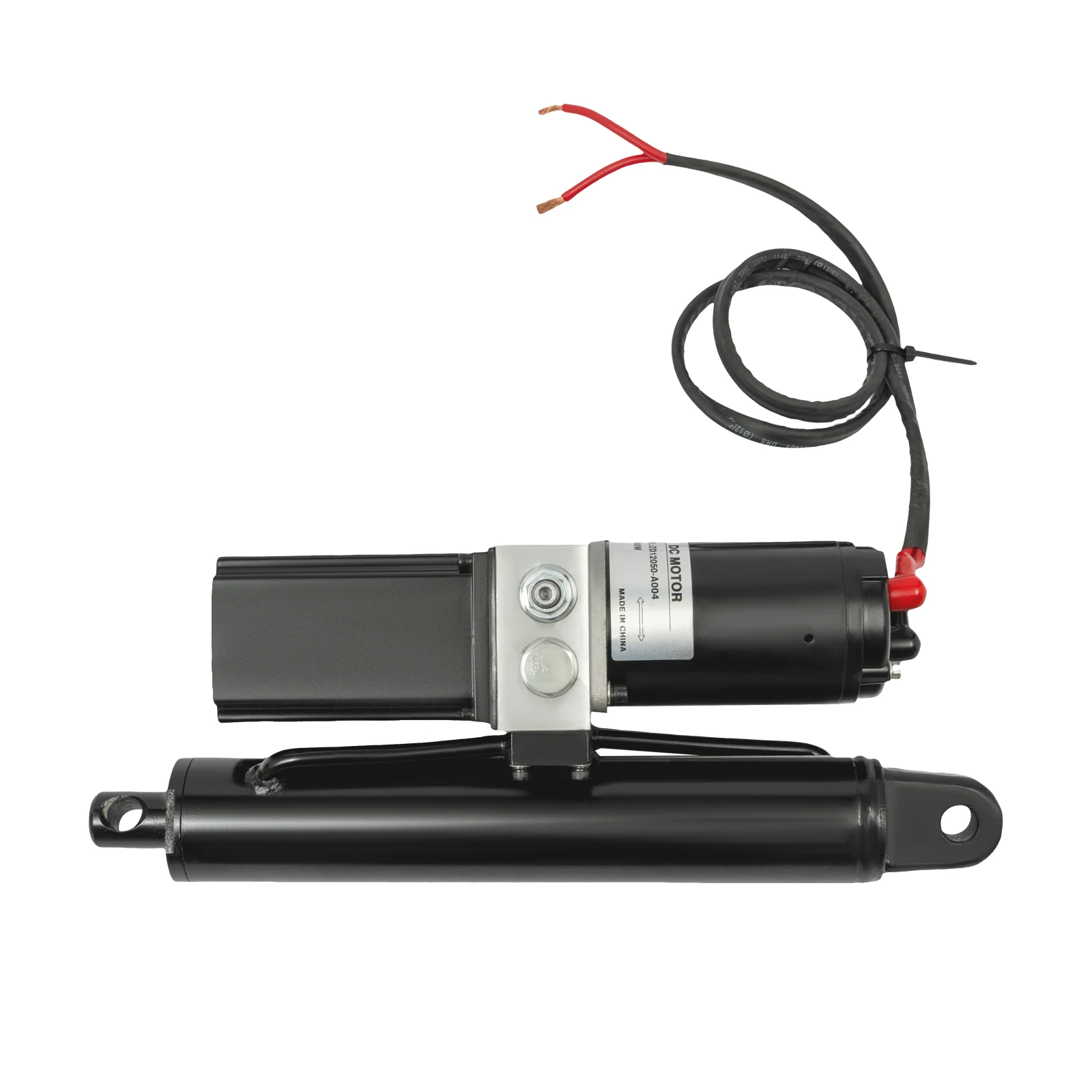

800W Electric Hydraulic Actuator DC12V 0.65CC for Electric Power, Machinery, Metallurgy, Mining, Petroleum, Chemical Industry
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: CNCEST
- Sales: 2
- Package size: 60 × 20 × 13 cm
- Package weight: 15 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
Description
The electro-hydraulic actuator stands as an effective tool of engineering, harmoniously fusing electrical promptness with hydraulic accuracy. It serves as the conductive force behind intricate automation and heavy machinery, where nuanced force application and meticulous control are vital. This actuator operates akin to a conductor's wand, orchestrating complex mechanical maneuvers with exceptional finesse.

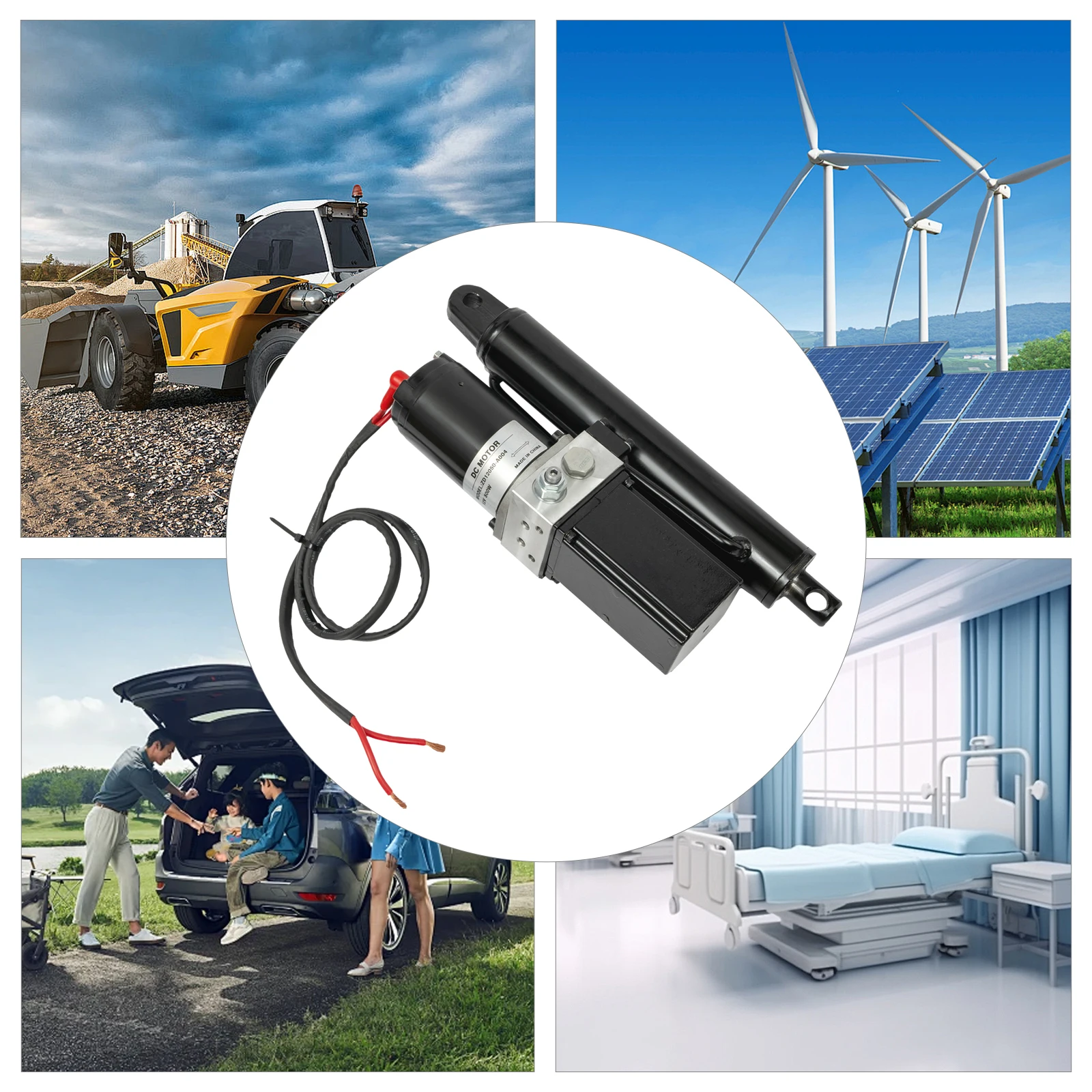

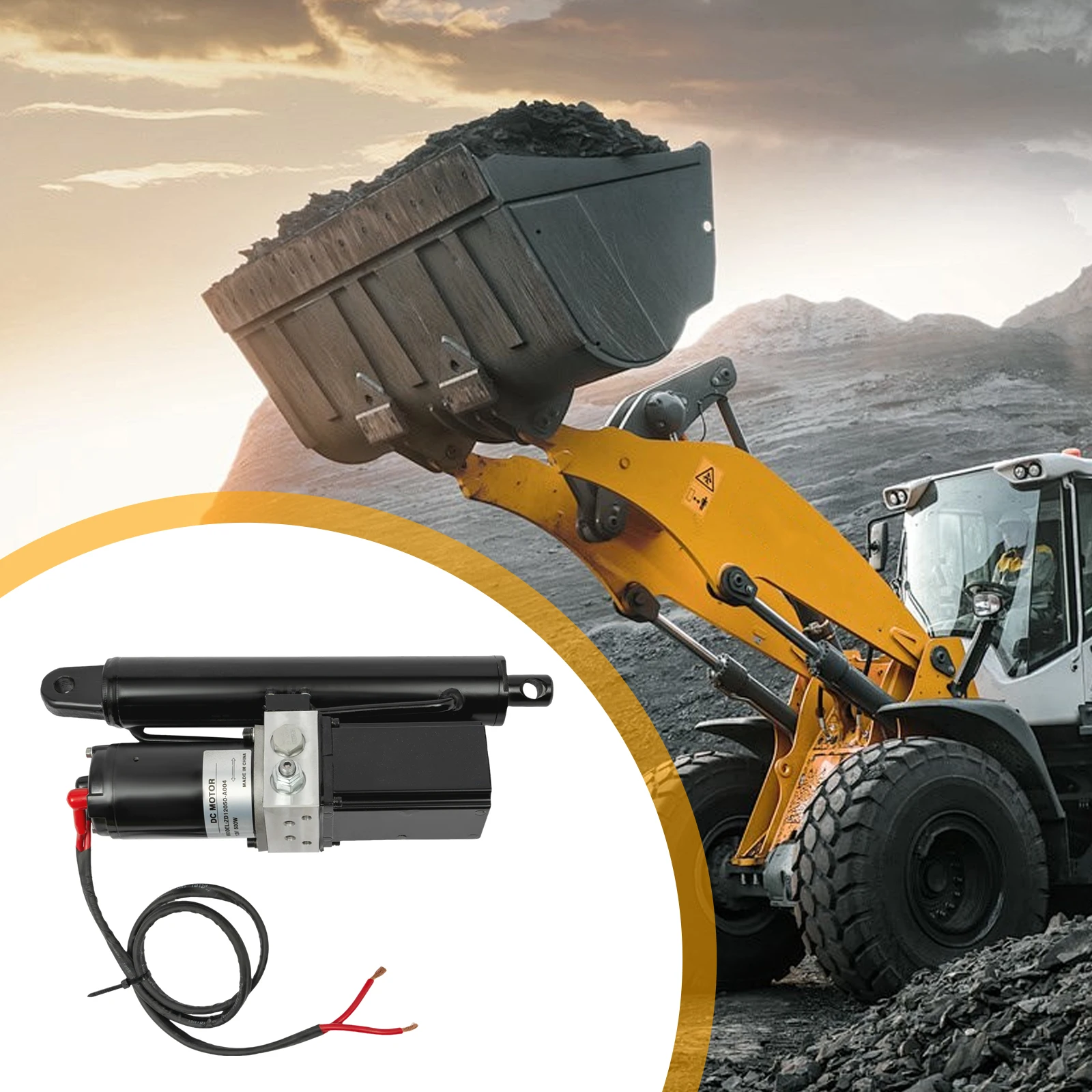

Application
Specification
Color: Black
Material: Steel, Copper
Process: Finishing
Voltage: DC12V
Power: 800W
Speed: 2850rpm
Displacement: 0.65cc
Loading Speed: 25mm/0.98in/s
Max. Thrust in Straight Direction: 2T/4409 lbs
Support Force: 2T/4409 lbs
Max. Load Capacity: 2T/4409 lbs
Cylinder Stroke: 200mm/7.87in
Cylinder Diameter: 50mm/1.97in
Center Distance between Two Holes: 38.5cm/15.16in
Rod Diameter: 28mm/1.1in
Bore Diameter: 16mm/0.63in
Use Frequency: 2.5Min Work, 2.5Min Intermittent
Waterproof Rating: IP54
Product Width: 16cm/6.3in
Retracted Length: 43.85cm/17.26in
Extended Length: 63.85cm/25.14in
Package Size: 60*20*13cm/23.62*7.87*5.12in
Gross Weight: 15kg/33.07lbs
Net Weight: 12kg/26.46lbs

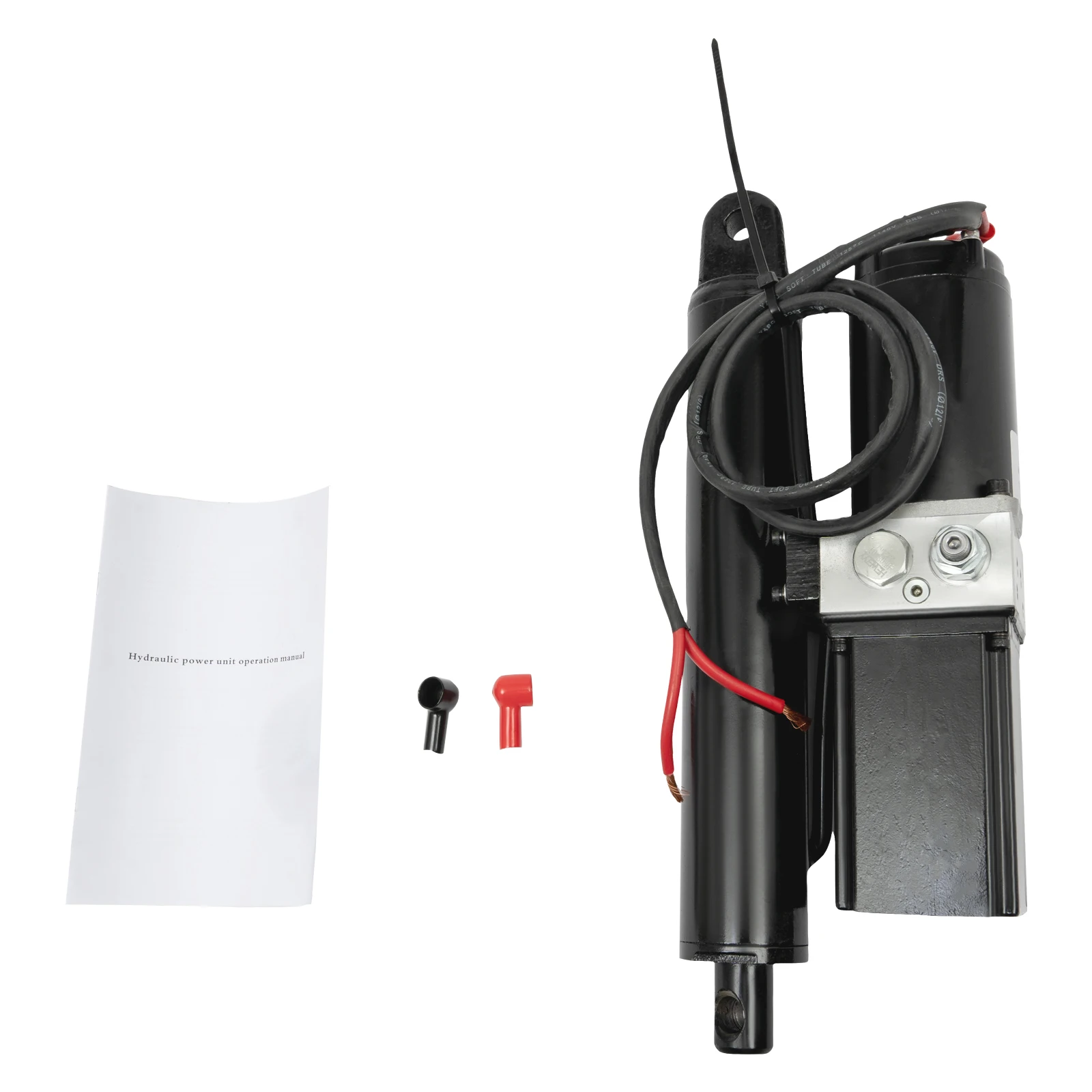

Package Included
1* Electro-hydraulic Actuator
All Accessories for Use
Notes
1. Please check the specifications before purchasing.
2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
