Airspy Mini – Der leistungsstarke Miniatur-SDR-Dongle
Rückgabe- und Erstattungsrichtlinie
Berechtigte Artikel sind durch Rückgabe- und Erstattungsunterstützung abgedeckt. Wenn der Artikel nicht ankommt oder nicht der Beschreibung entspricht, kann der Käufer Hilfe anfordern.
Sicherheit und Datenschutz
Sichere Zahlungen: Wir geben Ihre persönlichen Daten nicht ohne Ihre Zustimmung an Dritte weiter.
Geschützte persönliche Daten: Wir schützen Ihre Privatsphäre und bewahren Ihre persönlichen Daten sicher auf.
AI-Angebot für Ihren Markt
Empfohlene Auswahl basierend auf Kategorie, Versandroute, Liefergeschwindigkeit und Beliebtheit in Ihrem gewählten Markt.
Warum dieses Produkt zu Ihrem Markt passt
- • Geschätzte Lieferung: 5.
- • Starkes Kundensignal: 4.9★ aus 49 Bewertungen.
- • Die Empfehlungen konzentrieren sich auf diese Kategorie und Ihre Marktverfügbarkeit.
Produktspezifikationen
Detaillierte Produktbeschreibung
Dieses Produkt wird mit verfügbaren Optionen, Preis für den ausgewählten Markt und geprüften Spezifikationen angezeigt.
- Marke: SONOFF
- Herstellerland: China
- Verkäufe: 210
- Paketgröße: 10 × 3 × 5 cm
- Paketgewicht: 0.05 kg
Wählen Sie vor dem Hinzufügen zum Warenkorb eine verfügbare Option und prüfen Sie die Menge.

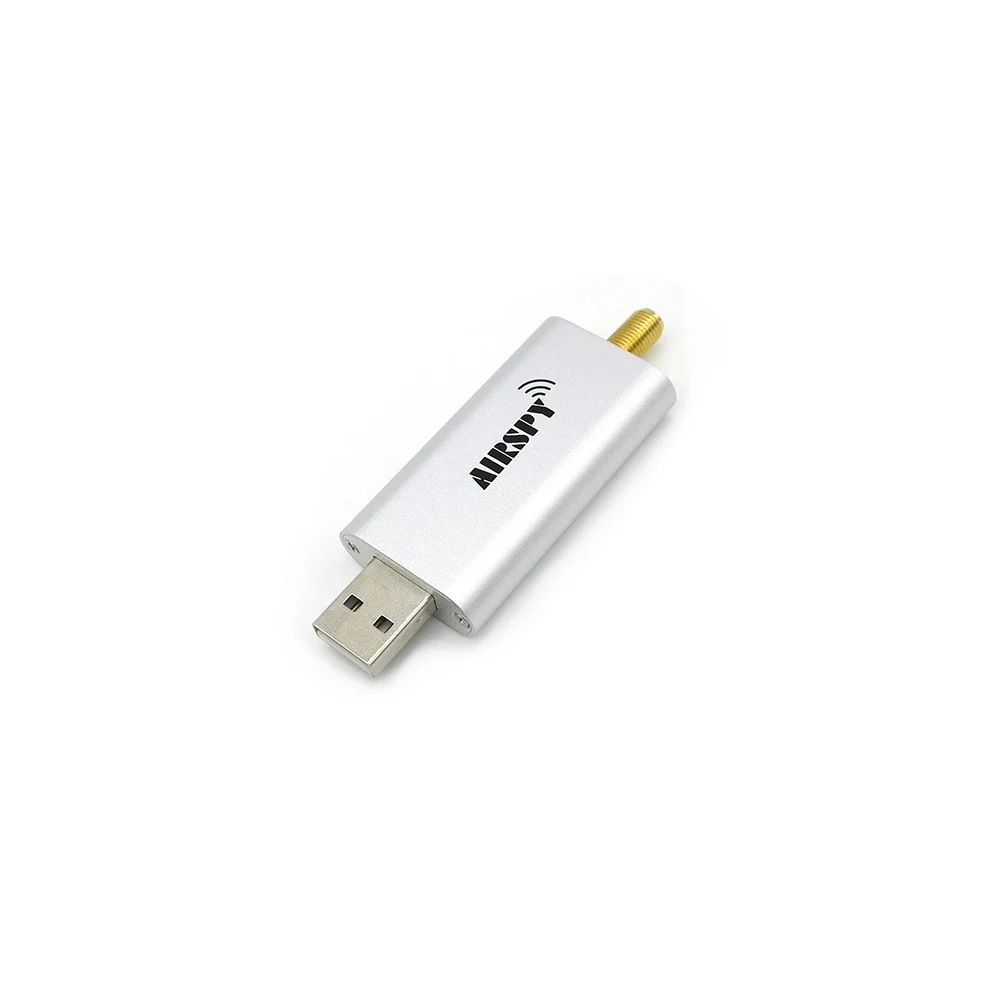

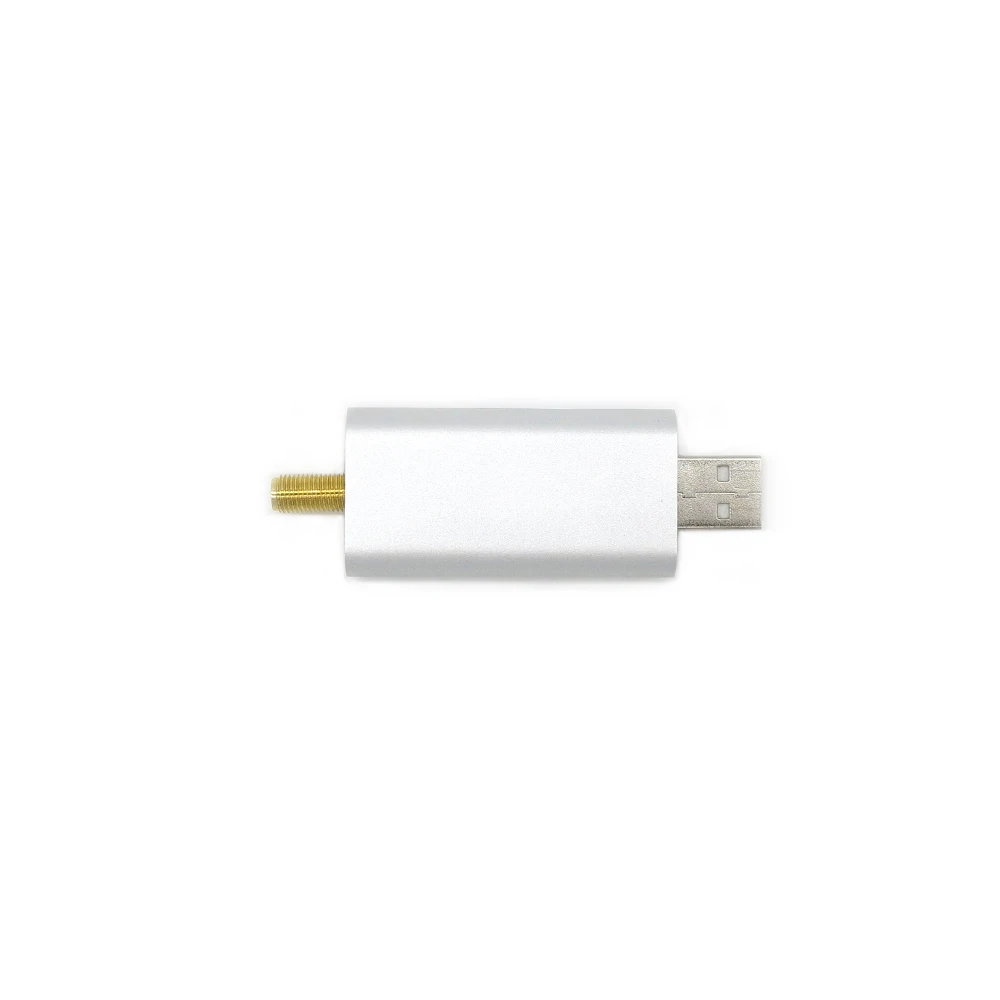

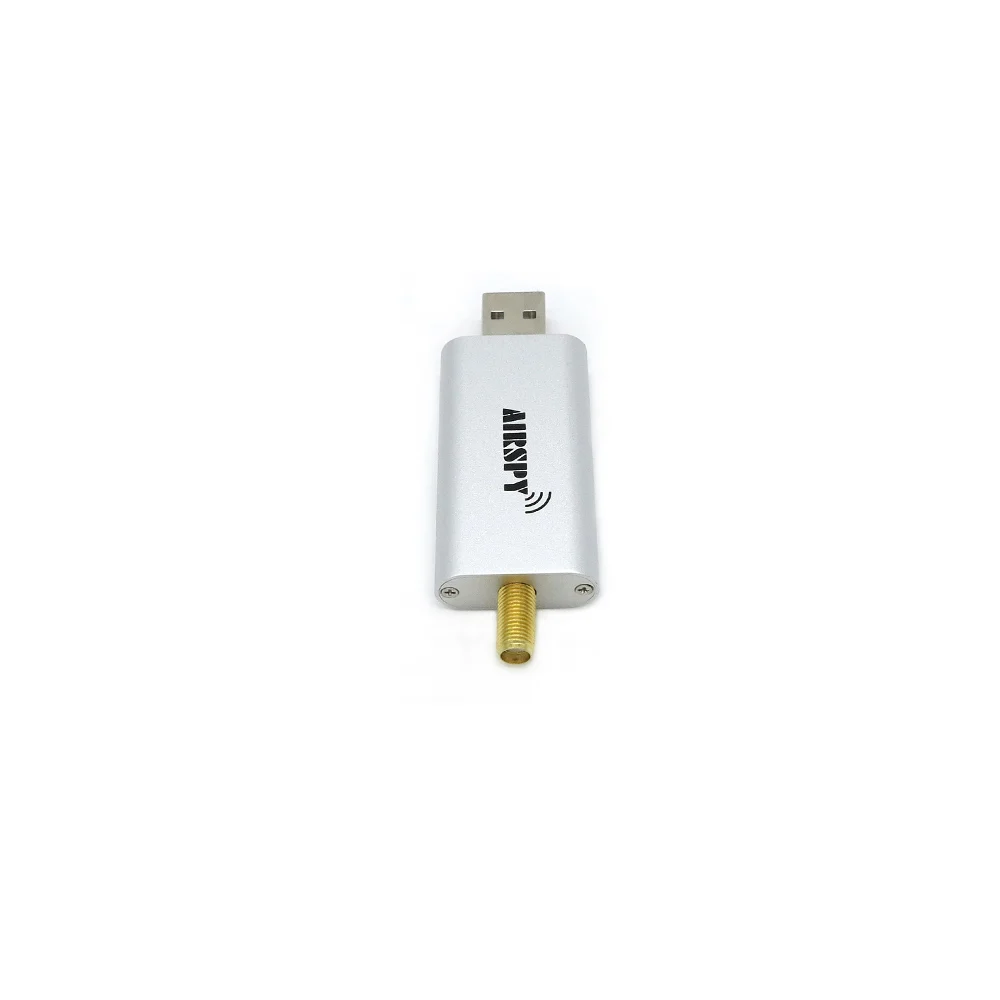

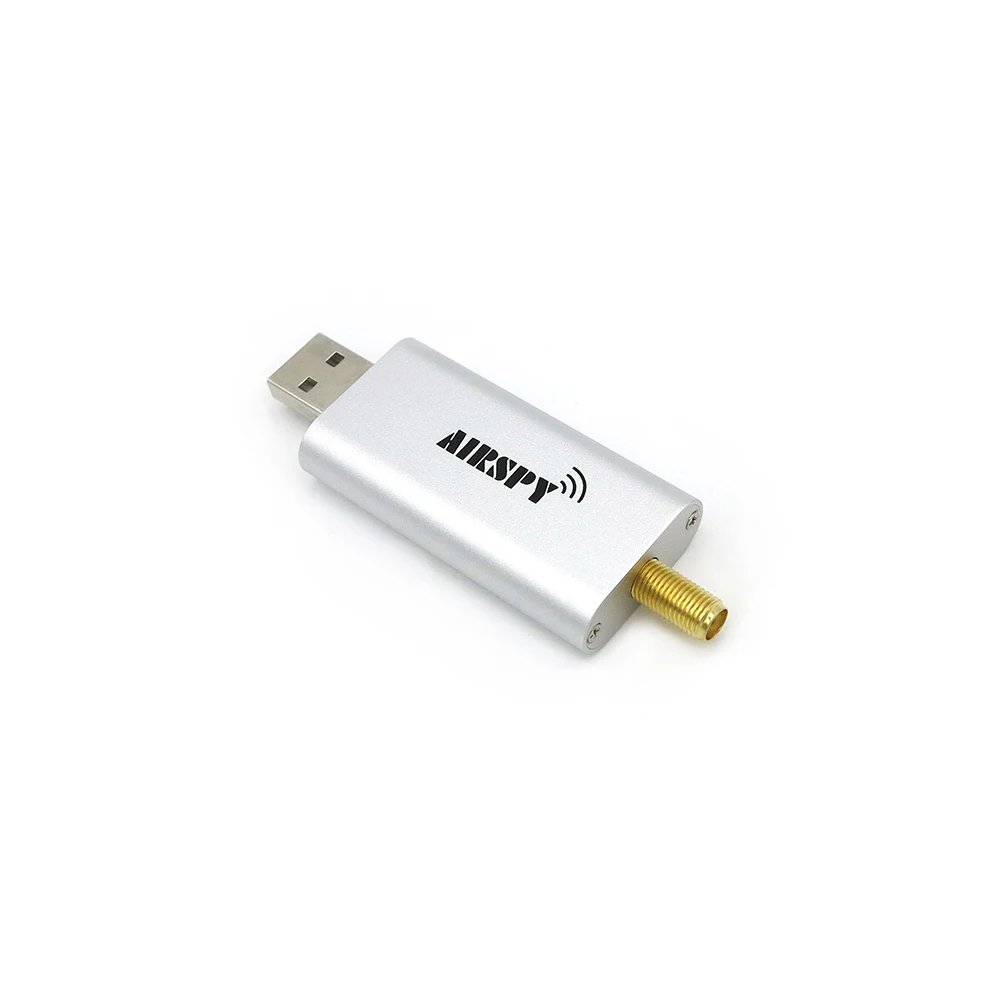

Airspy Mini – The High Performance Miniature SDR Dongle
High Performance Miniature SDR Dongle for All!
Airspy Mini builds on top of the successful Airspy R2 architecture to offer an affordable high performance receiver for the VHF and UHF bands. The coverage can be extended to the HF bands via the SpyVerter up-converter companion.
This new addition to the Airspy family is 100% compatible with all the existing software including the de facto scanning standard SDR#, but also a number of popular software defined radio applications such as SDR-Radio, HDSDR, GQRX and GNU Radio.
Specification
Continuous 24 – 1800 MHz native RX range, down to DC with the SpyVerter option
3.5 dB NF between 42 and 1002 MHz
Tracking RF filters
35dBm IIP3 RF front end
12bit ADC (80dB Dynamic Range, 64dB SNR, 10.4 ENOB)
10, 6 and 3 MSPS IQ output
0.5 ppm high precision, low phase noise clock
Up to 6 MHz panoramic spectrum view
IQ or Real, 16bit fixed or 32bit float output streams
No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
4.5v software switchable Bias-Tee 100% Compatible with SpyVerter and High Performance LNA
No drivers required! 100% Plug-and-play on Windows Vista, Seven, 8, 8.1 and 10, and all Linux Flavors
Compatible with Raspberry Pi, Odroid, Pine64 and UP boards
Operating temperature: -10°C to 40°C
Typical Applications
VHF/UHF/SHF Radio Monitoring
Real Time Spectrum Analyzer
ADS-B, ATC receiver
Radio Astronomy
Satellite IF
Telemetry Receiver
Wide Band Scanner
Education
Ham Radio, etc.
Linux
*BSD
OSX
Raspberry Pi, Odroid, Pine64, UP
Minimum hardware requirements
Core 2 Duo @ 2 GHz CPU or equivalent
2GB of RAM (to run your own OS, airspy barely needs 1MB of memory)
High speed USB 2.0 controller
Developer API
Open source airspy firmware at github
Linux kernel SDR API (by Antti Palosaari) at github
