BSIDE New Thermal Imaging Camera Industrial HX3 -20-550C HD Resolution PCB Pipe Inspection Fire Safety Thermal Imager
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: BSIDE
- Sales: 1
- Package size: 24 × 14 × 8 cm
- Package weight: 0.48 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
BSIDE HX3 is a new handheld thermal imaging camera that combines temperature measurement and imaging

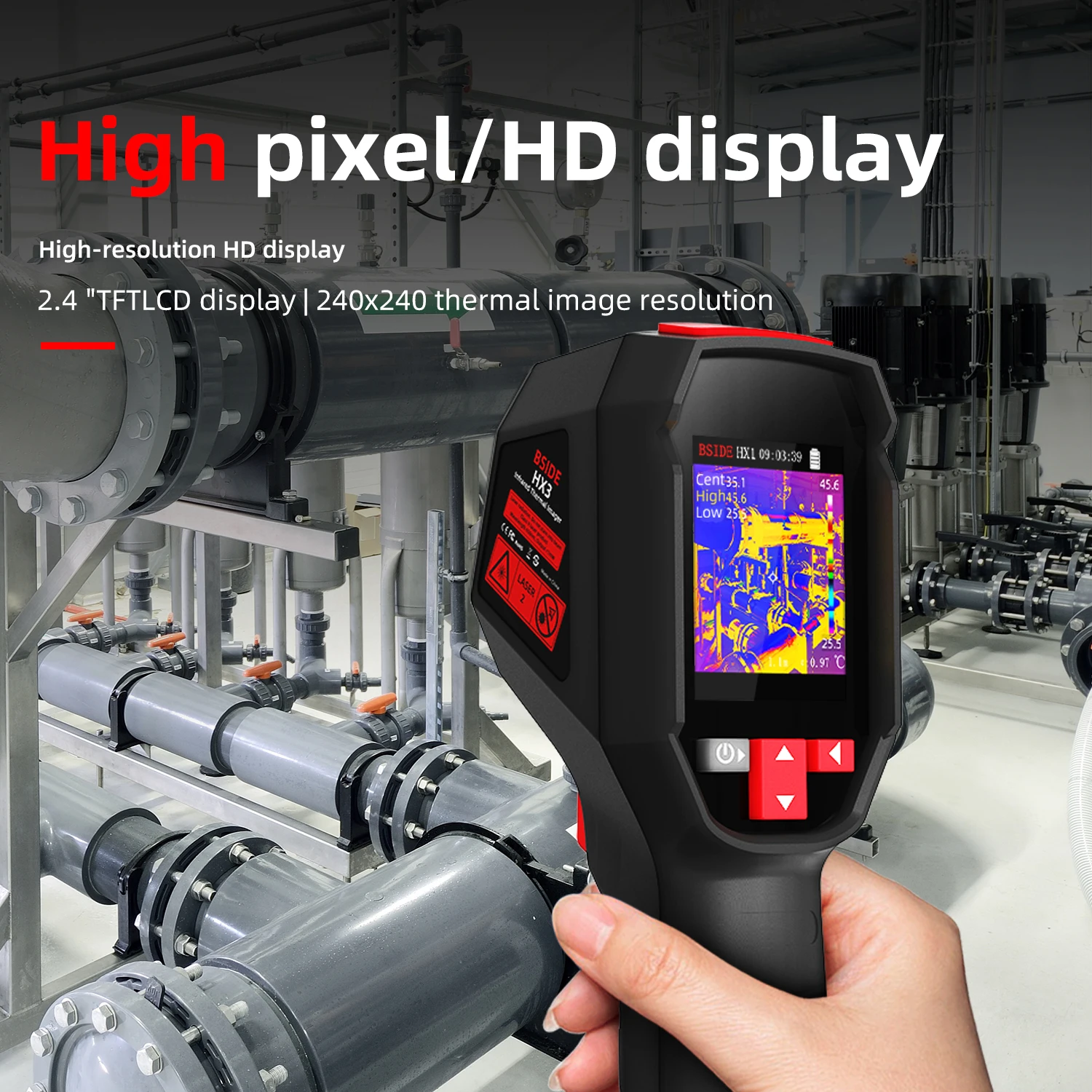

With IR resolution 240×240，2.4-inch screen，15 pseudo color modes, High-accuracy High/Low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

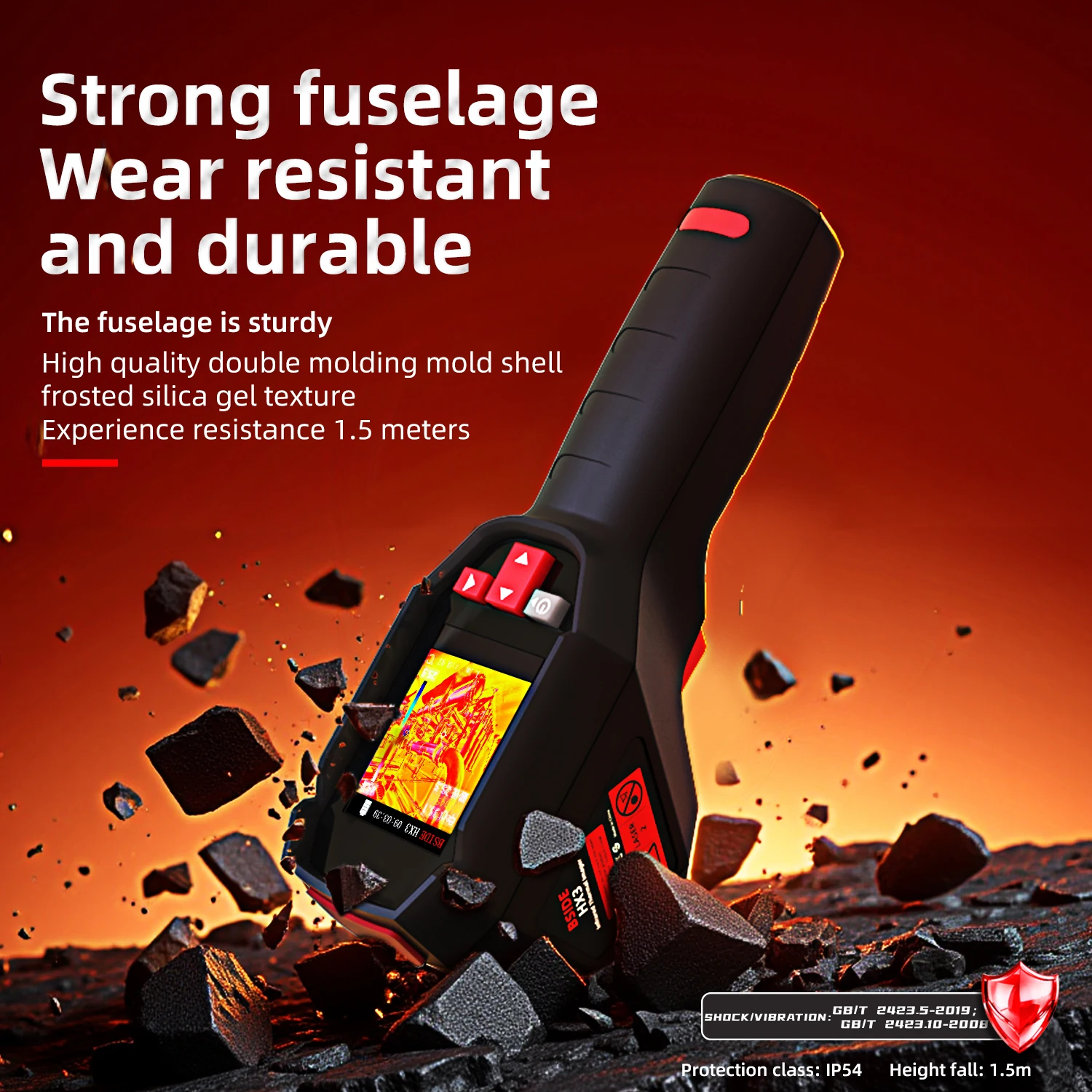

The body adopts double injection molding process Durable.
Also comes with a high-quality handbag.
Main features
IR resolution: 240 × 240
Screen: 2.4 inch LCD screen
Frame rate: 25Hz

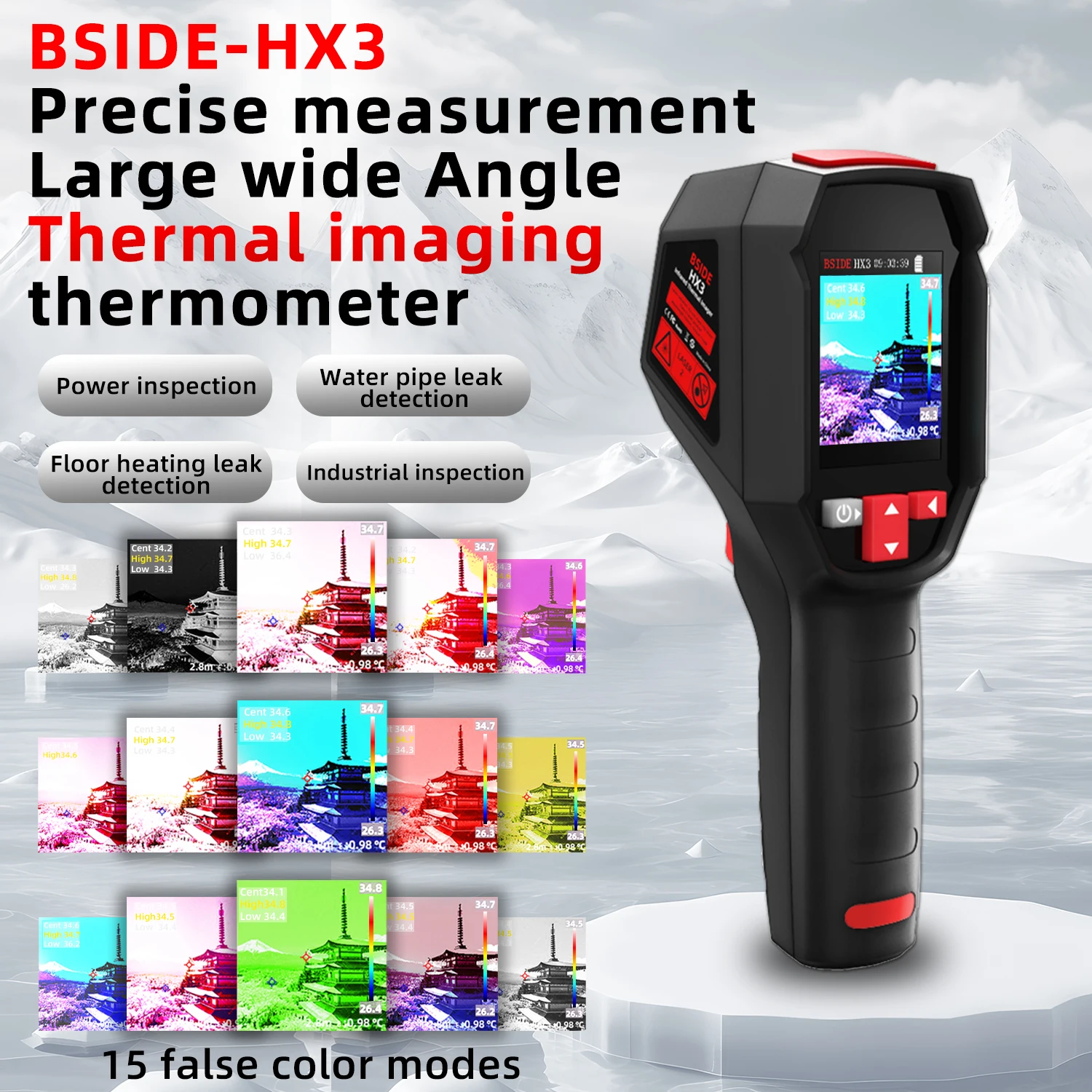

15 pseudo color modes
Temperature measurement range: -20 °C~550 °C
High and low temperature alarms: image, buzz, LED flashing
Laser Indicator/LED Illumination Laser Indicator/LED Illumination
Emissivity: 0.01~1

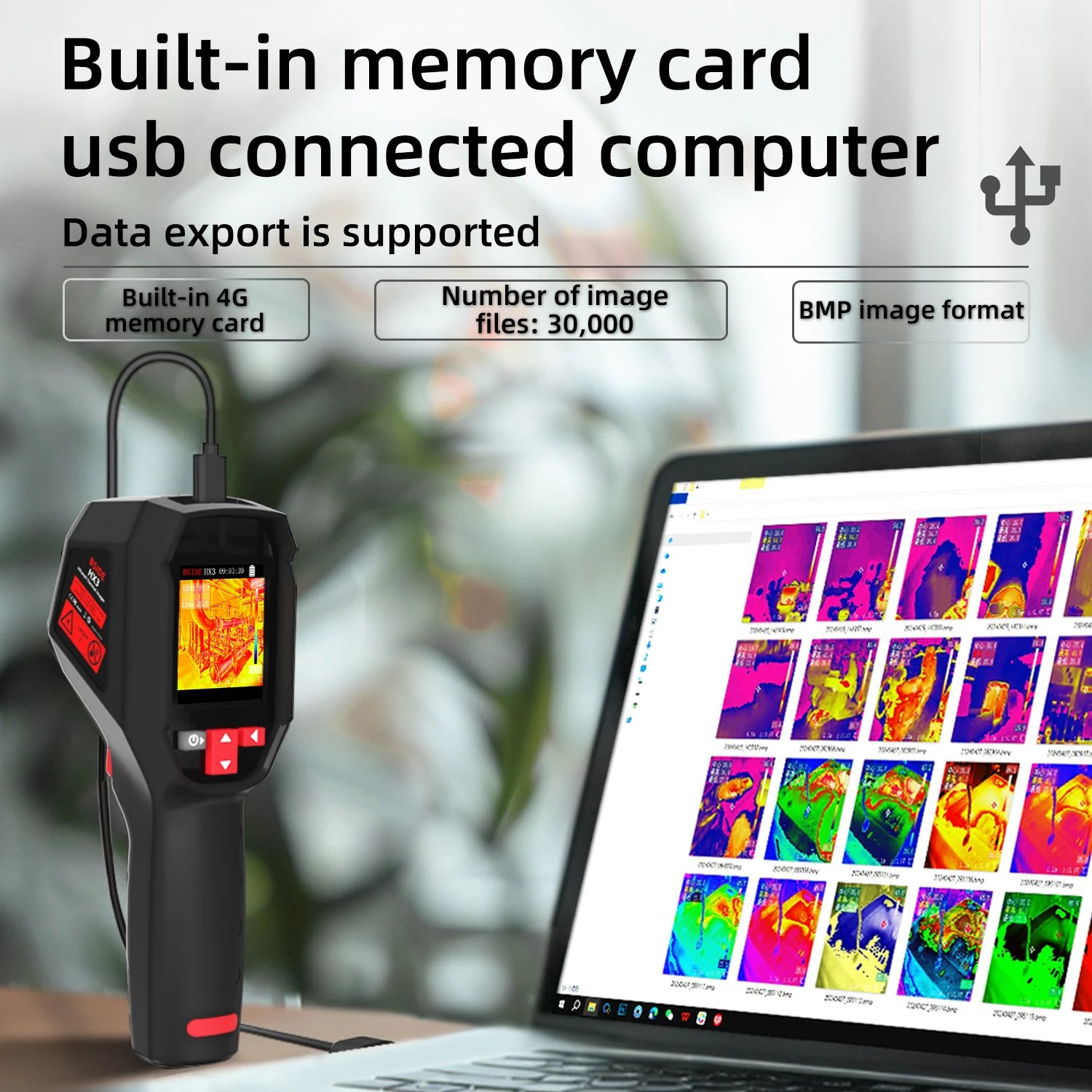

Storage: 4GB built-in TF card
Adjustable emissivity
Power supply: 2500mA lithium battery
Three-proof design: IP54/1.5m anti-drop
Product Model: BSIDE HX3
Sensor type: Vanadium oxide microbolometer
IR resolution: 240 x 240
Response band: 8-14 μ m
NETD：< 60mK @ 25 °C

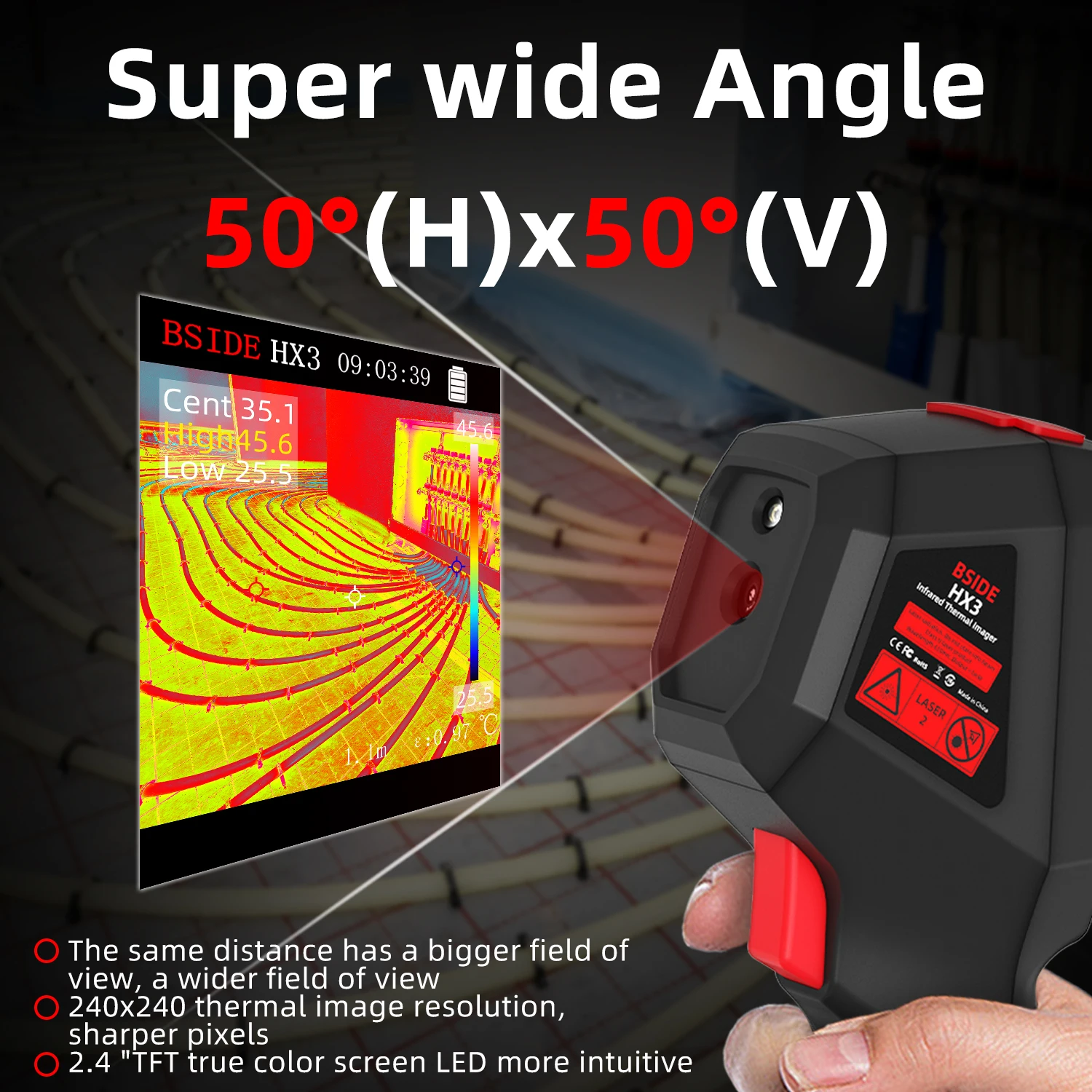

Field of view (FOV): 50°H×50°V/72.1°D
Spatial resolution (IFOV): 8.89mrad
Focal length of imaging lens: 1.35mm
Temperature measurement focal length: 0.3m~3m adjustable
Temperature measurement range: -20 °C to 550 °C
Temperature accuracy: ± 2 °C/± 2% (maximum reading)
Temperature measurement unit: °C/°F/Kelvin
Temperature measurement resolution: 0.1°C
Emissivity: 0.01~1.0 adjustable

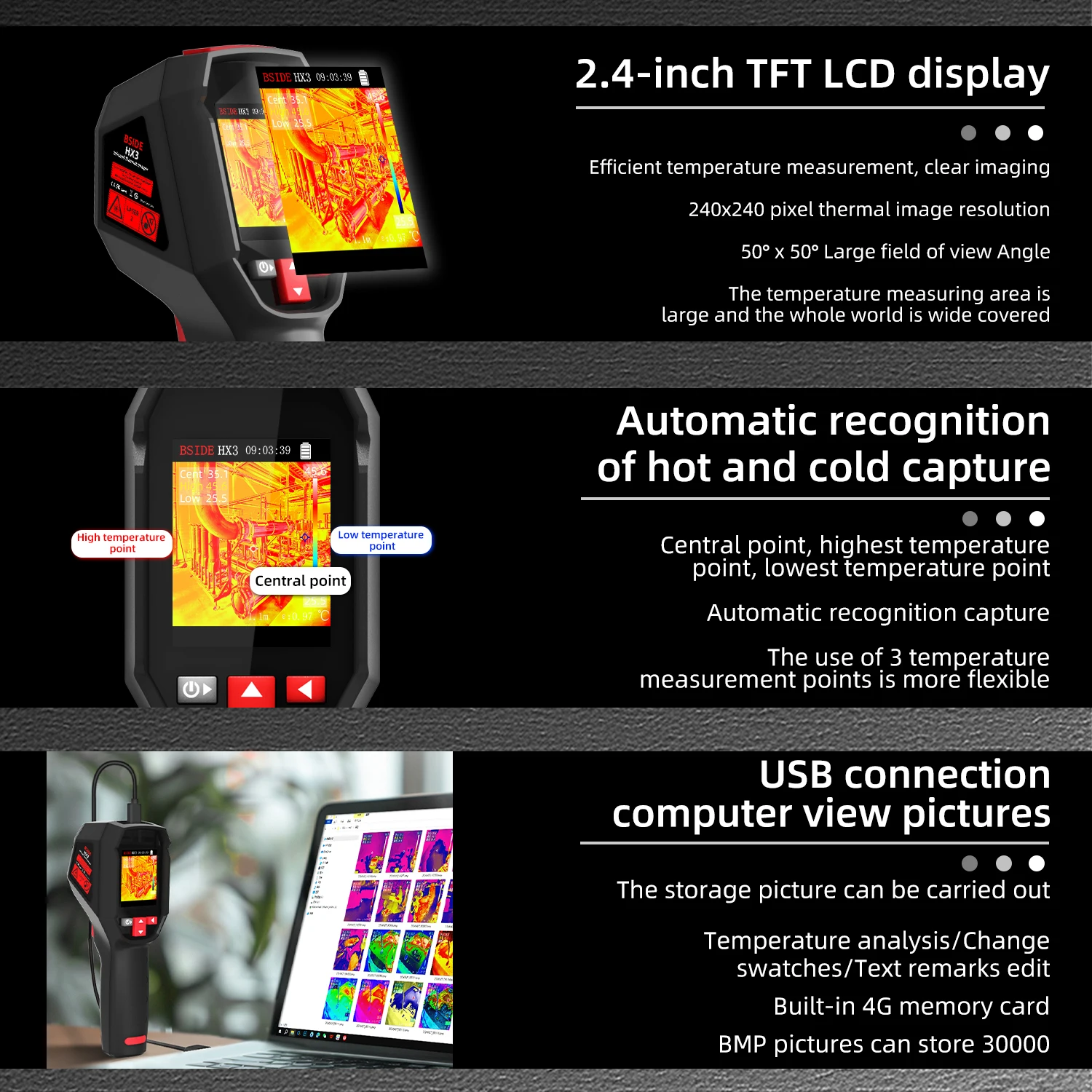

Temperature measurement display: central point temperature measurement, high and low temperature tracking
Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue
Display: 2.4 inch TFT LCD screen
Display resolution: 320 x 240px
Buttons: Power button, Up button, Down button, Back button, Trigger button.

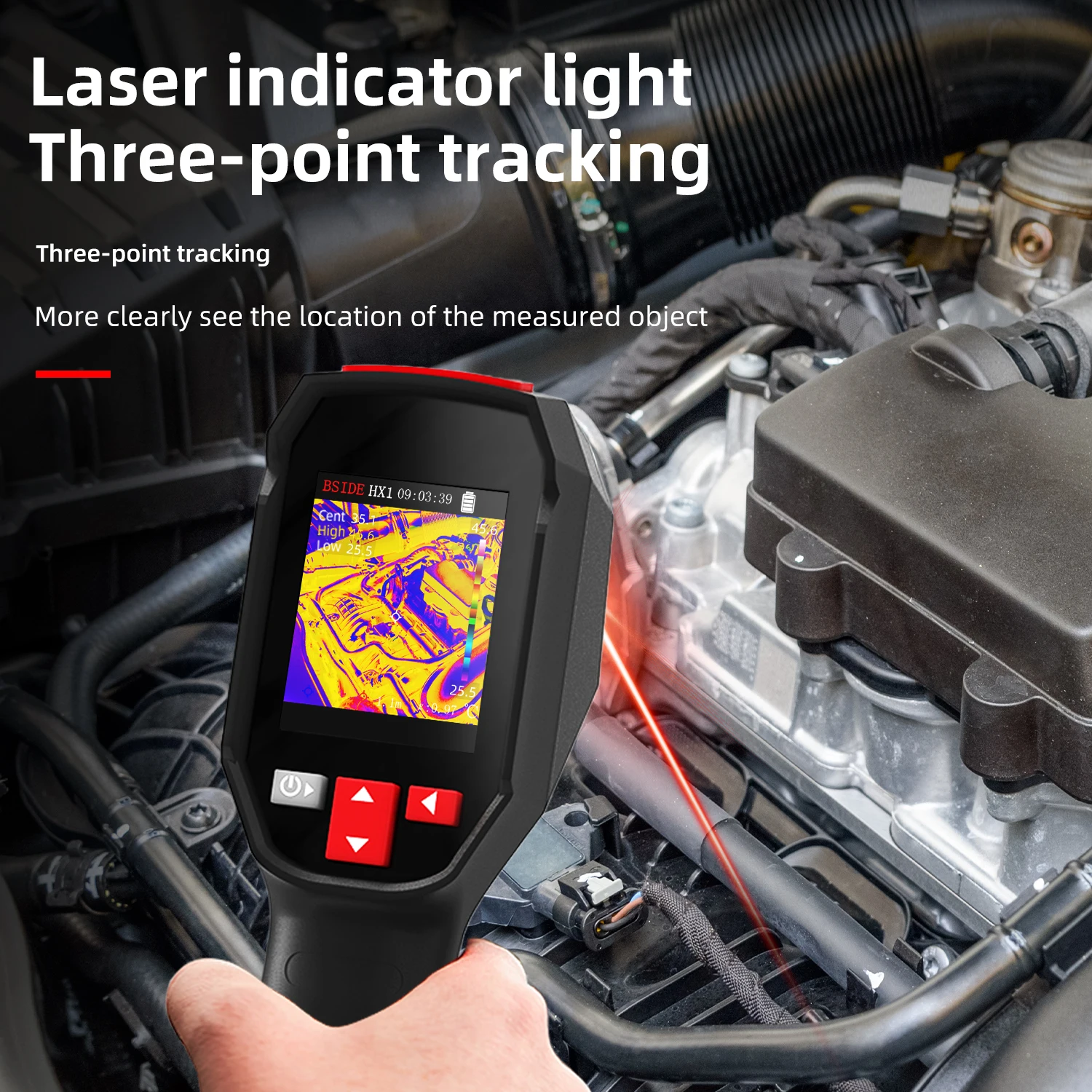

Laser indication: Yes
Storage: Built-in memory card
Number of image files: 30,000
Image format: BPM
Focusing method: Autofocus
High and low temperature tracking: √
Temperature alarm: Screen font color alarm
Battery type: Rechargeable lithium battery (3.7V/2500mAh)
Charging system: Type-C direct charging
Data interface: Type-C USB
Illumination/Laser Instruction: √
Protection Rating/Fall Protection Rating: IP54/1.5m
Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm
Package Includes
1 x HX3 Thermal Imaging Camera.
1 x Charging Cable.
1 x Instruction Manual.
1 x User Manual.
1 x Color Box.
1 x Warranty card (12 months)
