Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: BSIDE
- Sales: 36
- Package size: 23 × 14 × 7 cm
- Package weight: 0.555 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Note
For PCB circuit board inspection, it is recommended to buy the version containing a macro lens.
Features

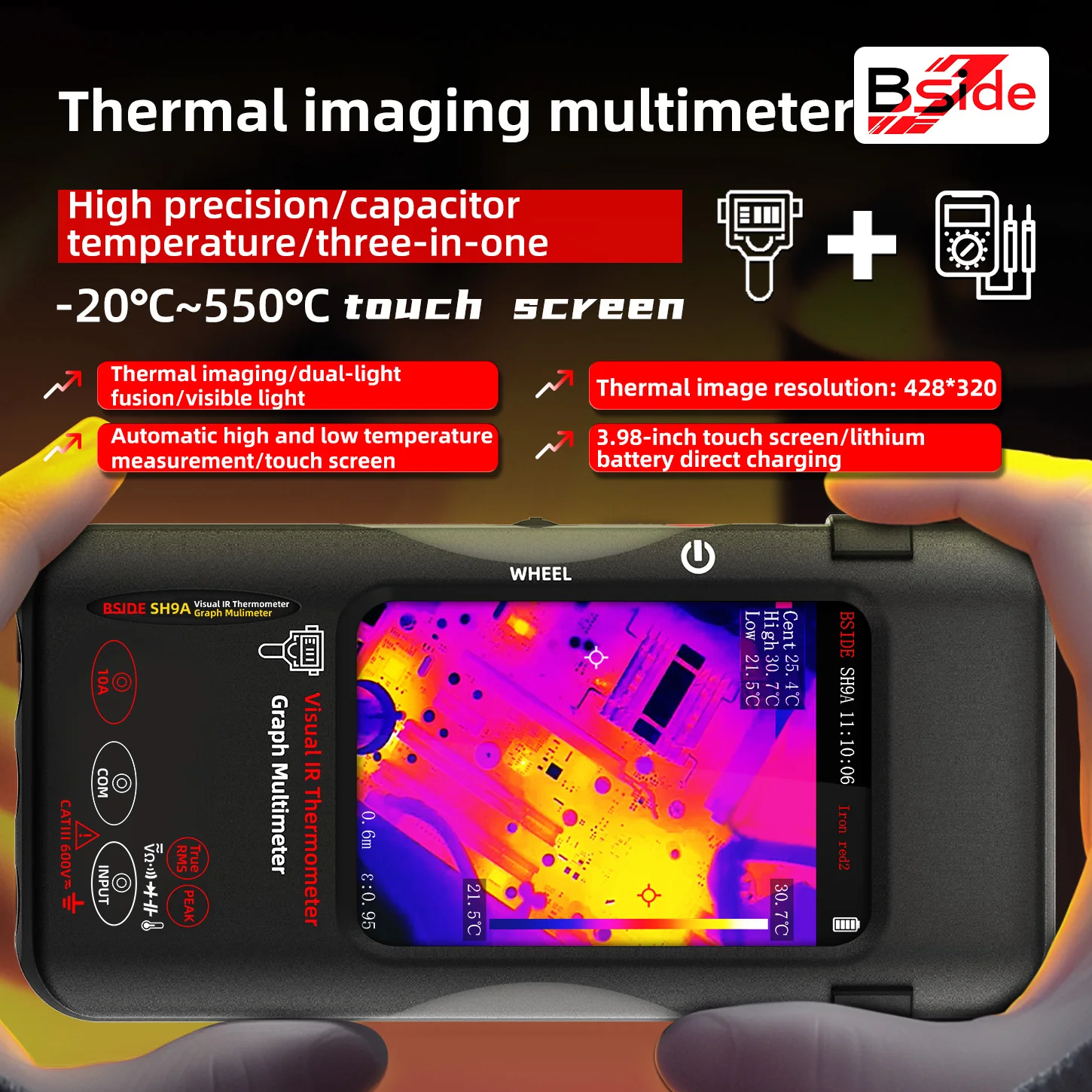

BISDE SH9
Screen size resolution:320*480px
The display resolution of the thermal imaging screen is 320*428pX
Sensor resolution: It is 256*192px
This can display 320*428px because of super-resolution.
With dual-light fusionVisible light
Differences
The SH9 requires a flexible coil to measure currents up to 2000A.
The SH9A measures currents up to 10A directly with a multimeter probe.
BISDE SH7
The display resolution of the thermal imaging screen is 320*320px
Sensor resolution: It is 96*96px
This can display 320*320px because of super-resolution.
The SH7 requires a flexible coil to measure currents up to 2000A.
The SH7A measures currents up to 10A directly with a multimeter probe.
Industrial-grade Thermal Camera
25Hz thermal imaging sensor
2-In-1 Thermal imaging&Multimeter.

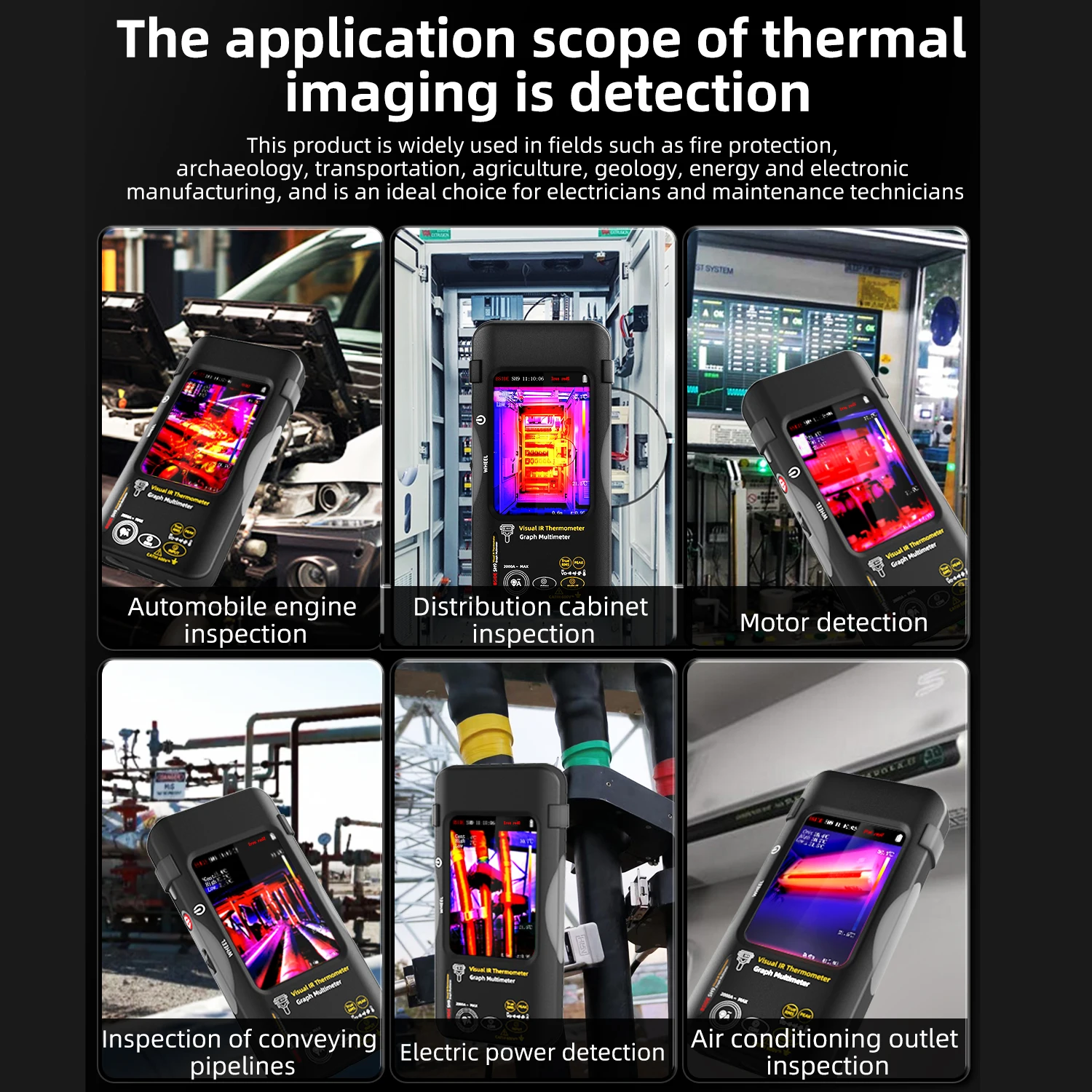

suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.
High-Precision Multimeter with 20000counts
manual and automatic range options
Maximum input DC voltage up to 1000V
DC/AC voltage, current, resistance, capacitance, diode, frequency, NCV
temperature measurements.
Clear Display with Rich Color Options
3.98 inches TFT Capacitive touch screen with a resolution of 320x480

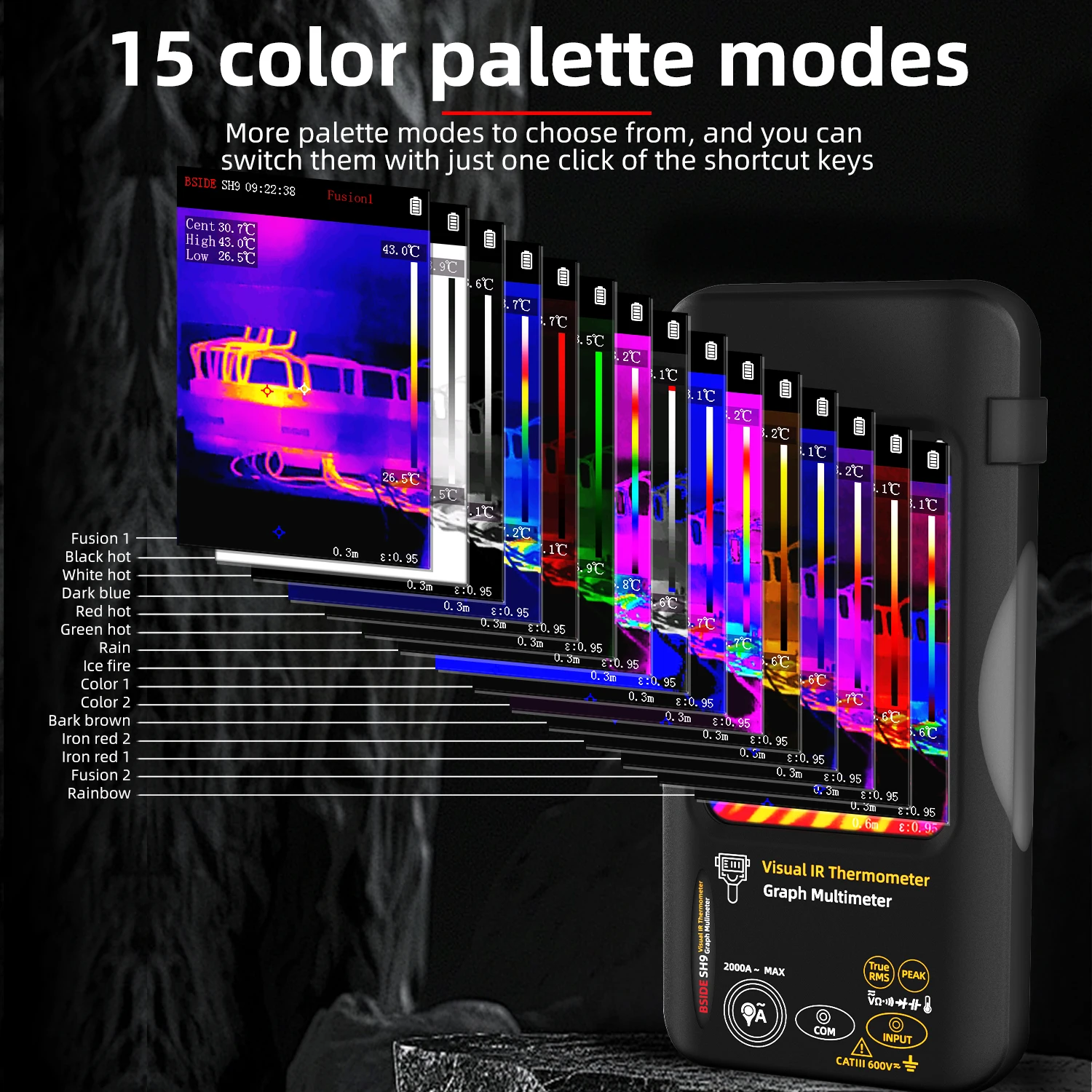

15 selectable color palettes, easily switching by long pressing the side button
Optional Macro Lens
captures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.
Available in 7 languages
Including English, German, French, Spanish, Portuguese,Japanese, Italian, and Chinese, catering to global users.
Strong Battery Life and Convenient Charging
Powered by lithium battery with a runtime of up to 8 hours, reliable USB charging.
PC Software Support
Can transfer and analysis the multimeter data chart and thermal image
Specifications
Thermal imaging parameters
Sensor: Vanadium oxide (VOx)
Image capture frequency:25Hz
SH9/SH9A Display image resolution:320 x 428
SH7/SH7A Display image resolution:320 x 320
SH9/SH9A Field of View (FOV):50.0°(H) × 37.2°(V)/63.6°(D)
SH7/SH7A Field of View (FOV):50.0°(H) × 50.0°(V)/72.1°(D)
SH9/SH9A lens focal length：3.5mm
SH7/SH7A lens focal length：1.35mm
Emissivity:0.1 – 0.99 adjustable,(0.95 by default)
Temperature range:-20℃ ~ +550℃
Gain mode: Auto Gain
Color palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep Blue
Accuracy:±2℃or±2%
Measurement resolution:0.1℃/0.1℉
Macro Lens: Optional, no need to install, move the macro lens left and right during use.
Macro lens working distance: about 3~5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)
Other parameters of the equipment
Display type:3.98-inch 320 * 480 resolution
USB interface: Type-C USB
Storage capacity: includes a 4G TF card (Included).
Battery Type: Included Lithium-ion battery
Storage temperature:-20～60℃（-4～140℉）
Operating temperature:0～50℃（32～122℉）
Operating Humidity:＜85%RH （ non-condensing ）
Size: 169*81*26.8mm
Weight: Host weight: 271g (including battery), packaging weight: 500g
Package List
1 x BSIDE Thermal Camera Multimeter
1 x USB Cable
1 x English Manual
1 x storage bag
1 x multimeter probe
1 x Type K thermocouples
1 x 12-month warranty card
1 x Macro Lens (Optional)
