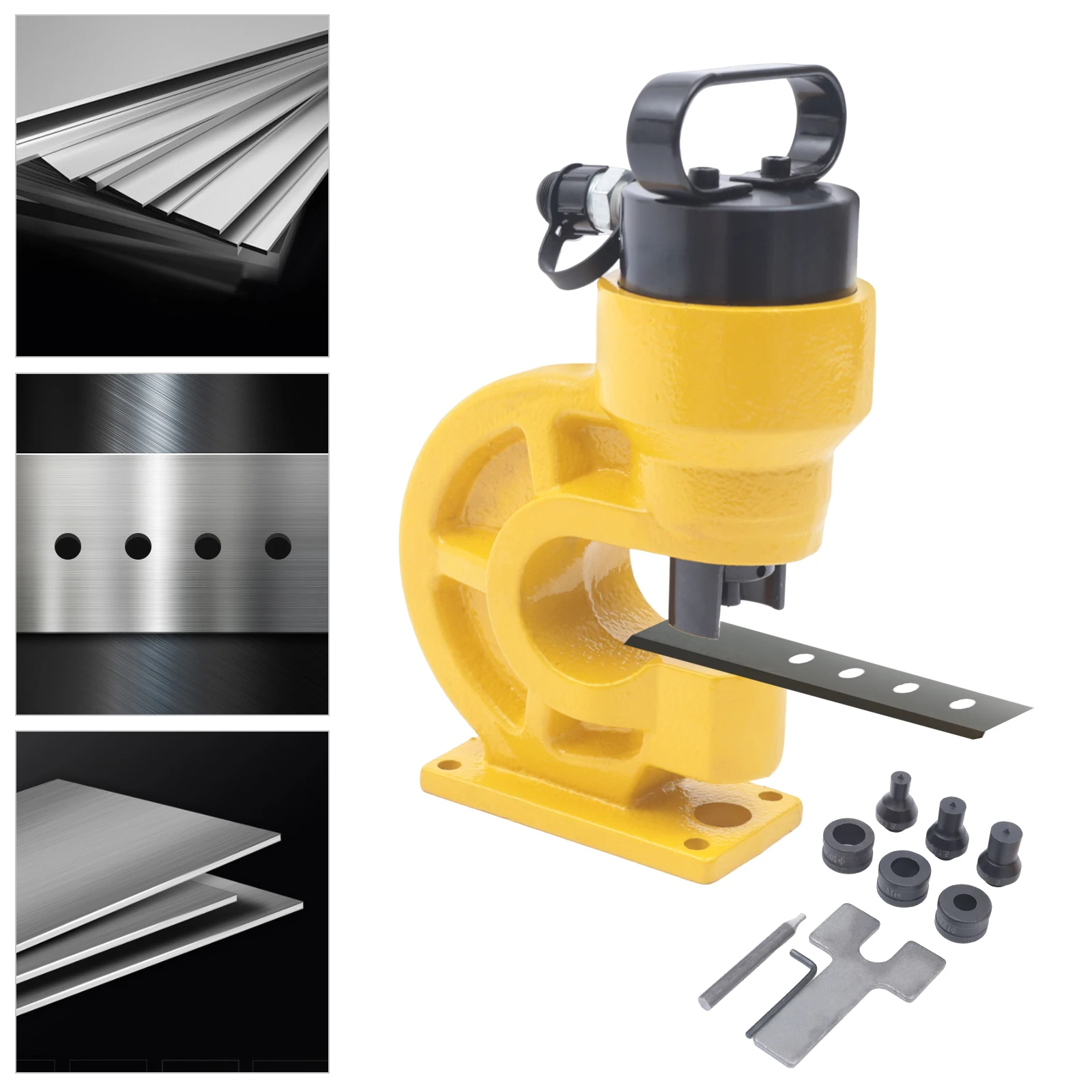

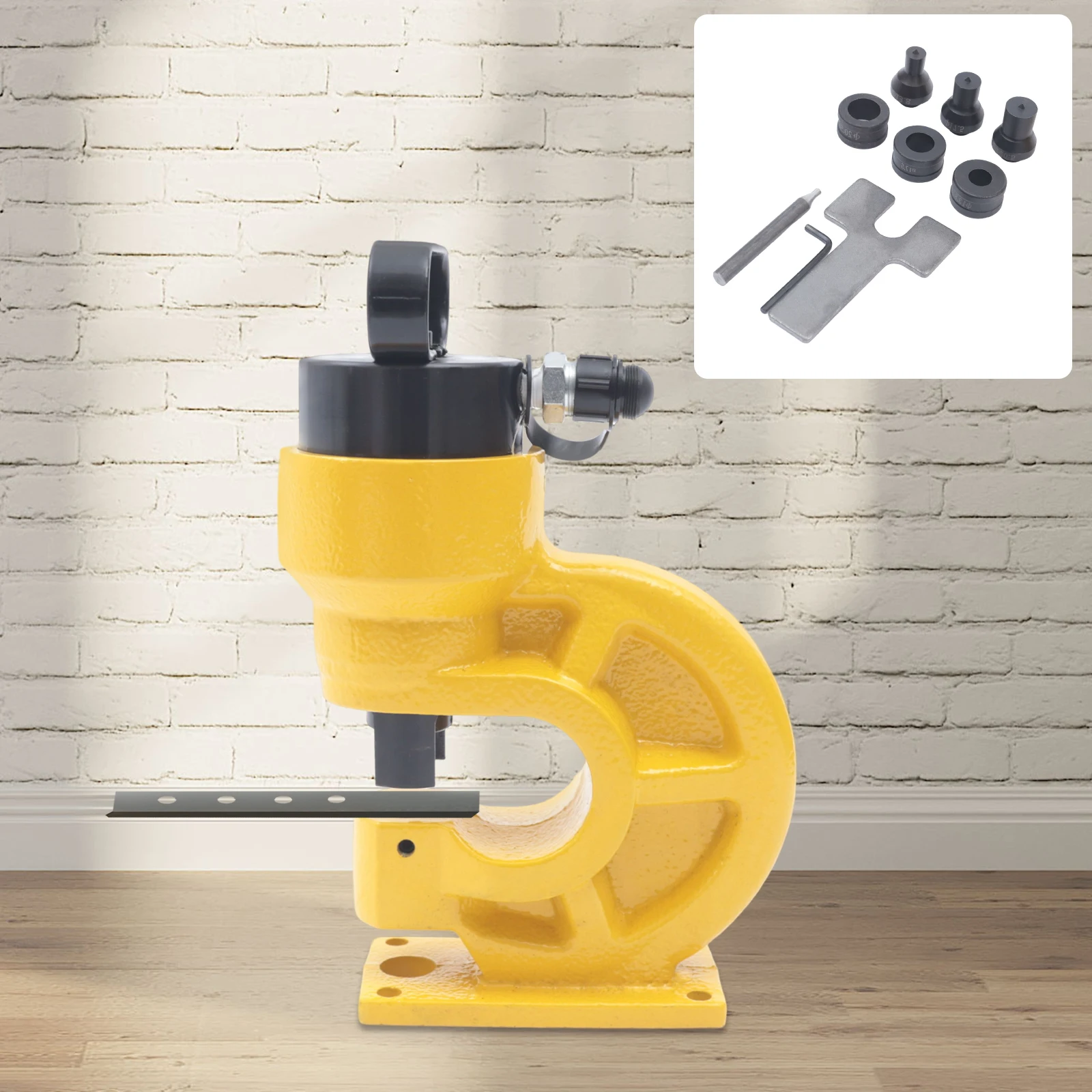

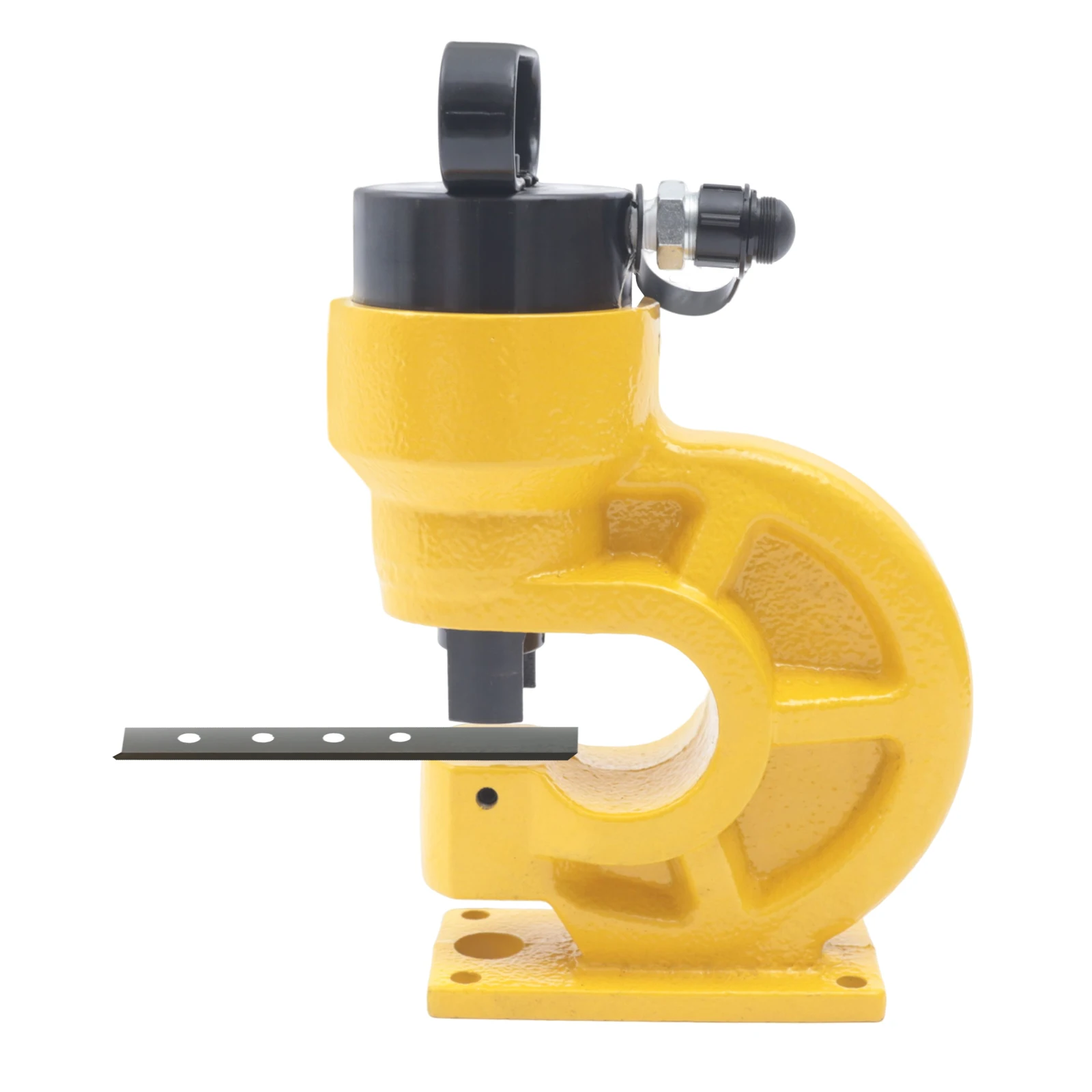

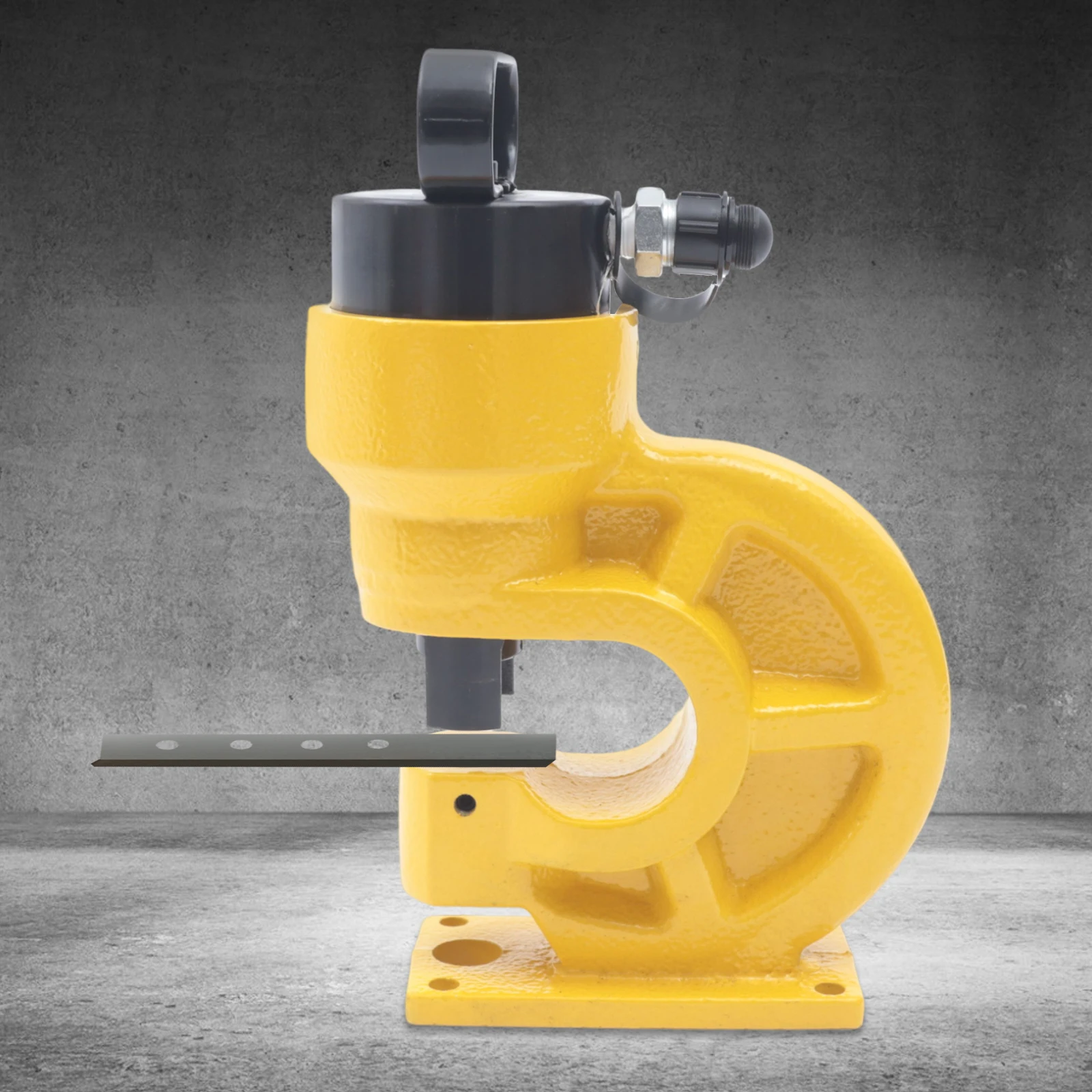

CH-60 Hydraulic Knockout Punch Tool Hydraulic Punching Machine Iron Plate Max 10mm Thickness Hole Punching Machine
Application
It is suitable for L, H types flat copper, bus bar, flat iron, etc. It can also be connected to CP-700, CP-700-2A, CP-800, DYB-63A, ZCB-700A pumps, or electric pumps (not included). It can be used in the energy industry, indoor, electric power, construction sites, outdoor, bridge construction, industrial buildings, etc.
Specifications
Color: Yellow
Material: Steel
Process: Plastic Spraying
Assembly Required: Yes
Cylinder Ton/Punching Pressure: 31T/304KN
Throat Depth: 95mm/3.74inch
Punching Dies Size: 0.41 in (ф10.5mm), 0.54 in (ф13.8mm), 0.69 in(ф17.5mm), 0.81 in(ф20.5mm)
Applicable Angle Steel: 4-5mm/0.16-0.2in Thickness
Applicable Channel Steel: 6-10# Wide Panel
Applicable Copper Bar: 3-10mm/0.12-0.39 in
Applicable Aluminum Bar: 1-10mm/ 0.04-0.39in
Applicable Iron Plate: 3-5mm/0.12-0.2 in
Product Size: 23*34.5cm/9.06*13.58in
Base Length: 16cm/ 6.3 in
Package Size: 37*26*16cm/14.57*10.24*6.3in
Gross Weight: 16.55kg/36.5 lbs
Package Included
1* Hydraulic Punching Machine
4* Punching Dies(One is Installed)
1* Padding Plate
Other Accessories for Use
Key Features
Build to Last: Our product is mainly made of high-class steel with a plastic spraying process, so it is rust-resistant, oxidation-resistant, impact-resistant, with high durability, and has a long service life.
Excellent Performance: It has a 3.74-inch throat depth and 31T punching pressure for an efficient and convenient punching experience that can handle most materials and is sufficient for your use needs. Single-return oil design and high-strength construction ensure robustness and durability.
4 Punching Dies: It comes with 4 pairs of dies (1 of which is installed): 0.41 in,0.54 in,0.69 in, 0.81 in, which will meet your needs for different punching tasks.
Stable Design: The upper part of the mold is locked with a locking cap, and the lower part is fixed with screws, which is stable and safe.
User Friendly: The top handle enhances grip and comfort for easy handling. In addition, it uses a male connector to link the female connector on the hydraulic pump, and the dust cap can be screwed on when not in use to avoid dust entering.
Space-saving:It has a small footprint with a base length of 6.3 inches and can be placed on the desk without delaying the rest of your work.
Notes
