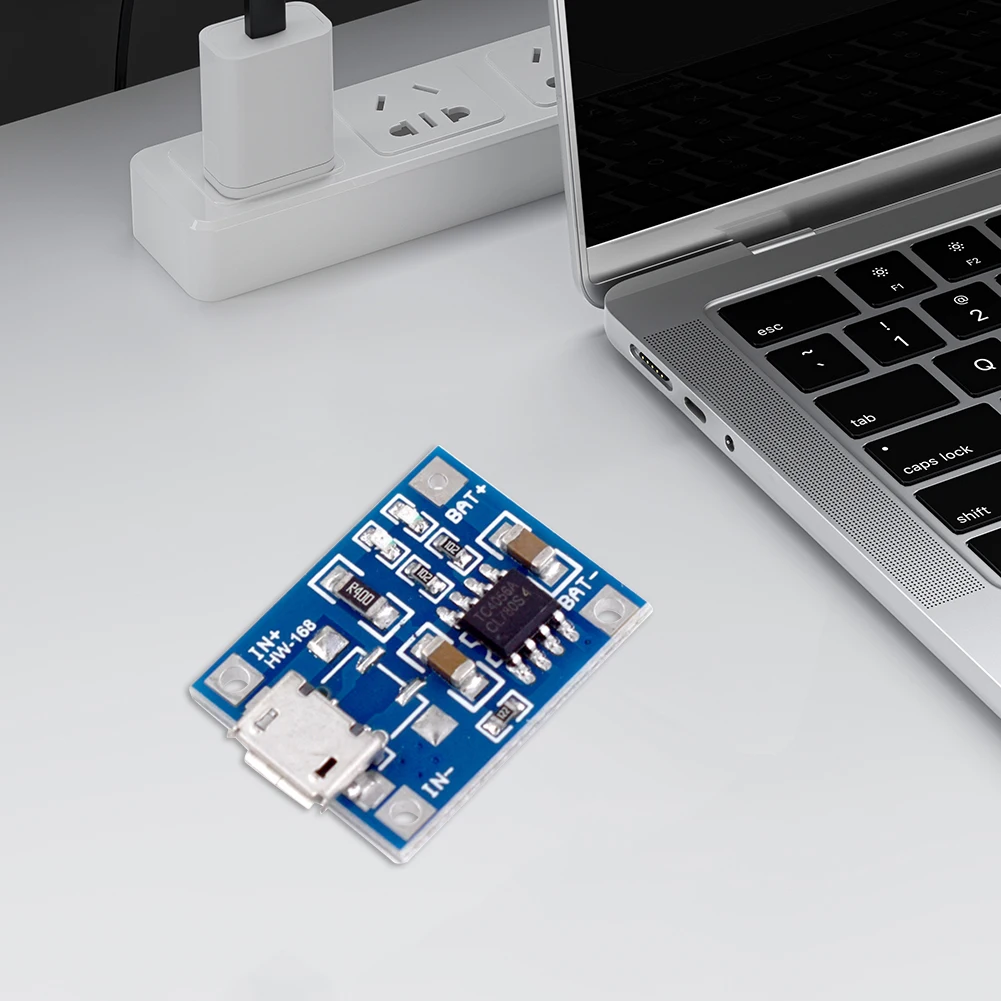

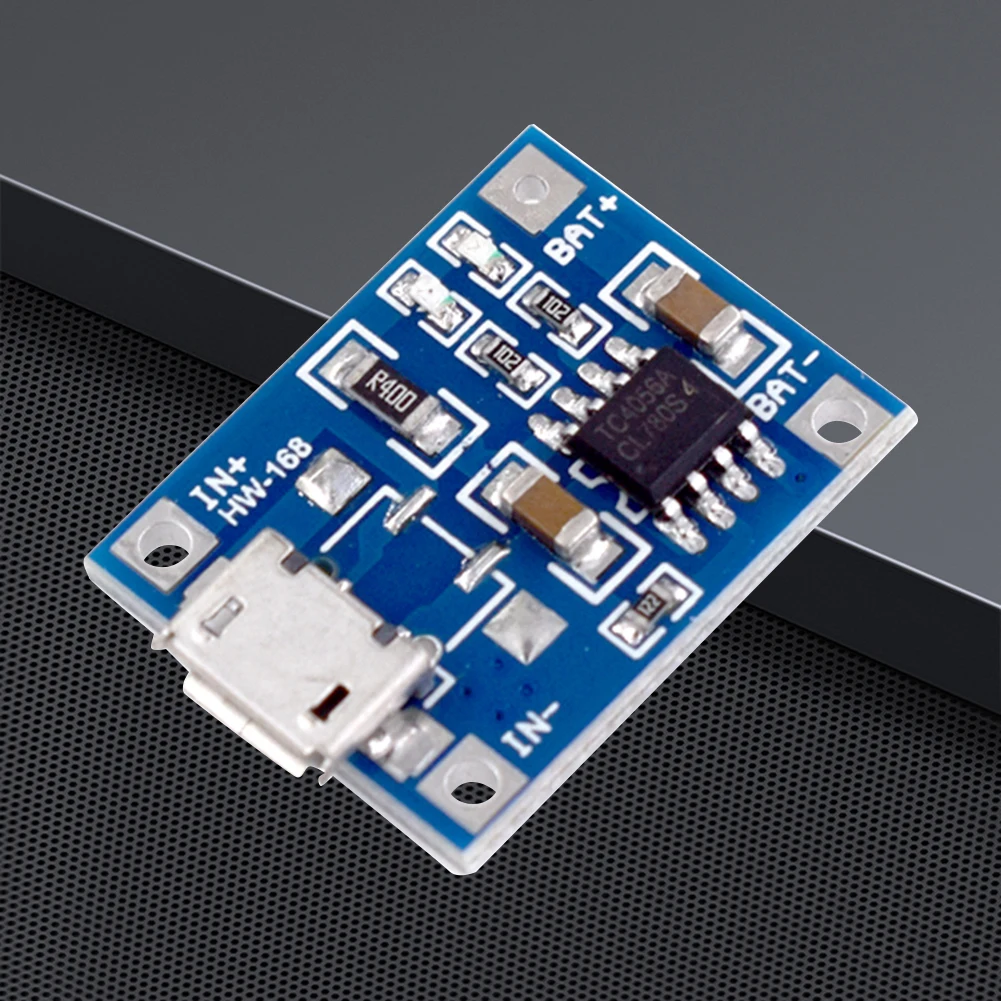

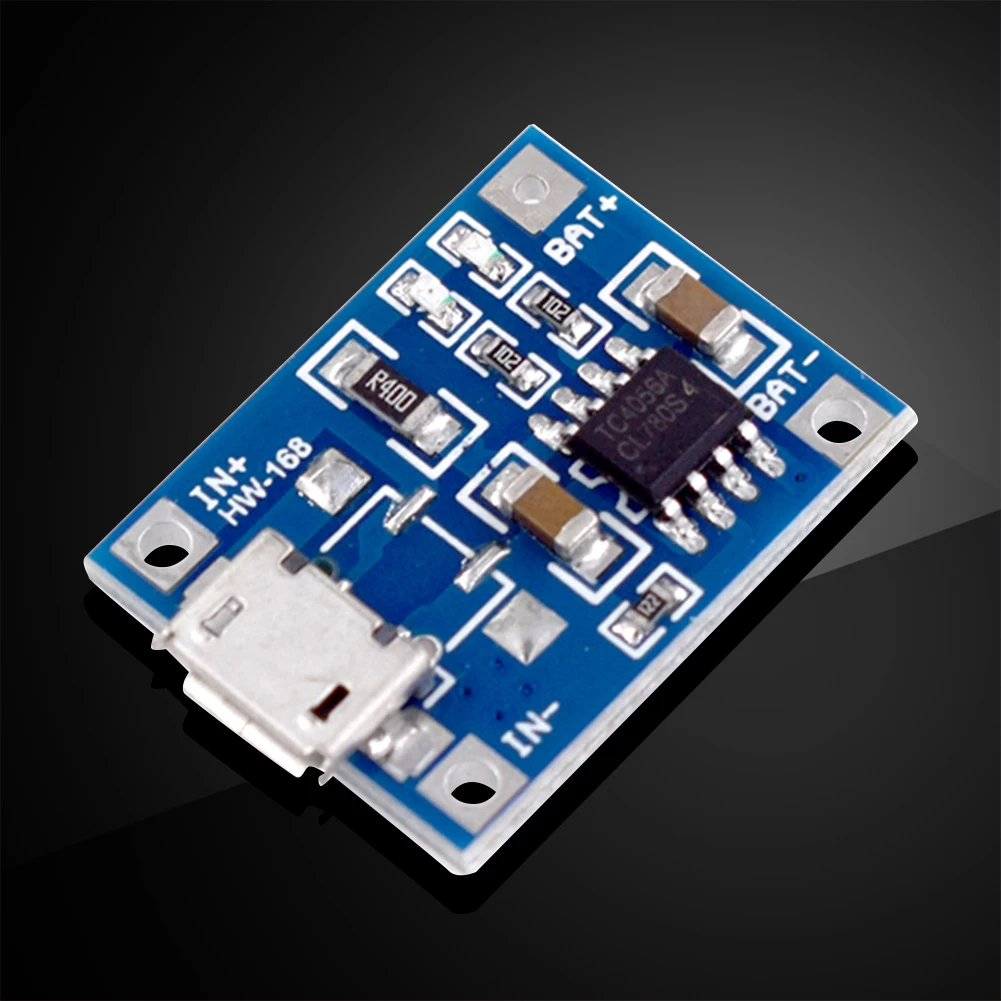

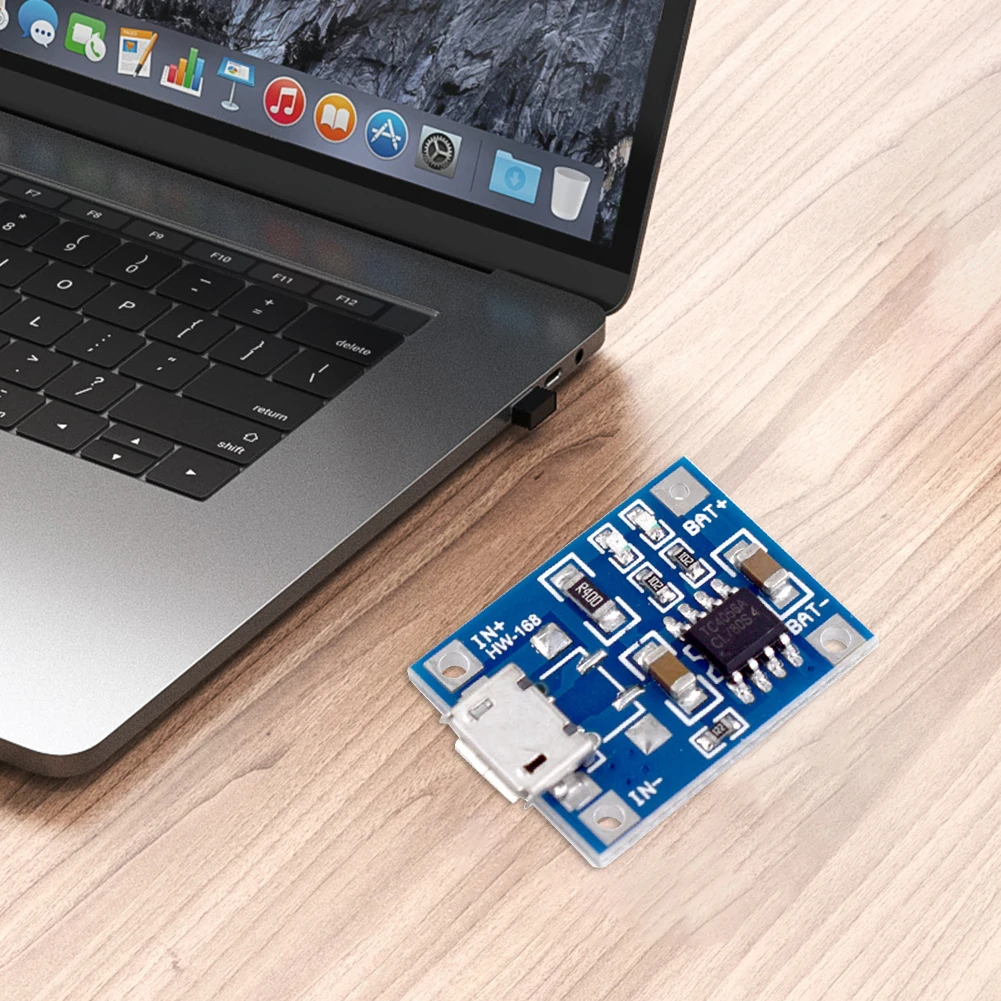

Charger Module Micro USB Portable Battery Charger Panel 1A DC4.5-5.5V with Indicator Light for Lithium Batteries
Feature
1. Wide Range of Input Voltage: Our charger module is compatible with a wide range of input voltages, ranging from DC4.5V to 5.5V, making it adaptable to a variety of different power sources.
2. Multiple Input Options: With both IN+ IN- soldering terminals and Mini USB 5V input options available, this battery charging board provides flexibility and convenience in powering and charging your batteries.
3. Adjustable Charging Current: The battery charging module features an adjustable charging current of up to 1A, allowing you to customize the charging speed based on your needs.
4. Fully Charged Indicator: Equipped with a charging indicator light, this mini battery charger board keeps you informed about the status of your battery charge, providing peace of mind and convenience.
5. Safe and Reliable: The portable battery charger panel is designed with safety and reliability in mind, featuring over-voltage and over-current protection to ensure safe and efficient charging every time.
Specification
Certification: NONE
Origin: Mainland China
Accessory Type: Battery Accessories
Model Number: Charger Module
Tye(optional): 1PCS, 5PCS, 10PCS
Input voltage: DC4.5V-5.5V; IN+ IN- pad wiring or Micro USB 5V input
Full charge voltage: DC4.2V
Charging current: 1A adjustable with charging indicator
Operating temperature: -10°C~+85°C

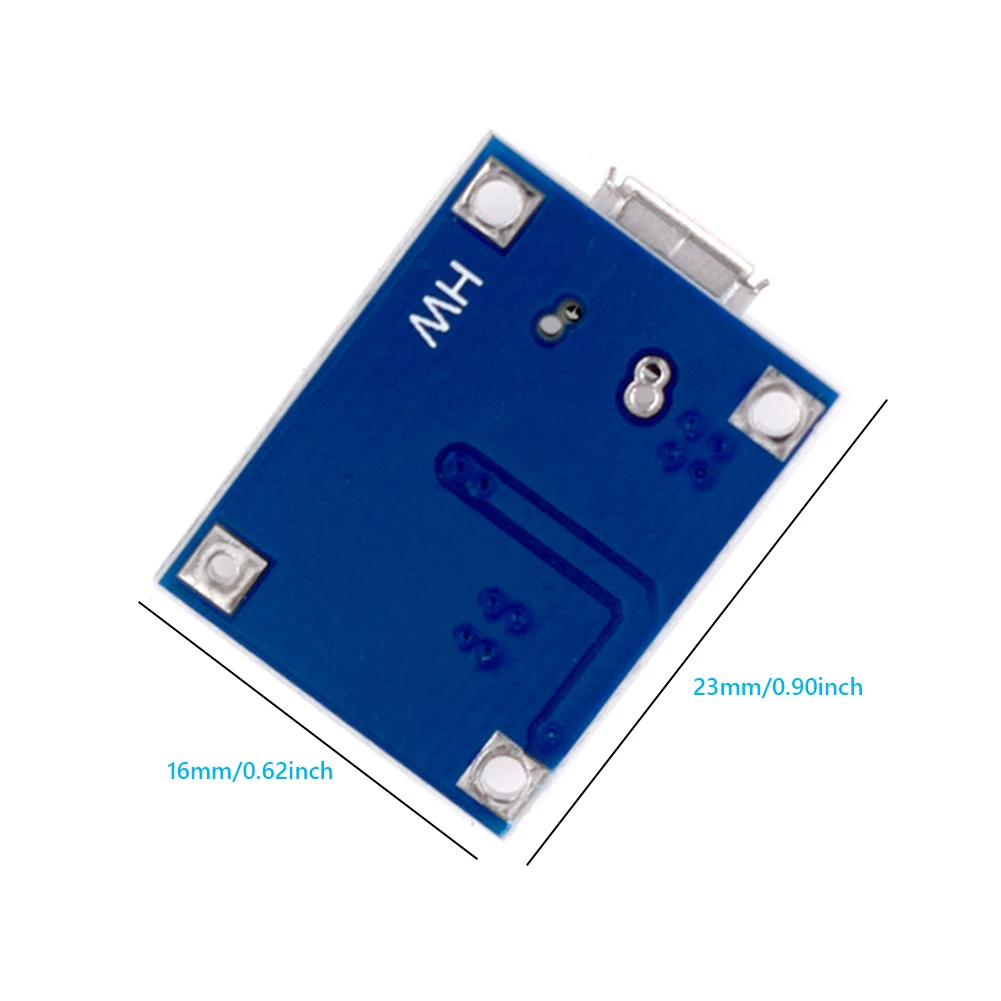

Product size: 23 x 16 x 5mm/0.9 x 0.6 x 0.2inch
Instructions for use
1. after powering up, the blue indicator of the module is always on and the red indicator flashes slightly
2. when the battery is fully charged, the module's red and blue indicators are always on.
Tips
1. the wiring must be distinguished between positive and negative polarity, reverse connection burn IC
2. use short and thick wires for charging, if they are too thin and too long, the connection resistance will be high and the battery voltage will drop more after charging
4. the output current can be adjusted by changing the fixed resistor in the circuit board to change the output current from 100mA to 1000mA
5. if the 5V input voltage is high, such as 5.2V or 5.5V, it will cause the charging current to be less than 1000mA, which is normal. This is normal. The high voltage makes the chip hot and will automatically reduce the charging current to reduce the chance of the chip being burned.
6. the charging current is too high, or in a high temperature environment, need to do heat dissipation treatment
7. the ammeter for testing the current can only be connected in series to the 5V input of the charging board
9. the faster the charging speed, the worse the charging effect, the more the battery voltage drops after charging is completed
Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1/5/10pcs x Charger Module
