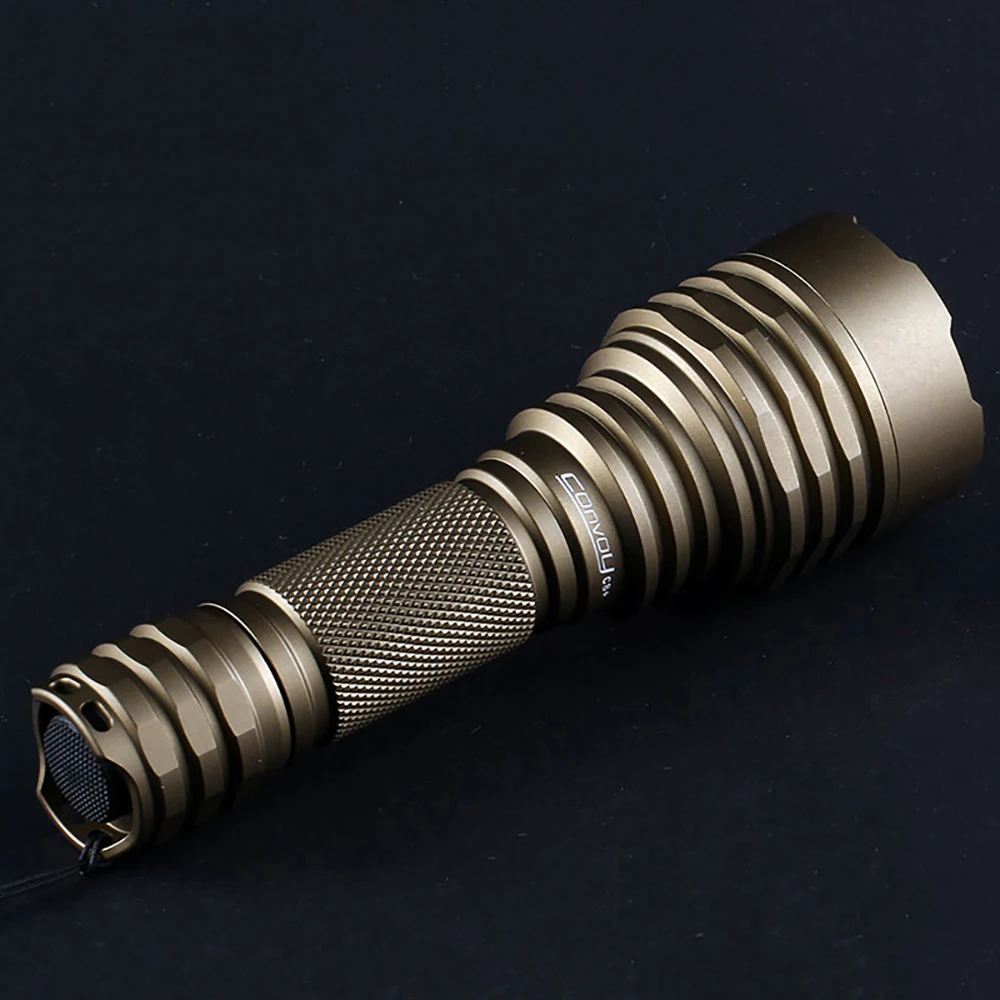

Convoy C8 Plus Flashlight Linterna Led with SST40 High Power Flash Light Torch 2000lm Camping Fishing Tactical Work Lamp Latarka

Specification

Material: Aluminum alloy

LED: Luminus SST40

Low voltage warning: Yes

Reverse polarity protection: Yes

Lens type: Ar-coated glass lens

Reflector: Smooth

Mode memory: 4modes and 12groups drivers have mode memory

Battery: C8+ runs on 1pcs INR or IMR18650 unprotected lithium battery

Diameter of head: 44.5mm

Length: 142mm

Diameter of body: 25.2mm

Weight: 145g

Package type

A. With 18650 battery

1*C8+ Flashlight

1*18650 rechargeable battery

1*USB charger

1*Rope

B. No battery

1.Driver instructions: (4 modes)

Modes: 0.1%-3%-30%-100% max current output is 5000mA

Its biggest advantage is that no frequency can be seen in any mode, and there is temperature management.

It can control the flashlight temperature not to exceed 55 degrees Celsius

If the flashlight temperature is below 55 degrees Celsius, it will output full current. If it is above 55 degrees Celsius, it will constantly adjust the current so that the flashlight will not overheat.

2.Driver instructions: (Ramping driver)

1st Mode - 100% Brightness (one tap of the switch to select)

2nd Mode - 35% Brightness (two quick taps)

3rd Mode - Strobe (three quick taps)

Switching on the flashlight will always start in the 1st Mode For the 1st and 2nd Modes, tap the switch quickly 5 times to enter into a config menu. The brightness will start to smoothly adjust, tap the switch once to set the desired level of brightness. The light will flash once to indicate you've reached the highest brightness. If the switch isn't pressed at the highest brightness it'll change to the lowest level and begin to smoothly increase in brightness again.

For the 3rd Mode, tap the switch quickly 5 times to enter into a special config menu. The light will slowly blink, tap the switch to set the desired mode. Each blink represents the following modes.

1. 1% Brightness

2. 100% Brightness

3. Strobe 100%

4. Beacon 100%

5. Slow Flash

SOS 40% (no blink, it chooses automatically if an above mode isn't selected)

8 quick taps in any mode will restore the flashlight to the default settings.

3.Driver instructions: (12 groups)

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

sub-option 1.1 (normal-flash 1 time): tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

sub-option 1.2 (normal-flash 2 times): tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

sub-option 1.3 (normal-flash 3 times): tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

sub-option 1.4 (normal-flash 4 times): tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

sub-option 1.5 (normal-flash 5 times): tap the switch to select mode group 5 (1%, 20%, 100%)

sub-option 1.6 (normal-flash 6 times): tap the switch to select mode group 6 (100%, 20%, 1%)

sub-option 1.7 (normal-flash 7 times): tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

sub-option 1.8 (normal-flash 8 times): tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

sub-option 1.9 (normal-flash 9 times): tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

sub-option 1.10 (normal-flash 10 times): tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

sub-option 1.11 (normal-flash 11 times): tap the switch to select mode group 11 (100%, 20%, strobe)

sub-option 1.12 (normal-flash 12 times): tap the switch to select mode group 12(100% only)

Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

Battery-check instructions

2.95-3.25V 2 flashes

3.25-3.55V 3 flashes

3.55-3.85V 4 flashes

>3.85V 5 flashes
