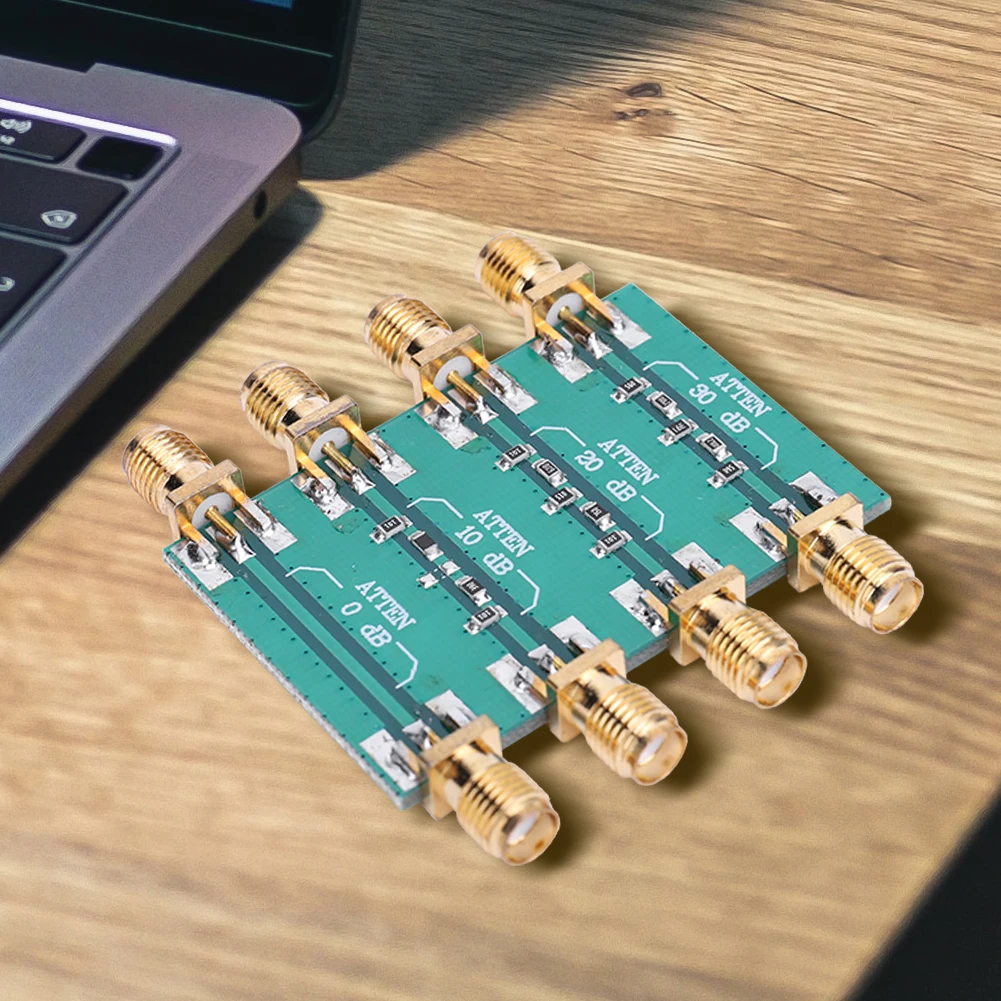

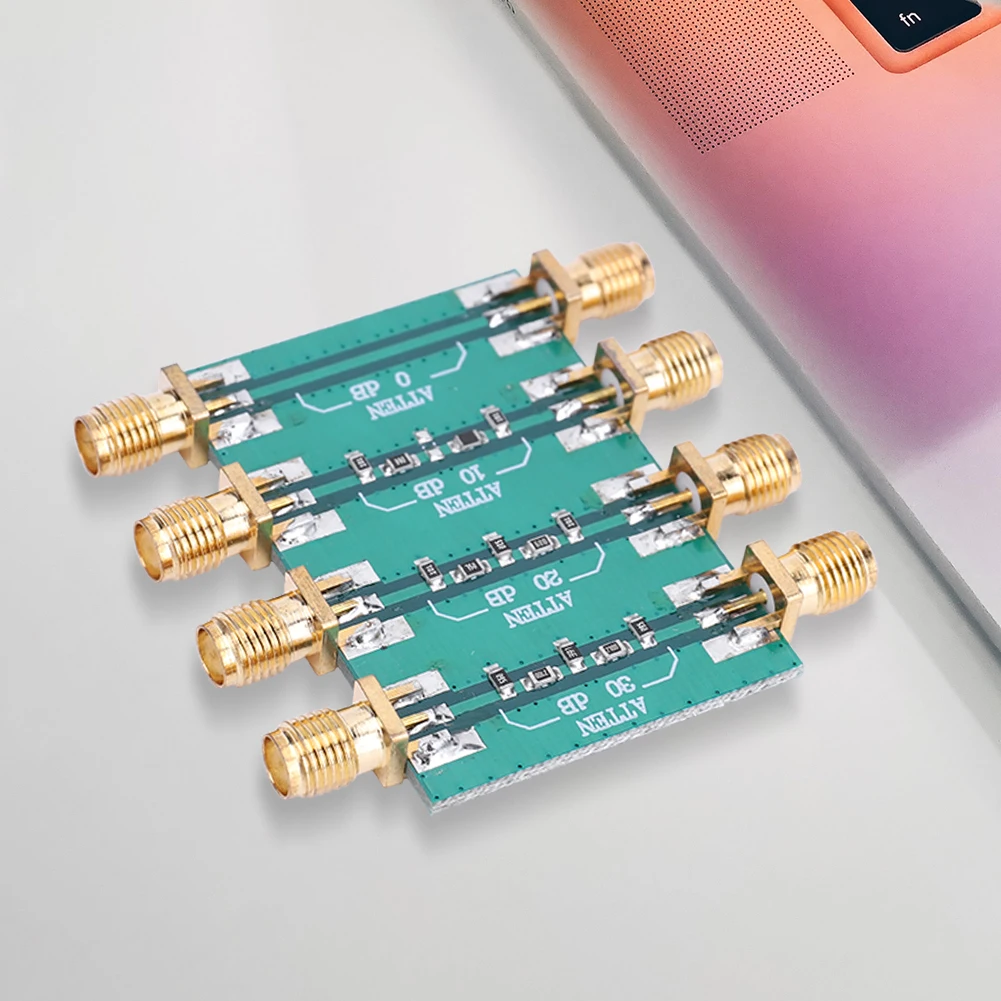

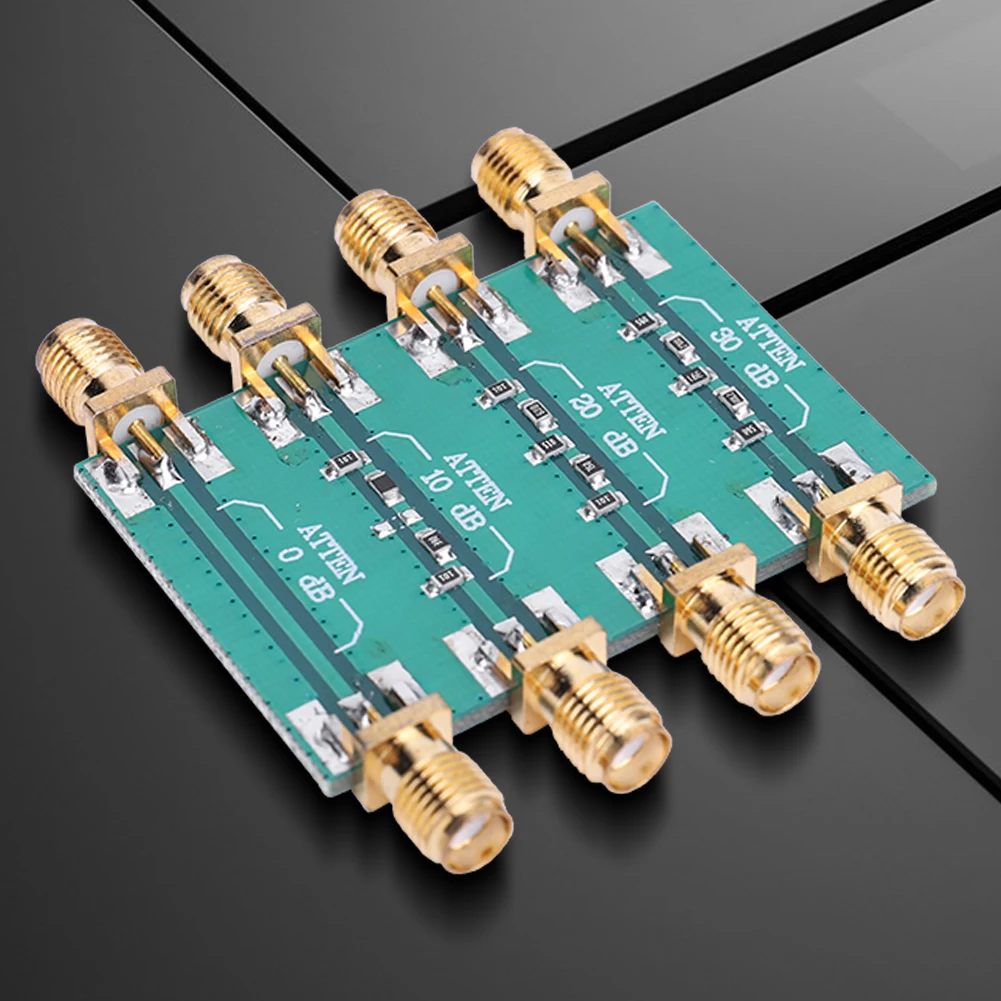

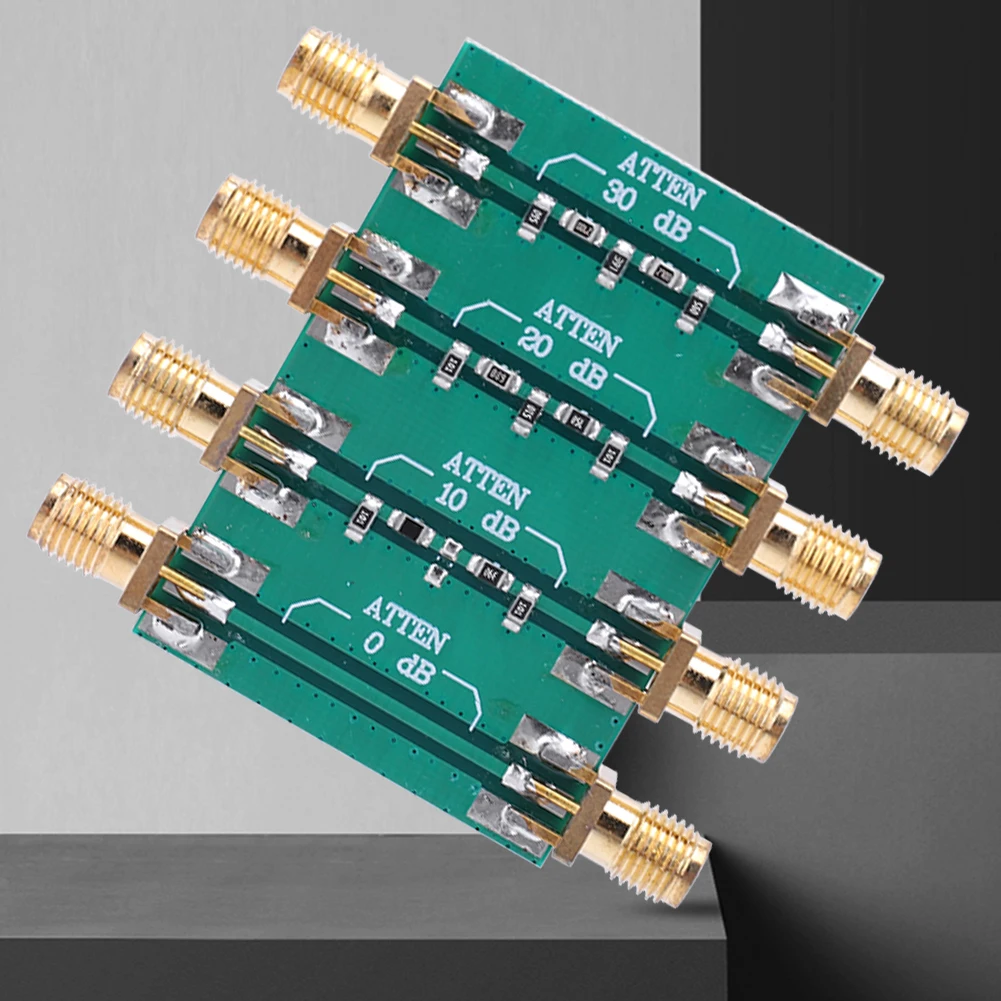

Fixed Attenuator Module DC-4.0GHz RF Attenuator Board SMA Double Female Head RF Power Signal Attenuator 23dBm 0dB 10dB 20dB 30dB
Feature
1. Wide Frequency Range and High Power: This RF fixed attenuator supports a wide frequency range of DC to 4.0GHz, making it suitable for various applications. With a maximum power handling capacity of 23dBm (200mW), it can handle high-power signals effectively.
2. Low VSWR and Impressive System Impedance: With a VSWR (Voltage Standing Wave Ratio) of ≤1.20, this radio frequency attenuator ensures minimal signal reflection and maximum power transfer. The system impedance of 50Ω guarantees optimal signal integrity and compatibility.
3. SMA Connectors for Easy Integration: Equipped with double-female SMA connectors (outer thread, inner hole), this fixed attenuator module offers versatile compatibility and easy integration into existing setups or systems.
4. Precise Attenuation Values: The attenuation values of this RF attenuator board are as follows: Straight-through: 0dB (reference), First level: 10±0.8dB, Second level: 20±1.1dB, Third level: 30±1.5dB. These precise attenuation levels allow for precise signal control and adjustment according to specific requirements.
5. and Reliable Design: Built with high-quality materials, this RF power signal attenuator ensures durability and reliability in various environments. Its sturdy construction and accurate attenuation performance make it an excellent choice for professional and industrial applications.
Specification
Certification: NONE
Origin: Mainland China
Model Number: RF Fixed Attenuator
Operating frequency: DC - 4.0GHz
High power: 23dBm (200mW)
VSWR: ≤1.20
System impedance: 50Ω
RF interface: SMA double female head (external dowel inner hole)
Attenuation value
Straight through: 0dB (reference)
Level 1: 10±0.8dB
Class II: 20±1.1dB
Grade 3: 30±1.5dB

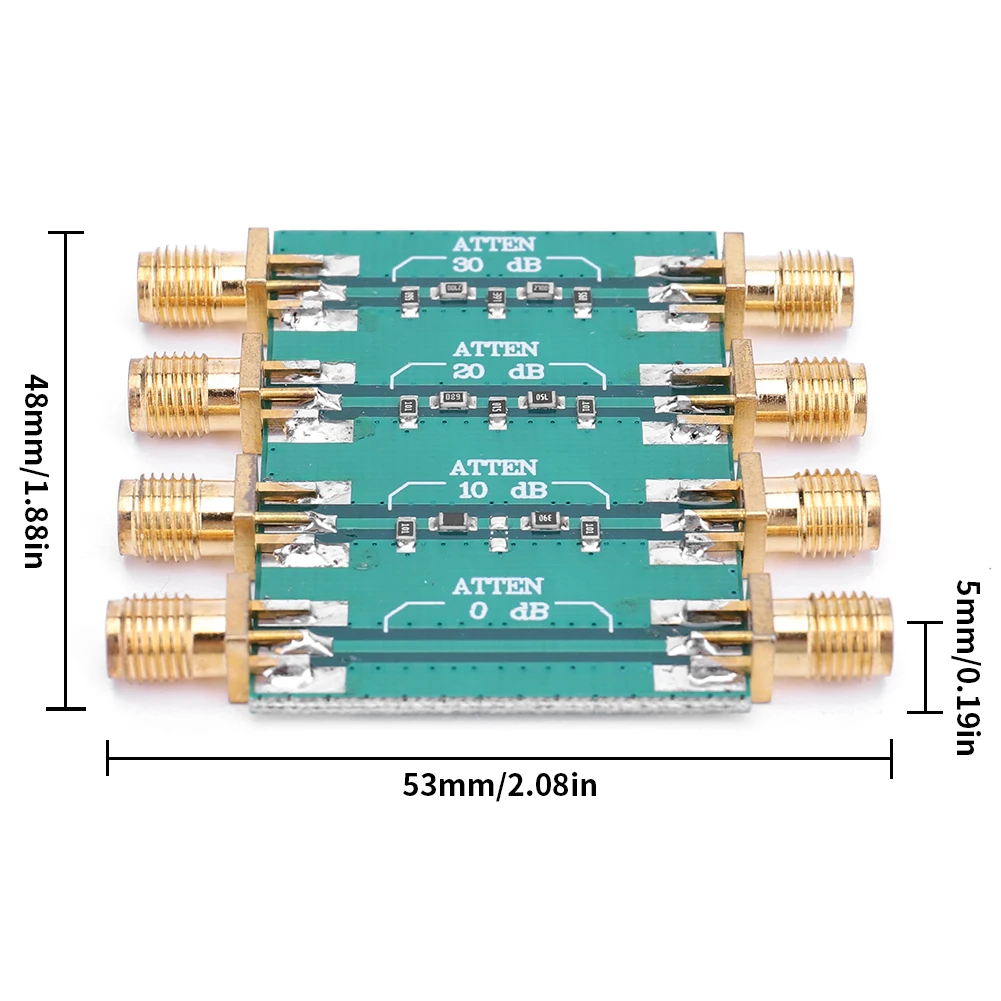

Size: 53 x 48 x 5mm/2.1 x 1.9 x 0.2inch
Note
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x RF Fixed Attenuator
