DC-DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.9★ from 105 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 382
- Package size: 12 × 8 × 3 cm
- Package weight: 0.064 kg
- Rating: 4.9 / 5
Before adding to cart, choose an available option and check the quantity.

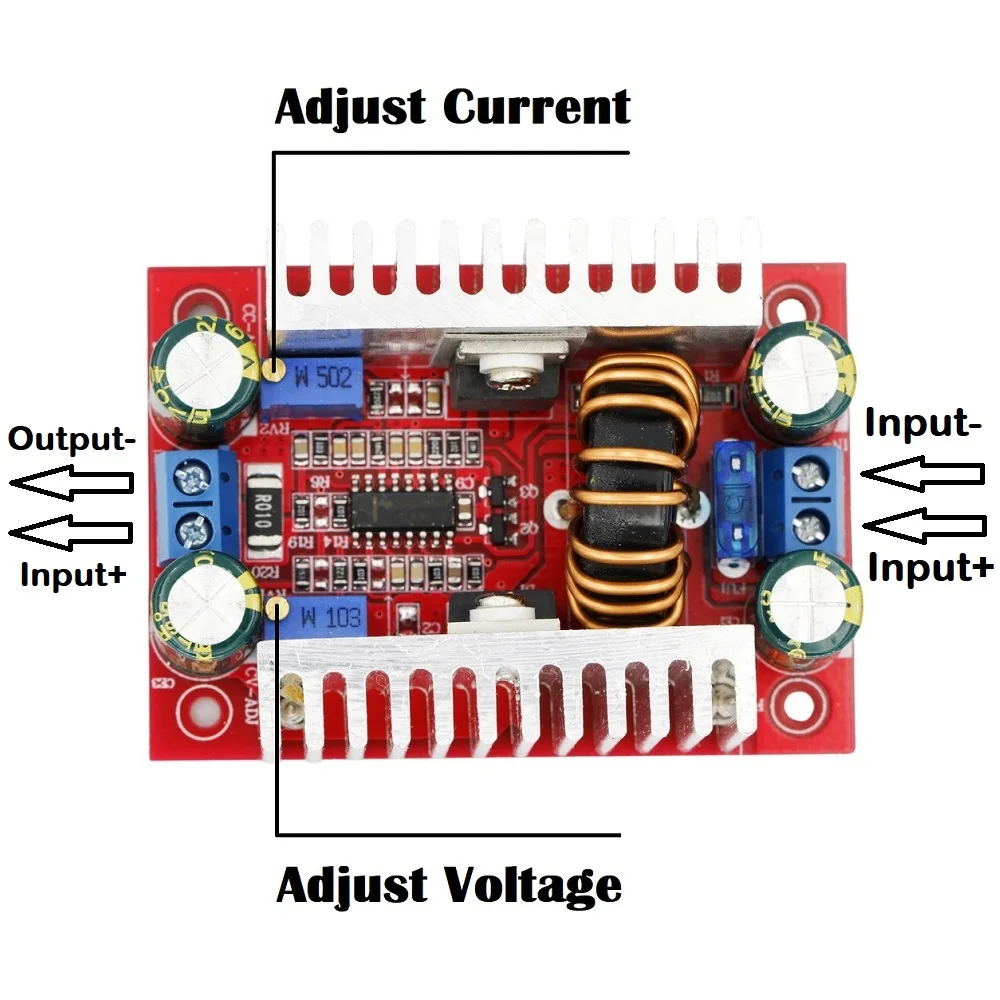

1. Adjust the "W 103" potentiometer to set the output voltage to the voltage value you need according to your battery or LED. For example, the voltage of 10 strings of LEDs is adjusted to 37V. (Counterclockwise voltage is adjusted to increase and clockwise voltage is adjusted to decrease)
2. Counterclockwise adjust the "W 502" potentiometer for about 30 turns to set the output current to the minimum. Connect the LED and adjust the RV2 potentiometer to the current you need. For battery charging, discharge the battery and connect it to the output, and adjust RV2 to the current you need. (When used for charging, you must use a fully discharged battery to adjust it accurately, because the more power the battery has, the smaller the charging current.) (Counterclockwise current is adjusted to decrease, clockwise current is adjusted to increase) Please do not use short-circuit to adjust the current. The circuit structure of the boost module cannot be adjusted by short-circuit. Application range 1. DIY a voltage regulator, input 12V, and the output can be adjusted from 12-50V 2. Power your electronic equipment, and set the output value according to your system voltage.
3. As a vehicle power supply, it can power your laptop, PDA or various digital products.
5. Solar panel voltage stabilization.
6. Charge batteries, carp batteries, etc.
7. Drive high-power LED lights.
Module Name: 400W Boost Constant Current Module
Module Properties: Non-isolated Step-up Module (BOOST)
Input Voltage: DC8.5V-50V
Input Current: 15A (MAX) -- Exceeds 8A please enhance heat dissipation
Quiescent Current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output Voltage: 10-60V Continuously Adjustable
Constant Range: 0.2-12A
Temperature: -40 to + 85 degrees (Ambient temperature is too high, please enhance heat dissipation)
Operating Frequency: 150KHz
Conversion Efficiency: Up to 96%
Overcurrent Protection: Yes
Input Reverse Polarity Protection: No
Installation: 4 2.55mm Screw Holes
Connection Method: Connection Output

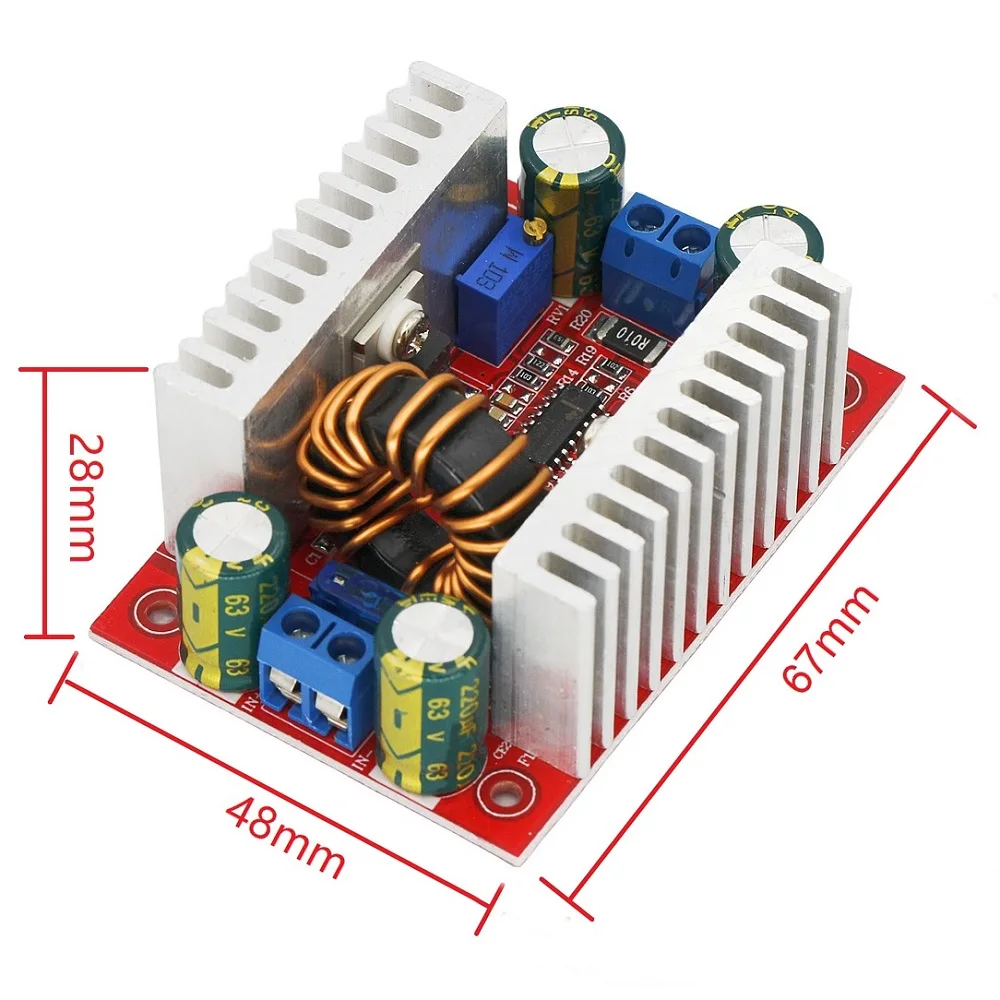

Module Size: 67mm X48mm X 28mm (LxWxH)
Single Module: 80g
Applications
1. DIY a power supply, 12V can input and output can 12-50V adjustable.
2. The power supply for your electronic device, according to your system can set the output voltage value.
3. As the car power supply for your laptop, PDA or a variety of digital products supply.
5. Solar panel regulator.
6. To the battery, rechargeable lithium batteries.
7. Driving high-power LED lights.
