DM542 DM556 Microstep Motor Driver 20-50V DC Max 5.6A Stepping Motor Driver 2 Phase Digital Stepper Motor Driver for Nema 17 23

DM542 DM556 Microstep Motor Driver 20-50V DC Max 5.6A Stepping Motor Driver Digital Stepper Motor Driver for 42 57 Stepper Motor

Features

1. Precision Motion Control: Seamlessly drive your stepper motors with our microstep motor driver, featuring single-ended signal input for pulse/direction with an impressive response frequency up to 200KHz. Accommodate a wide voltage range from 3.3V to 24V without the need for additional resistors, ensuring compatibility and ease of integration with your existing systems.

2. Customizable Microstepping: Tailor your motor's performance with a versatile selection of microstep resolutions ranging from 2 to 128 of this stepper motor driver controller, and additional fine divisions up to 125, allowing for precise control and smoother motion profiles. This flexibility makes it suitable for a multitude of applications, from CNC machines to robotics.

3. Power Output: Our stepping motor driver supports a substantial output current from 1.4A to 5.6A and input voltage of 20-50VDC, making it capable of handling a variety of stepper motors, including 4/6/8 wire two-phase and four-phase, as well as 42 and 57 type motors. This ensures reliable operation across a spectrum of industrial demands.

4. Enhanced Signal Isolation: Profit from superior anti-interference performance with optocoupler isolation for signal inputs. This feature of this digital stepper motor driver, along with comprehensive protection against overheating, overcurrent, undervoltage lockout, and reverse voltage, ensures your operations run smoothly and consistently safe.

5. Efficient Cooling Design: Enjoy extended operational longevity with our digital driver controller board's large-volume heatsink, designed for effective heat dissipation. Coupled with its easy installation process, it also boasts low-vibration at slow speeds and minimal noise output, contributing to a more comfortable and quiet working environment.

Specification

Origin: Mainland China

Performance Introduction

DM542/DM556DSP driver is a professional two-phase hybrid digital stepper motor driver, which can be adapted to various domestic and foreign brands, with a current of 5.6A and below, an outer diameter of 57,86mm, four-wire, six-wire, and eight-wire Two-phase hybrid stepper motor. Suitable for various small and medium-sized automation equipment and instruments, such as: engraving machines, marking machines, cutting machines, phototypesetting, plotters, CNC machine tools, pick-and-place devices, etc. The effect is particularly good in equipment where users expect large current, low noise, and high-resolution operation.

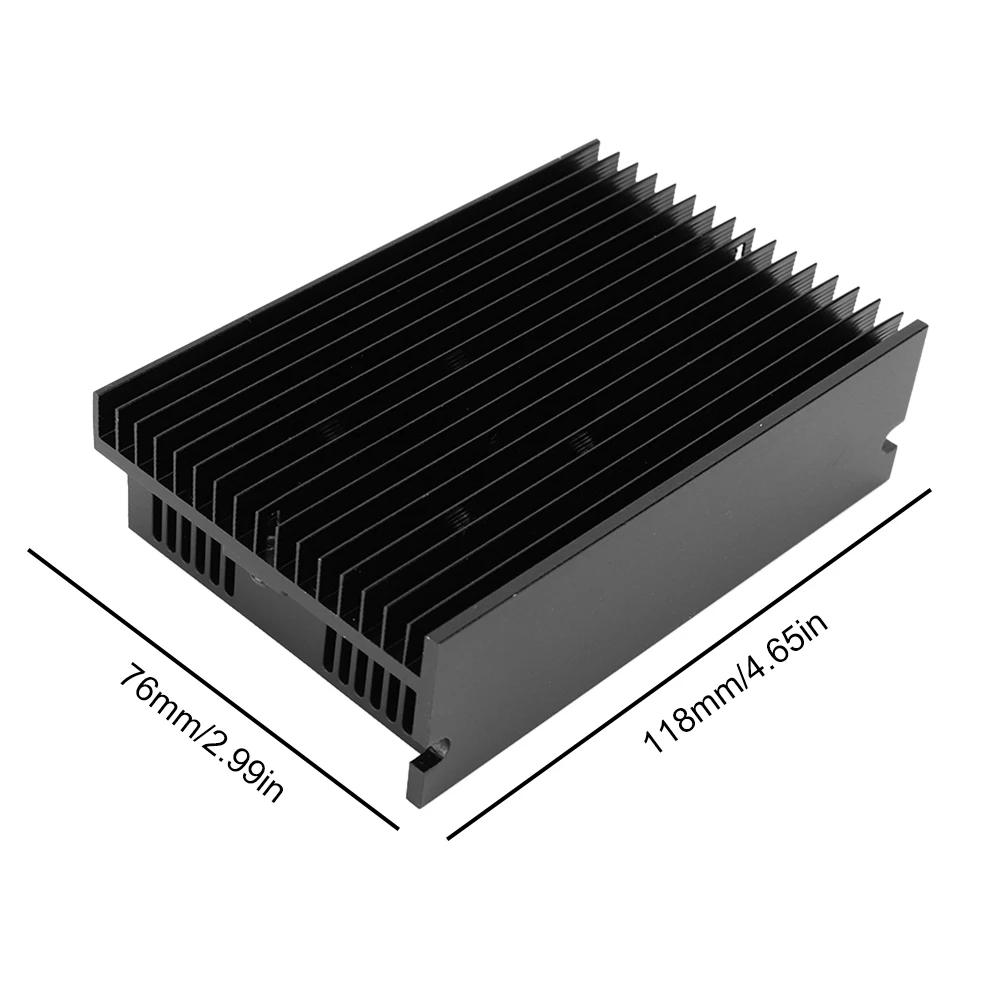

Size: 118.00x76.00x34.00mm4.65x2.99x1.34inch

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

DM542 Microstep Motor Driver 20-50V DC Max 5.6A Stepping Motor Driver Digital Stepper Motor Driver for 42 57 Stepper Motor

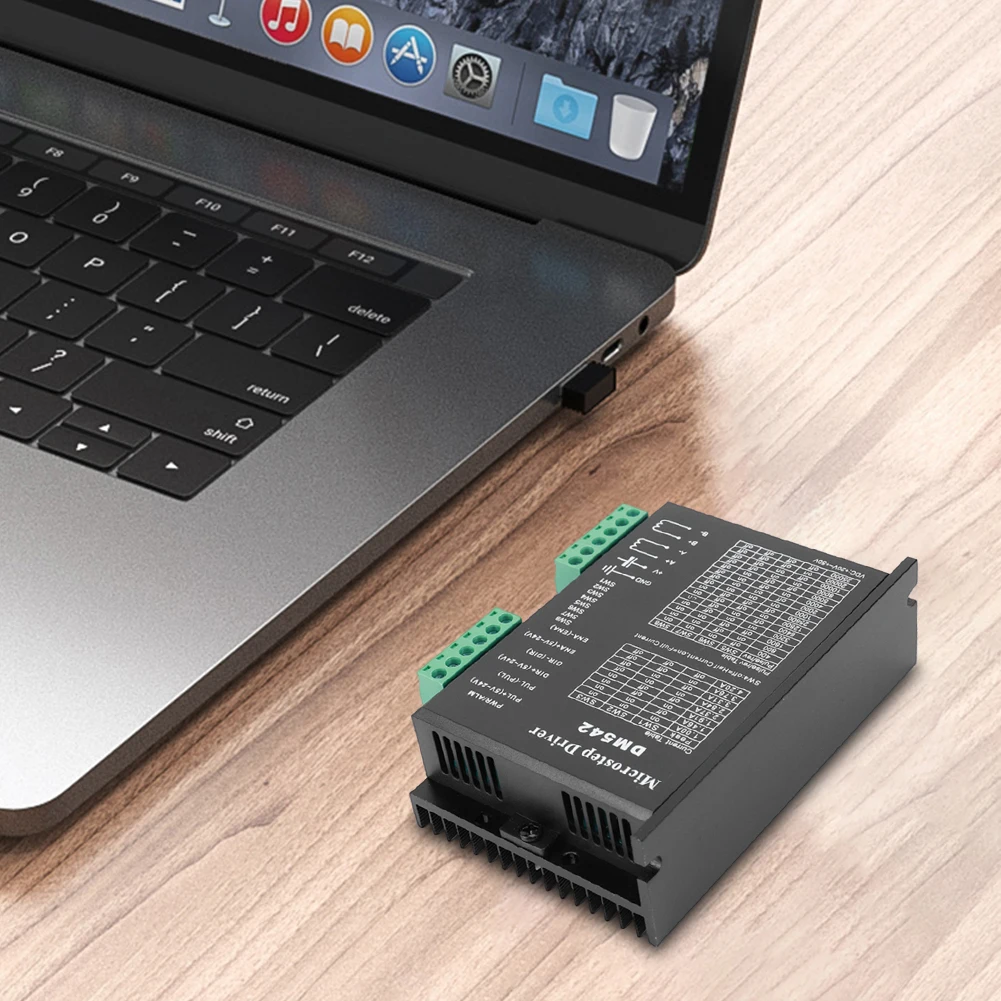

DM542 DSP driver is a professional two-phase hybrid digital stepper motor driver, which can be adapted to various domestic and foreign brands, with a current of 5.6A and below, an outer diameter of 57,86mm, four-wire, six-wire, and eight-wire Two-phase hybrid stepper motor. Suitable for various small and medium-sized automation equipment and instruments, such as: engraving machines, marking machines, cutting machines, phototypesetting, plotters, CNC machine tools, pick-and-place devices, etc. The effect is particularly good in equipment where users expect large current, low noise, and high-resolution operation.

DM556 Microstep Motor Driver 20-50V DC Max 5.6A Stepping Motor Driver Digital Stepper Motor Driver for 42 57 Stepper Motor

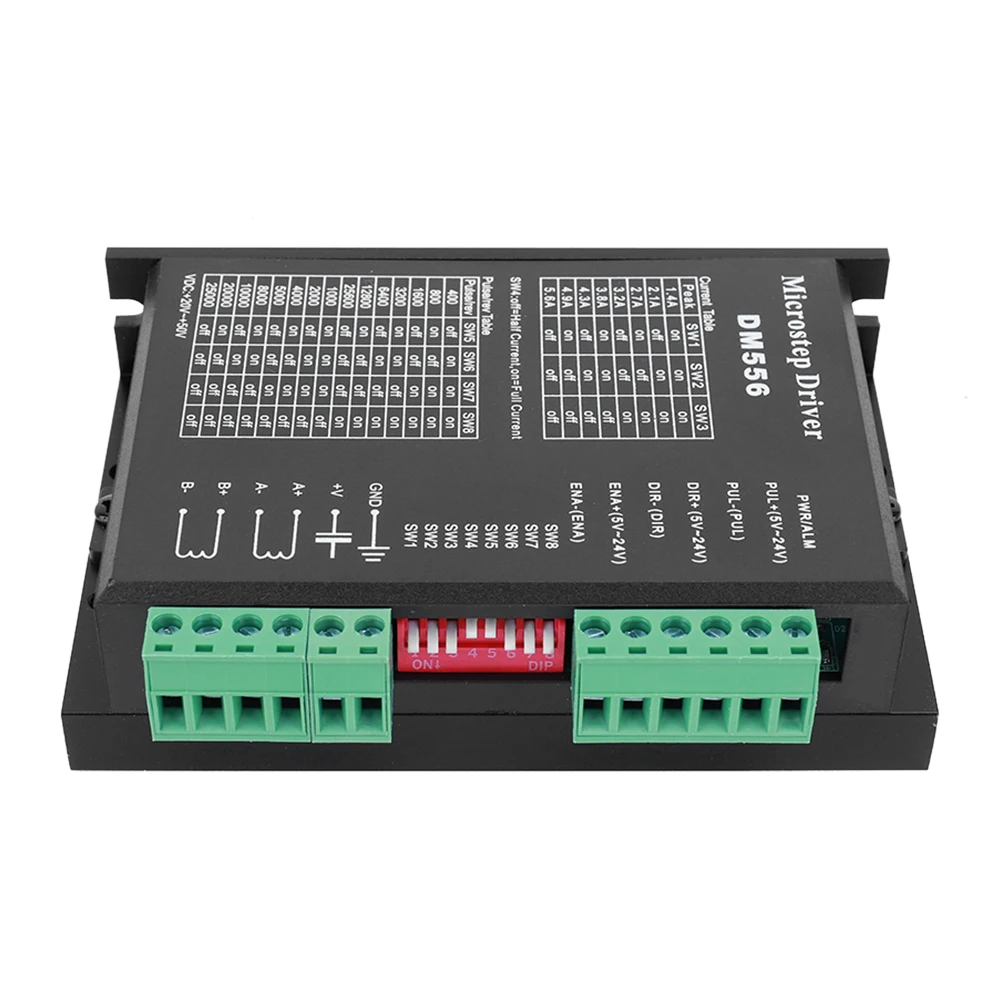

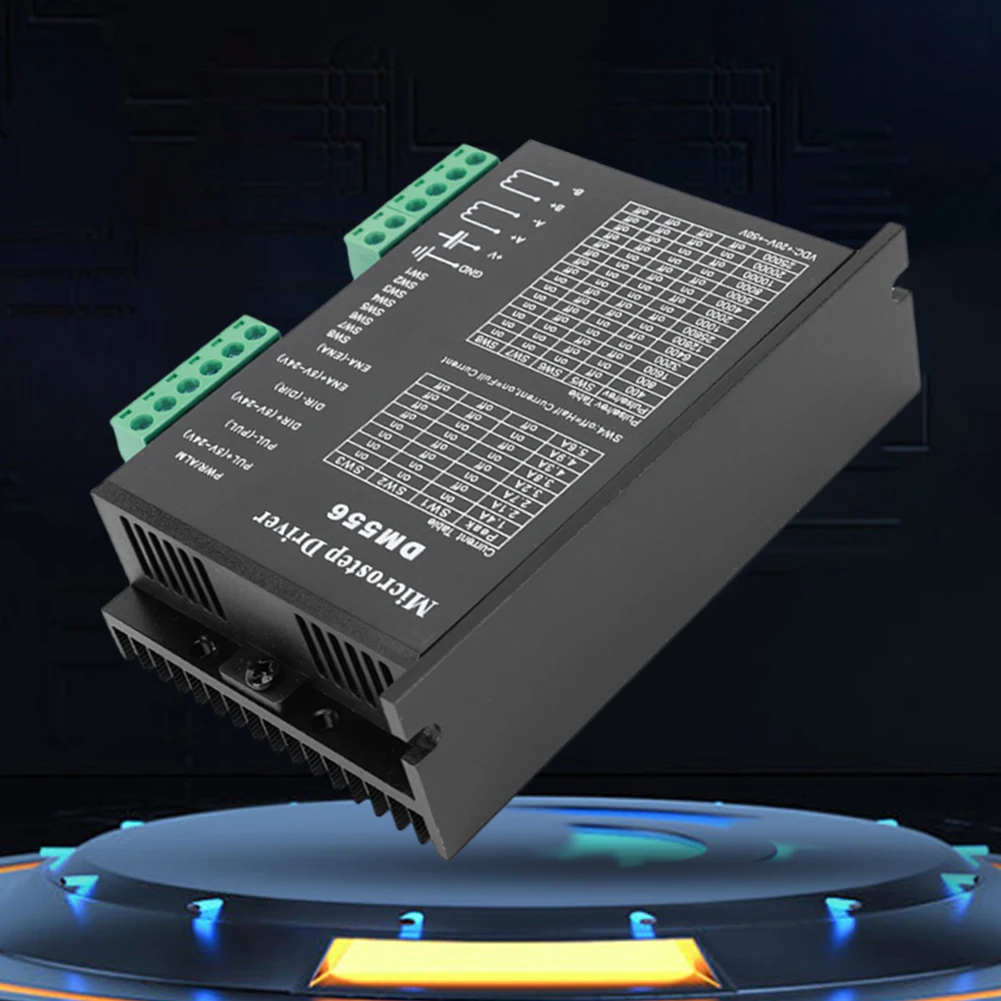

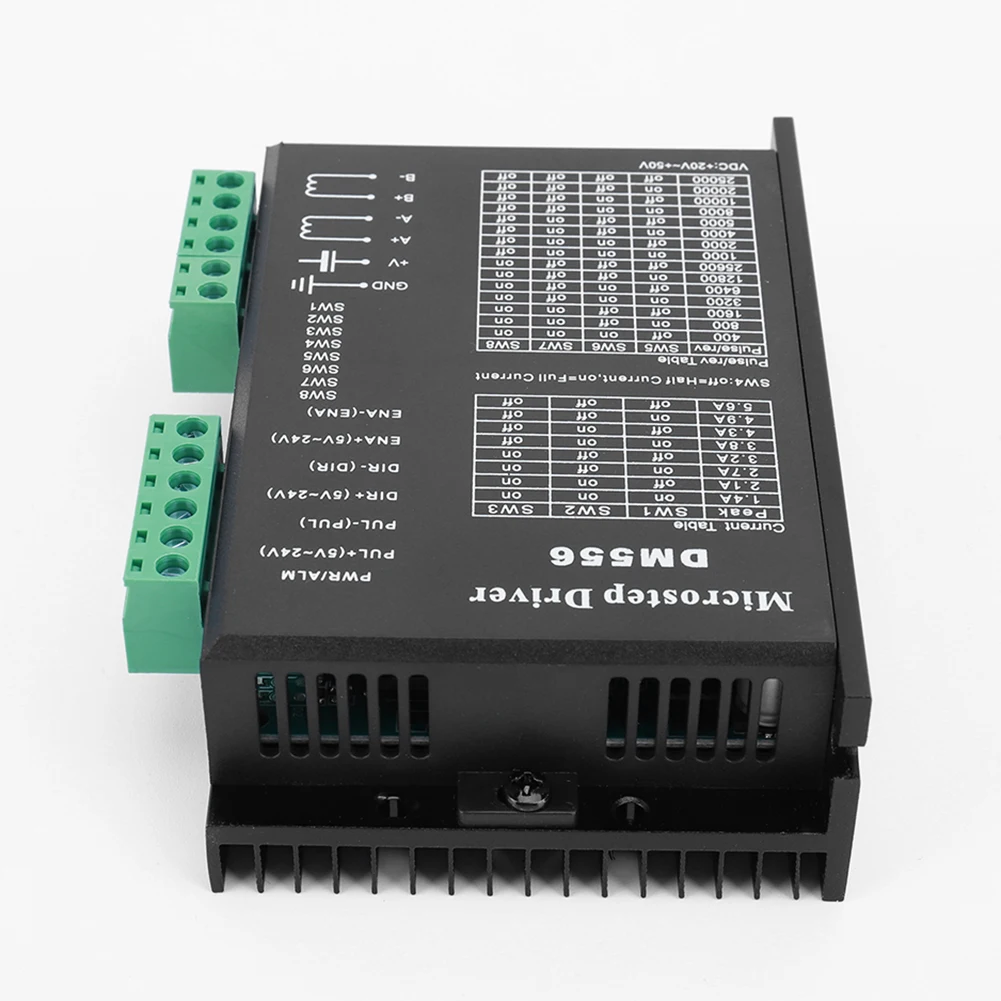

DM556 DSP driver is a professional two-phase hybrid digital stepper motor driver, which can be adapted to various domestic and foreign brands, with a current of 5.6A and below, an outer diameter of 57,86mm, four-wire, six-wire, and eight-wire Two-phase hybrid stepper motor. Suitable for various small and medium-sized automation equipment and instruments, such as: engraving machines, marking machines, cutting machines, phototypesetting, plotters, CNC machine tools, pick-and-place devices, etc. The effect is particularly good in equipment where users expect large current, low noise, and high-resolution operation.

1*DM542 Stepping Motor Driver

or

1*DM556 Stepping Motor Driver
