Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: DOKIO
- Package size: 100 × 58 × 5 cm
- Package weight: 5.5 kg
- Rating: 0.0 / 5
- Color: 100W set
Before adding to cart, choose an available option and check the quantity.
Model:DFSP-100M
Material:Monocrystalline Silicon
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 20.5V
Short-Circuit Current (Isc):6.5A
Maximum System Voltage: DC1000V
Maximum Series Fuse:15A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Net Weight:1.02kg

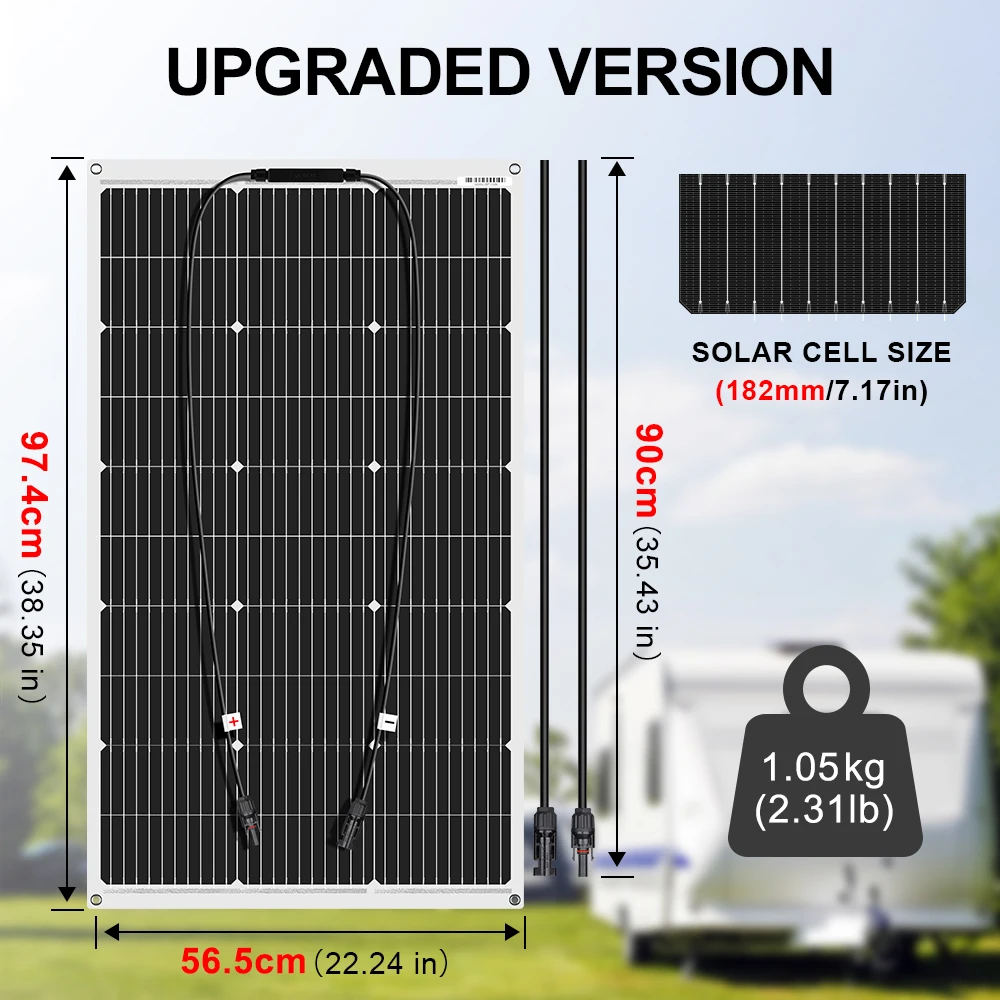

Dimension:974*565mm
Package Dimension:980*580*35mm

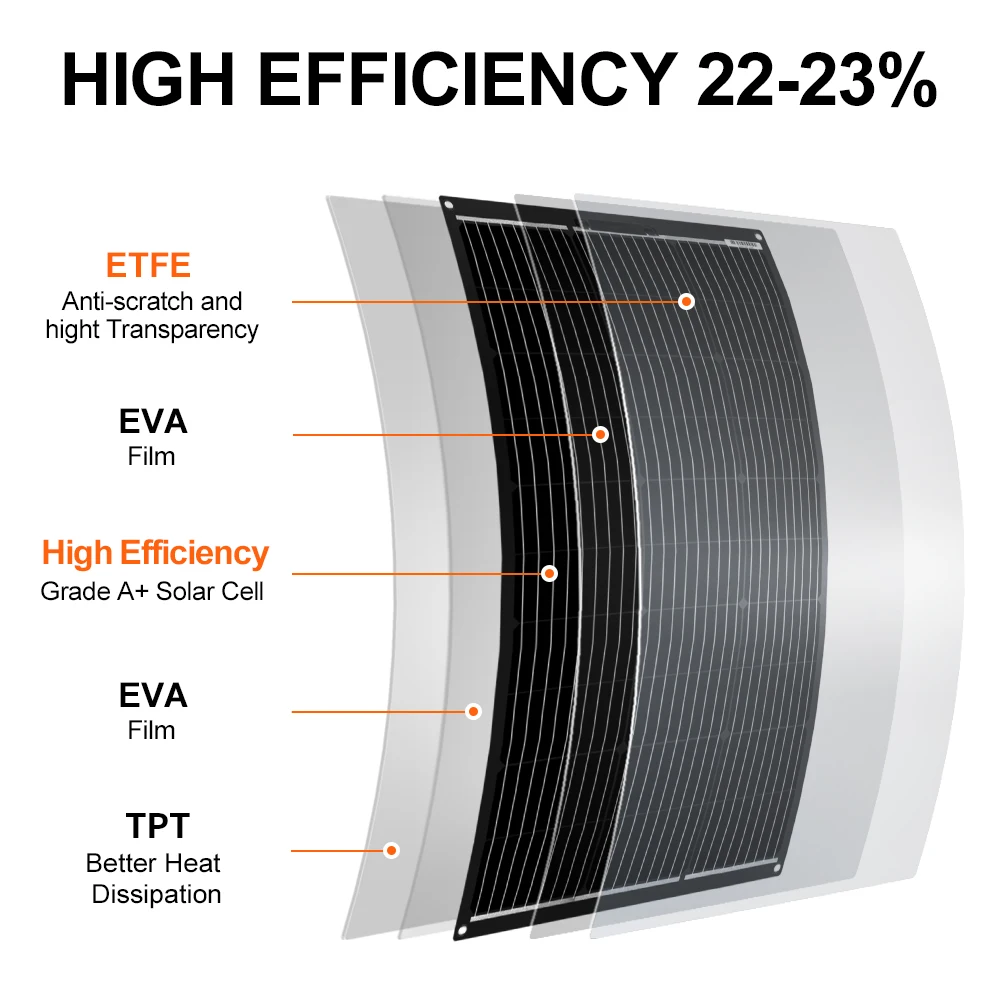

Material structure：
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet
waterproof level：IP67（Junction Box）
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）
Product display

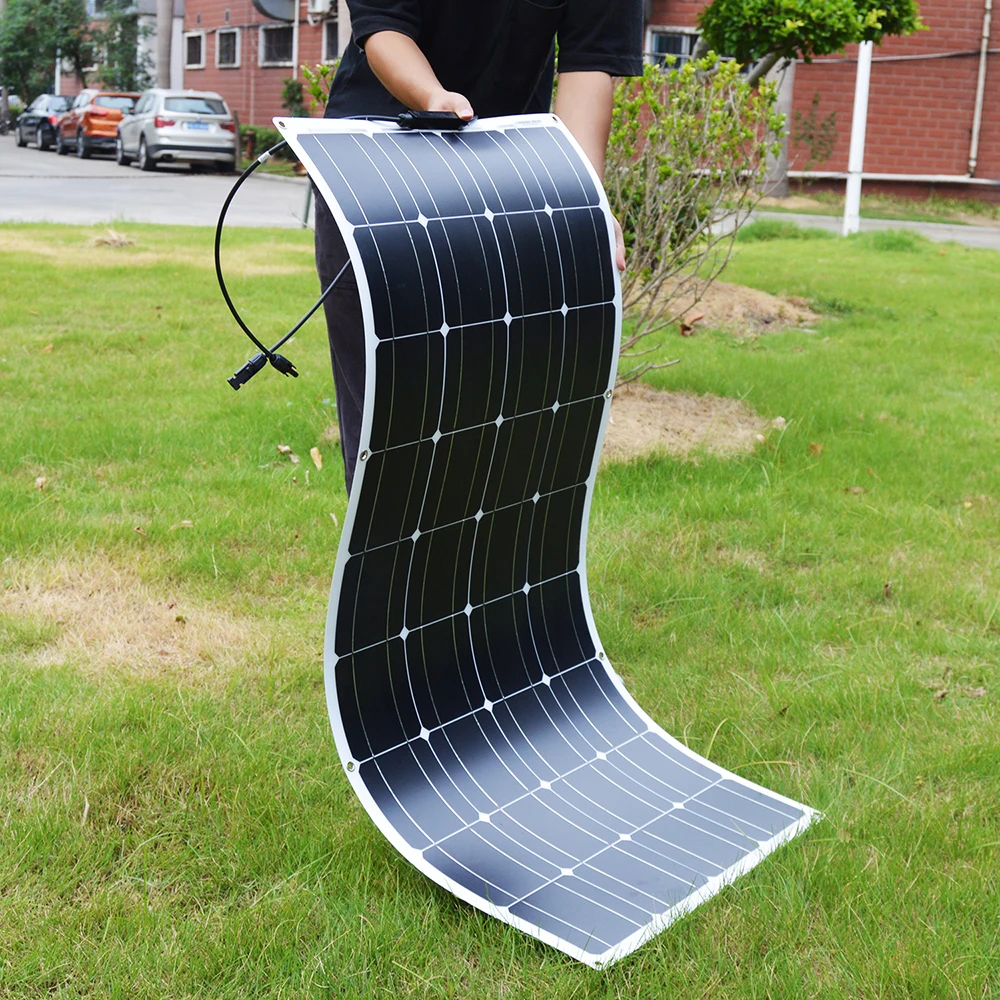

Easy to use:Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.
High efficiency, Light weight:only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry.
Easy to install:Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.
Our Advantages
The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.
The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.
About transparation
For Brazilian customer:Since the size of this product exceeds the size limit of Brazil Post, we need to use other logistics delivery. Other logistics companies will charge an additional fee.
If you are willing to pay additional fees, please send us the address information and CPF before placing the order. We will ask the logistics provider for the amount.
The shipping method provided is for reference only. Standard logistics have listed solar panels as prohibited items.
We will choose EMS, DHL, UPS, FEDEX, DPEX and other commercial express according to the specific situation.
FAQ
What is the difference between a 32 cells solar panel and a 36 cells solar panel?
The solar panel voltage of 32 cells is 16v, and the solar panel voltage of 36 cells is 18v.Compared to 18v solar panels, 16v solar panels do not perform as well as 18v solar panels in the morning and evening.
If your country has plenty of sunshine, then 16v solar panels can also achieve 18v performance.
Why did the title write 12V solar panels, and the product page wrote 18v solar panels?
Many customers will have a misunderstanding when choosing solar panels. They want to buy 12v solar panels to charge 12v batteries.
In fact, the voltage of the solar panel is affected by the light intensity.If the light is weak, the voltage of the solar panel will drop.
We set the solar panel voltage to 16v-18v to ensure that the solar panel still maintains enough voltage to charge the battery when the light is weak.
Why did I not get 100w in the actual test of the 100w solar panel I purchased?
The maximum power of this solar panel is 100w, the maximum is obtained in the laboratory.
Due to geographical constraints, most areas cannot get the maximum power of 100w.
So how do you test the maximum power of a solar panel in your-self area?
Wait for a sunny day, flatten the solar panels on the ground at 12 noon. Use a multimeter to test the metal sheets in the solar panel junction box, or directly test the MC4 connector.
