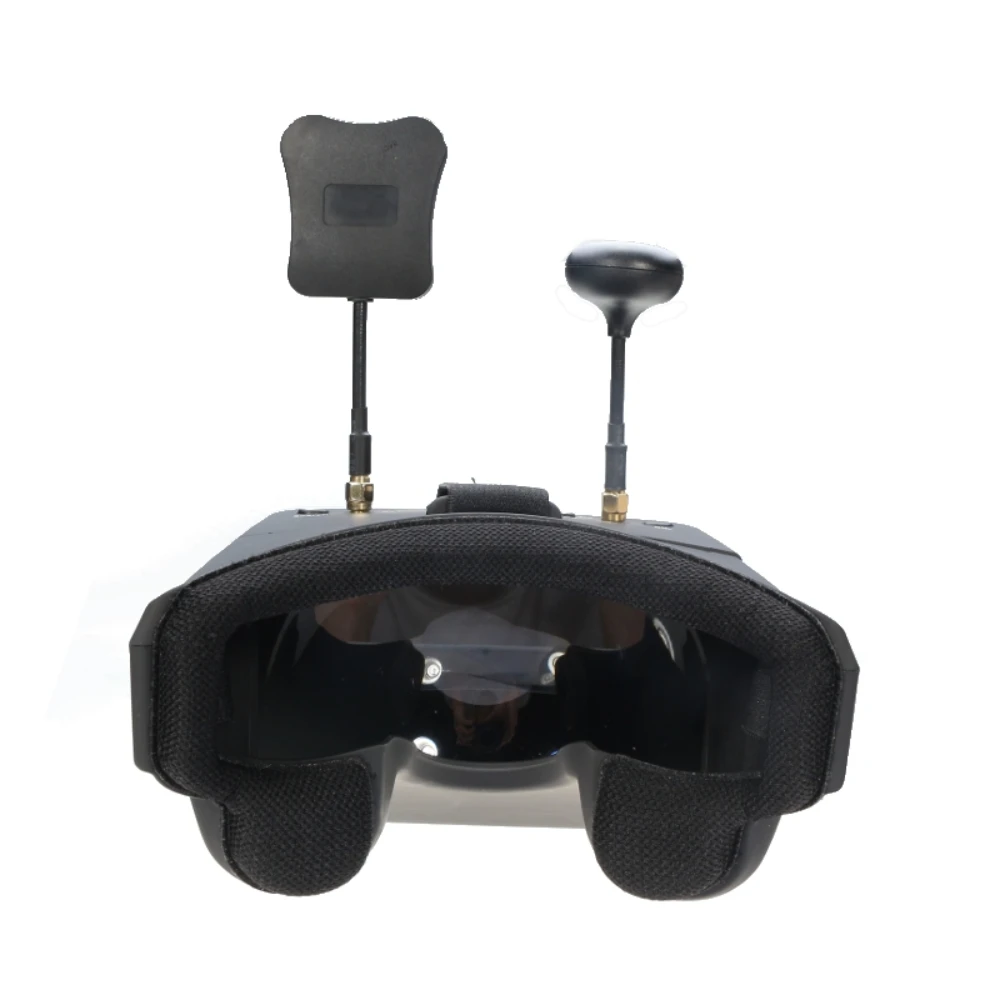

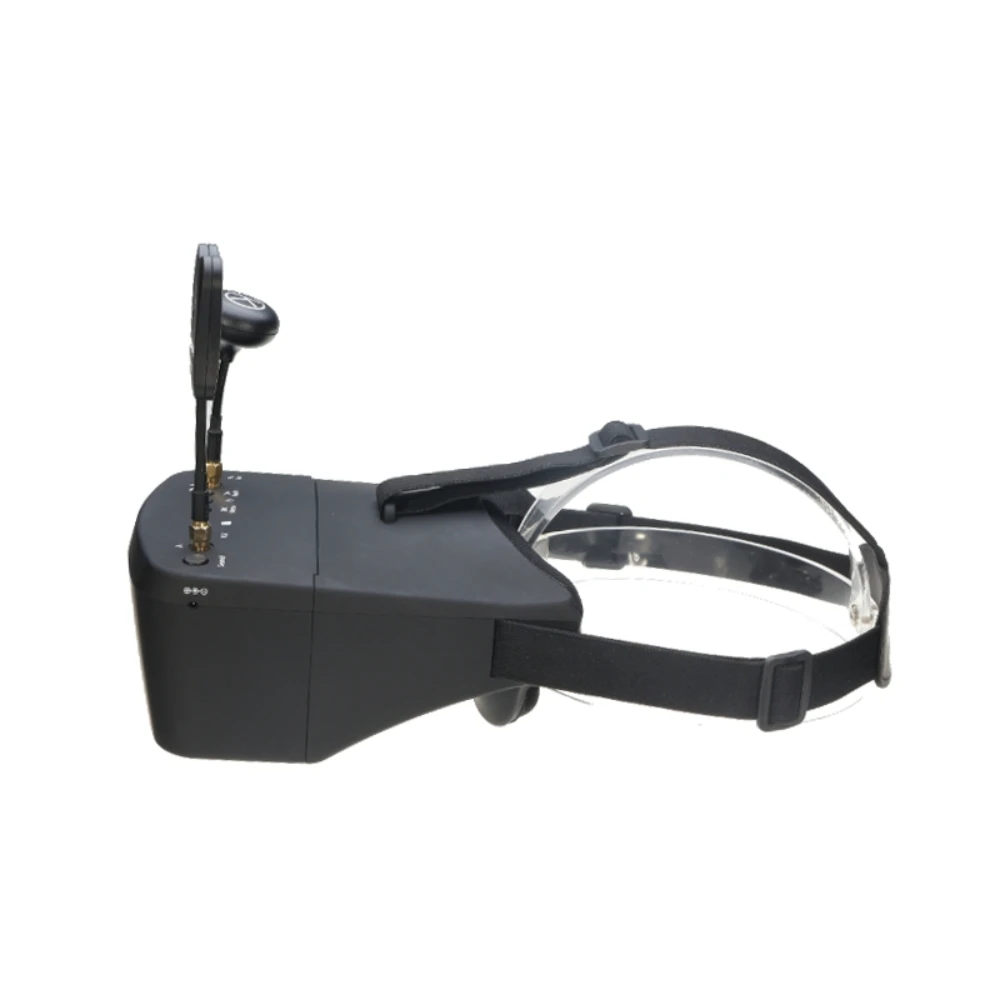

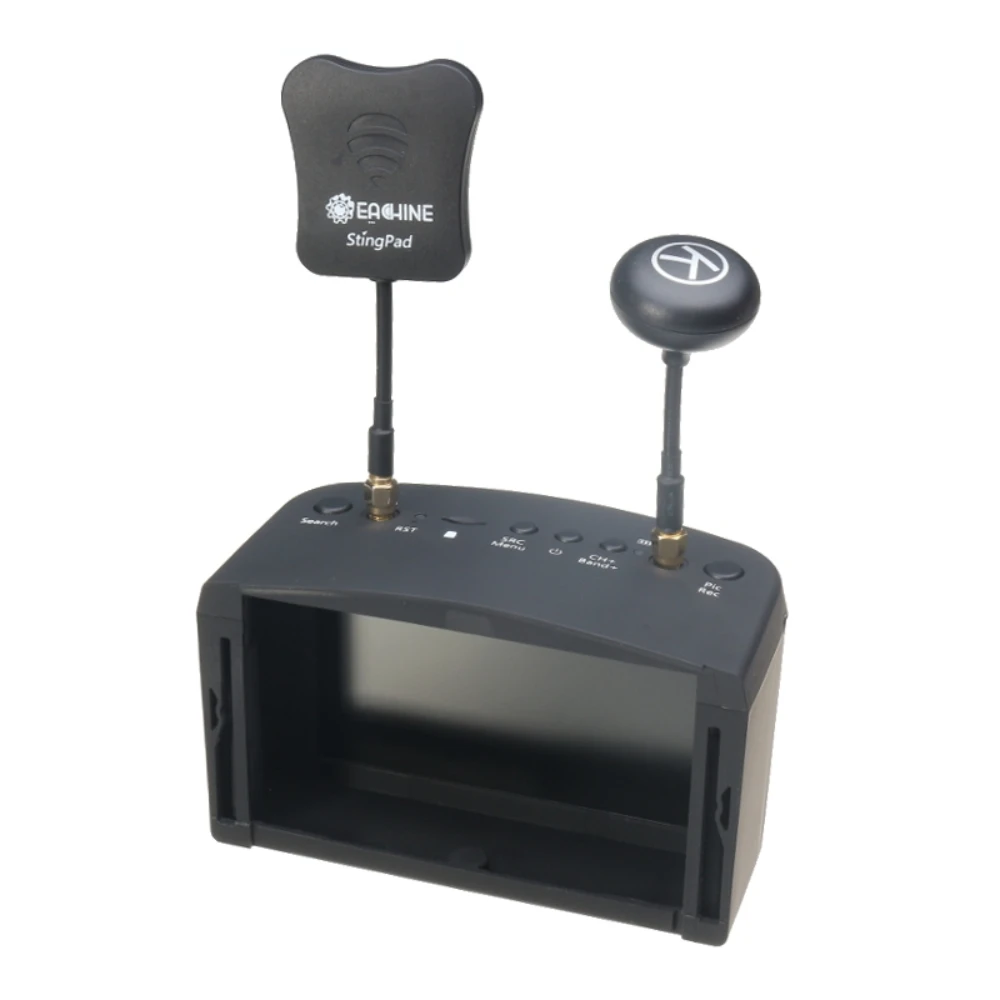

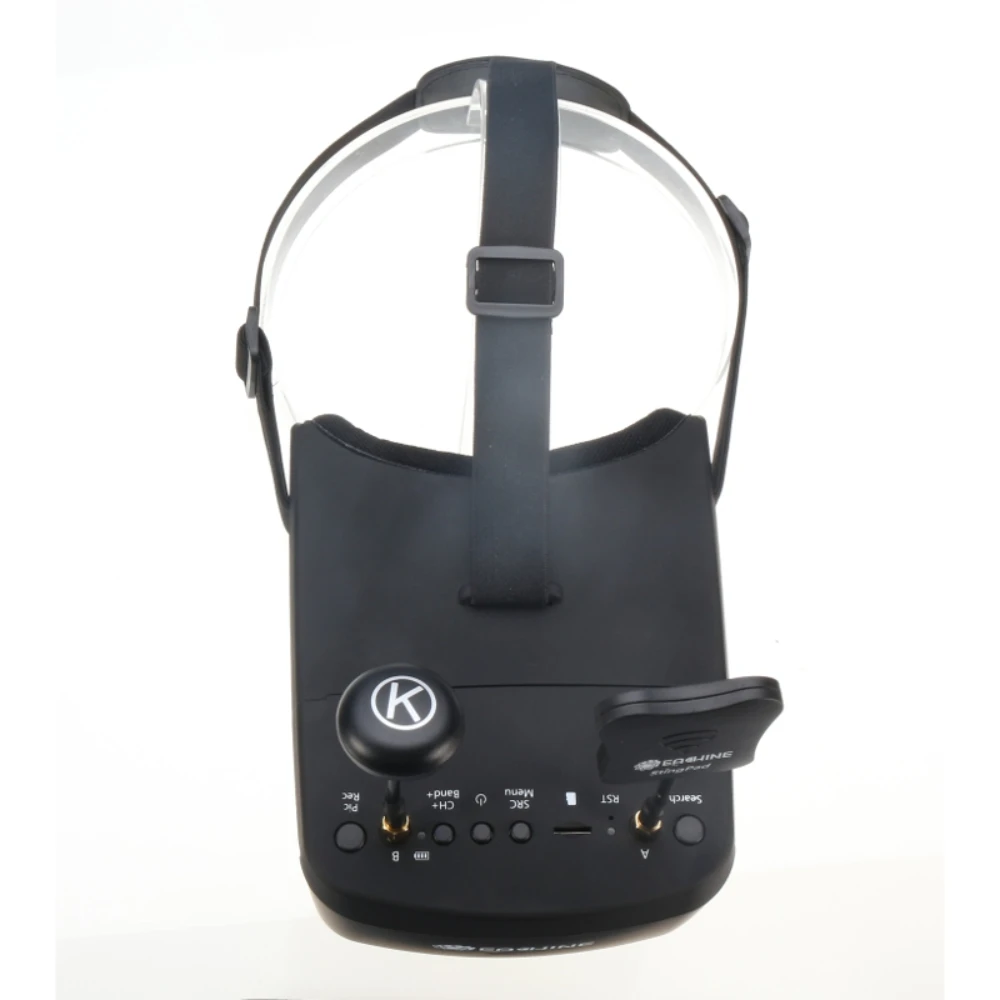

Eachine EV800D 5.8G 40CH 5 Inch 800*480 Video Headset HD DVR Diversity FPV Goggles
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 5.0★ from 10 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: EACHINE
- Sales: 60
- Package size: 25 × 18 × 11 cm
- Package weight: 0.75 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Description
Brand Name: EACHINE
Item Name: EV800D
Appearance
Dimension: 180*145*82mm
Weight: 362g without antenna
Belt: three-way adjustable belt
Specification
Build in DVR
R ecord up to 720*576px full frame rate video, no frame lost (C10 card required)
Re-play in MENU
Require C10 card (32G SD card) to r ecord full frame rate
Diversity
90dB Super sensitiveness in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used
Display
Screen size: 5.0 inch
Screen resolution: 800*480(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio: 16:9, 4:3
View Angle: 140/120 degree(Horizontal/Vertical)
Lens
3x boost of the video to acquire intense feel-in-there video
92% transparent rate distort if light
Battery
Built-in 7.4V/1200mAh battery
Each battery circle offers around 2hr working time
10-22V wide range recharging voltage range, typical recharging voltage is 12V
Charger: 12V,2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as backup power t to have a long working time.
Frequencies (5.8GHz, with RaceBand)
CH
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
GROUP
A or FR1
5865 MHZ
5845 MHZ
5825 MHZ
5805 MHZ
5785 MHZ
5765 MHZ
5745 MHZ
5725 MHZ
B or FR2
5733 MHZ
5752 MHZ
5771 MHZ
5790 MHZ
5809 MHZ
5828 MHZ
5847 MHZ
5866 MHZ
C or FR3
5705 MHZ
5685 MHZ
5665 MHZ
5645 MHZ
5885 MHZ
5905 MHZ
5925 MHZ
5945 MHZ
D or FR4
5740 MHZ
5760 MHZ
5780 MHZ
5800 MHZ
5820 MHZ
5840 MHZ
5860 MHZ
5880 MHZ
R or FR5
5658 MHZ
5695 MHZ
