EASUN POWER Hybrid Solar Inverter 6.2KW 4.2KW 3.2KW 6500W MPPT PV Input Pure Sine Wave 60V-500VDC 120A Solar Controller Charger
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: EASUN POWER
- Sales: 7
- Package size: 50 × 41 × 18 cm
- Package weight: 11 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
Models
ISolar-SMH-II-2.2KW
ISolar-SMH-II-3.2KW
ISolar-SMH-III-4.2KW
ISolar-SMH-III-6.2KW
Rated Power
2200VA/1800W
3200VA/3000W
4200VA/4200W
6200VA/6200W
INPUT
Voltage
230Vac
Selectable Voltage Range
(170Vac~280Vac)±2%;(90Vac-280Vac)±2%
Frequency Range
50Hz/60Hz (Auto detection)
OUTPUT
AC Voltage Regulation (Batt.Mode)
230VAC±5%
Surge power
4400VA
6400VA
8400VA
12400VA
Transfer Time
10ms(for personal computers)/20ms(for home appliances)

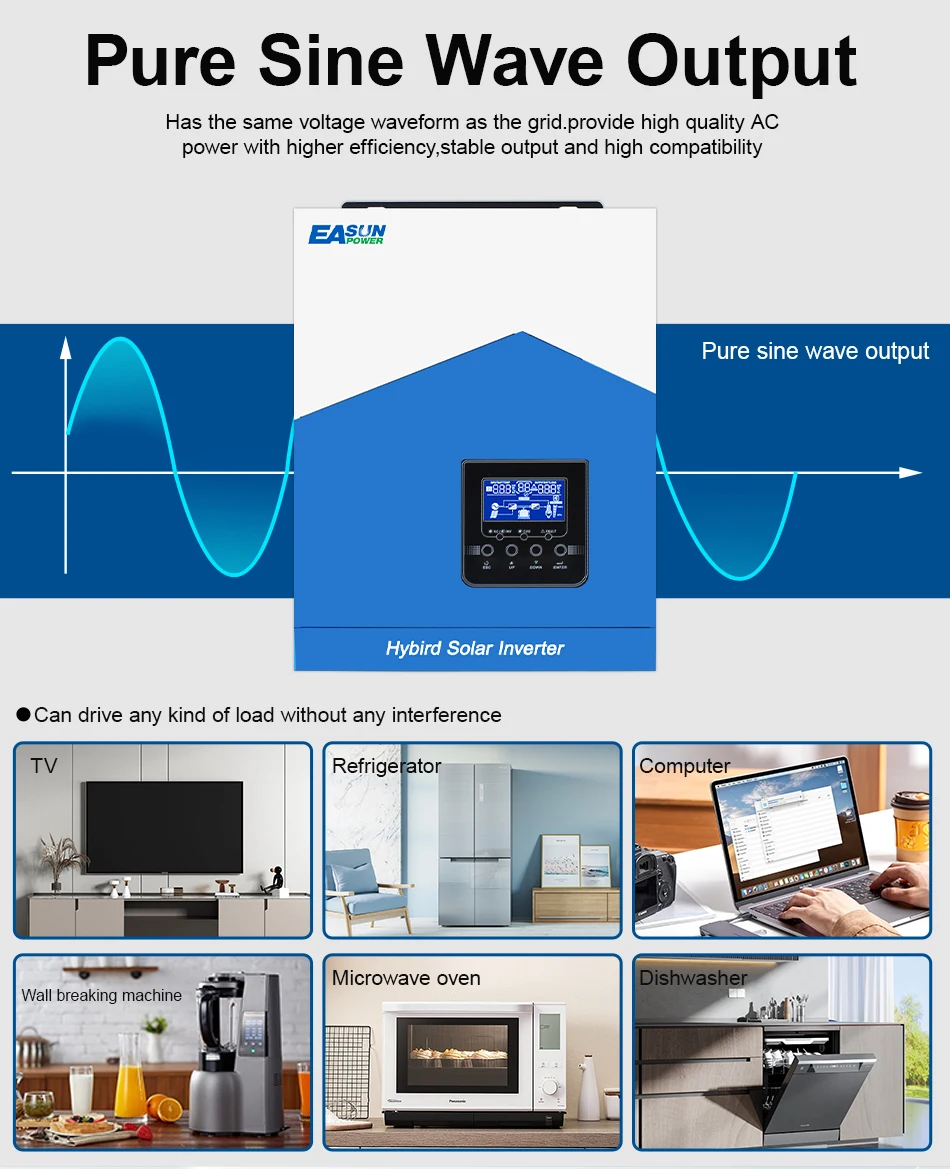

Waveform
Pure Sine Wave
BATTERY&AC CHARGER
Battery Voltage
12VDC
24VDC
48VDC
Floating Charge Voltage
13.5VDC
27VDC
54VDC
Over-charge Protection
15.5VDC
31VDC
61VDC
Maximum charge current
60A
80A
SOLAR CHARGER
MAX.PV Array Power
2000W
3000W
6200W
6500W
MPPT Range Operating Voltage
55-450VDC / 60-500V
Maximum PV Array Open Circuit Voltage
450VDC
Maximum Charging Current
120A
Maximum Efficiency
98%
PHYSICAL
Dimension D*W*H(mm)
405x286x98mm
423x290x100mm
423x310x120mm
Net Weight (kgs)
4.5kg
5.0kg
9.5kg
10.0kg

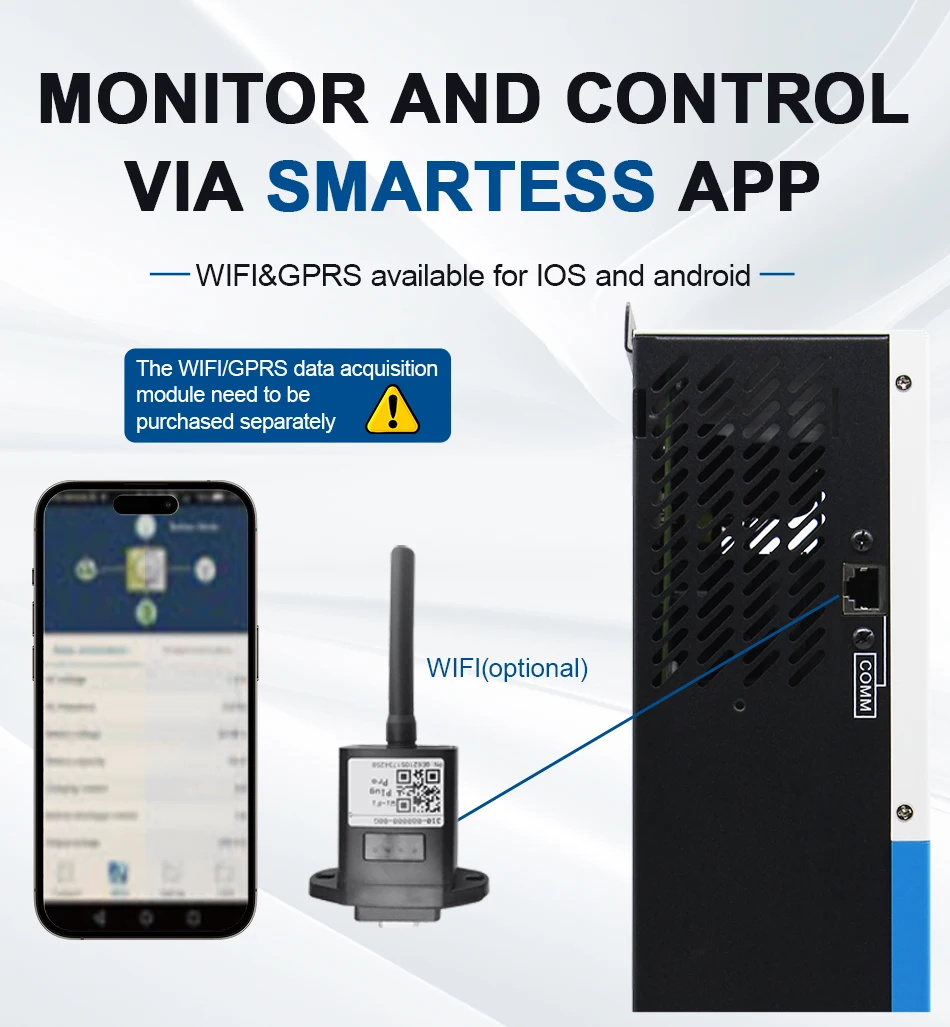

Communication Interface
RS232/RS485(Standard)/GPRS/WIFI
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
10°Cto55°C
