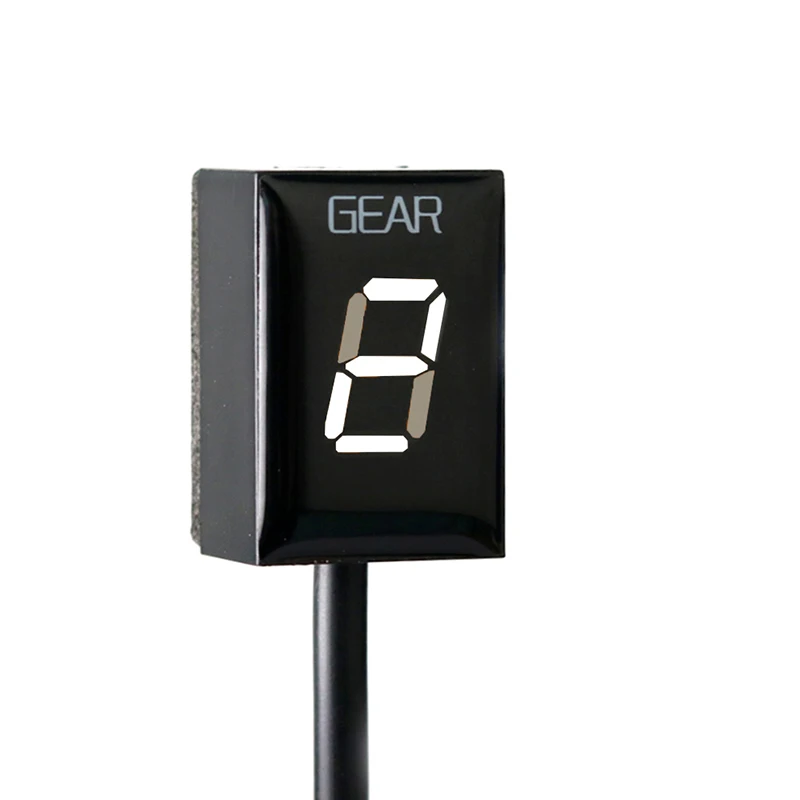

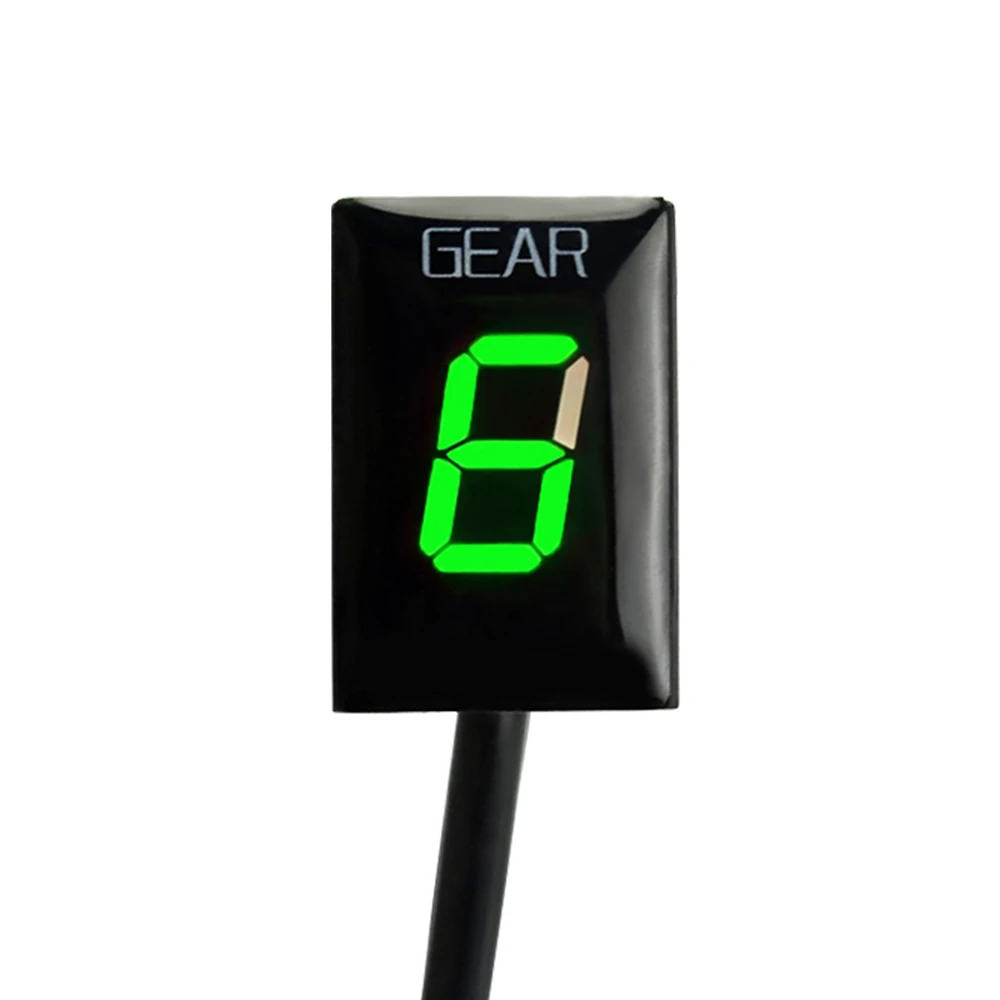

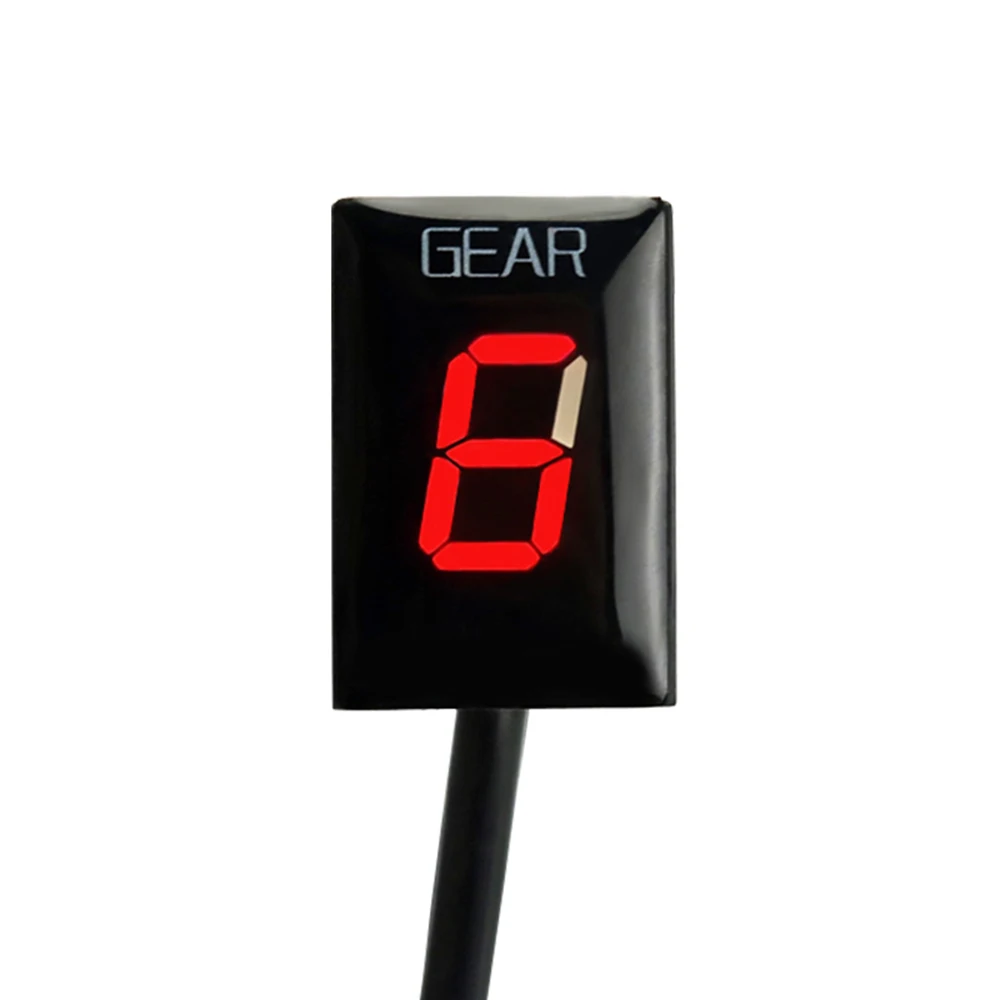

For Ducati Monster Motorcycle Accessories 1- 6 Gear Indicator Modification Gear display instrument

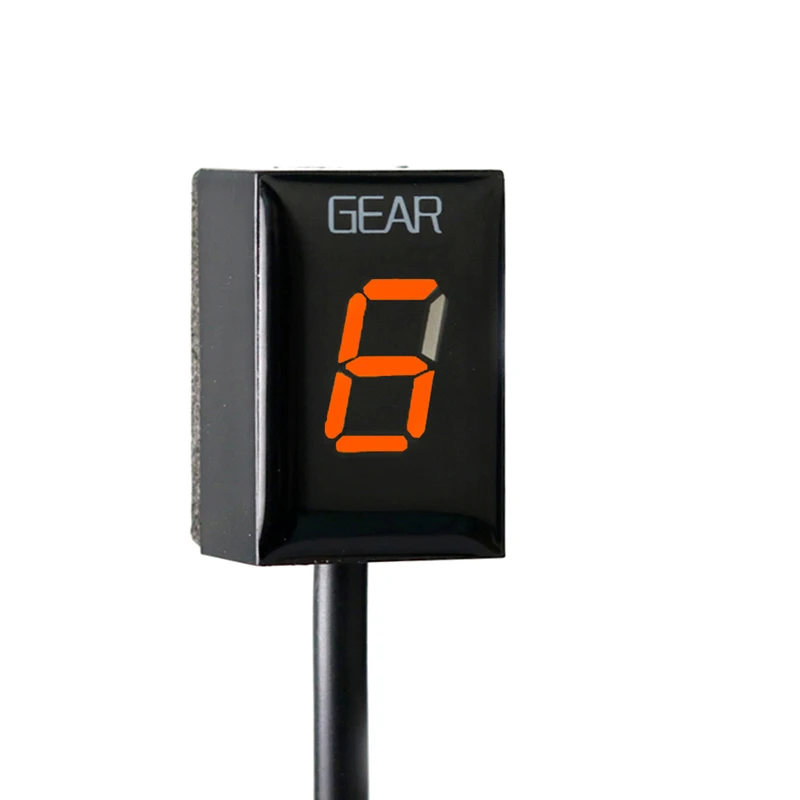

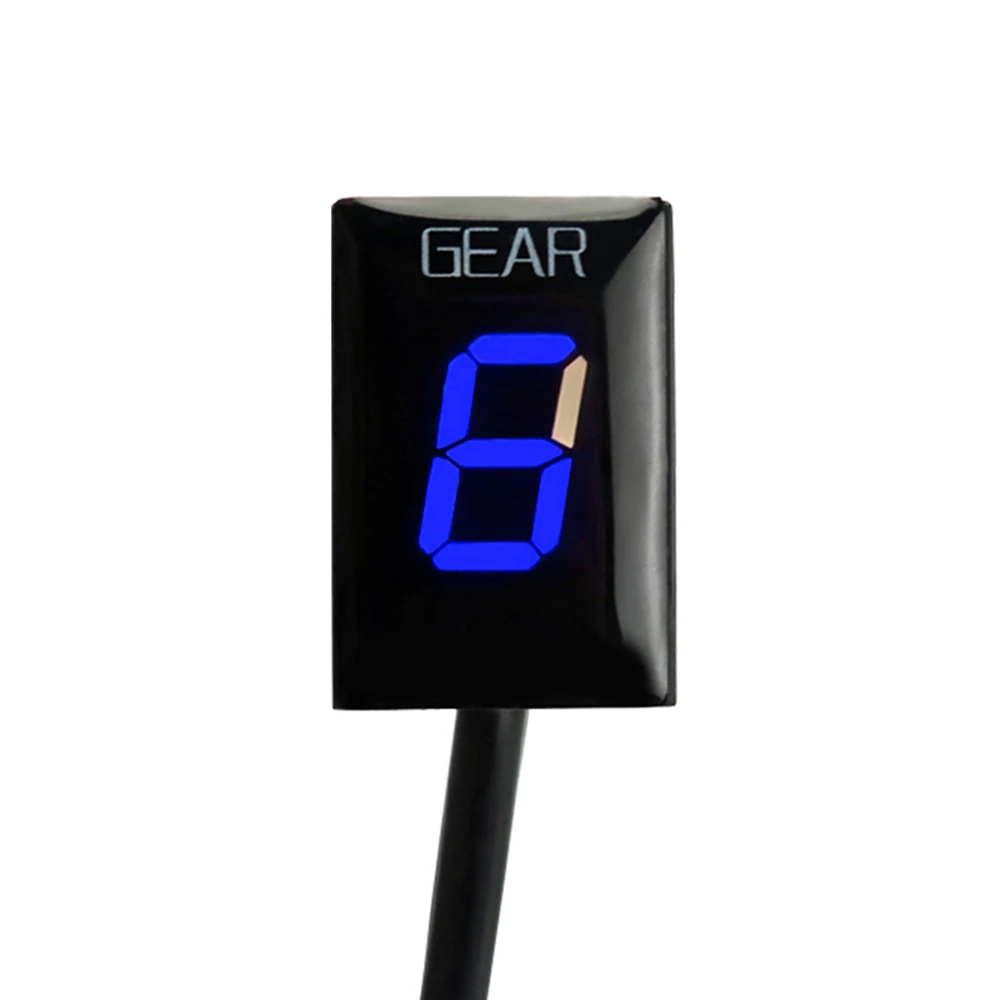

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

Display can be mounted anywhere

Fitment

For Ducati Hyper motard All ()

For Ducati Hyper Strada All ()

For Ducati Monster 696 (ALL Year)

For Ducati Monster 795 (ALL Year)

For Ducati Monster 796 (ALL Year)

For Ducati Monster 796 Corse Stripe (ALL Year)

For Ducati Monster 797 (ALL Years)

For Ducati Monster )

For Ducati Monster 1100 (ALL Year)

For Ducati Monster 1100 EVO(ALL Years)

For Ducati Monster 1200S ()

For Ducati Monster 1200R (ALL Years)

For Ducati Monster diesel ()

For Ducati Scrambler )

For Ducati Desmosedici RR (2008)

For Ducati Supersport )

For Ducati Supersport 937S ()

For Ducati Superbike )

For Ducati Streetfighter ()

Foreword

Congratulations on your purchase of a SEPP gear position indicator,This product will fit all Ducati fuel injected(EFI)motorcycles which have on board Diagnostic System connector. This connector is referred as DDS(Ducati Diagnostic System) in the Ducati manuals.Unlike other gear indicators available for your bike,this product connects to the diagnostic connector.It make the installation very sample. The unit reads data directly from the ECU, offering faster and more reliable readings than competing products.The display is auto learning,there are no button and no;programming wire; Know limitations;Your bike is not equipped with Gear Position Sensor. therefore determining the gear in use is only possible when the engine is running and the clutch is released.

Instructions Guide

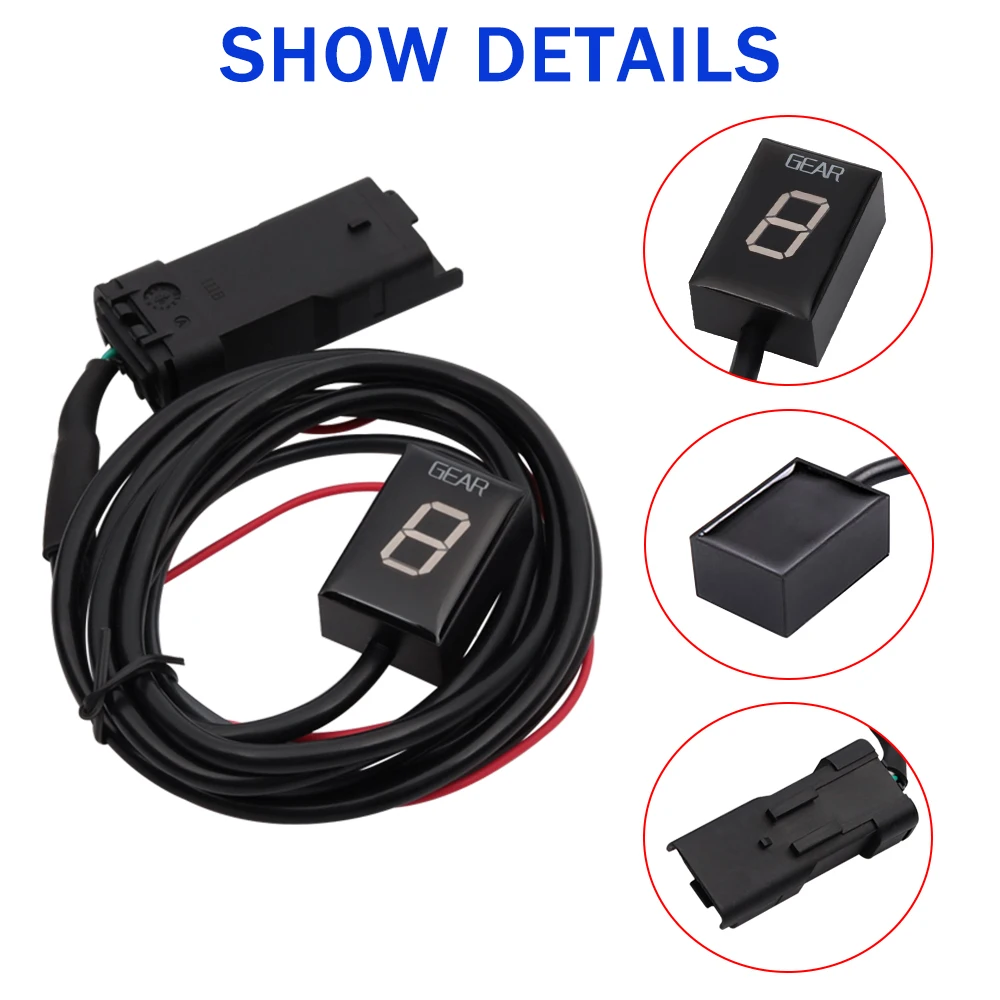

Find the BLACK, 4-pole diagnostic connector (also called as DDA) under the seat or under the fuel tank

Detach the cover (cap) from the plug and connect theGear Indicatorplug.

Route the cable to the mounting location along the frame.

Peel the green plastic off from the back of the unit, and mount the display.

Secure the cable with the cable ties supplied.

The red cable connects to the +12V power supply positive.

Set up

You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

the screen displays L, indicating that learning is started.

The screen displays L, select first gear, release the clutch, and keep the speed higher than the idle speed.

The display will flash "1";. Continue to maintain the first gear, accelerate. When the device is learning a gear, the display flashes faster.

When the display shows n, relax the handlebar accelerator.When the gear indicator changes from "n" to "2", the motorcycle immediately shifts into "2" gear, then continue to to refuel and accelerate slowly.

When the display shows n again, relax the handlebar accelerator again.When the gear indicator changes from "n" to "3",the motorcycle immediately shifts into "3" gear, then continue to refuel and accelerate slowly.

Repeat this process until all gears are thought.

In the highest gear, when learning sixth gear, the display will flash 6, accelerate until o is displayed, and then 6 will stay on and stop flashing. Indicates that the configuration is complete.

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.

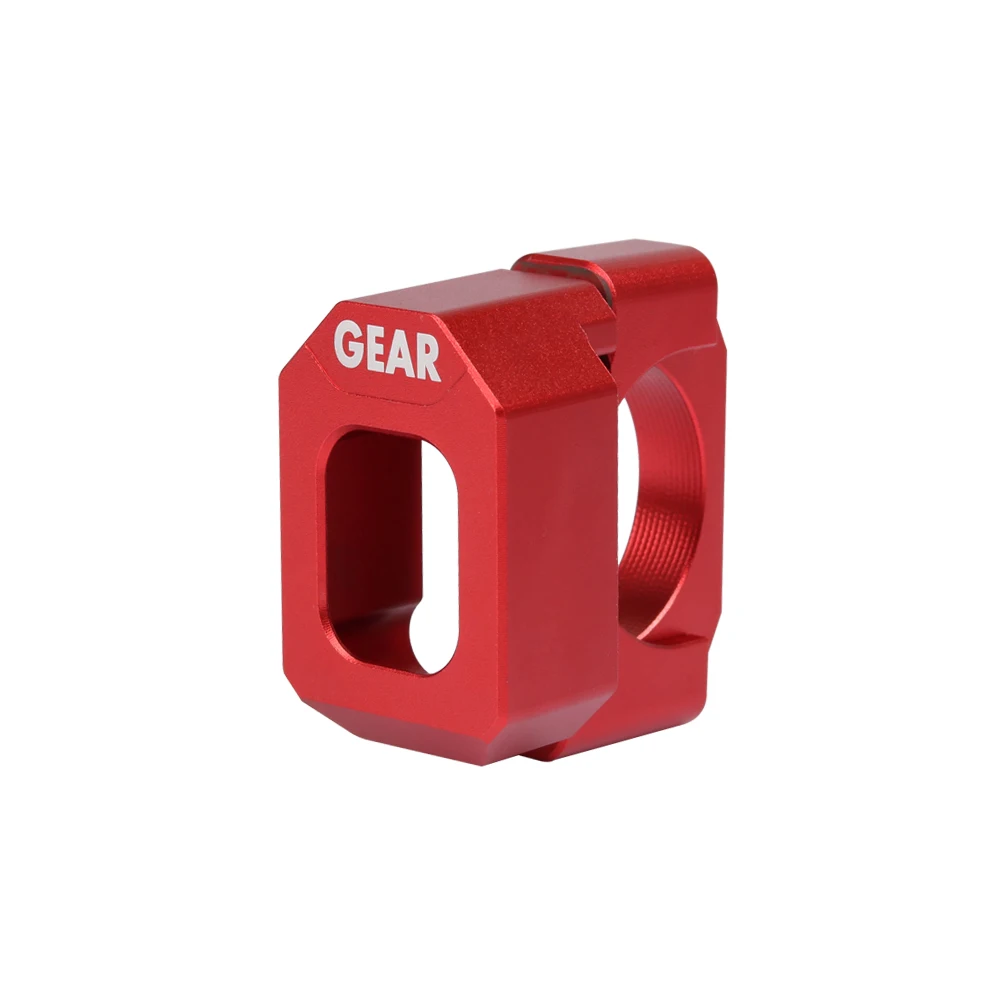

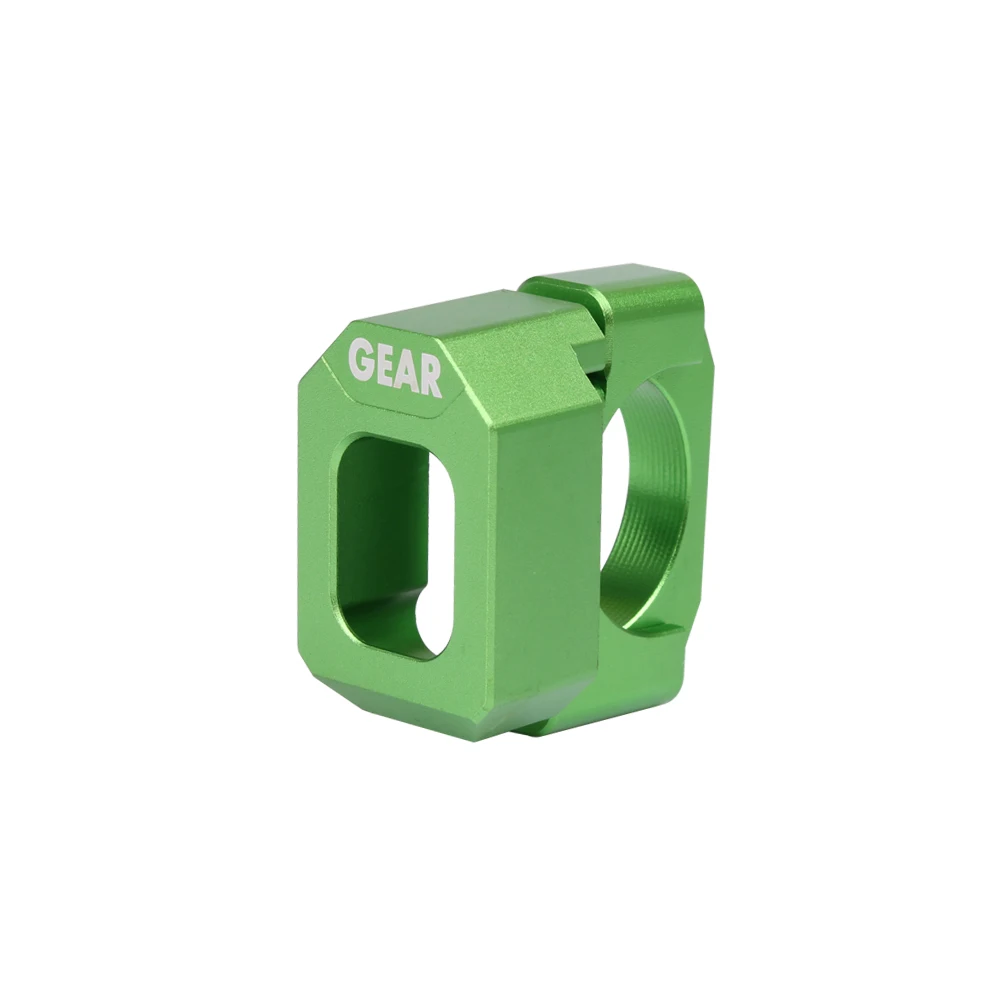

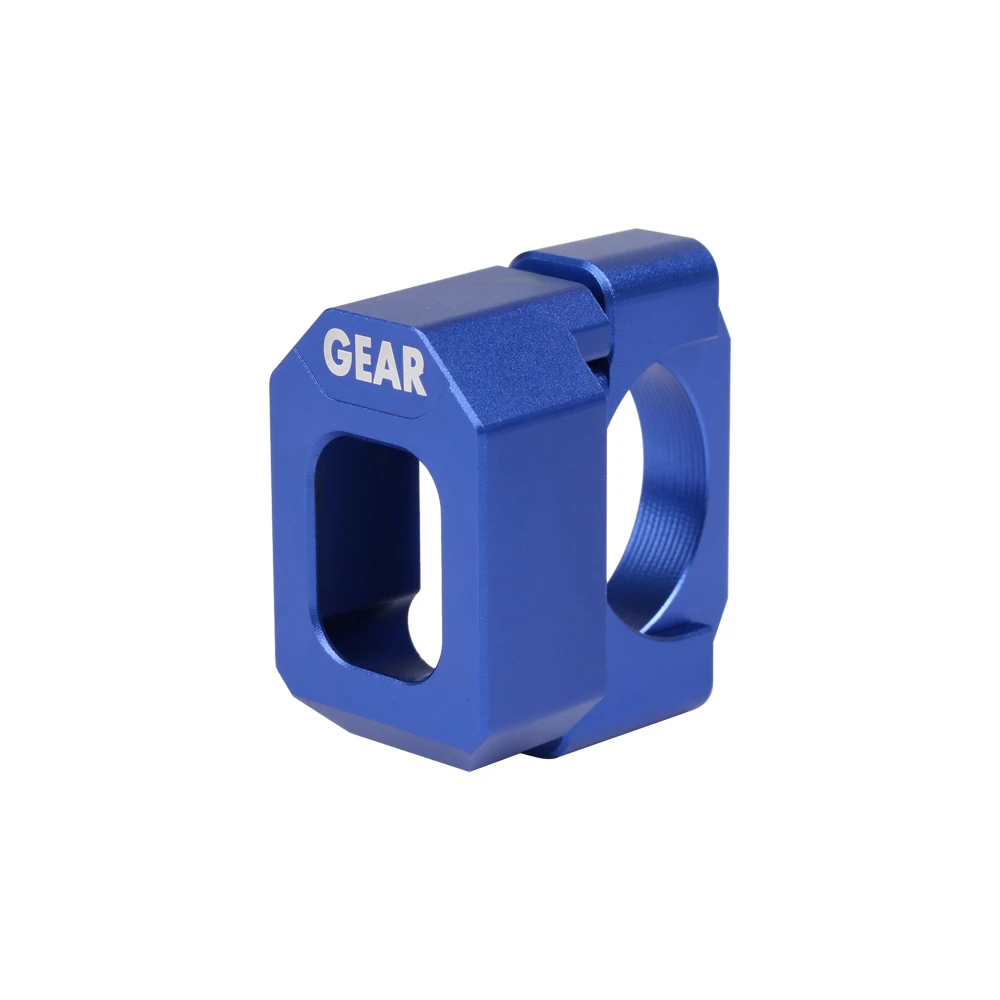

1 x Motorcycle Speed Gear Display/Bracket(As shown in option picture)
