Full License Orange5 V1.45 More Authorization Programmer OEM Orange 5 With Full Adapter Orange5 Programmer High Quality Orange 5
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 5.0★ from 1 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 16
- Package size: 24 × 20 × 8 cm
- Package weight: 0.7 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Full License Orange5 V1.45 More Authorization Programmer OEM Orange 5 With Full Adapter Orange5 Programmer High Quality Orange 5
Features of V1.45
The latest Orange V1.45 compatible with all the features of the same SN Number 5C38 of Orange V1.38 and Orange V1.42.
Orange5 V1.45 add more authorization and licenses.
Computer Supported: WIN 10/Win 7 64bits,no work VM system
Notice
Orange5 ONLY connect via USB cable 5V voltage to PC port.
It can not connect external power supply via 12V,otherwise it will burn, always shows corrupt and kill the board. And Please do not update.

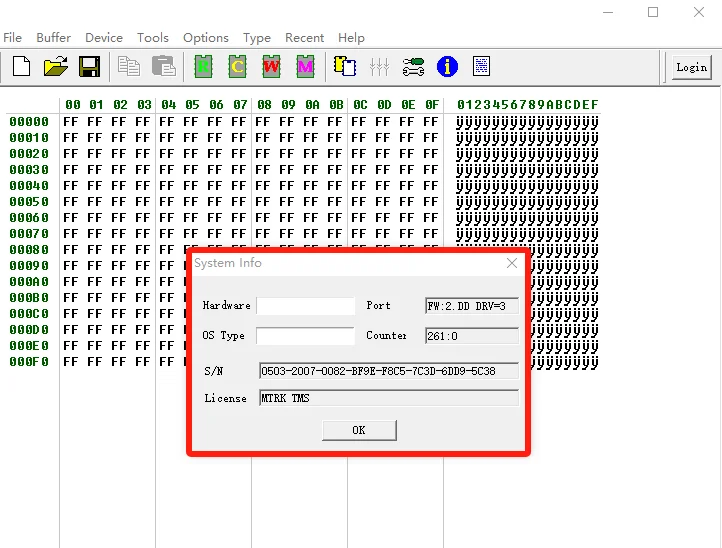

V1.45 Full License: MTRK TMS
S/N: -BF9E-F8C5-7C3D-6DD9-5C38
Orange V1.45 Added New Licenses Authorization
Feature
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

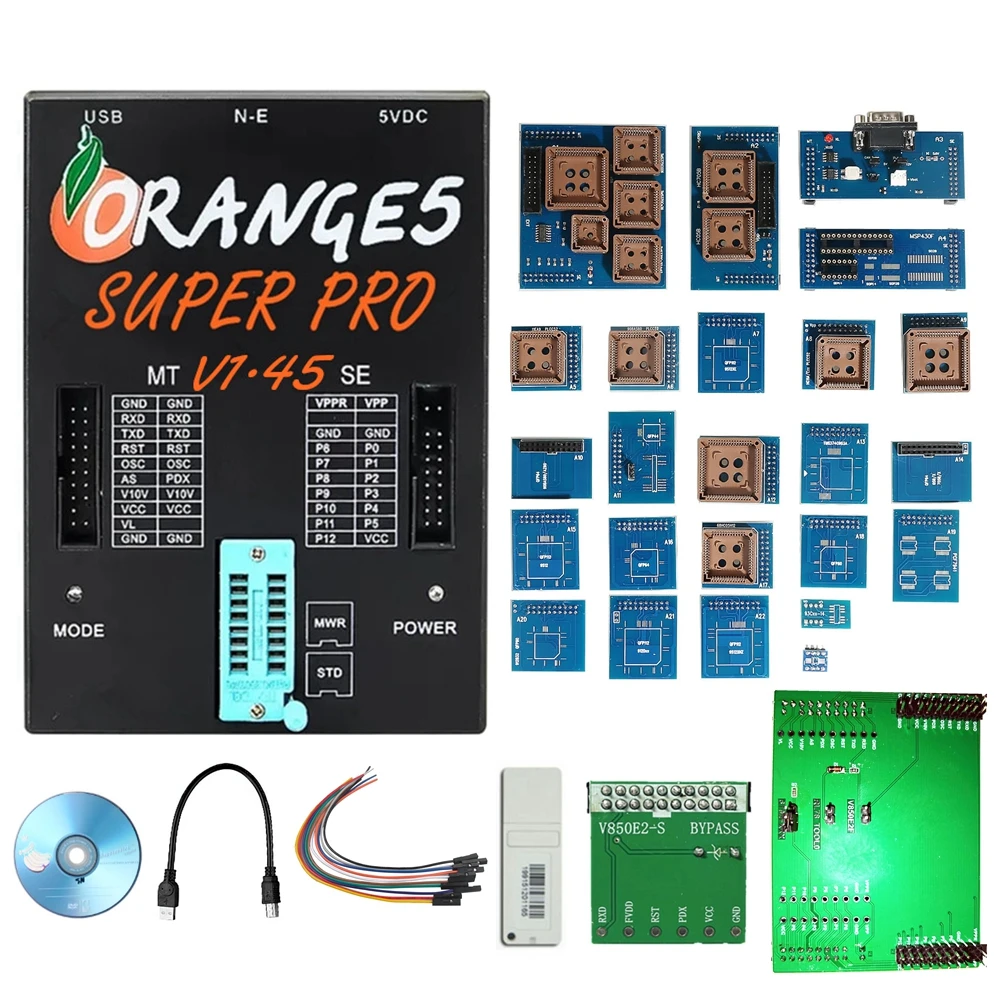

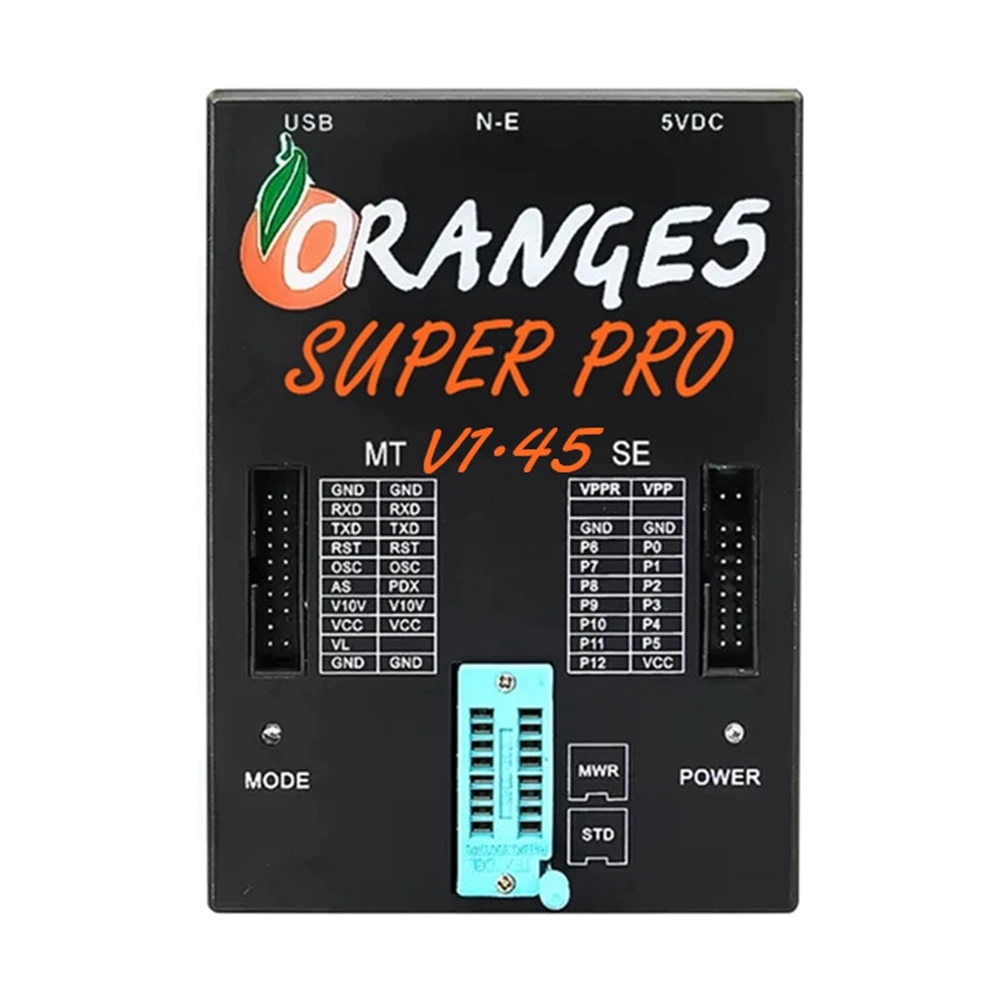

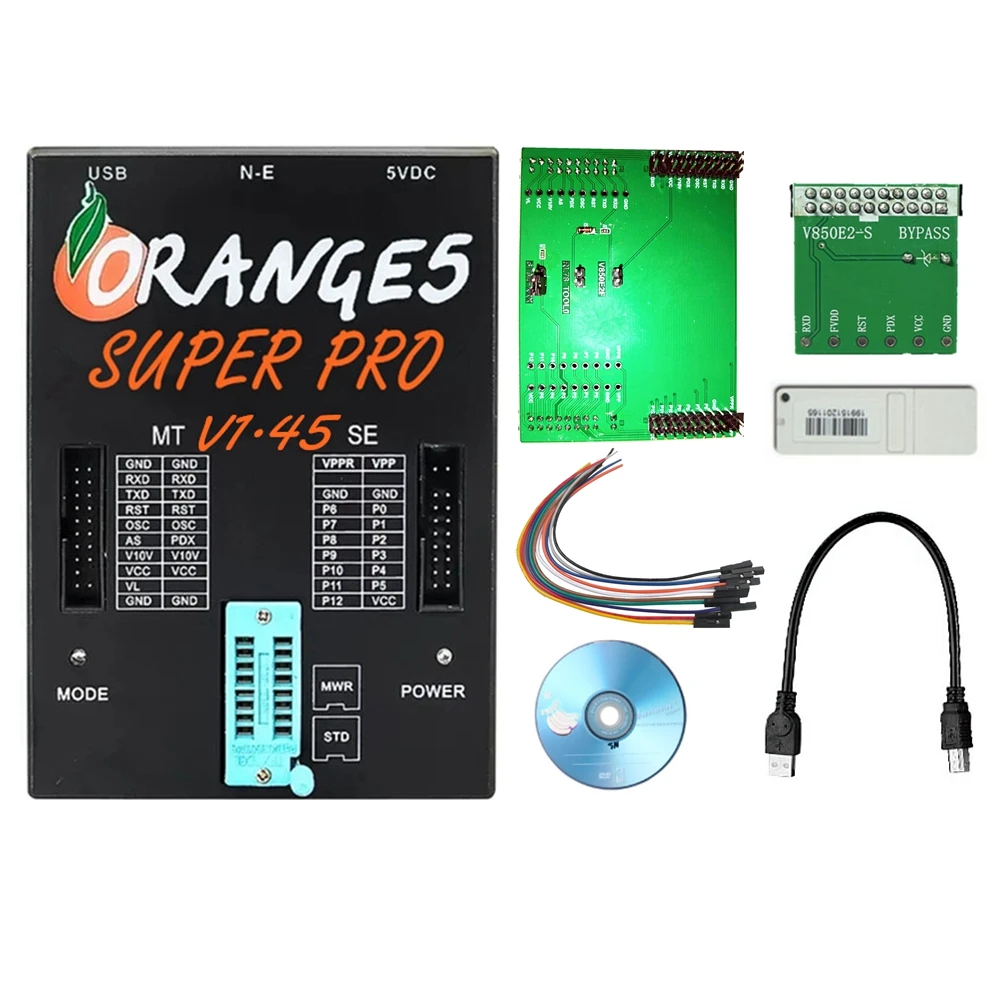

Orange5 Technical Info
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Software Licenses
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
