Godiag GT114 for Audi Test Platform for Audi A3 A4 A6 C5 IMMO2 IMMO3 2000-2006 K-line Instrument Cluster
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: GODIAG
- Sales: 7
- Package size: 10 × 8 × 5 cm
- Package weight: 0.2 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.

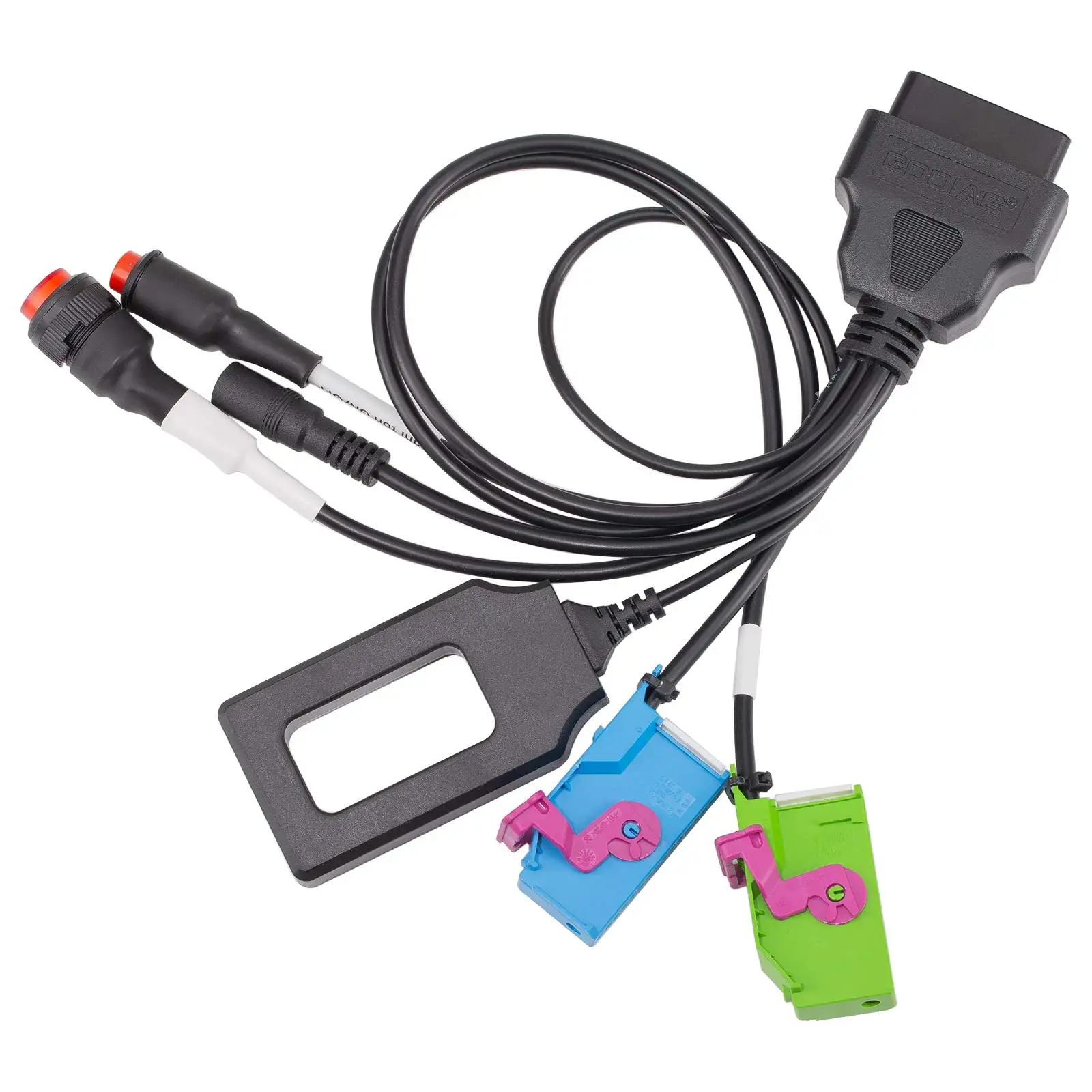

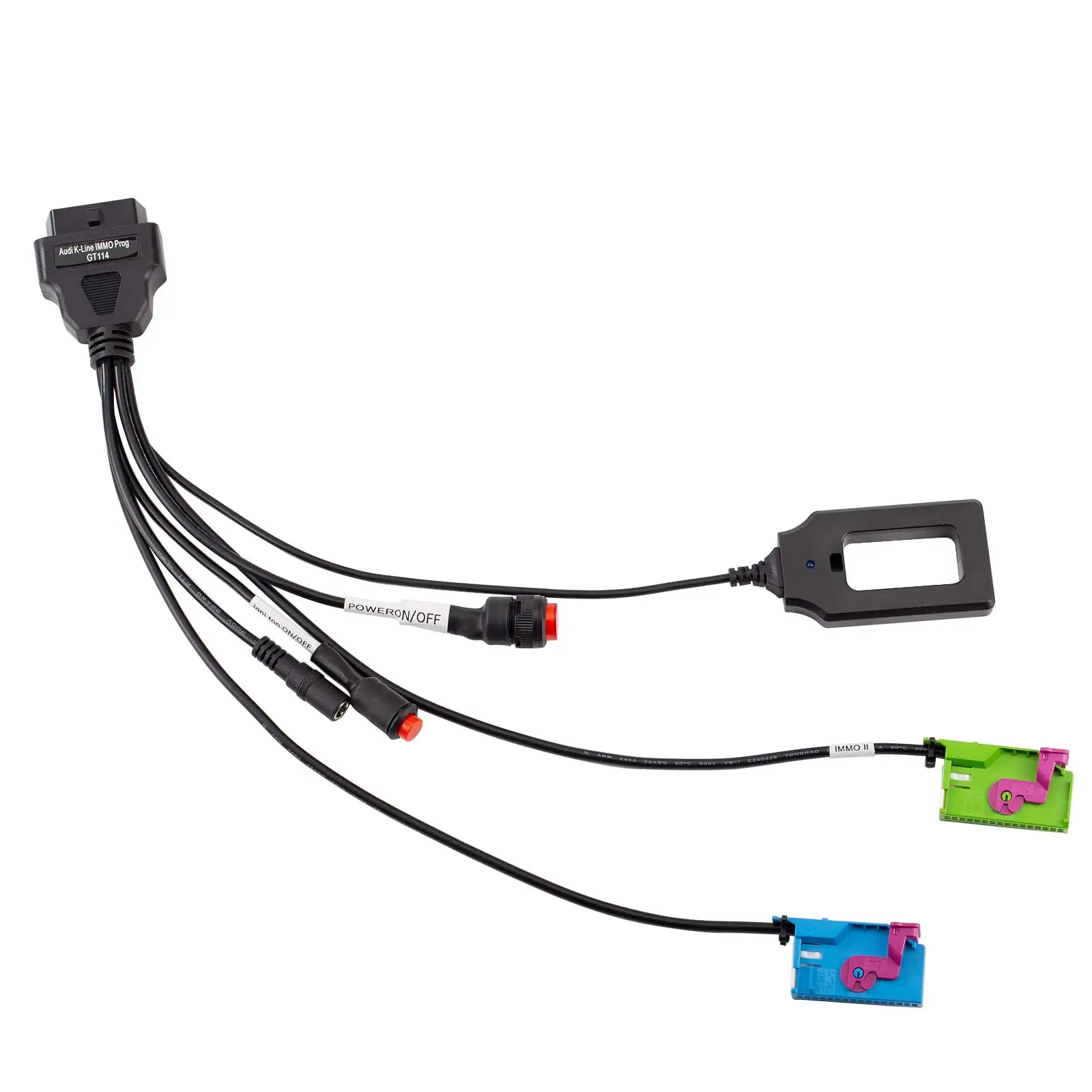

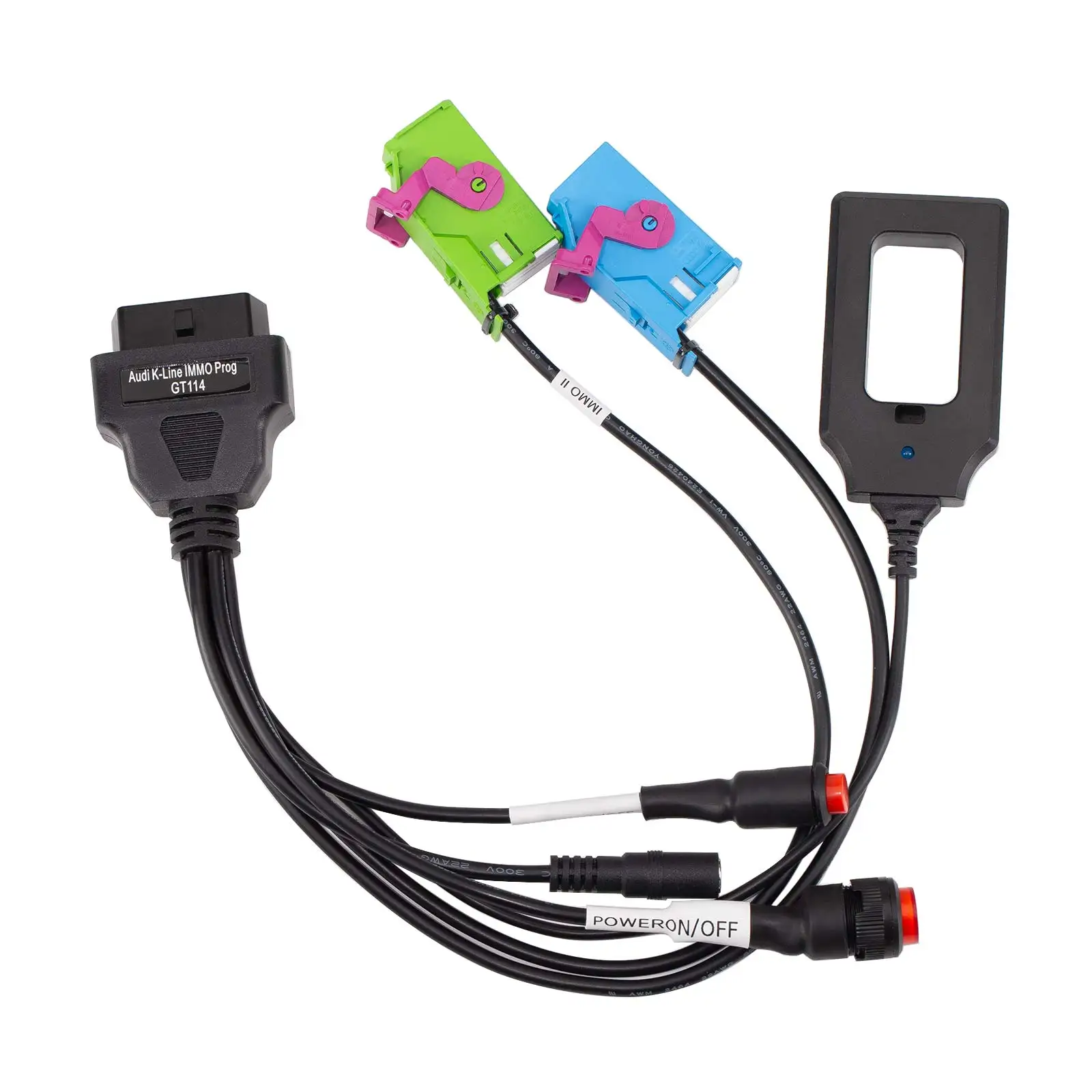

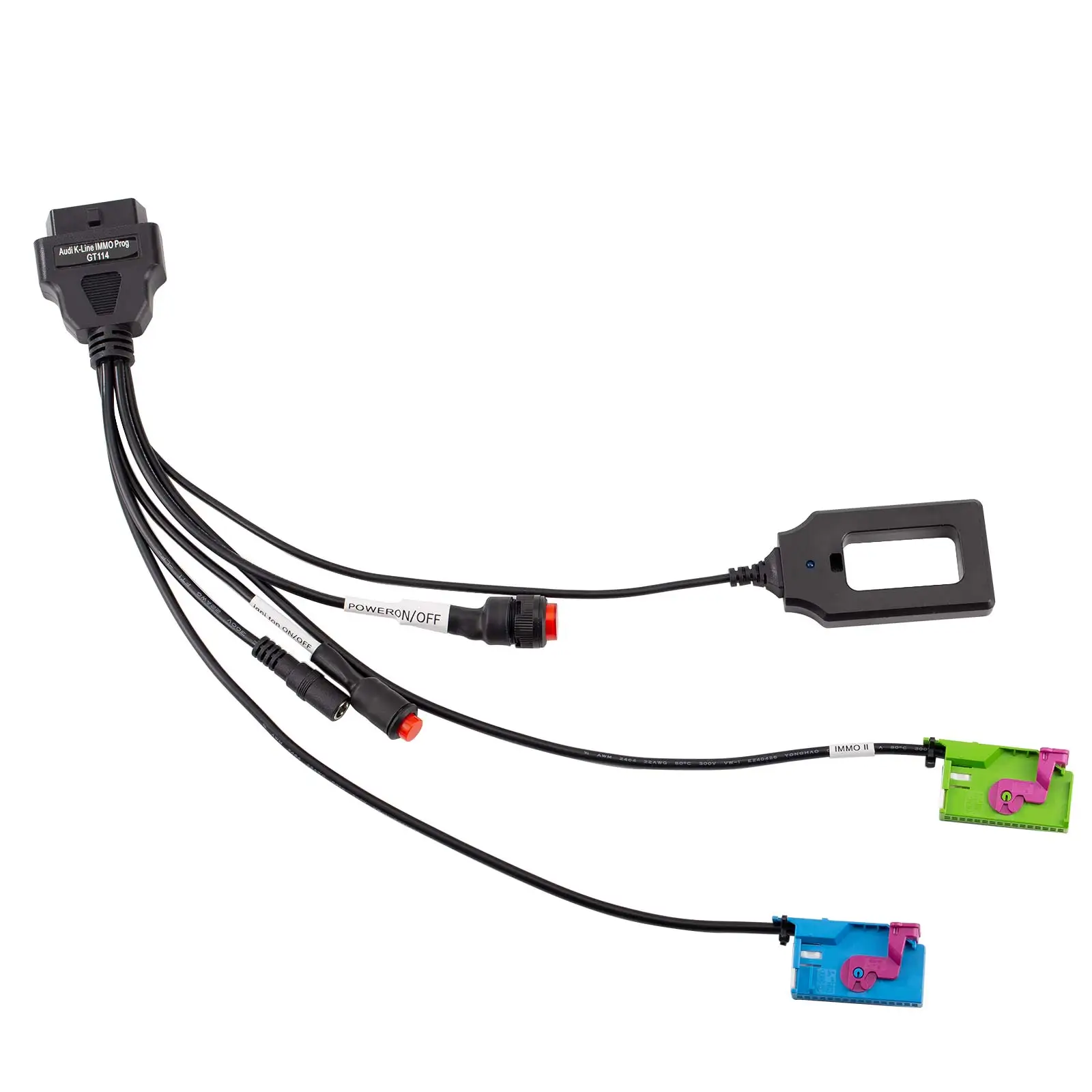

GODIAG GT114 for Audi K-Lline IMMO cable can be used with devices like H-E-X V2, V-A-G-C-O-M V-C-D-S 5053, V-A-S5054A, V-A-S6154, SUPER VAG K+CAN, Obdstar, Lonsdor, A-V-D-I, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER V-A-G, AUTEL, etc.
Godiag GT114 Features
1. Offline connection to the dashboard to convert to standard OBD2.
2. Perform key chip and instrument synchronization test.
3. Independent power switch
4. Independent ignition switch
5. Key induction adapter with light
Tips for Audi A6 C5 Key Matching Process
1. The key matching requires a Megamos ID 48 key [the Xhorse super chip cannot be matched successfully], and the generated IMMO instrument data must be written back, and matching learning is required.
2. After reading the data, remember the PIN code, because the PIN code will be needed in the subsequent matching process. The learning process requires a clear ignition signal, and the matching will not be successful if the operation is wrong. The matching process must follow the prompts, such as waiting for 5 seconds and waiting for 2 seconds.
Intelligent IMMO System Emergency Start Area Induction Detection
Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
Car IMMO Start and Start Key Chip Detection
Test Result Analysis
1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

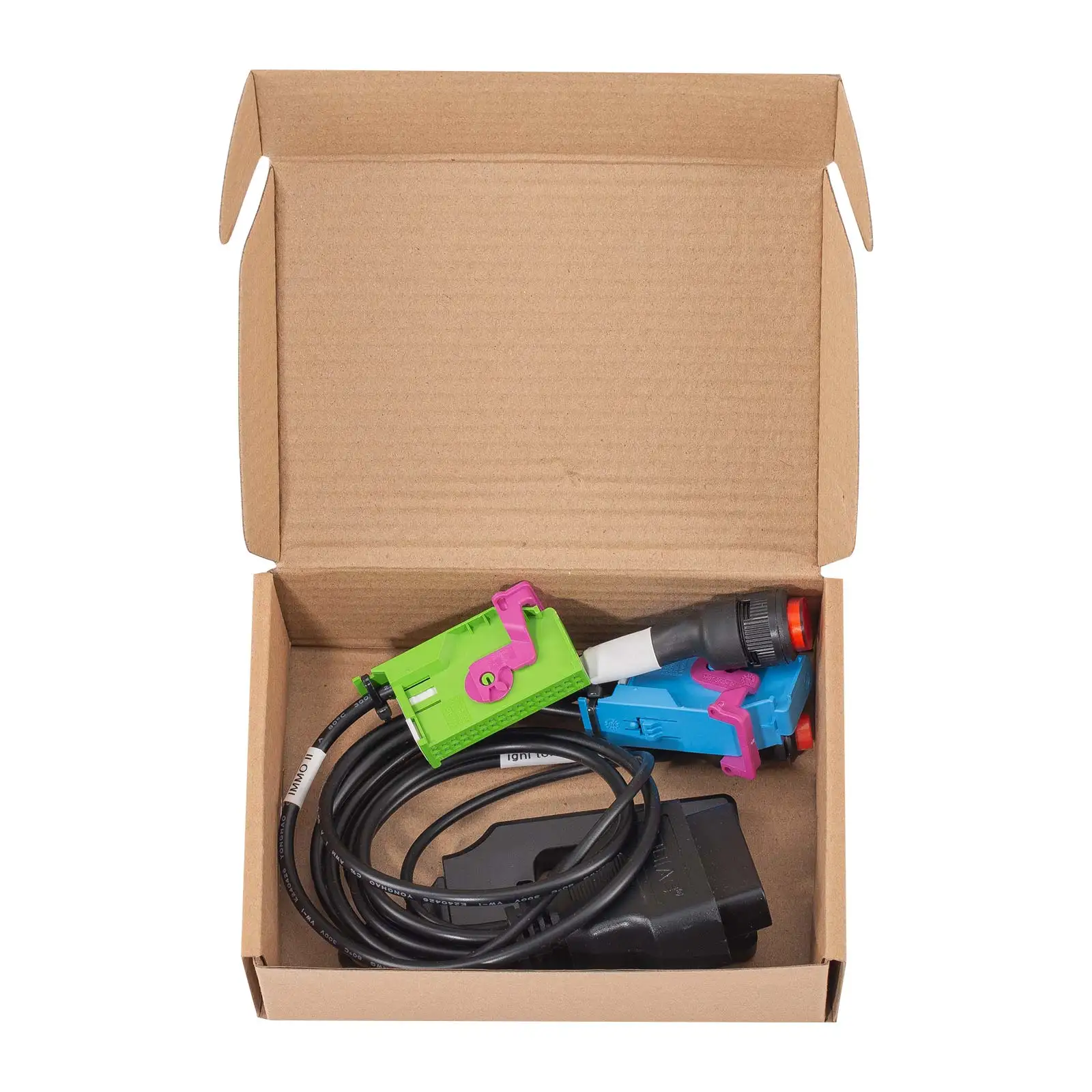

Package includes
