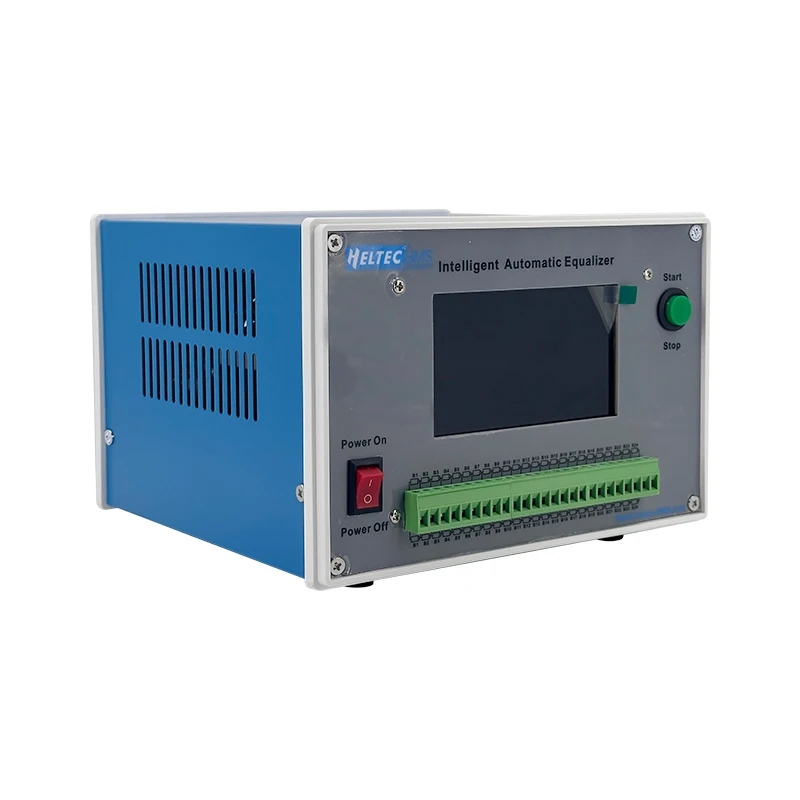

Heltec 1S-24S Lithium Battery Pack Single Cell Measurement Series String Voltage Intelligent Automatic Equalizer Li-ion Lifepo4
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Heltecbms
- Sales: 1
- Package size: 11 × 12 × 2 cm
- Package weight: 4 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.

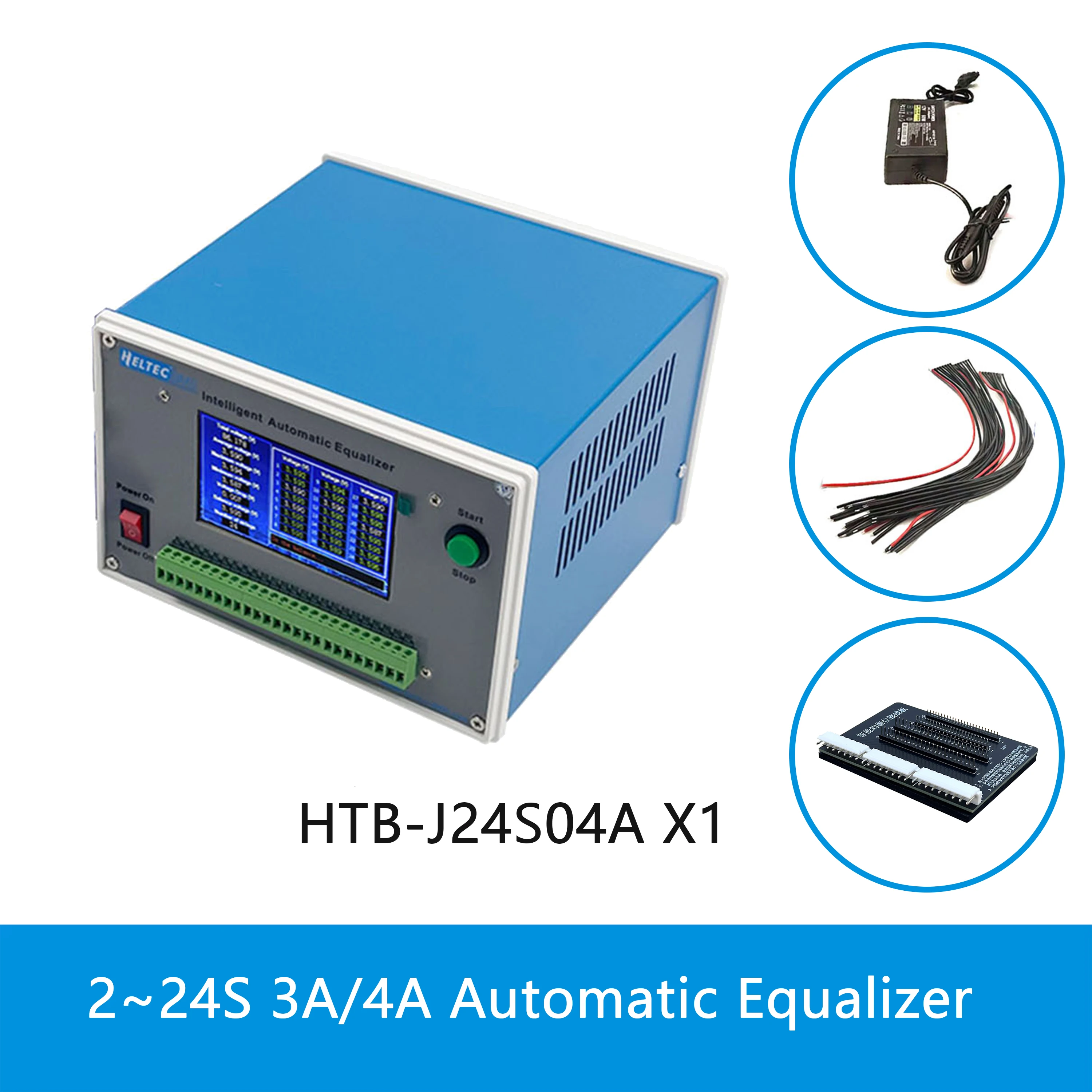

package list
Direction for use
Connect the TypeC power port to the power supply, and then select the detection port according to its own interface, and then you can check whether the voltage difference is normal.
Equalizer Summary
Equalizer we will ship by fedex/ups/DHL, if need lower declare price, pls tell us before order!!!
This equalizer directly displays the sum and voltage difference of each string
Solves the problem of battery pack unbalance with one button
The equalizer starts the equalization with one button, and automatically stops after the equalization is completed, and warns
Our equalizer will not charge the batteries during the equalization process. So don't worry about the danger of overcharging the balance
Note
Before balancing, please check whether the lowest voltage is lower than the battery's over-discharge voltage. If it is lower than the battery's over-discharge voltage, please charge the balance first, and the battery is fully charged and then balance, the effect will be better.
Feature
Support 2~24 series lithium battery pack, support ternary lithium, lithium iron phosphate, too cobalt lithium, support 1.5V~4.5V battery, the voltage is out of range, it will sound a warning and display
Reverse connection warning and reminder: after connection reverse, overvoltage (greater than 4.5V), low voltage (less than 1.5V) protection functions are balanced, it will automatically stop, and a warning sound will sound to indicate that the balance is complete.
Constant resistance 1 ohm discharge equalization
Large equalization current
Ternary lithium 4A Max
Lifepo4 3A MAx

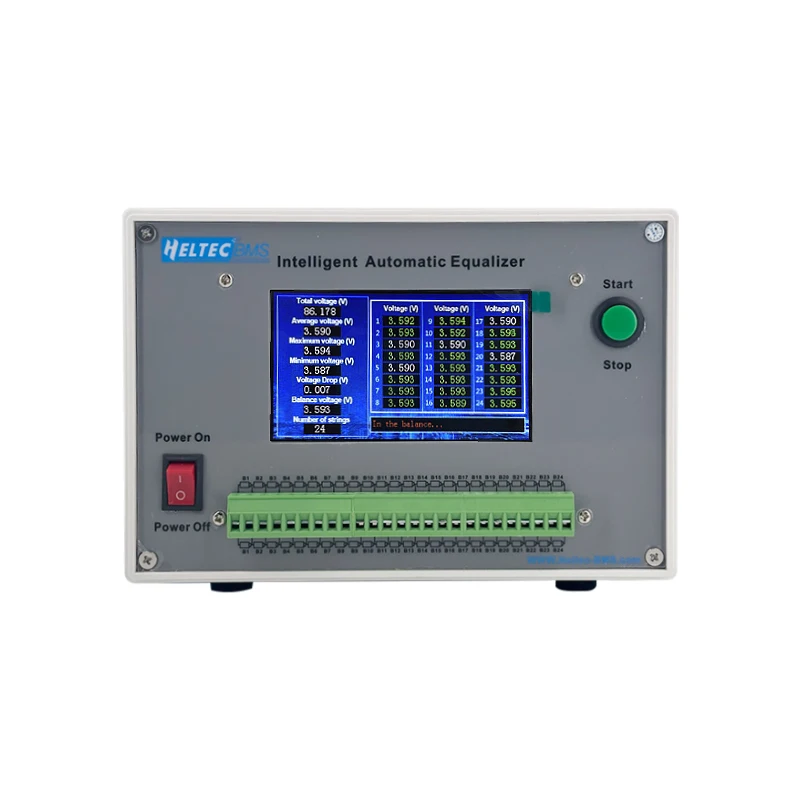

Display the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of battery pack, average voltage, balanced voltage, number of battery strings
Battery maintenance steps
There is a bad battery cell
1)replace the battery cell
2)fully charged
3)balancing
4)fully charged
5)battery maintenance completed
The time to complete an equalization is incomparable to the equalization of charge balance and energy transfer balance. Among the three equalization methods (charge balance, energy transfer balance, and discharge balance), discharge balance is safer and faster
Advantage
1. Don't charge the batteries, don't worry about overcharging problems
2. The speed of the whole equalization process is the same, and the equalization speed is fast
Disadvantages
Since the equalization method is to discharge the high-voltage string energy until it is equal to the lowest voltage string, the excess energy is wasted.
Attention

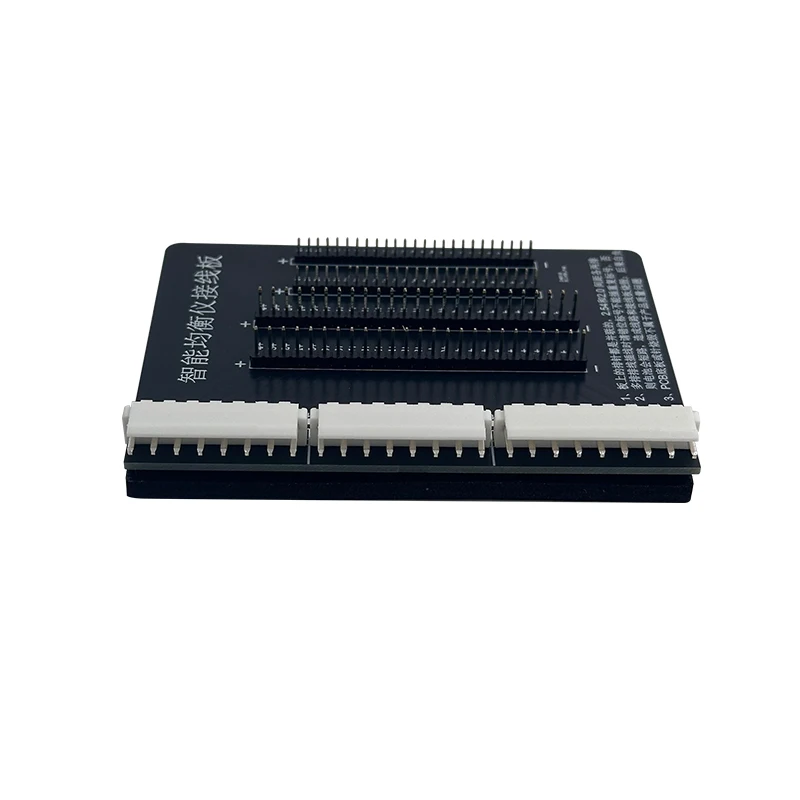

Please follow the instructions to insert the meter, the connector and cable sequence can not be wrong
