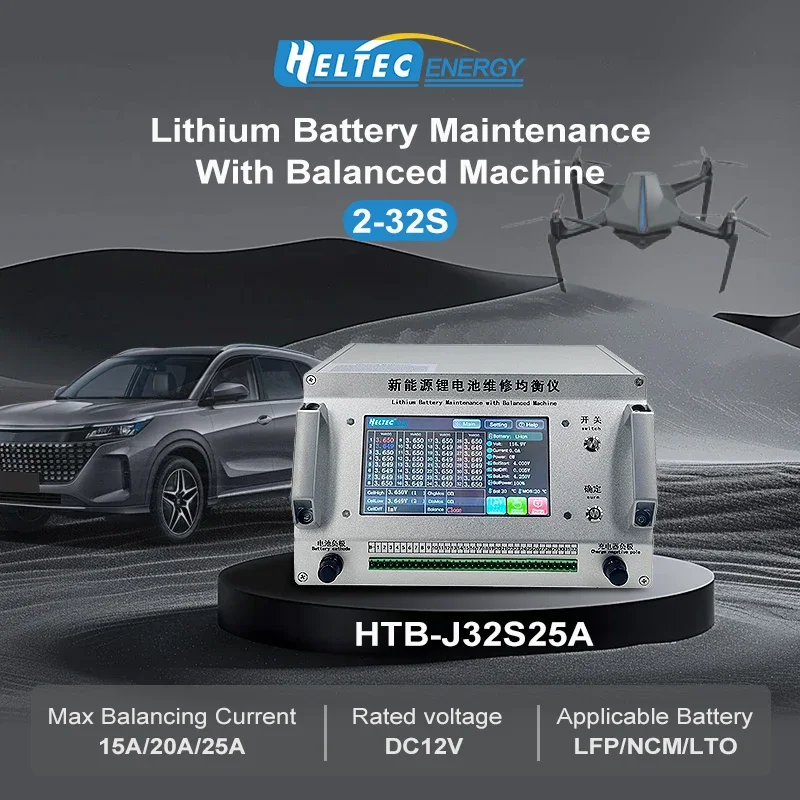

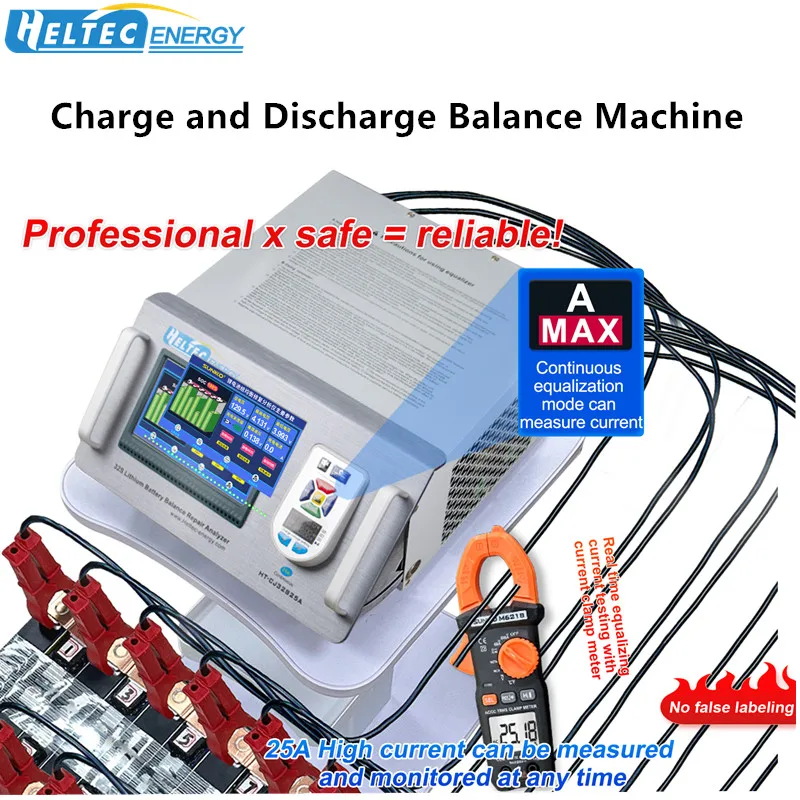

Heltec 32S 4A 7A 10A 25A Battery Equalizer, Charge Discharge Balancer & Battery Repair Maintenance Instrument For EV Car Battery

Note: Our brand power supply has some stock in the BR/MX/PL/ES/US/RU warehouse. lf you

cannot see the option to ship from the overseas warehouse, you can follow the steps in the

picture to select the option to ship from the overseas warehouse. (We will automatically

equip the corresponding power cord according to your country, Please don't worry)

Model: HT-CJ32S25A (32S 25A-WiFi Version)

Parameters

Product name: 32S Lithium Battery BalanceRepair Analyzer

Power supply: AC 220V 50/60Hz

Discharging applicable battery type: Li-ion/LiFePO4/LTO

Charging applicable battery type:Li-ion/LiFePO4

Discharge current:1.25-25A(adjustable)

Charging current:1-20A (adjustable)

Number of battery strings used:2-32 strings

Minimum equalization voltage: 1mv

Size:355x355x210mm

This device cannot be used for Honda/Toyota hybrid/ Nimh batteries

This Equalizer is Dischage way, if you waht to charge battery, need buy a power supply

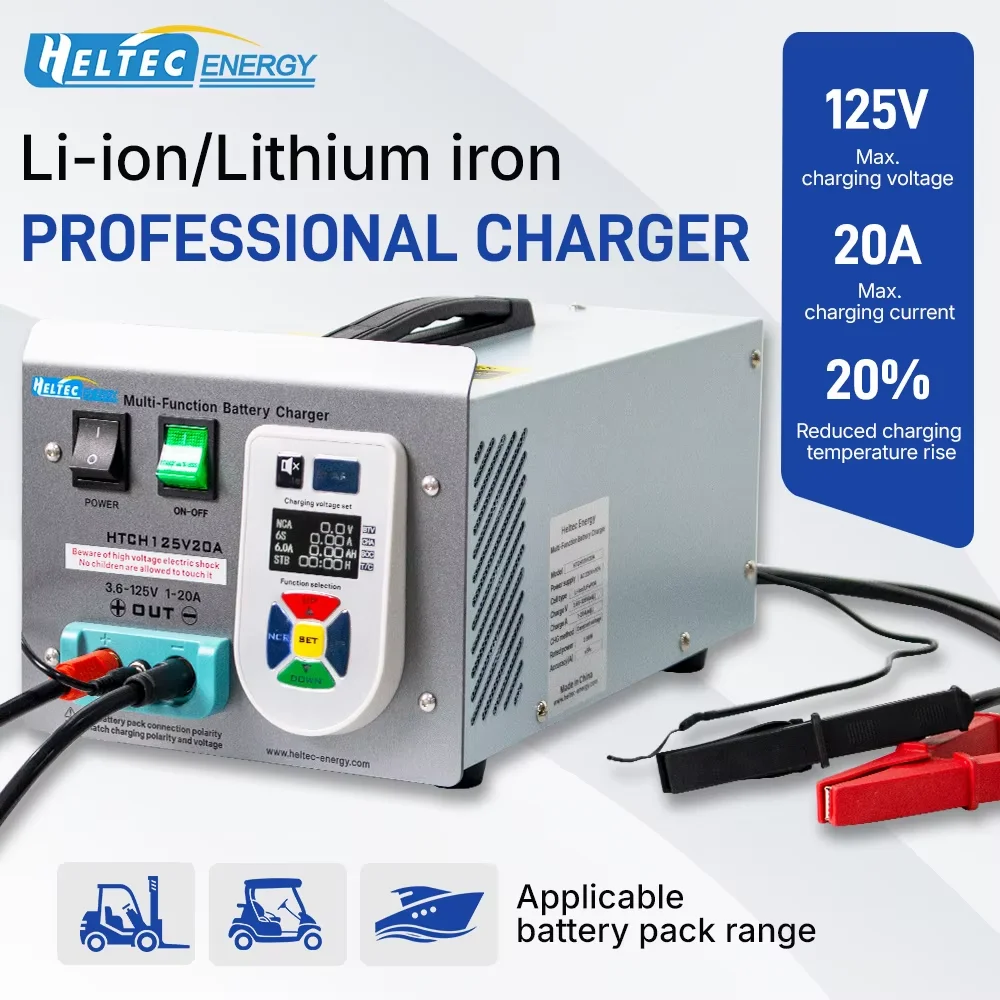

Note: if you want Charge Balance need a power as below

24/2S need 135V power

Feture

Rated voltage: DC12V

Repair range: 2-32S

Balance current: 25A

Size:360*290*170MM

This device cannot be used for Honda/Toyota hybrid batteries.

Balance setting

1 Manual equalization

Manually set the voltage, operate, and when the device is in normal condition, click "Manual Balance" to modify the "Voltage Value" (the set value must be within the effective range of the current type of battery) and click OK to realize the discharge > this set value Balanced to achieve the same voltage value of all serial bits with the set value.

2 Automatic Equalization

Automatic equalization is suitable for low-speed vehicles and small-capacity battery packs. The equalization power is 5%-30%. When the device is in normal condition, click "automatic equalization" to automatically identify the highest voltage and the lowest voltage. Put it down and keep consistent with the low voltage.

3 Charge equalization

Charge equalization, operation, charge equalization generally means that the voltage of the single cells in the battery pack is carried out when the battery is half-charged, and the setting parameters of charge equalization are as follows

3-1. Balance parameters of lithium iron phosphate

Monomer overvoltage protection: 3.650V Monomer overvoltage recovery: 3.650V Forced equalization voltage: 3.650V

The equalization start voltage is set to the lowest value of the string voltage = V, the voltage difference of the equalization monomer: 0.005V, and the proportion of the equalization current: 5%~100%

3-2, ternary lithium charging equalization parameters

Monomer overvoltage protection: 4.250V Monomer overvoltage recovery: 4.200V Forced equalization voltage: 4.250V

Equalization start voltage: 4.000V Equalization monomer voltage difference: 0.005V Equalization current ratio: 5%~100%

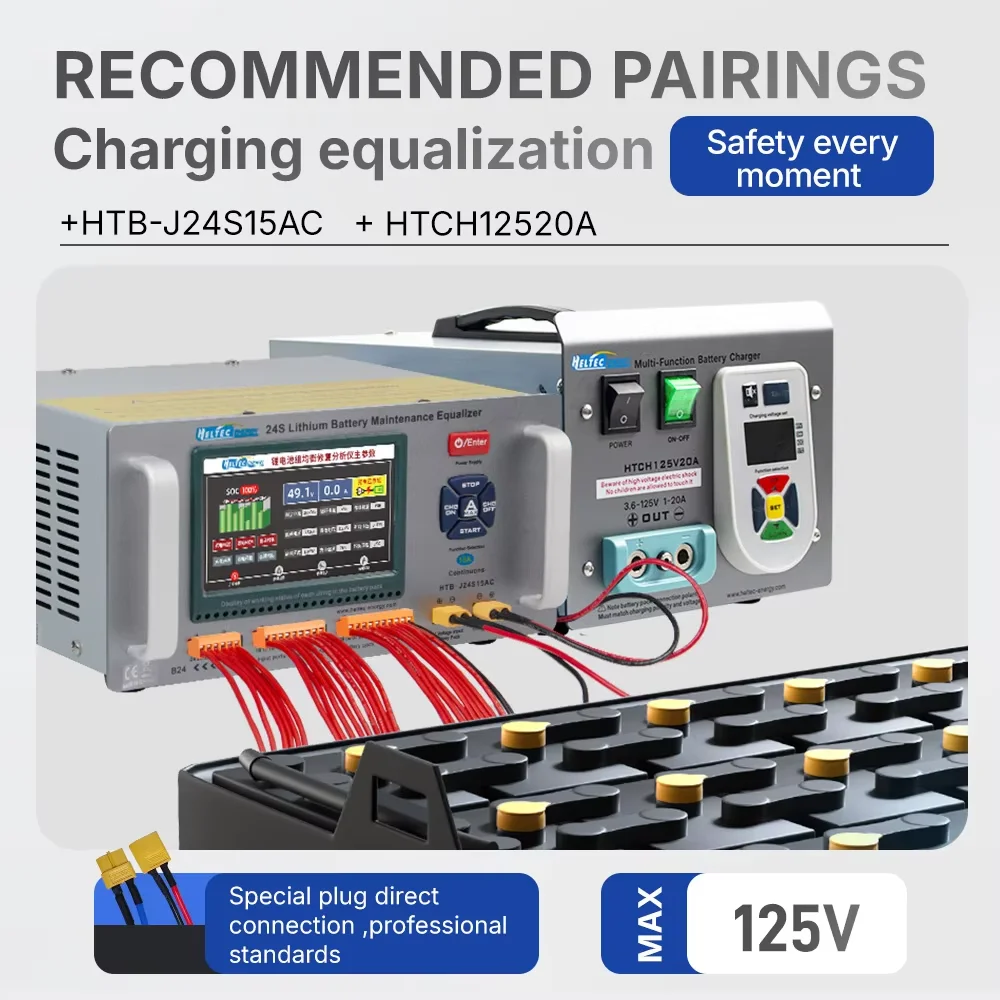

When charging equalization, the "battery negative pole" on the front panel of the machine must be connected to the battery pack's general negative pole, the charger negative pole is connected to the machine's front panel "charging negative pole", and the charger's positive pole is connected to the battery positive pole. Before entering the balanced state, the charging current must not exceed 25A, the charging current does not exceed 5A when it reaches a balanced start (lithium iron phosphate 3.450V/ternary lithium 4.00V), and the effect of small current balance will be better.

Setting instructions

1. Start to equalize the voltage: During the charging process of connecting to the charger, the equalization work will only start when a certain string of voltages in the battery pack is equal to the set value, and the equalization will not start when the voltage is less than this set value. After equalization is started, the charging current is recommended 5A left, small current balance effect will be better.

2. Equalize the differential pressure of the cells: when charging equalization, the differential pressure of the cells of the battery pack will be equalized to the set value range, and the equalization work will be automatically stopped after reaching the set value range

3 Single overvoltage protection: During the charging equalization process, when any string in the battery pack is ≥ this set value, the system will automatically turn off the charging switch and stop charging

4. Single overvoltage recovery: During the charging equalization process, when a string in the battery pack is protected by overvoltage, the charging will stop. After the voltage of the high-voltage string drops below the set value, the system will turn on the charging switch again and resume charging.

5. Compulsory balanced voltage: In any case, after setting the balanced voltage value in the "balanced setting", return to the main interface and click the "manual balanced" button to discharge the battery pack. Within the effective voltage range, do not exceed or be less than the effective range, otherwise the battery will be over-discharged)

6. Equalization current ratio: 5%-100% for battery clip connection, 5%-50% for adapter board, (it is recommended to use according to the actual equalization situation, over-current use will cause damage to the equalization harness).

Product Features

Power supply: DC12V 4A/7A

Single channel voltage measurement range: 1-5V

Single channel voltage display accuracy: 0.001V

Single channel voltage acquisition accuracy:±(0.05%+0.003v)

Single channel voltage operating range: 2.0-4.5V

Adjustable balance current: 1A-7A(The smaller the voltage, the larger the impedance, the smaller the balance current)

Applicable battery type: ternary lithium, lithium iron phosphate and other battery voltage between 2.0v-4.5v

Operating temperature: 0°C-50°C

Working humidity: 20%-80%RH

Working environment: no corrosion, explosive and damage insulation gas and conductive dust

Technical Index

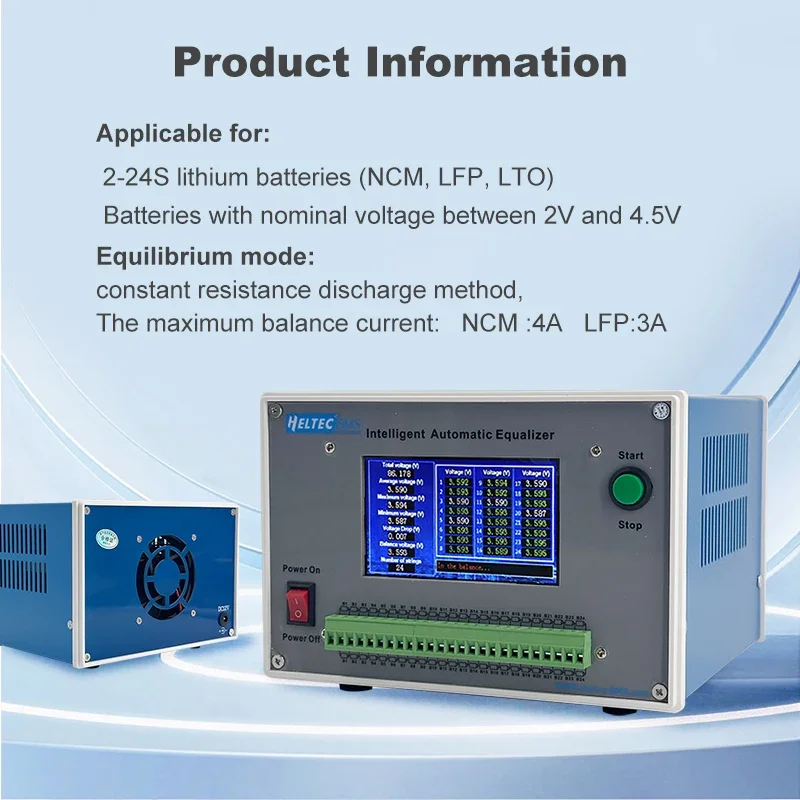

2 - 24S 3/4A Intelligent Battery Equalization Instrument

2 - 24S 1 - 7A Intelligent Battery Equalization Instrument

Model SKU

HTB - J24S04A

HTB - J24S07A


Applicable Battery Strings

2 - 24S

Support battery type
