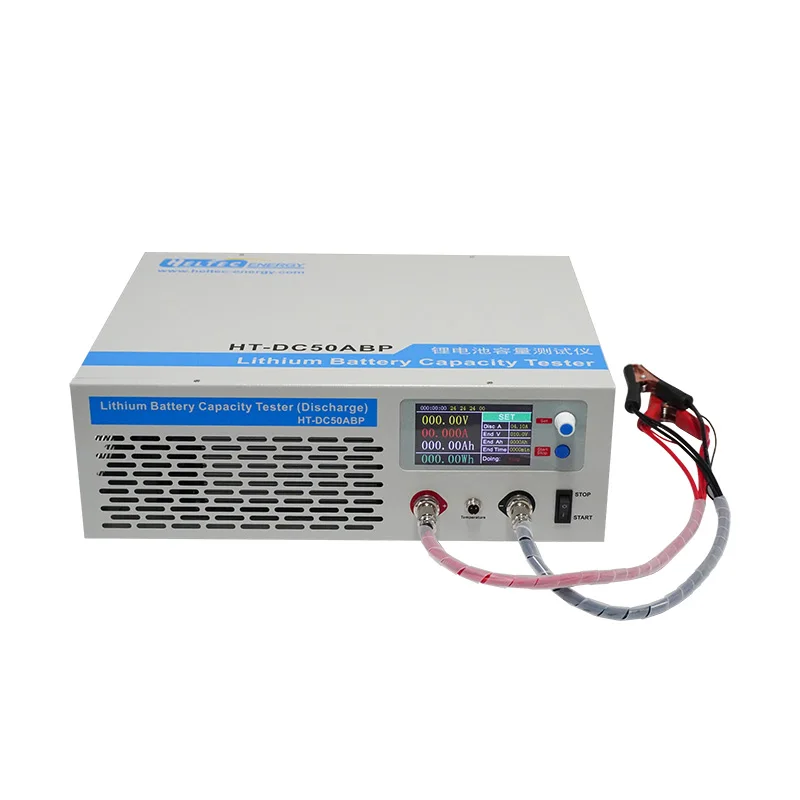

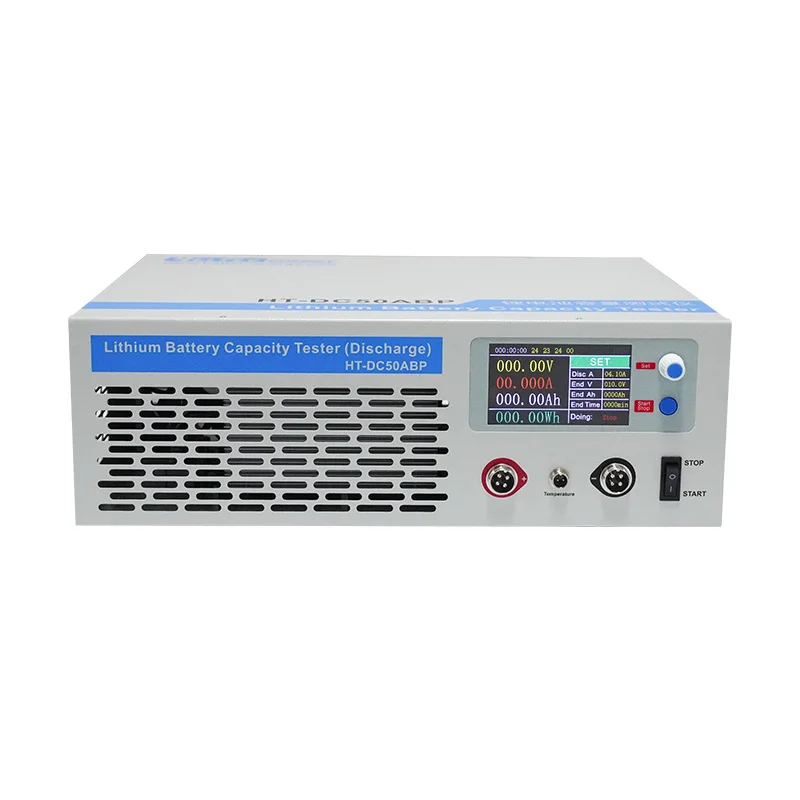

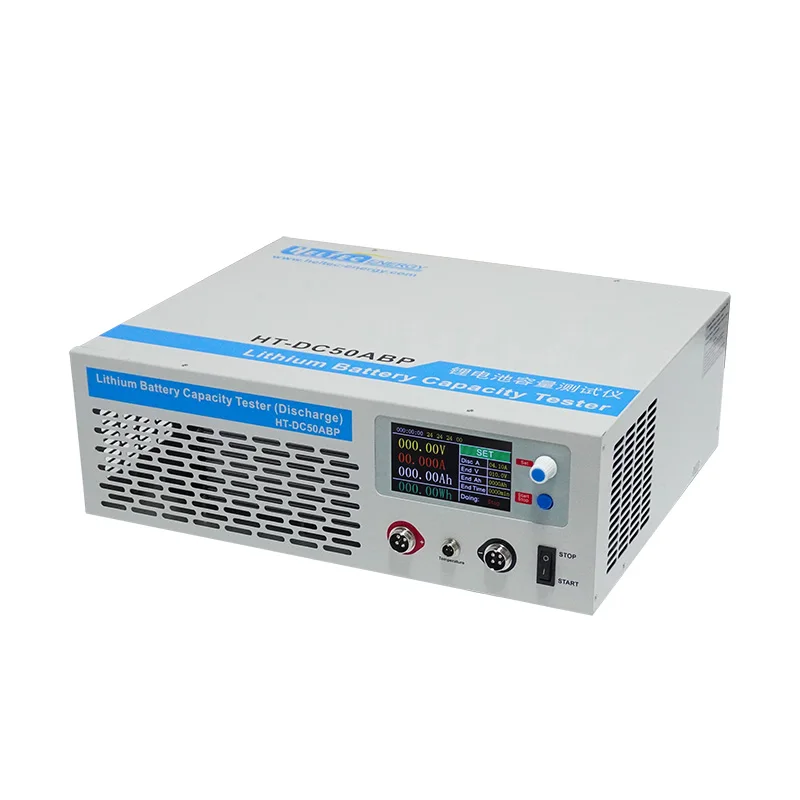

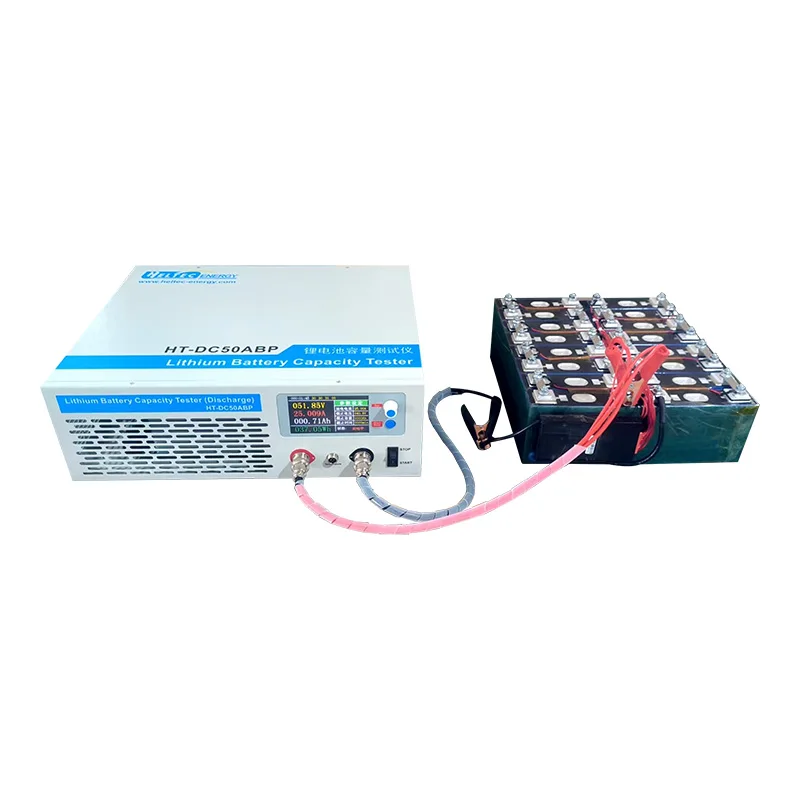

Heltec 5-120V 1-50A DC Electronic Load Battery Capacity Tester - Discharger for Lithium/LiFePO4/NMC/Lead Acid/Ni-MH Batteries
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.8★ from 18 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Heltecbms
- Sales: 37
- Package size: 55 × 44 × 25 cm
- Package weight: 10 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
Note
Our brand power supply has some stock in the PL/AU warehouse. lf youcannot see the option to ship from the overseas warehouse, you can follow the steps in thepicture to select the option to ship from the overseas warehouse, (We will automaticallyequip the corresponding power cord according to your country, Please don't worry)
Notes
The device’s report chart uses a 0-120V range. For low-voltage batteries (12V/24V), the curve looks flat (since voltage doesn’t change much in this wide range)—this is normal!
To check low-voltage battery discharge details, just follow the real-time voltage/current numbers on the device screen.
💡 Pro Tip
If you need to test small lithium batteries (e.g., 18650 cells), the HT-BCT50A is a more cost-effective choice!
🔹 Key Features
Wide Voltage Range – Supports 5V–120V batteries (lead-acid, Li-ion, LiFePO4, Ni-MH, etc.).
Adjustable Discharge – 1–50A current (max 6000W power), with 0.1V/0.1A fine-tuning.
Multiple Stop Conditions – Set voltage cutoff, capacity (Ah), or time for flexible testing.
Advanced Safety – Overvoltage, reverse polarity, overcurrent, and dual-temperature protection (battery & machine).
Real-Time Data – Tracks Ah, Wh, runtime, and V/A curves for performance analysis.
🔹 Technical Specifications
Model: HT-DC50ABP
Voltage Range: 5–120V (adjustable in 0.1V steps)
Current Range: 1–50A (adjustable in 0.1A steps)
Max Power: 6000W (50A @ 120V)
Accuracy: Voltage: ±0.1% / Current: ±0.2%
Discharge Modes: Voltage cutoff / Capacity (Ah) / Time
Protections: Overvoltage, reverse connection, overcurrent, high temp (battery & machine)

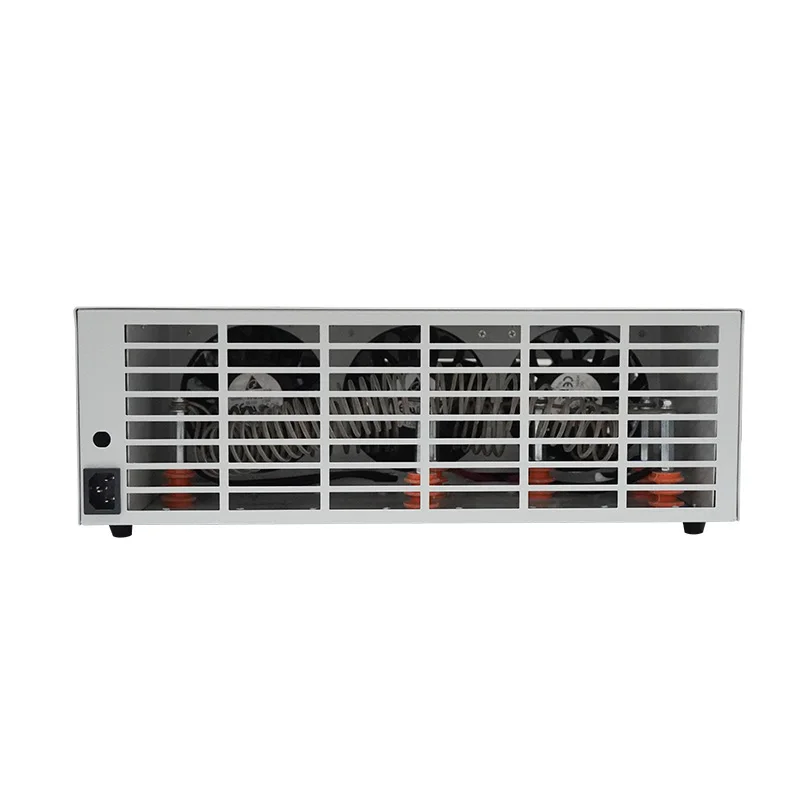

Cooling System: Forced air cooling (2-min delayed shutdown)
Power Supply: AC 110–240V, 50/60Hz
Dimensions: 380×158×445mm (15×6.2×17.5in)
Weight: 8.7kg (19.2lbs)
🔹 What’s Included?
HT-DC50ABP Tester Unit
Power Cable
User Manual
Ideal for
Battery recycling centers
Energy storage system testing
EV battery maintenance
R&D labs
Not for
Batteries above 120V
Non-rechargeable/zero-voltage/damaged batteries
Unsupervised environments
