Heltec 9-99V 20A 40A Integrated Charging and Discharging Machine Battery Capacity Tester Electronic Load

Product Overview

The HT-CC20ABP/HT-CC40ABP is a professional-grade VRLA/Lithium battery charge-discharge tester from HELTEC ENERGY. Designed for lead-acid batteries, lithium-ion batteries, and other secondary batteries, it delivers precise full-cycle charge-discharge testing, capacity calibration, and performance evaluation. It is widely applicable to new energy vehicles, low-speed vehicles, electric motorcycles, energy storage batteries, and more, serving as a core tool for battery production, quality inspection, R&D, and maintenance.

HT-CC20ABP

Charging Test cut-off voltage: 9-99V

Charging Test voltage:9-99V

Discharge Curent:0.5V-20A

Charge Current:0.1-10A

Charge stepping current:0.1A

Discharge stepping current:0.1A

HT-CC40ABP

Discharge Curent:0.5V-40A

Charge Current:0.1-20A

Core Features & Advantages

Efficient Intelligent Cooling System

Equipped with a dual-sided high-performance cooling system: three high-speed fans with bilateral airflow channels, paired with dual heat sinks, rapidly reduce the device’s operating temperature during long-duration tests. This prevents overheating, ensures stable performance, and improves test efficiency, all housed in a durable metallic casing.

Comprehensive Safety Protection

Anti-reverse connection protection: Automatically triggers protection when positive/negative terminals are reversed, eliminating short-circuit risks and device damage, greatly enhancing test safety.

Multi-layer protection against overvoltage, overcurrent, and over-temperature, minimizing risks to both the tester and the battery under complex testing conditions.

Intuitive User Interface

A high-precision LCD display provides real-time monitoring of critical data: voltage, current, charge-discharge capacity, running time, cycle count, cut-off voltage, and more. The clear, user-friendly interface is complemented by physical START/PAUSE and SET buttons for easy operation, supporting seamless switching between multiple test modes.

Flexible Testing Capabilities

Supports charge-discharge cycle testing, capacity calibration, aging performance testing, and more. Users can customize charge/discharge parameters, cut-off conditions, and cycle counts to meet diverse testing requirements for battery R&D, production quality control, and after-sales maintenance.

Interface & Structural Design

Front Panel: LCD display, START button, SET knob, OUTPUT port, and power switch for clear, convenient operation.

Rear Panel: Power socket, LAN port, and status indicator light, enabling data transmission and remote monitoring for production lines and laboratory data logging.

Durable metal casing with anti-slip feet ensures stable operation and long service life, built for industrial-grade use.

Key Features & Advantages

Wide Voltage & Adjustable Precision

Voltage range: 9–99V, adjustable in 0.1V steps

Discharge current: up to 20A, adjustable in 0.1A steps

Charge current: up to 10A, adjustable in 0.1A steps

Delivers precise, repeatable test data for diverse battery types and applications.

Equipped with a dual-tuyere, high-speed fan design paired with dual heat sinks, the metallic body quickly dissipates heat during long-duration tests, preventing overheating, maintaining stable performance, and extending equipment life.

Multi-Layer Safety Protection

Built-in anti-reverse connection protection triggers safeguards when positive/negative terminals are reversed, eliminating short-circuit risks. Additional overvoltage, overcurrent, and over-temperature protection ensure safety for both the tester and the battery under complex testing conditions.

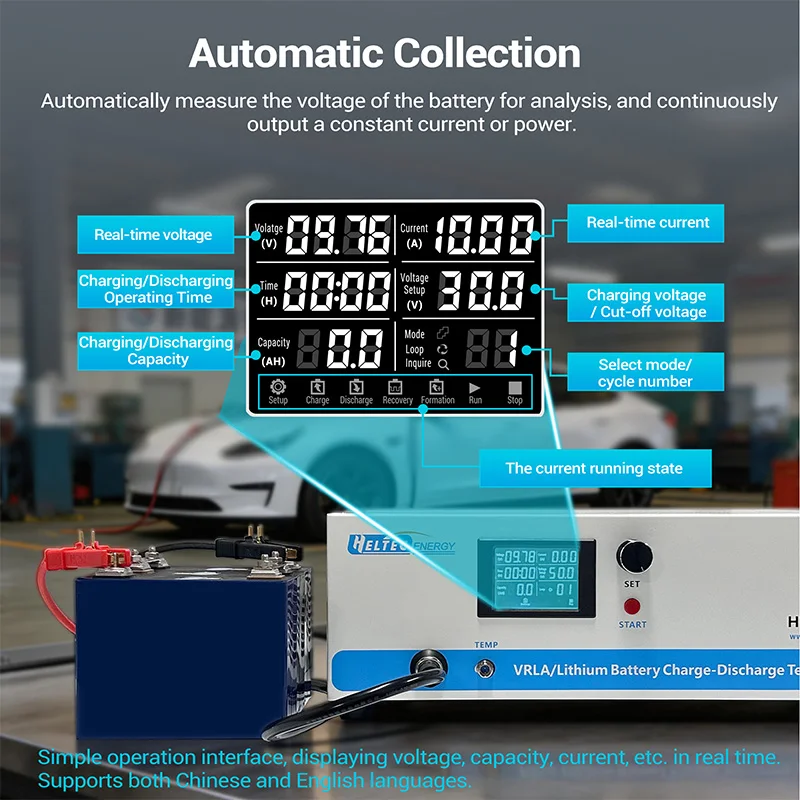

Intuitive LCD Display & Operation

A high-precision LCD screen shows real-time data including voltage, current, running time, charge-discharge capacity, cycle count, and cut-off voltage. With physical START/STOP and SET buttons, users can easily configure parameters and switch between test modes for simple, error-free operation.

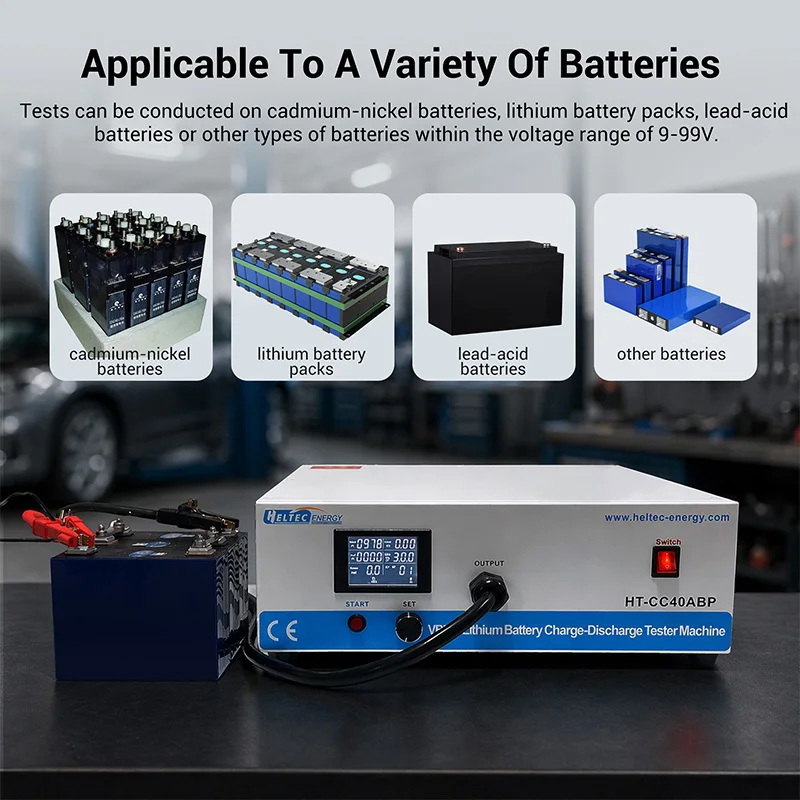

Flexible Test Modes for All Battery Types

Supports charge-only, discharge-only, and cycle testing with customizable cut-off conditions and loop counts. The tester adapts to lead-acid, lithium-ion, and other battery chemistries, meeting diverse testing requirements from lab R&D to production line quality control.

Front Panel: LCD display, START button, SET knob, and OUTPUT port for clear, one-stop operation.

Rear Panel: Power socket, LAN port, and status indicator light, supporting data logging and remote monitoring for lab and production use.

Durable metal casing with anti-slip feet ensures stable placement and long-term industrial-grade reliability.

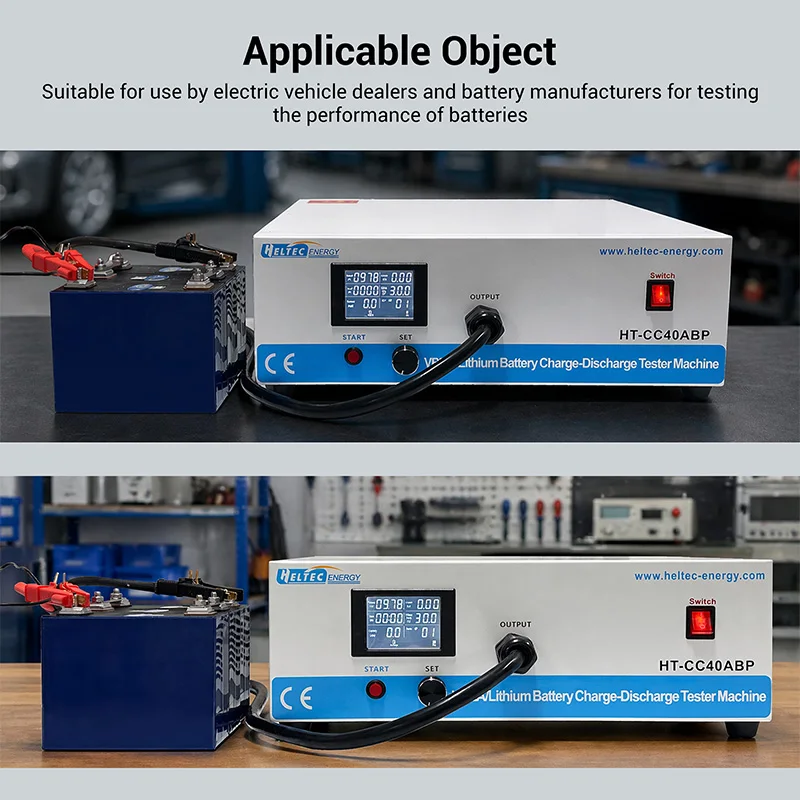

Typical Application Scenarios

New energy vehicles & low-speed electric cars

Electric motorcycles, e-bikes, and two-wheelers

Energy storage batteries and stationary power systems

Battery production lines, quality control labs, and maintenance workshops

Connect with PC

Package include

Ideal for a wide range of battery testing applications, including

New energy vehicles

Low-speed electric vehicles

Electric motorcycles and two-wheelers

Energy storage batteries

Battery production lines, quality inspection labs, and maintenance workshops
