Introduction
This product is suitable for ternary lithium, lithium iron phosphate, and lithium titanate batteries. The active balancer is tailor-made for charging and discharging large-capacity series-parallel battery packs. Different from inductive balancer, capacitive balancer can achieve the whole group balance. It doesn't need voltage difference between adjacent batteries to start balancing. It can effectively protect the circuit and improve the safety and reliability of your battery pack
Features
Whole group balance: It has full indiscriminate balancing of the entire pack,automatic low-voltage sleep, and temperature protection.
High Quality: The circuit board is sprayed with three-proof paint, which has excellent insulation, moisture-proof, leakage-proof, shock-proof,dust-proof,anti-corrosion, antiaging, corona resistance and other properties.
Safe and fast heat dissipation: The circuit board is equipped with an aluminum heat sink, which has the characteristics of fast heat dissipation and low temperature rise when working with high current.
Capacitive energy transfer: The maximum equalizing voltage difference is 0.01V and the maximum equalizing current is 5.5A.
Main Technical Indicators
Technical Index
Product Model (SKU by default)

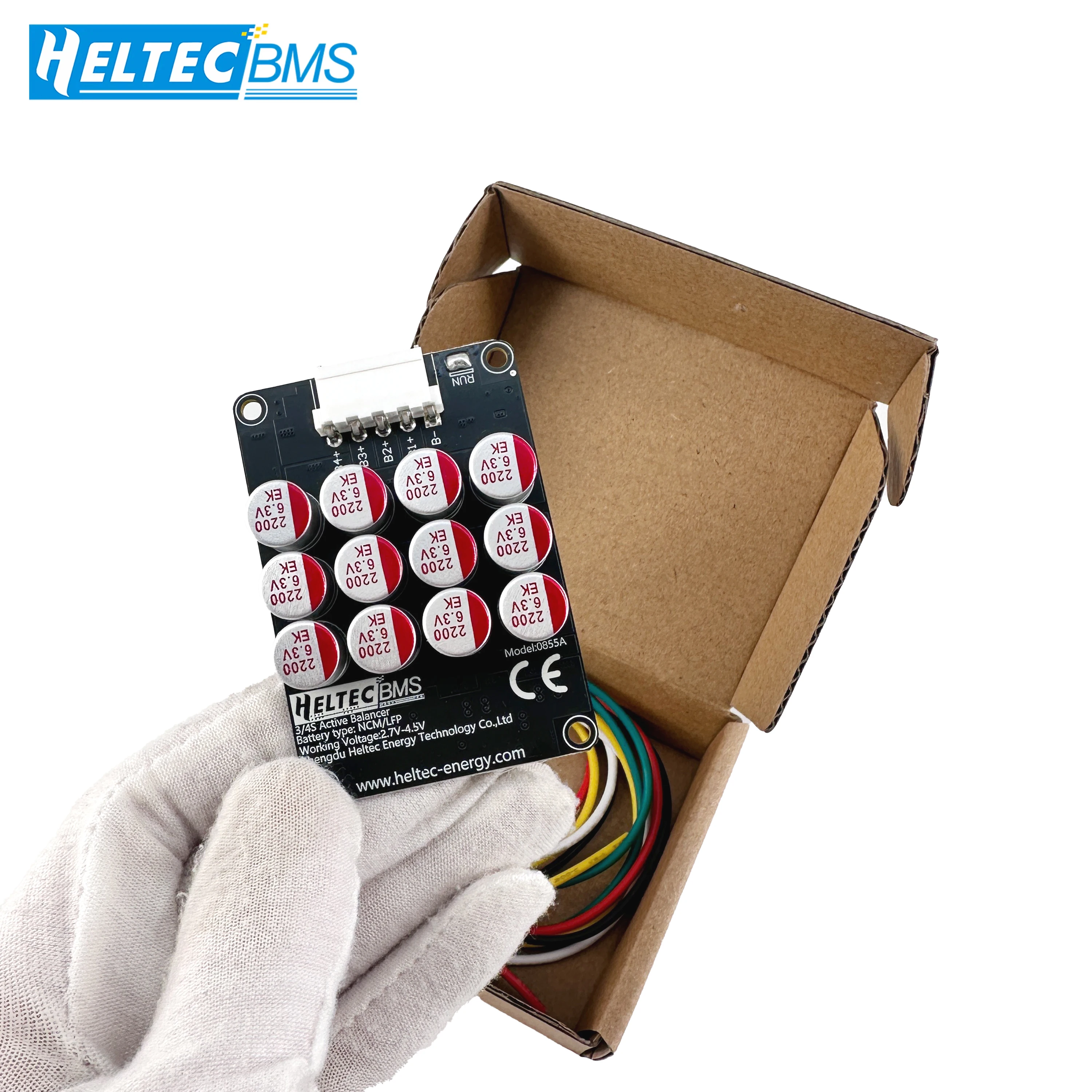

0855A
Battery Strings
3S-4S
Battery Type
NCM/LFP/LTO
Working Voltage Range
NCM/LFP: 2.7V-4.2VLTO: 1.8V-3.0V
Voltage Balancing Accuracy
5mv (typical)
Balance Mode
The whole group of battery participate in the active equalization of energy transfer at the same time
Balancing Current
0.08V differential voltage generates 1A balance current. The maximum allowable balance current is 5.5A.
Static Working Current
13mA
Working Temp
10°C~60°C
External Power
No need for external power supply, it relies on the internal energy transfer of the battery to achieve the whole group balance.
6S NCM LFP blancer can modify the solder joints to be used for LTO battery packs by yourself
The circuit solder joints (LTO/NCM/LFP) for mode selection (run) are strictly prohibited from being soldered together with RUN. This will cause short circuit and damage the balancer
All versions with connectors are available in NCM / LFP / LTO batteries, you can choose the right product before ordering;The RUN indicator light indicates the continuous working state of the balance, and it will only go out when the battery under-voltage protection or the balancer fails.
4S NCM LFP with Voltage Display
6S NCM LFP / 6S LTO with Voltage Display

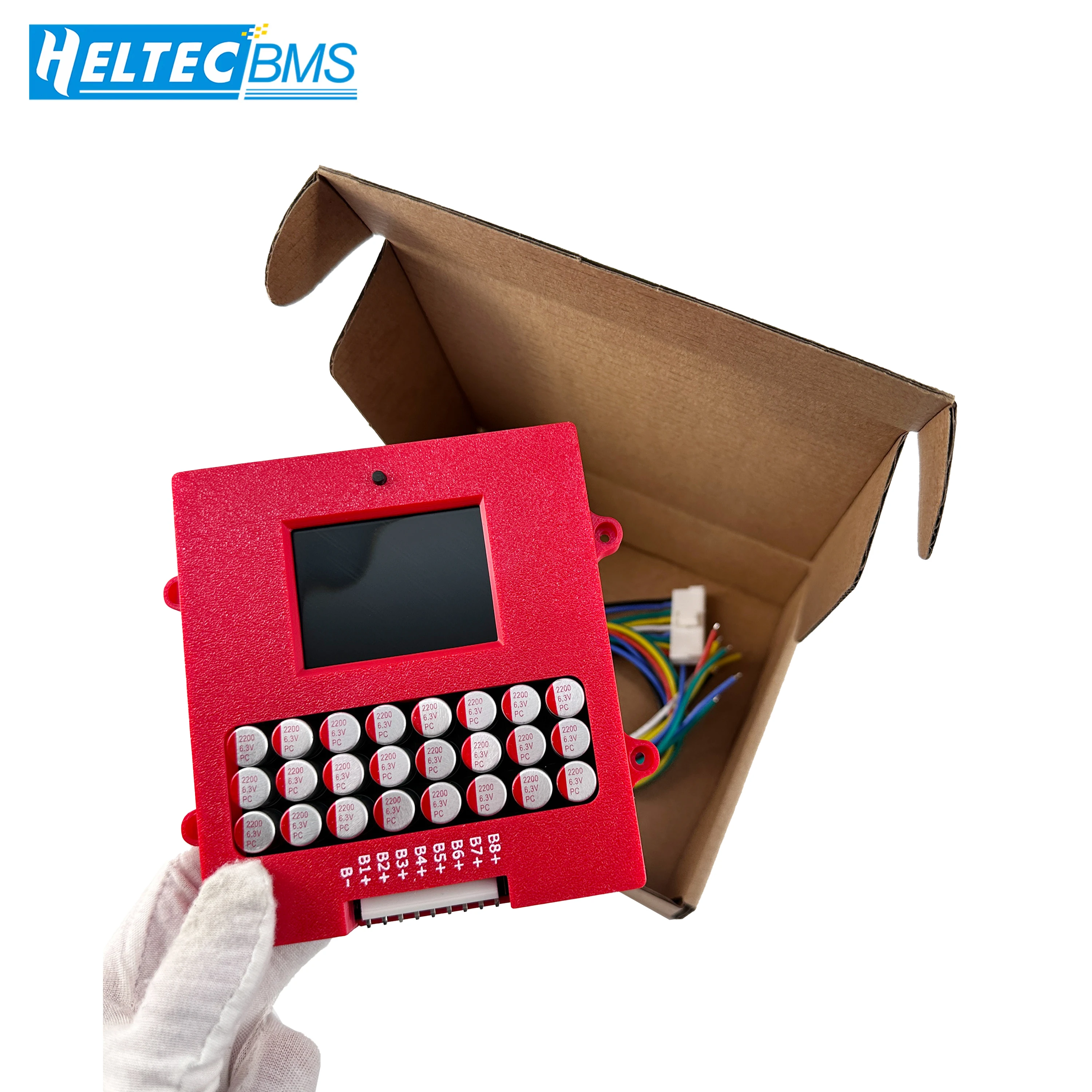

8S NCM LFP LTO with Voltage Display
