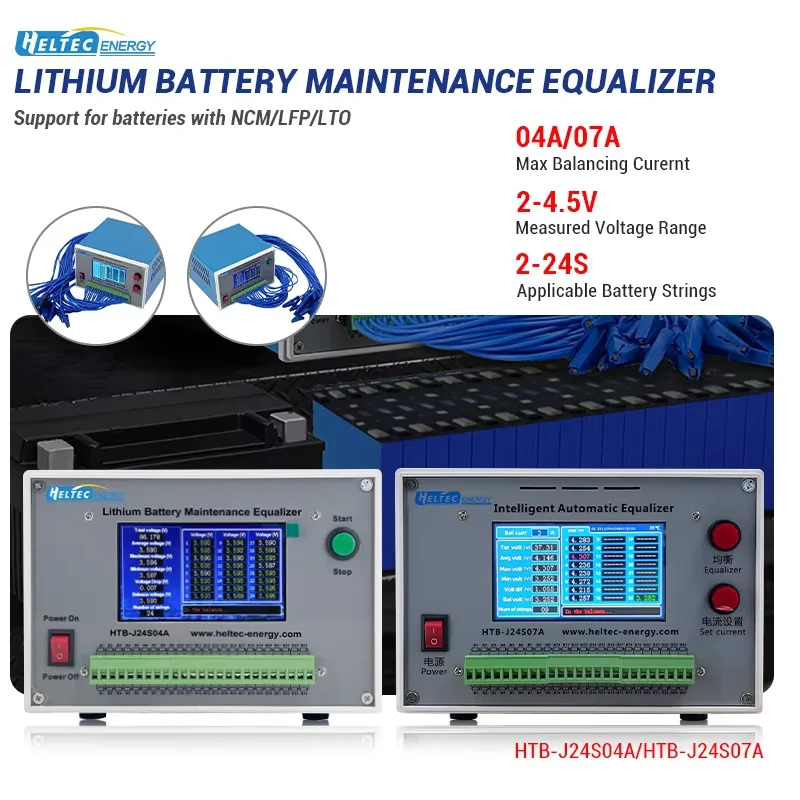

Heltec Energy 2S-24S Lithium Battery Equalizer, 0.4A/0.7A Active Balancer, 2-4.5V Battery Maintenance Repair Tool for NCM LFP LTO Battery Pack

Summary

This equalizer directly displays the sum and voltage difference of each string

Solves the problem of battery pack unbalance with one button

The equalizer starts the equalization with one button, and automatically stops after the equalization is completed, and warns

Our equalizer will not charge the batteries during the equalization process. So don't worry about the danger of overcharging the balance

Note

Before balancing, please check whether the lowest voltage is lower than the battery's over-discharge voltage. If it is lower than the battery's over-discharge voltage, please charge the balance first, and the battery is fully charged and then balance, the effect will be better.

Feture

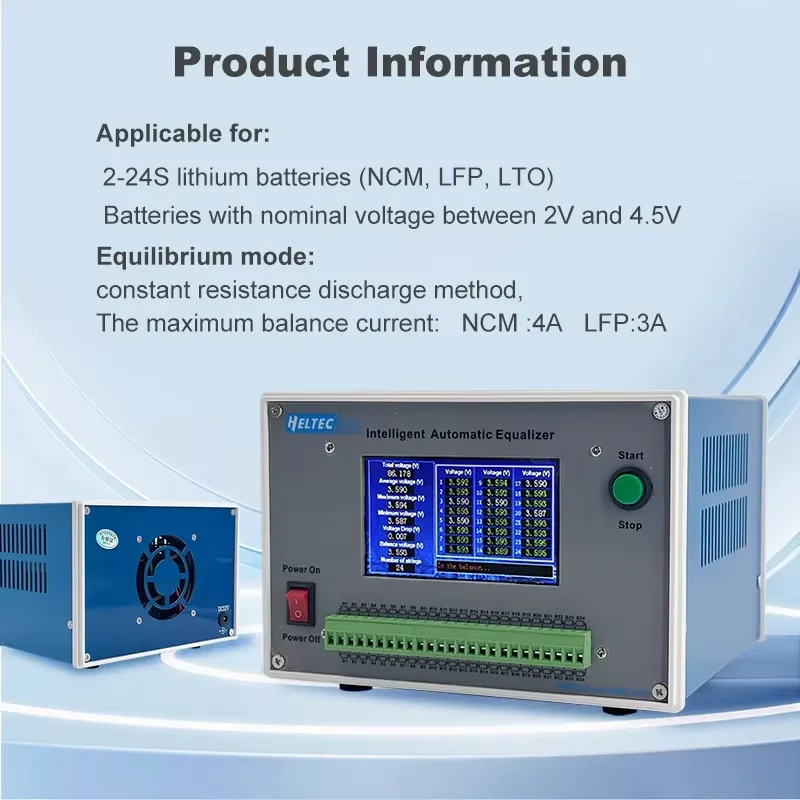

Support 2~24 series lithium battery pack, support ternary lithium, lithium iron phosphate, too cobalt lithium, support 1.5V~4.5V battery, the voltage is out of range, it will sound a warning and display

Reverse connection warning and reminder: after connection reverse, overvoltage (greater than 4.5V), low voltage (less than 1.5V) protection functions are balanced, it will automatically stop, and a warning sound will sound to indicate that the balance is complete.

Constant resistance 1 ohm discharge equalization

Large equalization current

Ternary lithium 4A Max

Lifepo4 3A MAx

Display the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of battery pack, average voltage, balanced voltage, number of battery strings

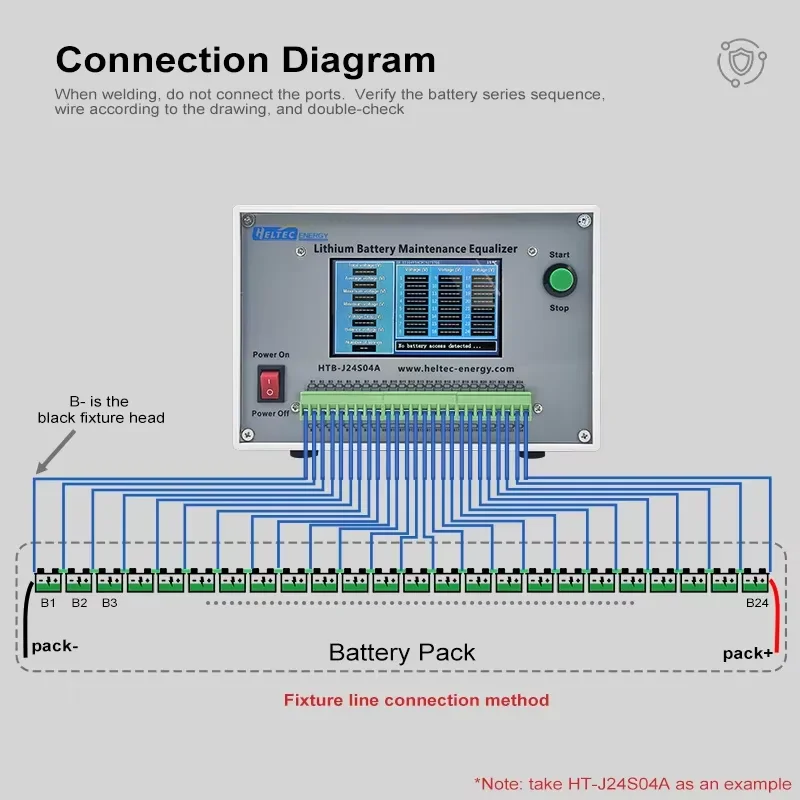

Battery maintenance steps

There is a bad battery cell

1)replace the battery cell

2)fully charged

3)balancing

4)fully charged

5)battery maintenance completed

Advantage

1. Don't charge the batteries, don't worry about overcharging problems

2. The speed of the whole equalization process is the same, and the equalization speed is fast

Disadvantages

Since the equalization method is to discharge the high-voltage string energy until it is equal to the lowest voltage string, the excess energy is wasted.

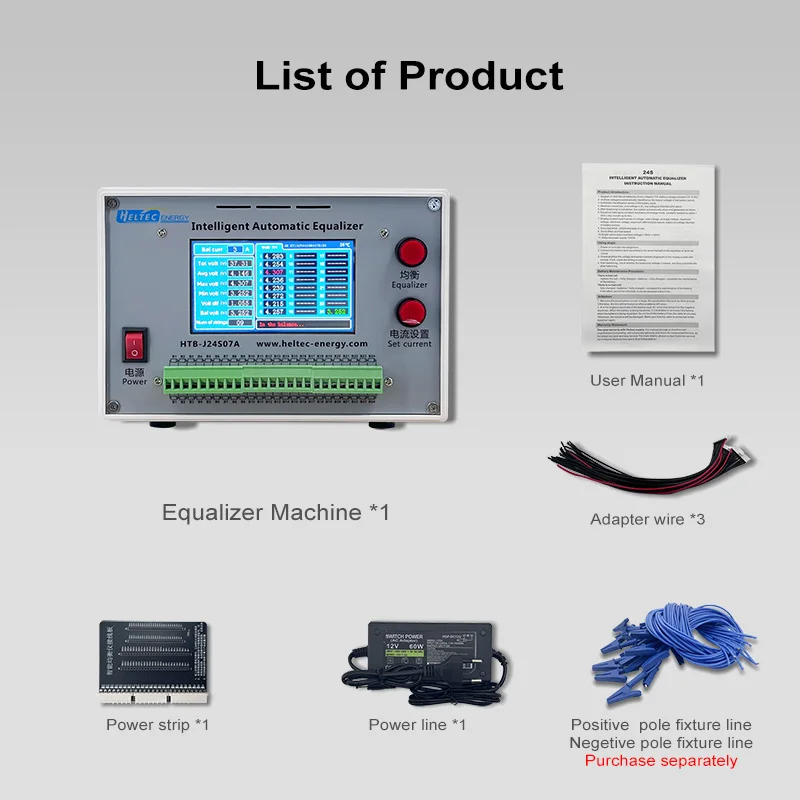

Package Include

HTB-J24S04A/07A

Feature

Power supply: DC12V 4A

Single channel voltage measurement range: 1-5V

Single channel voltage display accuracy: 0.001V

Single channel voltage acquisition accuracy:±(0.05%+0.003v)

Single channel voltage operating range: 2.0-4.5V

Adjustable balance current: 1A-4A/1A-7A(The smaller the voltage, the larger the impedance, the smaller the balance current)

Applicable battery type: ternary lithium, lithium iron phosphate and other battery voltage between 2.0v-4.5v

Operating temperature: 0°C-50°C

Working humidity: 20%-80%RH

Working environment: no corrosion, explosive and damage insulation gas and conductive dust

Technical Index

2 - 24S 3/4A Intelligent Battery Equalization Instrument

2 - 24S 1 - 7A Intelligent Battery Equalization Instrument

Model SKU

HTB - J24S04A

HTB - J24S07A


Applicable Battery Strings

2 - 24S

Support battery type

NCM/LFP/LTO/Nominal voltage between 2V and 4.5V

Maximum / Minimum Measuring Voltage

4.5V/2V

Max Balancing Current

3A for lifepo4 / 4A for ternary

7A

Balancing Type

Discharge balancing

Single string input interface withstand voltage

100V～+ 100V

external power supply

12V 5A

12V 5
