KUAIQU Variable Power Source Switching DC Power Supply 30V 10A Bench Power Supply Optional OCP OVP Function,32V 6A,60V 120V 3A

Upgraded model OCP OVP protection function

Note： Our brand power supply has some stock in the BR/MX/PL/ES/US/RU warehouse. If you cannot see the option to ship from the overseas warehouse, you can follow the steps in the picture to select the option to ship from the overseas warehouse.

Four Types of Plugs For Option

（We will automatically equip the corresponding power cord according to your country, Please don't worry）

Your Packing List include

1X DC Power Supply

1X Black Output Line

1X Red Output Line

1X Instruction Book (English)

1X Pakcgae Box(Hard)

2X Protective Sponge

1X Certificate of Conformity(1 Year)

DC Power Supply Variable Specification

Input Voltage 110V±10% 60Hz or 220V±10% 50Hz

Working Temperature 0 ℃-40℃; Relative Humidity: ＜80%RH

Storage Temperature -10 ℃-70℃; Relative Humidity: ＜70%RH

Constant Voltage State Voltage stability≤0.1%+3mV Low Voltage:0.2~0.3%+3mV Load stability≤0.5%+3mV Ripple noise≤30mVrms

Constant Current State Current stability≤0.2%+3mA Load stability≤0.2%+3mV Ripple noise≤20mArms

Display Accuracy 0.5%+2digits

Display Resolution Voltage: 000.1V / Current: 0.001A

Product Dimension 3.3 x 8.4 x 5.5 Inches

Product Weight 2.6 lb

Fuse Standard 5A

Load Regulation

Voltage：≤ 0.3% + 10 mV

Current：≤ 0.1% + 2.5 mA

Line Regulation

Voltage：≤ 0.01% + 2.5 mV

Setting Resolution

Current：1 mA

Readback Resolution

Voltage：10 mV；

Readback Accuracy

Current：≤0.01% + 10 mA

Voltage：≤0.05% + 10 mV；≤0.01% + 15 mV

Ripple (20Hz~20MH)

Voltage：≤ 100 mVp-p、≤ 200 mVp-p、≤ 300 mVp-p；≤ 15 mVrms、≤ 20 mVrms、≤ 30 mVrms

Current：≤ 15 mArms、≤ 20 mArms、≤ 30 mArms

Rise Time (No Load)

Time：≤200ms

Rise Time (Full Load)

Time：≤300ms

Fall Time (No Load)

Time：≤20S；≤30S

Fall Time (Full Load)

Dynamic Response

Efficiency：≥85%

Input Voltage/Current**：AC 220V or AC110V

Size/Net Weight：Size: about 22*8.5*15.5cm, weight: 1.2KG

Package Size/Weight：Single unit: 29.5*13*21cm, weight: 1.65KG（8pcs/Carton）

About this item

🔥Over voltage Detection Alarm: Easily activated with the 'OVP' button. Detects short circuits and over voltage, triggering an alarm and stopping output to protect connected devices. (Upgraded model)

🔥Ove rcurrent Detection Alarm: Easily activated with the 'OCP' button. Detects short circuits and over currents, triggering an alarm and stopping output to protect connected devices. (Upgraded model)

🔥Compact and Various Application: This DC power supply is less than 2.3 lb and measures only 7.59 x 3.35 x 6.1 inches, applies for laboratory, school, repair, electrolyzation, electroplate, brush plating, lamp test, aging testing, battery charge, home DIY and other requirements. 18W USB port Quickly charge your devices with high-speed 18W output for efficient charging, no worry about running out of power.

🔥Reliable and Safety: many safety measures are adopt in KUAIQU lab DC power supply - Grounding wire, Leakage protection,Thermal protection, Voltage overload protection, Power overload protection and Short-circuit protection. KUAIQU power supply use premium electronic components, provide reliable working status and prolong the life of product effectively. When the working temperature is more than 122℉/50℃,the intelligent thermal protection will active the cooling fan to lower the temperature

🔥【High Precision, Low Ripple, Big LED Display, Output Switch Control】KUAIQU DC power supply is a professional power supply regulator with high accuracy of 0.01V and 0.001A, low ripple of DC power supply. The backlit 4-digits LED display has the advantage of high resolution, which can be easily viewed even if you are in low-light conditions. Adjust the required voltage and current through the output switch button without the actual output power, safer and more energy efficient.

🔥【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, laboratories, schools, electronic maintenance, electrolysis, electroplating, lamp test, aging test, DIY, etc.

🔥Front Power Switch, Stable Vertical Design, Lightweight and Portable】The front power switch is very convenient. Bench power supply adopts stable vertical design, DC power supply has shock absorber rubber feet at the bottom, so it will be safer and more stable during use. DC power supply is very light and portable, with a size of only 3.3 x 9.4 x 6.1 inches and a weight of only 2.6 pounds. You can easily take the DC power supply to work.

Upgraded model features AS below

150W~360W DC Power Supply

OCP/OVP Function

Output ON/OFF

USB-A Quick Charge, Supports PE1.1/2.0

APPLE, BC1.2, AFC, FCP, QC2.0/QC3.0.

USB-C Quick Charge, Supports PE1.1/2.0

APPLE, BC1.2, AFC, QC2.0/QC3.0, PD3.0

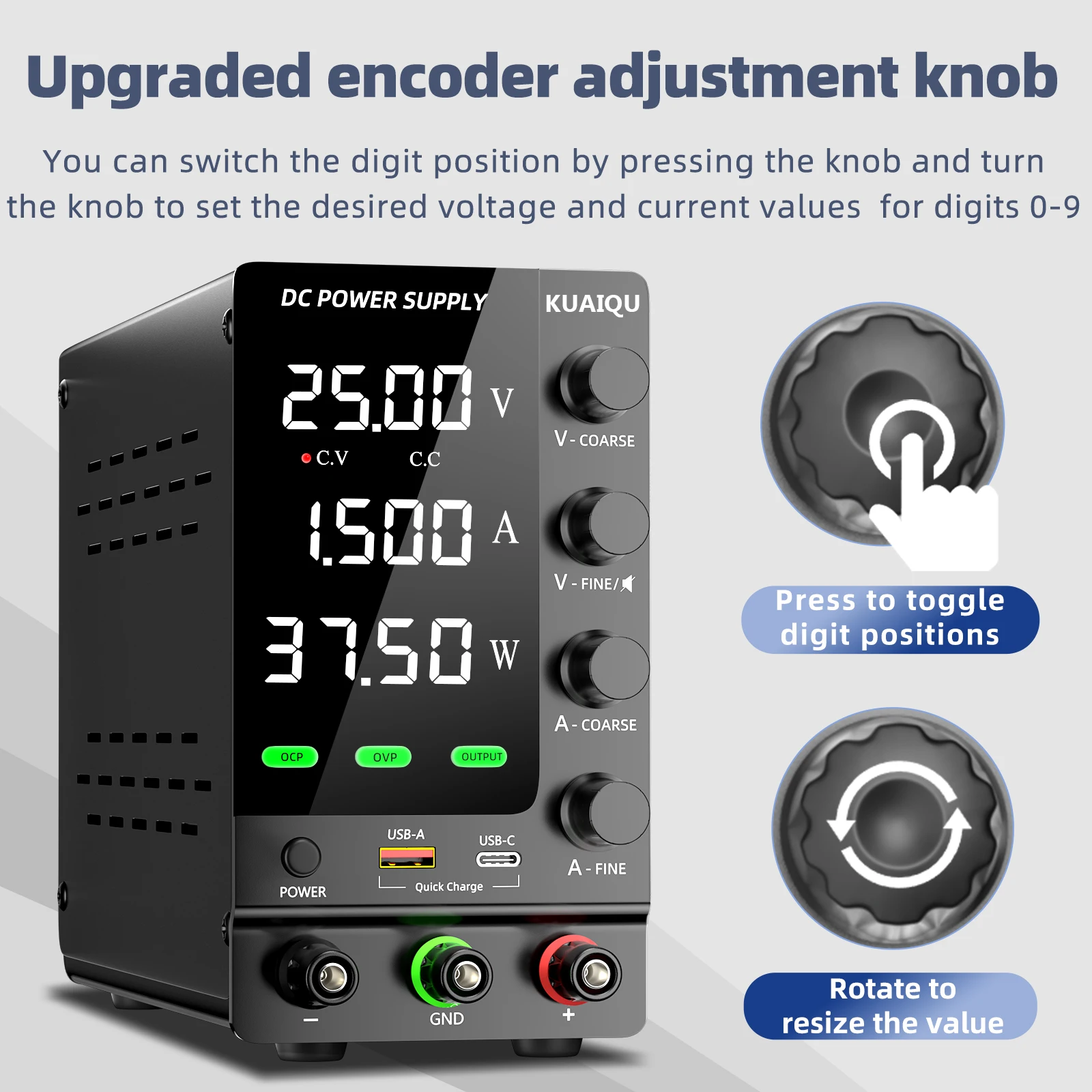

Encoder knob to Adjust

Knob with Buzzer (can be set to mute)

SPS-C Series As Below

Large screen display

Voltage/Current Four-digit Display

Power Display

Coarse/Fine Adjust

USB 5V 2A Output

Intelligent charging series, recommend using this for battery charging

Which voltage and current should I choose？

The higher the charging voltage, the more types of batteries you can charge

The higher the charging current, the faster the charging speed

Therefore, the differences between the four models in our link are as follows
