LAN Network Cable Tester Continuity Tester For RJ45 RJ11 RJ12 Twisted Pair Connections CAT5/CAT6/CAT7 UTP LAN Wire Test Tool
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.7★ from 219 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: FTBTOC
- Sales: 379
- Package size: 17 × 13 × 4 cm
- Package weight: 0.119 kg
- Rating: 4.7 / 5
Before adding to cart, choose an available option and check the quantity.
Professional Network Cable Tester RJ45 RJ11 RJ12 CAT5 UTP Network LAN Cable Tester Networking Tool Wholesale Retail

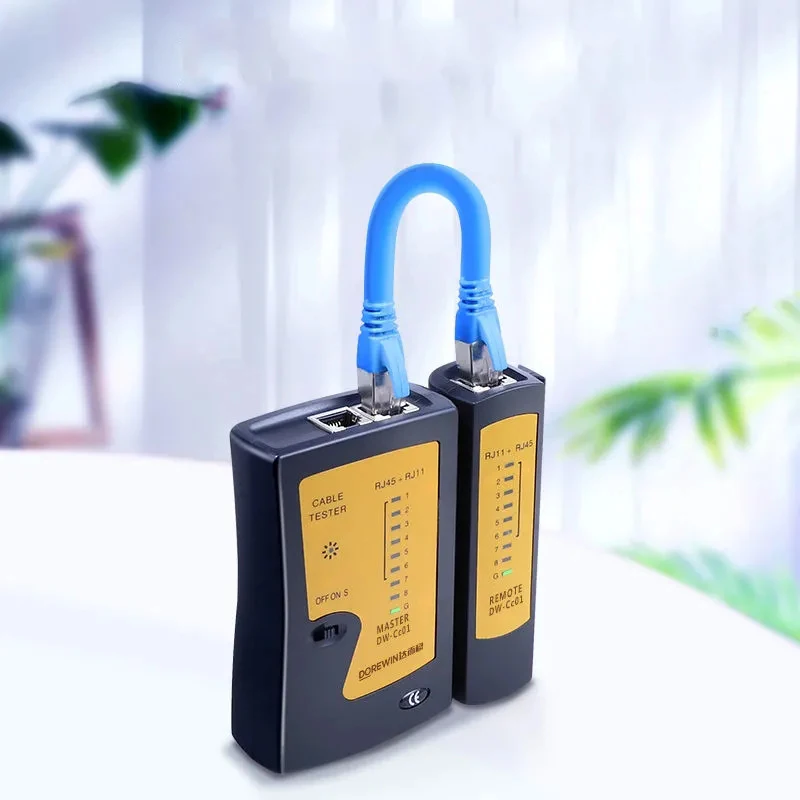

Test of double-twisted cables: Switch on the power. (S is slow automatic grade, Mis manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn on sequently form 1 to G.
Main tester: -G
Remote tester: -G RJ45
RJ11
Following are abnormal connections
If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tseter and remote tester will not turn on.
If several cables are not connected, several lights will not turn on respectively. If less than two cables are conntected, none of the lights is on.
If two ends of a cable is disordered, for example NO. 2and NO. 4, then displays on
Remote tester: -G
If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding liaghts is on.
If test patch panels or wall plate outlels, two cables which can match each other (RJ45) will be connected to the tester.
If test cables of the same axes, BNC turns on when the cable works.
9V reduplicated battery is used in this tester. Battery is advised to change if any weak light oppears.( Battery is not included.)
Colour: white
Main tseter
Size: 105*67*28mm
Weight: 110g
Remote tester
Size: 105*38*28mm
Weight: 47
1 x LAN Cable Tester(Without battery)
1 x manual
