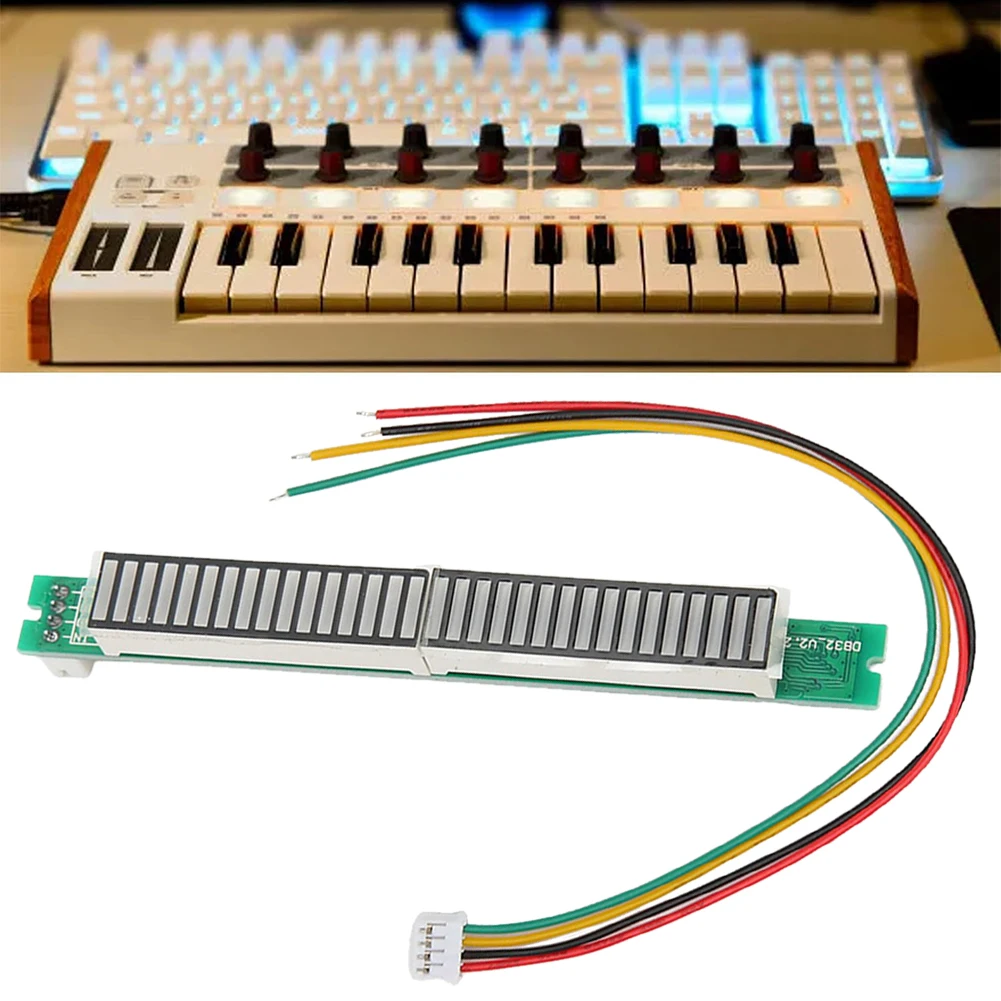

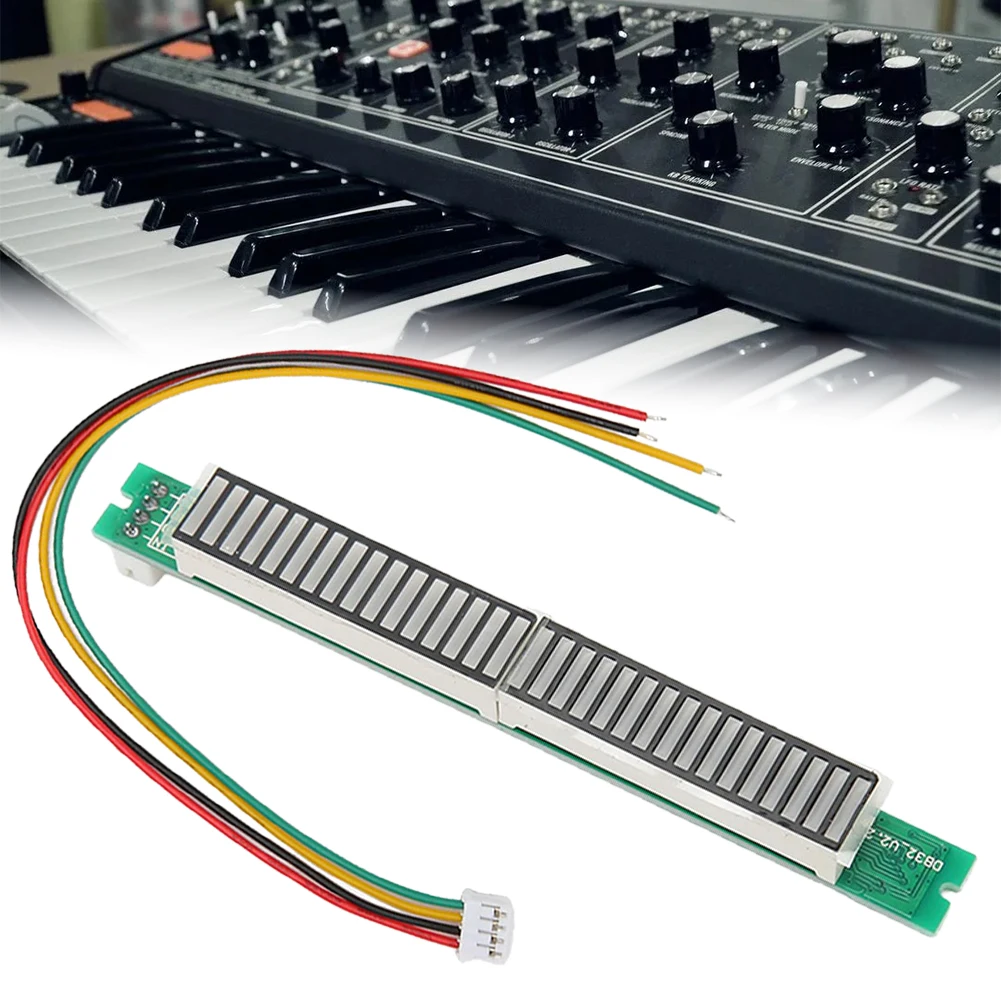

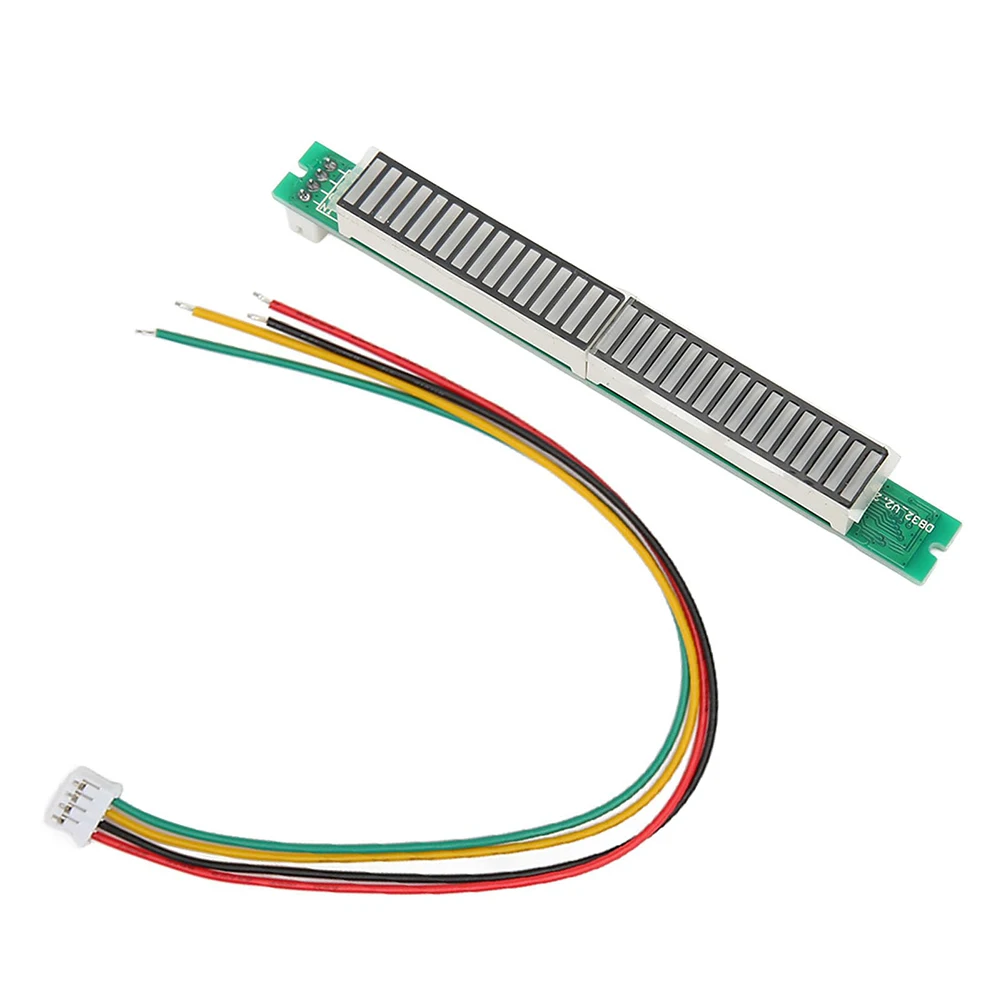

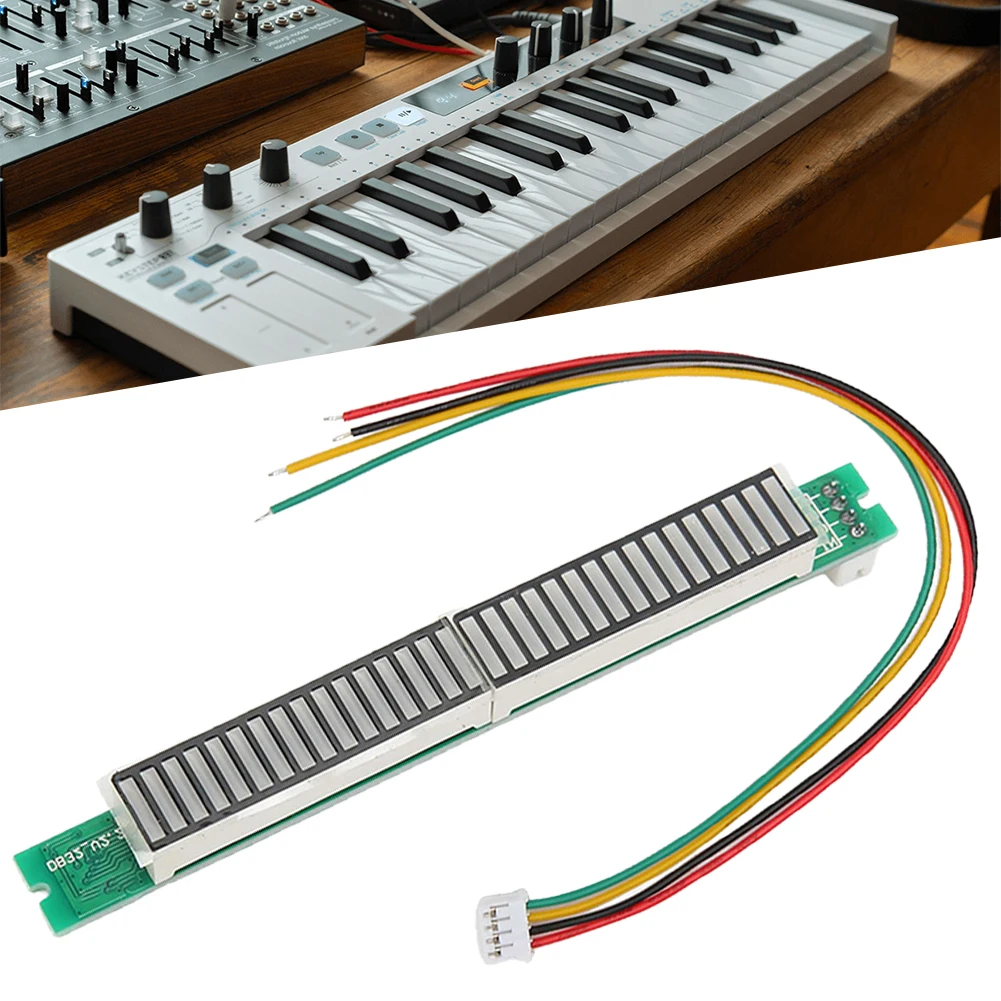

Mono 32 Bit Adjustable Sound Indicator Music Spectrum Meter Dual Mode Audio Display Visualizer RGB Sound Reactive LED Light Bar
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Package weight: 0.02 kg
- Rating: 0.0 / 5
- Color: Finished Product
Before adding to cart, choose an available option and check the quantity.
Mono 32 Bit Dual Mode MIC Sound Control Level Indicator RGB Sound Reactive LED Light Bar Level Indicator Panel VU Meter
Features
1. Enhanced Dynamic Range: Experience superb audio visualization with the mic sound control level indicator, featuring an extended array of lights for finely-tuned dynamic representation.
2. Exclusive Wide Bars: This LED music VU meter light spectrum stand out with the unique, exclusively molded wide LED bars, offering an unparalleled visual experience not found in similar products on the market.
3. Customizable Indicators: Tailor the rise and fall speed of the main LED bar of this sound indicator music spectrum meter, the duration of peak-hold lights, and the descent rate of the peak lights for personalized audio level monitoring.
4. Adjustable Brightness: This audio display visualizer gain full control over your visual experience with the ability to effortlessly adjust the brightness of the LED lights to match your viewing preferences.
5. Versatile Modes & Compact: Choose between dB mode for precision and AGC mode of this RGB sound reactive LED light bar with an expansive adaptive algorithm that ensures optimal performance, all packed into a small form factor easily fitted into compact cases with single-button operation.
Specification
Origin: Mainland China

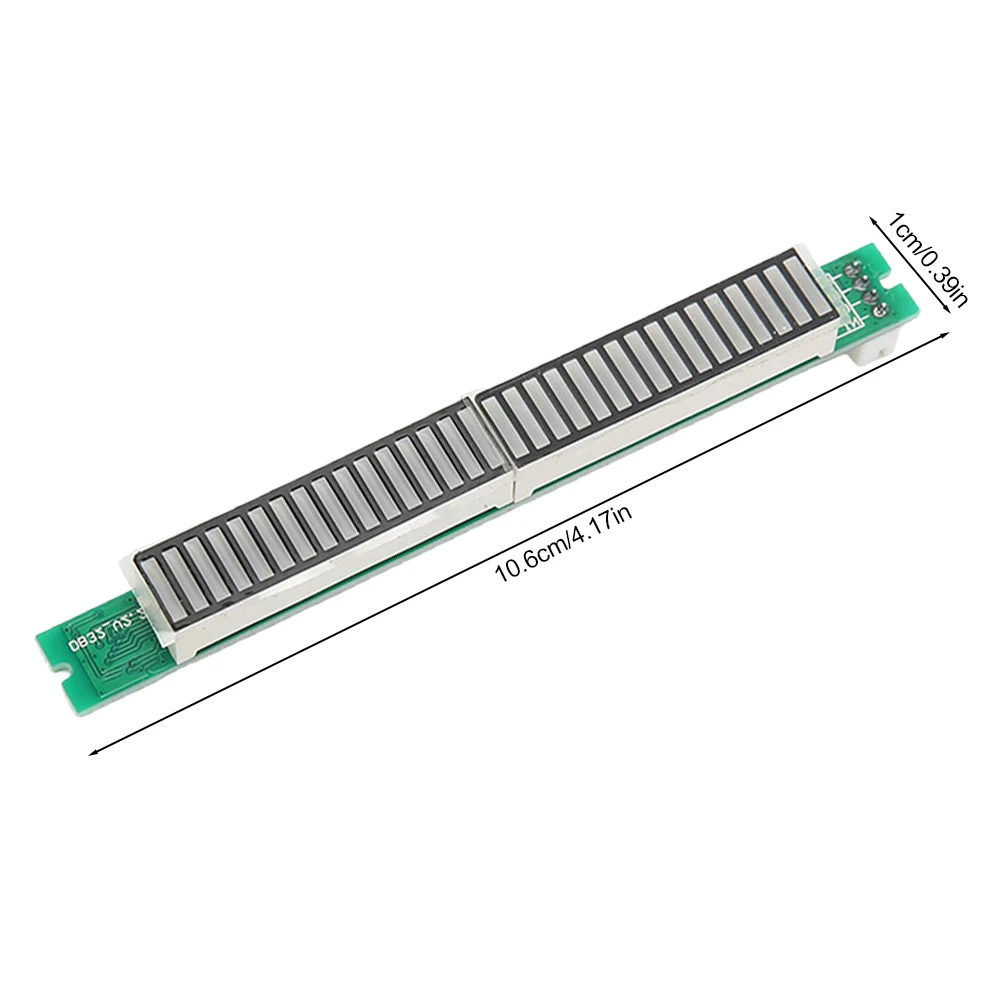

Size: 106.00*10.00*8.00mm/4.17*0.39*0.31inch
Specific Operation: (when pressing the button, there will be corresponding LED indicating the key time)
I. In normal mode
1. Press 1 second - Mode switch (will have the corresponding preview)
2. Press the button for 3 seconds - Switch between live mode and AGC mode (will have the corresponding preview)
3. Press for 5 seconds - Enter speed setting mode
5. Double click the button - adjust the brightness of the level light, low light - medium light - high light cycle
II. Speed Setting Mode: (in normal mode, press the long button for 5 seconds to enter, and press the long button for 5 seconds to exit)
1. Press the button for 1 second - Yes
1. Main body rising speed (15 speed optional)
2. Main body falling speed (15 speed optional)
3. Peak residence time (15 level time optional)
4. Peak drop speed (15 speed optional)
5. Zoom in or out in dB mode (optional 15-level range, 80%-120%)
6. Light bar brightness adjustment (15 brightness optional)
Ring Switching in Functions.
Tap the button - to cycle through the set parameters.
Note
The product is a kit and requires you to solder the LED module and socket yourself. Kits require customers to weld themselves!!
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*MIC Sound Control Level Indicator
