MPPT Solar Charge Controller 230V DC 80A 60A 40A Auto 12V 24V 48V 60V 72V 96V PWM Hybrid Regulator with WiFi Monitor
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: HXCONTROLLER
- Package size: 10 × 20 × 20 cm
- Package weight: 3 kg
- Rating: 0.0 / 5
- Current: MPPT80A 230VDC
Before adding to cart, choose an available option and check the quantity.

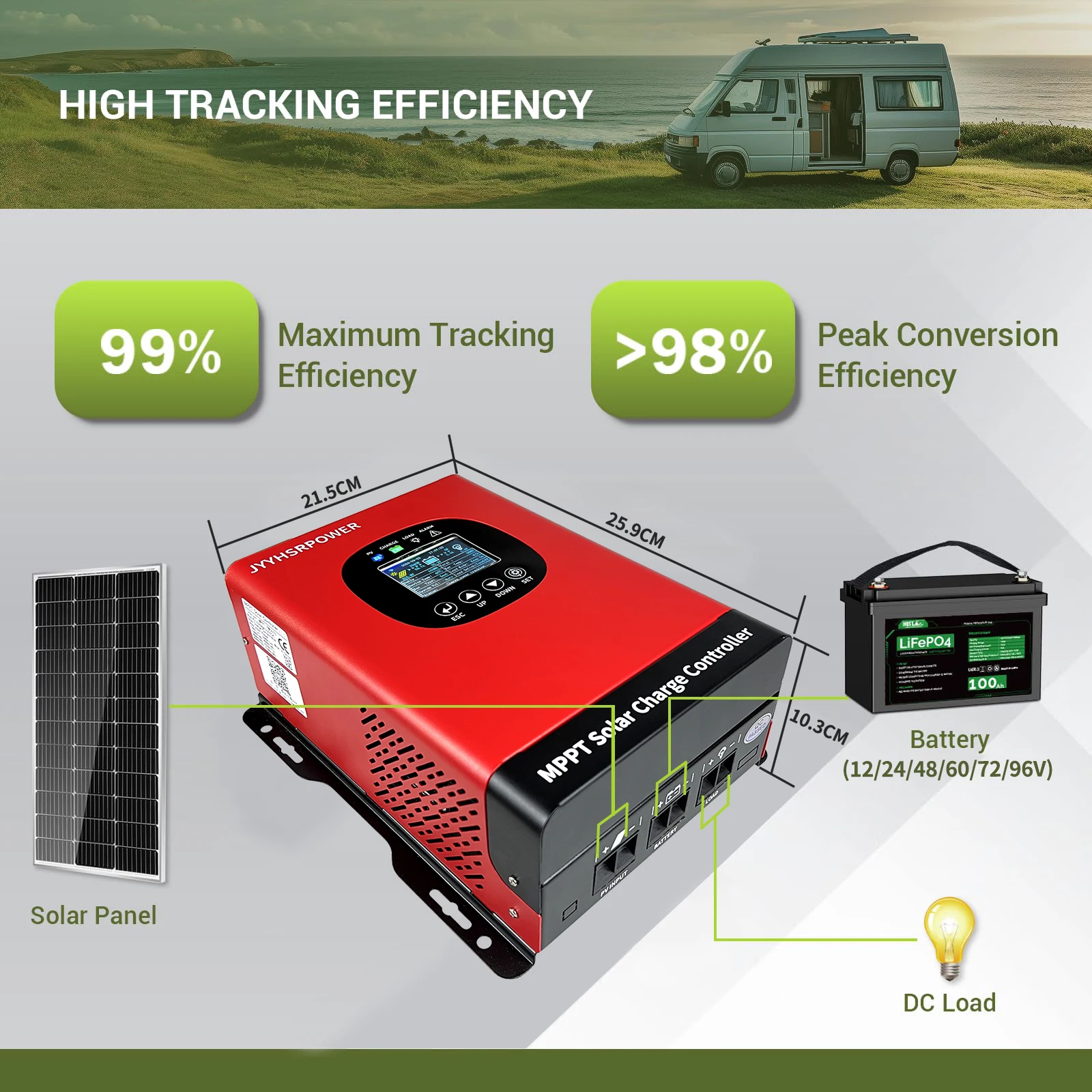

Advanced MPPT Charging Technology
Experience industry-leading charging efficiency with our intelligent MPPT controller (40A-80A). Utilizing a built-in high-performance DSP processor, it achieves a maximum tracking efficiency of ≥99% and a peak conversion efficiency of up to 98.1%.
Wide Voltage Compatibility: Automatically detects and adapts to battery systems ranging from 12V to 96V (including 24V, 36V, 48V, 60V, 72V, and 84V).
Smart & Efficient: Optimizes solar harvest in real-time, ensuring maximum energy utilization.
To ensure successful startup, please verify that your battery has sufficient voltage before powering on the controller for the first time. Low battery voltage may prevent the device from activating.

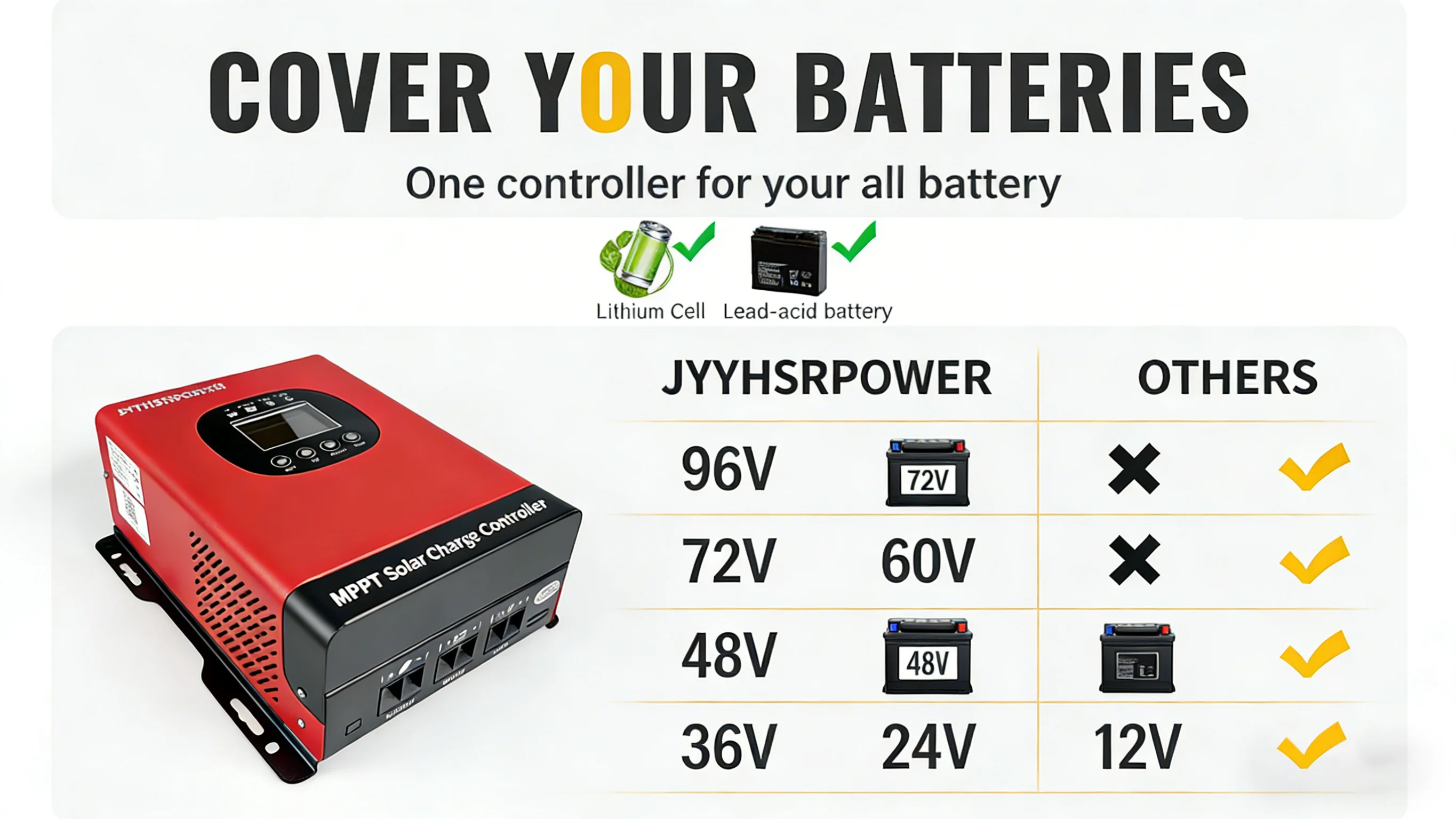

Universal Battery Compatibility & Smart Monitoring
🔋 Wide Battery Support
This controller supports virtually all battery types on the market. It comes pre-set for common types but offers deep customization via the "USER" mode.
Lithium Series: LiFePO4, Li(NiCoMn)O2 (NCM), and custom Lithium settings.
Lead-Acid Series: Sealed, Gel, Flooded (Vented), and AGM.
Specialty: NiCd batteries.
Enter the "USER" mode to fine-tune critical parameters such as Absorption Voltage, Floating Voltage, and Low Voltage Disconnect (LVD). You can also configure load timers to automate your power usage.

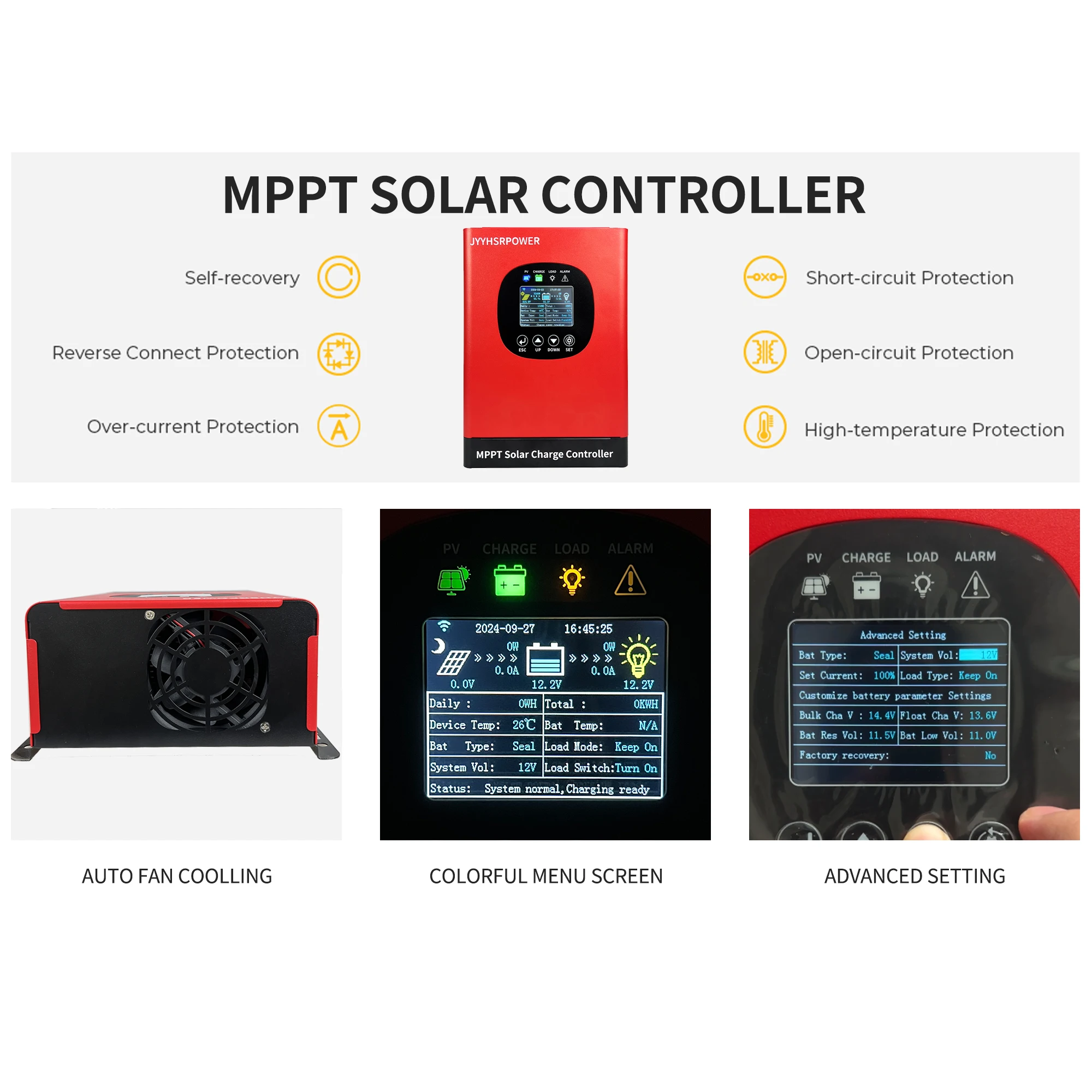

📊 Premium Color Display Interface
Unlike the standard monochrome screens used by most competitors, our controller features a high-resolution color LCD.
Real-time Data: View PV input voltage, battery status, charging current, device temperature, and selected battery type at a glance.
Energy Statistics: Track daily and total cumulative power generation.
Visualized Data: Access intuitive power generation charts to analyze performance throughout the day.
Benefit:The color interface provides superior clarity and readability, significantly enhancing the user experience.
📶 Built-in WiFi & Smart App Control
Monitor your solar system from anywhere with the integrated WiFi module. No additional accessories or gateways are required—simply connect and control.
To ensure stable data transmission to the cloud, please follow these setup requirements
Designed to maximize your PV array capacity, this controller accepts a Maximum Open Circuit Voltage (Voc) of 230V. This high-voltage input allows for greater flexibility in solar panel configurations.
Panel Configuration Example: If your solar panels have a Vmp (Maximum Power Voltage) of 38–42V, you can safely connect up to 4 panels in series.
Step-Down Charging: This controller supports high-voltage charging for low-voltage batteries. You can use a 230V solar array to charge a 12V battery system without issue.
To prevent permanent damage to the controller, ensure that the total Voc of your solar array NEVER exceeds 230V, especially in cold weather conditions where voltage rises. Exceeding this limit will void the warranty and destroy the unit.
🔧 Intelligent Cooling System
Overheating is the enemy of electronics. Our controller utilizes an intelligent temperature-controlled fan combined with a porous heat dissipation structure to maintain peak performance.
Smart Thermal Management: The fan automatically activates when the internal temperature exceeds 45°C and shuts off once it drops below 40°C. This prevents overheating while eliminating unnecessary noise.
Industrial-Grade Bearing Fan: Unlike cheaper sleeve bearings, we use high-quality bearing technology designed for longevity, ensuring a service life of up to 5,000 hours under normal operating conditions.
Ideal For
Perfect for demanding environments including RVs, Campers, Marine Vessels (Boats/Yachts), and Off-Grid Solar Systems
【Fan Heat Dissipation】
Intelligence Fan-on temperature >45℃ and off < 40℃,Porous heat dissipation.and fan use BEARING technologies increase life UP TO 5000hrs in normal use. Suitable for RVs, Commercial Vehicles, Boats, Yachts, and Solar system.

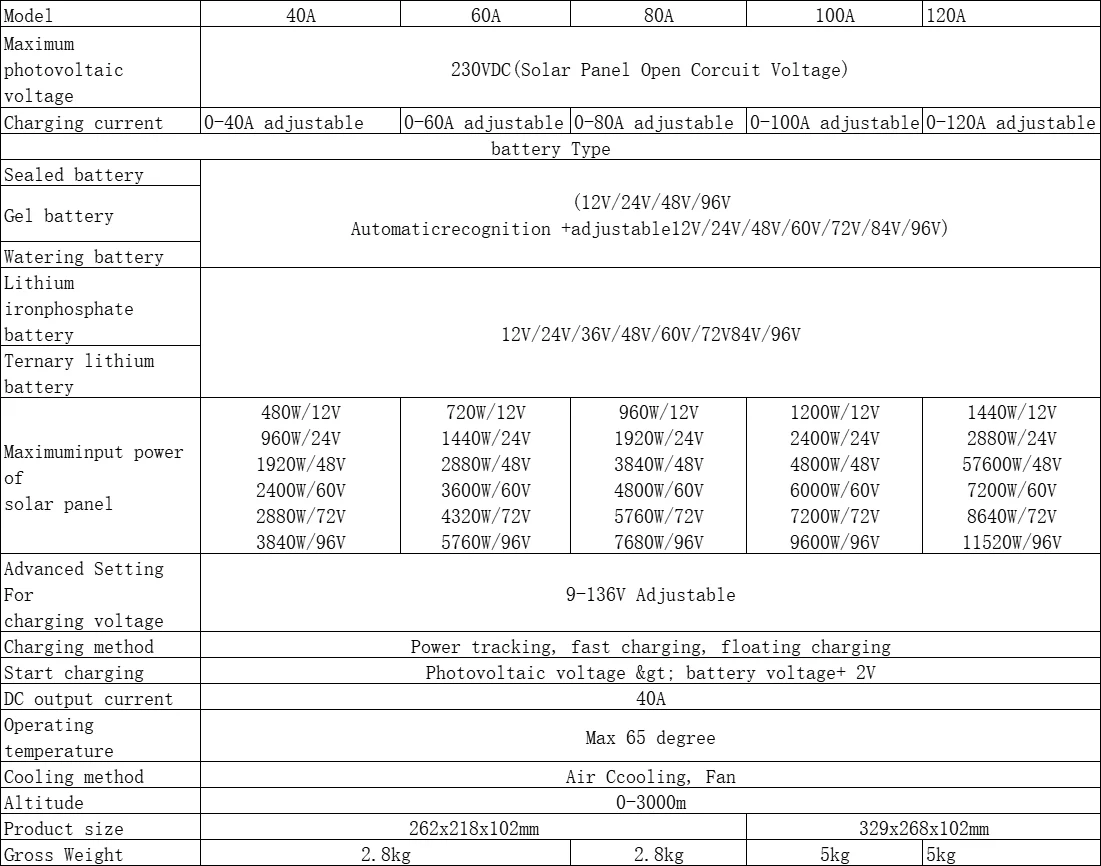

Model
40A
60A
80A
Maximum photovoltaic
voltage
230VDC(Solar Panel Open Corcuit Voltage)
Charging current
0-40A adjustable
0-60A adjustable
0-80A adjustable
battery Type
Sealed battery
(12V/24V/48V/96V
Automaticrecognition +adjustable12V/24V/48V/60V/72V/84V/96V)
Gel battery
Watering battery
Lithium ironphosphate
battery
12V/24V/36V/48V/60V/72V84V/96V
Ternary lithium
Maximuminput power of
solar panel
480W/12V
960W/24V
1920W/48V
2400W/60V
2880W/72V
3840W/96V
720W/12V
1440W/24V
2880W/48V
3600W/60V
4320W/72V
5760W/96V
960W/12V
1920W/24V
