MUCAR BT200 BT200 PRO Car Scan Tool OBD2 Diagnostic Tool Full System Diagnosis scanner for all car 15 Reset Code Reader

BT200 BT200 PRO SN(serial number):9TFD......

MUCAR BT200 BT200 PRO Popular Car OBD2 Diagnostic Tool

MUCAR BT200 diagnostic scan tool for all vehicles automotriz is a new generation of Mid-to-High End Bluetooth products which can realize online upgrade of diagnostic software to enhance Powerful diagnosis features.This Code Readers & Scan Tools supports Full OBD2/EOBD Test Modes on ENG (Engine System), Reads & Clears codes on All System Diagnosis, and the Live Data Stream in a graph for these ALL systems is available.

All Supported Car Brands Full System Diagnostic and OBD2 Functions Lifetime Free

BT200 All Cars 1 Year Free 2 Resets Service(OIL/SAS)

BT200 Pro Version All Cars 1 Year Free 15 Resets Service, after 1 year 15 reset $40/year From my Store

Why is BT200 printed on the packaging of BT200 PRO?

🔔Because BT200 and BT200 PRO are from the same series, their packaging is the same. You can check there is a label of 'BT200 PRO' on the side of the box.

Why Do You Need MUCAR BT200/BT200 PRO OBD2 Full System Diagnostic code reader

1. Support 12 Languages: Russian, English, French, German, Spanish, Italian, Portuguese, Japanese, Polish, Turkish, Greek, Traditional Chinese.

2. Support MORE CAR Models: Support Diagnosis More Than 122+ Car Brand, Continuous Upgrade.

IOS:9.0 or above

ALL System Diagnostic Function: All OBDII Cars Full System Diagnostic Lifetime Free, Version Upgrade Free.

MUCAR BT200 OBD2 Diagnostic code reader supports Full Systems OBD2 diagnostic function Permanently Free, can diagnose Full System such as ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, etc.

Check Engine System:BT200 Bluetooth diagnostic tool will read the fault codes, find the cause of the check engine light and point out the problems. This car scanner can show you the live data stream in a graph.

Diagnose ABS System: BT200 diagnostic scanner checks all ABS to retrieve DTCs, views the live data, and offers you specific info of pending codes.

Read SRS System:The BT200 code scanner reads the SRS information, detects existing problems to prompt a certain replacement or repair in time to ensure driving safety.

Transmission System: This car Bluetooth diagnostic tool reads diagnostic codes from the transmission system and detects whether the car’s speed and load match its transmission’s power output.

Tire Pressure Monitoring System: Identify whether the ID information stored in the electronic control unit is consistent with the tire pressure sensor ID to achieve communication and ensure vehicle safety.

OBD2 Scanner Diagnostic Tool Basic Scan Function (Permanent Free Update)

* Data Stream (Mode 1): This option retrieves and displays live data and parameters from the vehicle's ECU.

* I/M Readiness (Mode 1): An important part of a vehicle’s OBD II system is the Readiness Monitors, which are indicators used to find out if all of the emissions components have been evaluated by the OBD II system.

* Display Freeze Frame (Mode 2): When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer.

* Read Codes (Mode 3): This option is used to identify which part of the Engine emission control system has malfunctioned.

* Clear Codes (Mode 4): After reading the retrieved codes from the vehicle and certain repairing, you can use this function to erase the codes from the vehicle. Before performing this function, please make sure the vehicle’s ignition key is in the ON position with the engine off.

* O2 Sensor Test (Mode 5): The results of O2 sensor test are not live values but instead the results of the ECU’s last O2 sensor test. Not all test values are applicable to all vehicles, not all vehicles support the Oxygen Sensors screen.

* On-board monitor Test (Mode 6): This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.

* EVAP System Test (Mode 8): The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. The tool does not perform the leak test, but signals to vehicle's on-board computer to initiate the test. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

* Vehicle Information (Mode 9): This option displays the vehicle information, such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration Verification Number).

* Turn off MIL (Malfunction Indicator Lights)

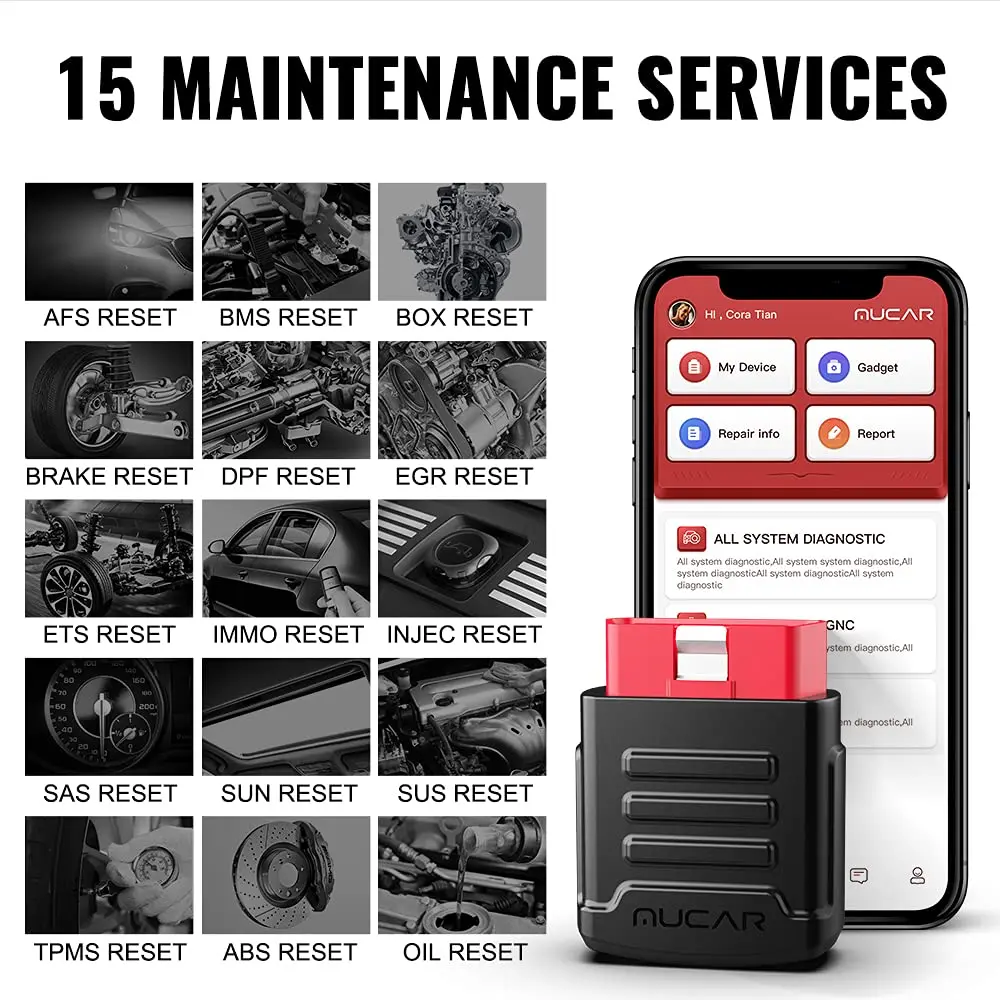

15 Maintenance RESET Functions (BT200 2 Resets: Oil and SAS Resets Free 1 Year,BT200 PRO 15 Resets Free 1 year)

1. Oil Lamp Reset Service

allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB Service

it is important in the maintenance of electronic braking system's safety and efficiency.

3. BAT Battery Service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF Service

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS Service

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS Service

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system

9. Sunroof Reset

The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies

10. Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off

11. Gearbox Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programing method of the TCU / ECU drive the car.

12. AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel

13. Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off

14. Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

15. EGR Adaption

This function is used to learn the EGR valve after it is cleaned or replaced.

Support Diagnosis More Than 122+ Car Brand, Continuous Upgrade.

MUCAR BT200/Bt200 Pro is compatible with most American, European, and Asian models manufactured as from 1996. It supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN (Controller Area Network). If you don't know your car OBD2 protocols that you could check your car OBD2 connector whether 16 Pin. If yes. This goods support to your car.

1.American Car list

Need standard obd2 and release year from 1996-now

Chrysler, Ford, GM, Jeep, Lincoln, Buick, Cadillac, Chevrolet, Dodge, HM, ect...

2.European car list

Need standard obd2 and release year from 2000-now

Mercedes Benz, Smart, Sprinter, BMW, Volkswagen, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Ford, Land Rover, Jaguar, Aston Martin, Bentley, Rolls-Royce, Rover, Mini, Vauxhall, DR, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Peugeot, Citroen, Renault, Saab, Volvo, GM, GMSA, Dacia,Seat, ect...

4. Japanese / Korean car list

Need standard obd2 and release year from 2008-now

Honda, Acura, Toyota, Scion, Lexus, Mazda, Nissan, Infiniti, Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, Samsung, Daewoo, Hyundai, Kia, ect...

5. Chinese car list

Need standard obd2, and release year from 2014 -now

Great Wall, Huachen, DF Honda,Lifan, ect...

for example(Audi,A3, 2020)

Support 12 Languages

English,French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Turkish, Greek, Traditional, Chinese

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
