MUCAR CDE900/CDE900 PRO OBD2 Auto Diagnostic Tool car Scanner Tools full system 28 reset Code Reader Scan Tool 2+32G WIFI Update

You can choose from the link

CDE900 PRO+4 system, CDE900 PRO+ full system, CDE900 PRO+28 reset,CDE900+4 system

(You can also buy CDE900/CDE900 PRO for matching,Highly Recommended Softwares Package, no Annual Fee)

MUCAR CDE900 Pro car scan tool provides optional software package to unlock more features.

1.Single car model (full system, 28 reset,ECU Coding, bi-directional ) for 59.95USD

2.Full model,Full System Diagnostics for 99.95USD

3.Full model,28 RESET Function for 79.95USD

4.Single reset -15.95 USD

Lifetime free upgrade after purchase, no renewal fee

(Option with full system only full system diagnostic,no 28 reset function)

(Option with full system/28 Reset only full system diagnostic/28 reset function,no special function-ECU Coding-Active test)

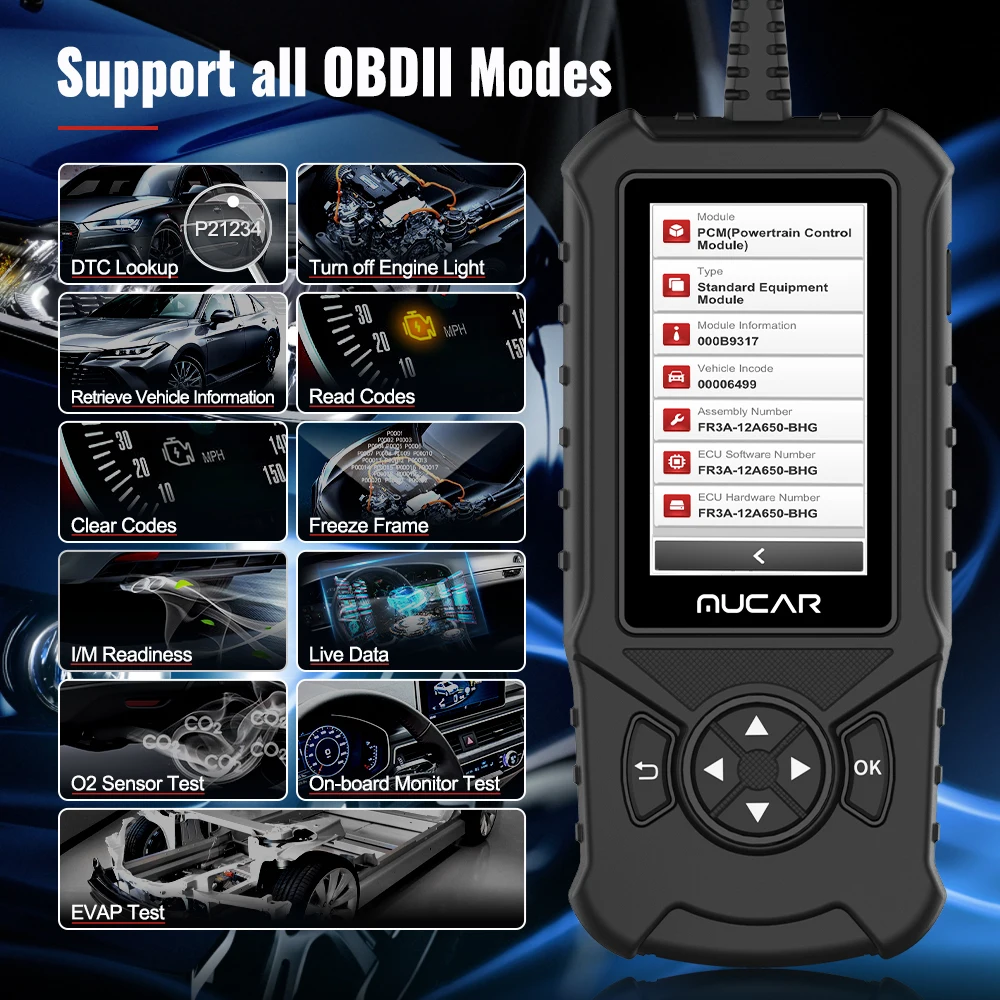

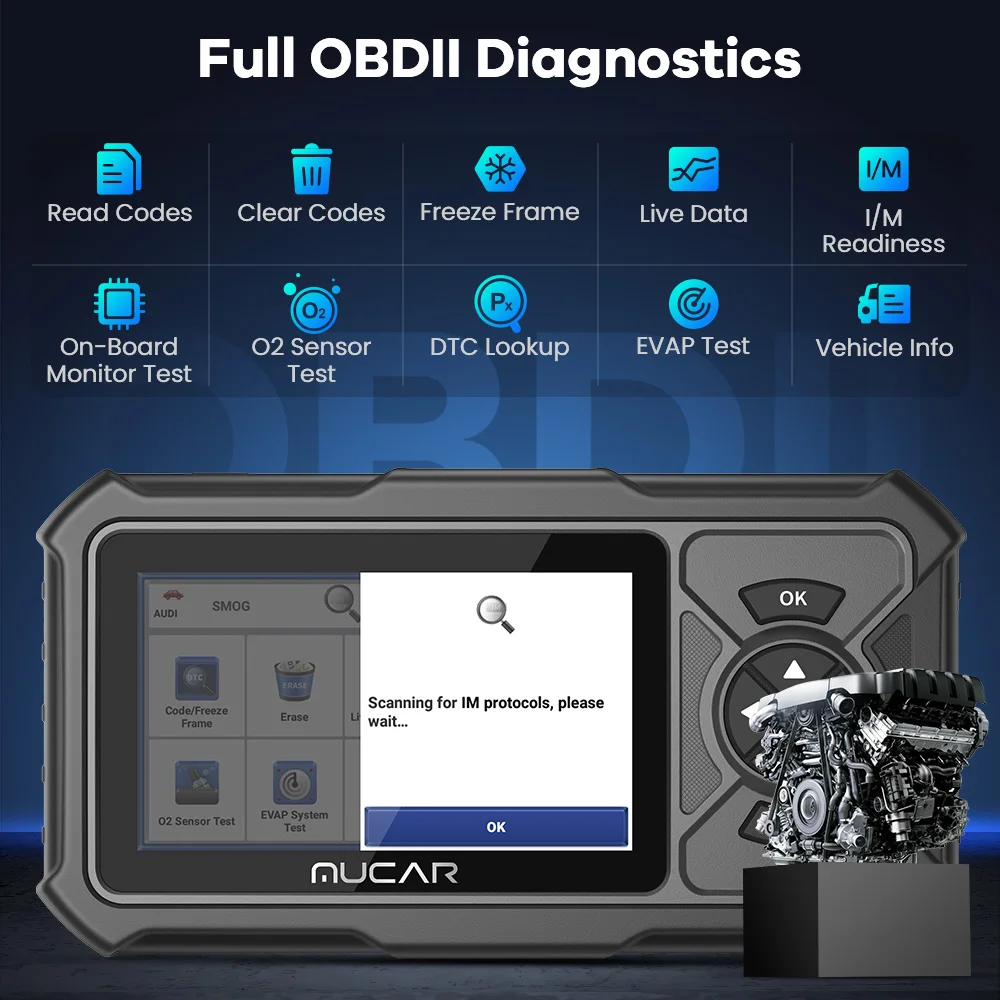

Read Codes—Request emissions-related diagnostic code

Clear Codes—Clear/reset emissions-related diagnostic information.

Live Data---Request current powertrain diagnostic data.4 data streams can be merged in 1 graph for easier comparison.

Freeze Frame—Request freeze frame information. Find the data at the time of the car failure.

O2 Sensor Test—Request oxygen sensor monitoring test results.

On-Board Monitor Test—Request on-board monitoring test results for specific monitored systems.

I/M Readiness—Request emission-related diagnostic trouble codes detected during current or last completed driving cycle

EVAP Test—Start the leak test of the vehicle's EVAP system (This tool does not perform the leak test, but sends a signal to the vehicle's on-board computer to start the test.)

One-Touch Auto VIN—Automatically identify the vehicle, and match the proper diagnostic software to run fast and precise car diagnostics.

DTC Lookup—Fault code library, you can inquire the cause of the car fault represented by the fault code with one key.

Big screen: 5-Inch Touch DH Display

Large memory: 2+32GB, Support TF Card:≤256G

Powered by battery: 3150MAH

Operating System: Android 6.0

Lifetime ree Update: One-Click Wifi Upgrade

21 languages menu supports: English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Dutch, Hungarian, Slovak, Greek, Romanian, Slovenian, Croatian, Polish, Traditional Chinese, Arabic, Korean, Turkish Czech, CzechMUCAR CDE900 PRO Support All Systems Diagnostics

This option allows you to detect whether the system parameters are normal or not.

Include: ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System,Oil Service System, SRS System,DPF System ，Air Conditioning System，Transmission System, ect...

Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.

1.ECM (Engine System) Diagnose

You can diagnose the engine system via ecu obd2 port, support all 10 OBDII test modes, such as live data, O2 sensor test, component test and more;read and clear the engine error codes, find out the exactly problem, repair it, and turn off the MIL engine light.

2.ABS (Anti-lock Braking System) Diagnose

By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.

3.SRS (Airbag) Diagnose

By detecting every electronic parameters in SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Airbag.

4.TCM (Transmission System) Diagnose

AT is a set of transmission used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. MUCAR CDE900 PRO obd2 scanner can read/clear codes and view live data retrieve the error information from AT.MUCAR CDE900 PRO (28 Special Service Function)

*Not all vehicles support all reset functions. For example, ODO reset and IMMO key programming can only be used for some models. Please send vehicle model and year to customer service for inquiry.

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming

When replacing the ignition switch key, ignition switch, combined instrument panel, engine control unit (ECU), body control module (BCM) and remote control battery, IMMO key matching is required.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning
