NEEBRC 2322 2600KV Brushless Motor AM32 45A ESC 21g Servo 7CH Transmitter 6 Pin Receiver for 1/12 RC Car Crawler MN99S MN78 MN82
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.6★ from 52 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NeebRC
- Sales: 92
- Package size: 22 × 17 × 11 cm
- Package weight: 0.554 kg
- Rating: 4.6 / 5
Before adding to cart, choose an available option and check the quantity.
NEEBRC 2322 2600KV Brushless Motor AM32 45A ESC 21g Servo 7CH Transmitter 6 Pin Receiver for 1/12 RC Car Crawler MN99S MN78 MN82
Note: Due to AM32 parameters, if the ESC switch is turned on, the motor will only make two drops without a long drop. It is not that the motor does not work, but that the ESC switch does not recognize the central position of the remote controller. It is necessary to fine tune the TH/TRIM central position. It can be operated when a long drop sound is made when adjusting back and forth.
Features
Applicable vehicle models: MN82 MN99S MN168 MN78
The receiver has been upgraded and does not require a light control adapter. It can be directly plugged in, perfectly adapting to the MN series models.
Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
After modification, low-speed torque compensation, better linearity, easy to climb
Specification
2322 2600KV Motor Specification
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Number of teeth: 10T

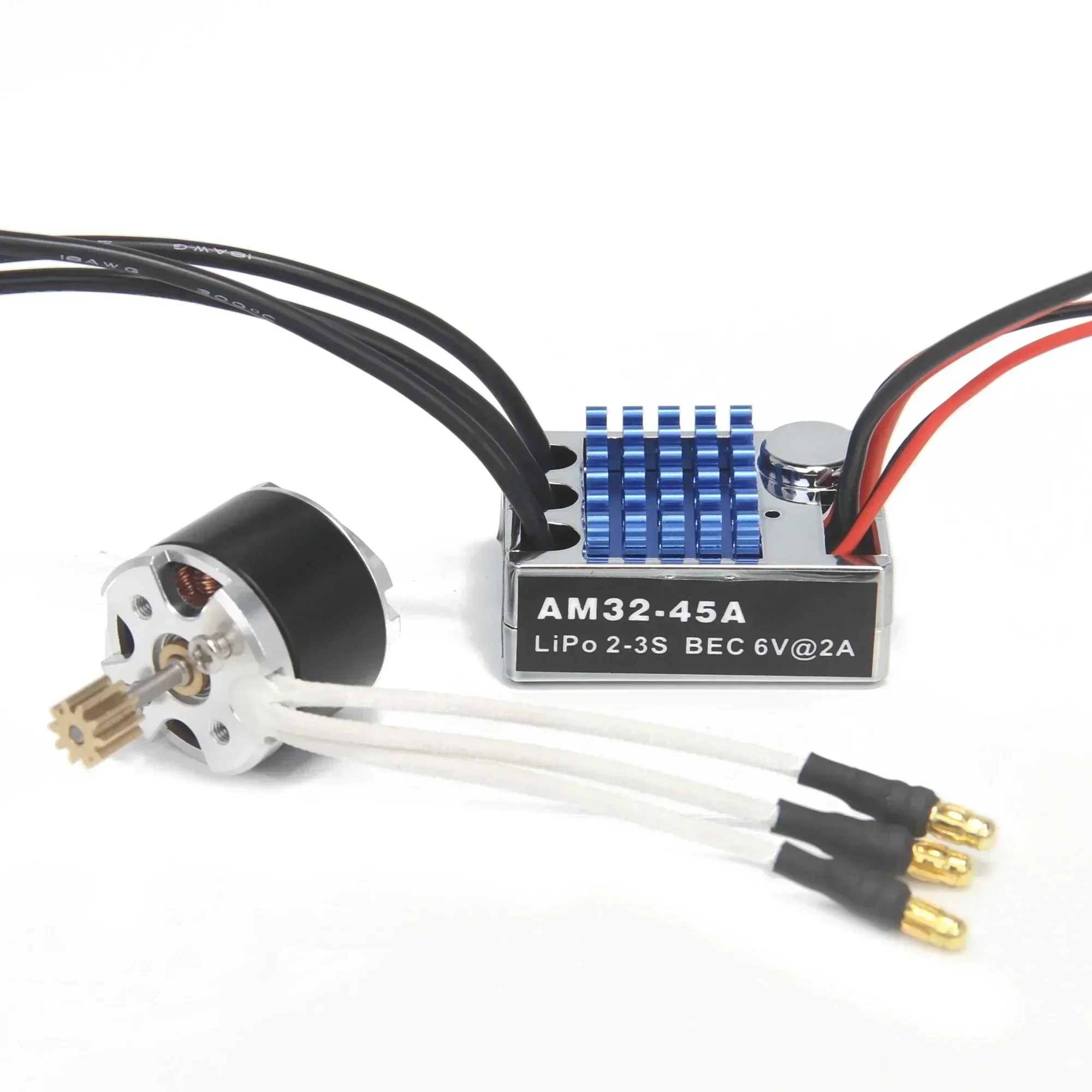

AM32 45A ESC Specification
1.Voltage:7.4-11.1V
2.Lipo:2S
3.Battery Connector:SM3.0
4.Compatible motor:2322 2600KV
5.Size:38.5*28*18.5mm
6.Suitable car: MN82 MN99S MN168 MN78
7.Case Material: Plastic

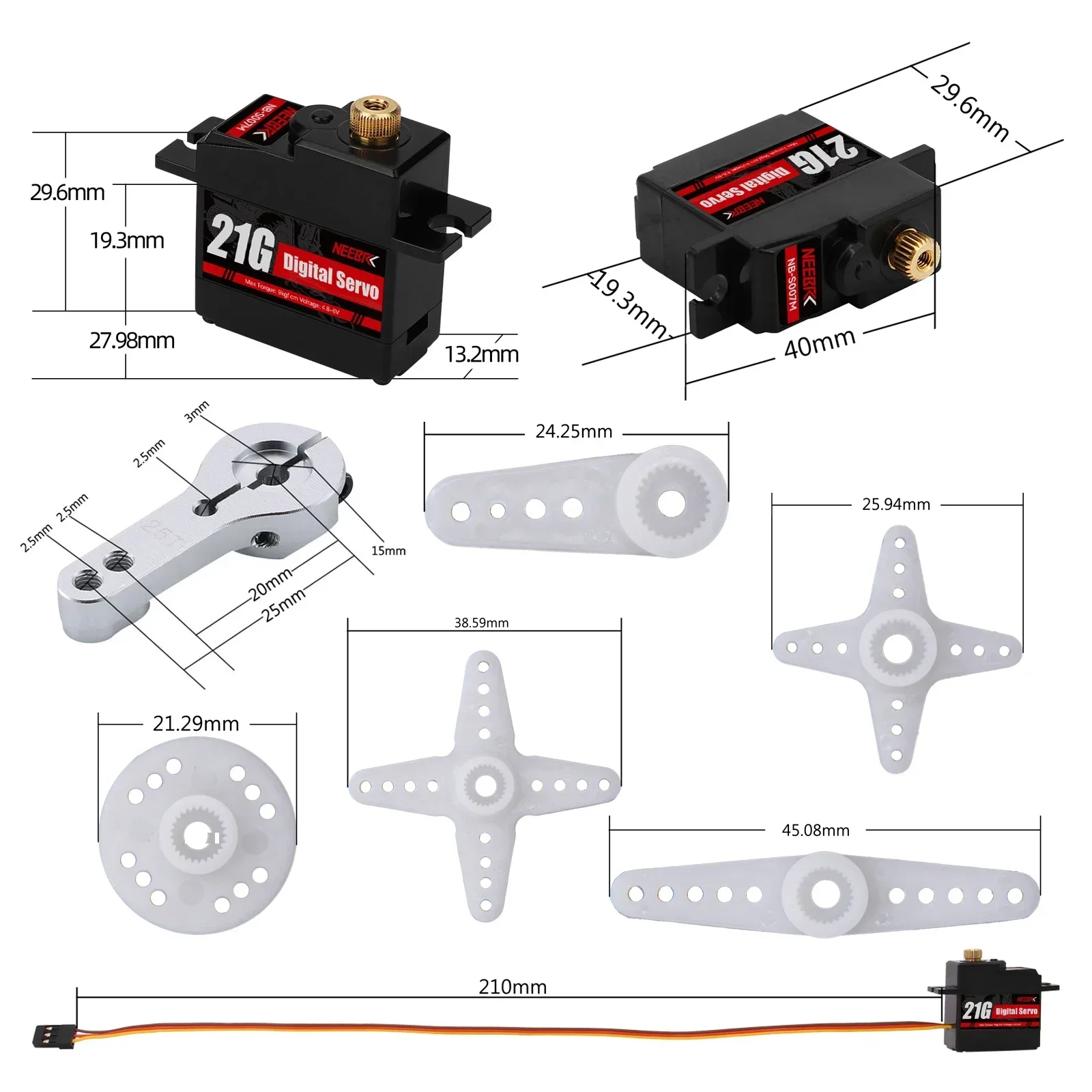

21g Servo S007M Specification
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications
Item name: NEEBRC NB-S007M
Quantity: 1pcs
Operating Voltage: 4.8~6.0V DC
Max. Torque: 9kgf·cm
No Load Speed: 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦1500mA;6.0V≦1800mA
Consumption Current* (No Load):4.8V ≦200mA;6.0V≦210mA
Max. Operating Travel Angle:180°±10°(500-2500μs)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material: Metal gear
Horn Gear Spline: 25T/Φ5.77
Weight: 20.7 g
Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 250±5mm (exposed without plug)
7CH Transmitter&Receiver
Features And Functions

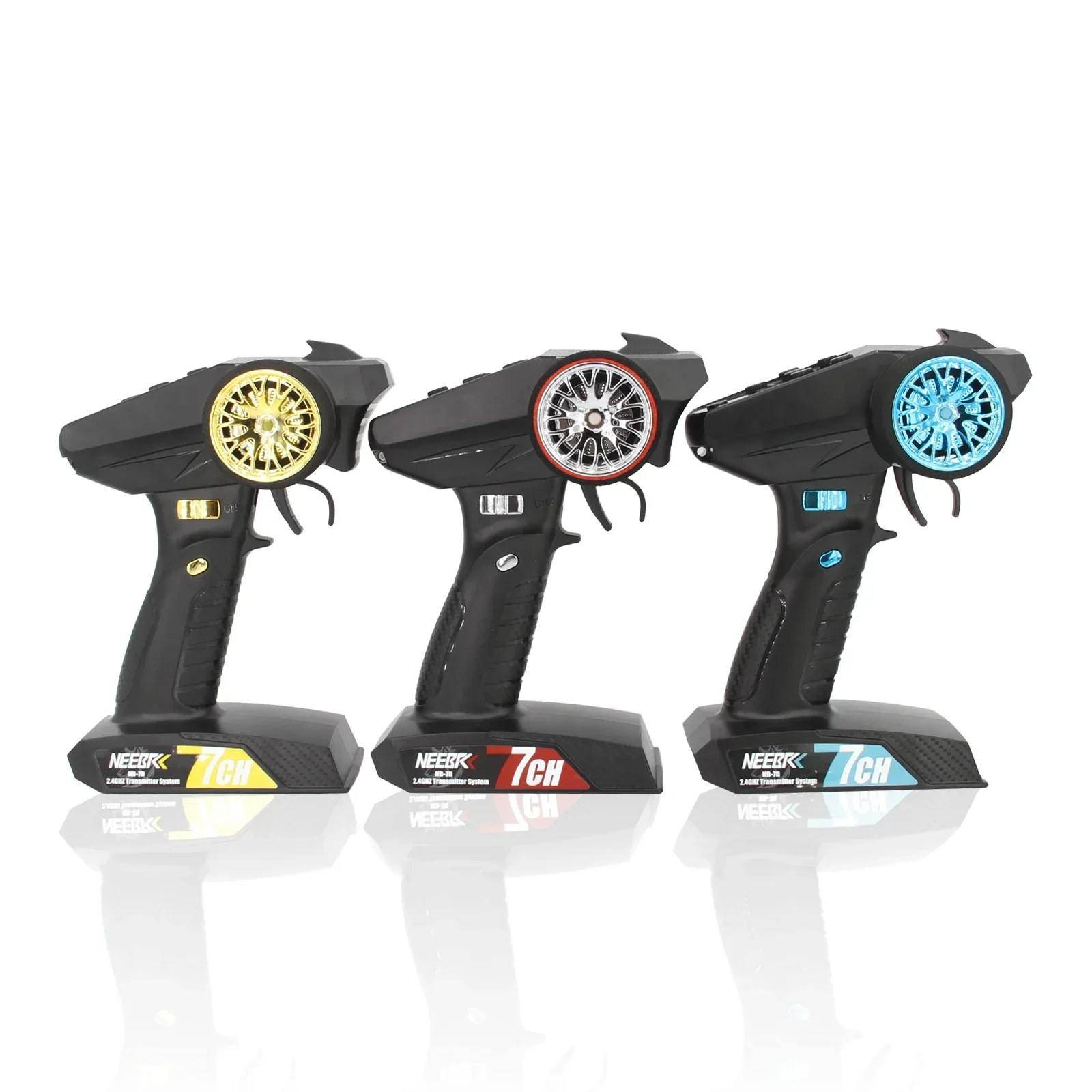

Transmitter Specification
Product Model:NB-7D
Wheelhandle Color Optional:Blue/Red/Gold
Channel: 7
Model Type:RC Car/Boat
RF:2.4GHz
RF Power
Code Type: GFSK
Sensitivity:1024GB
Distance: >150m(ground)
Battery:6V DC 1.5AA*4
Working voltage:4.2-6V
Antenna Type: Built-in single antenna
Low Voltage Warning
Color:Blue
Size: 143*90*192mm
Weight: 228g
Certification:CE FCC
