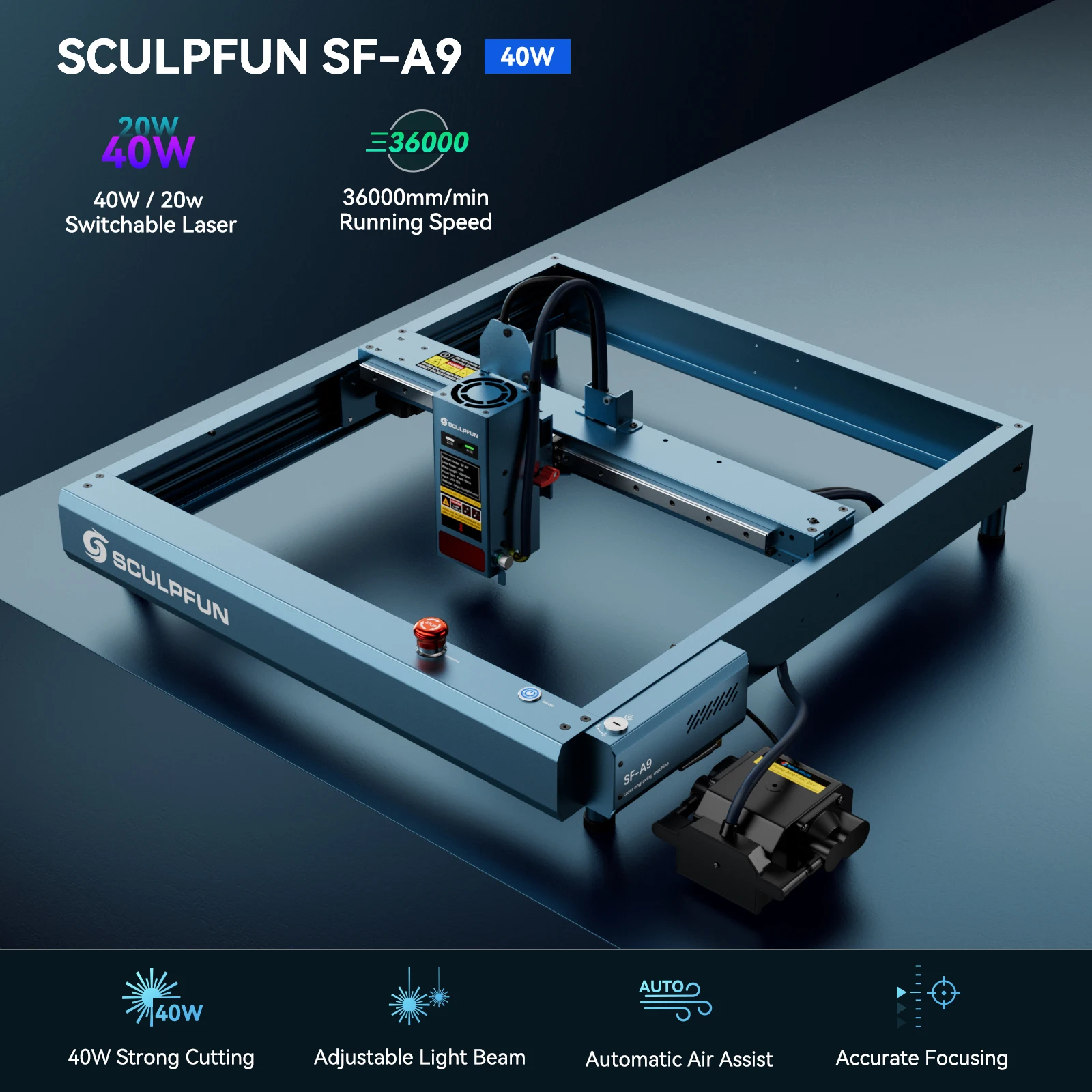

New Sculpfun A9 40W Laser Engraver Cutting Machine Ultra-fine Laser Spot Automatic Air Assist Flame USB/BT/WiFi 400x400mm

Features

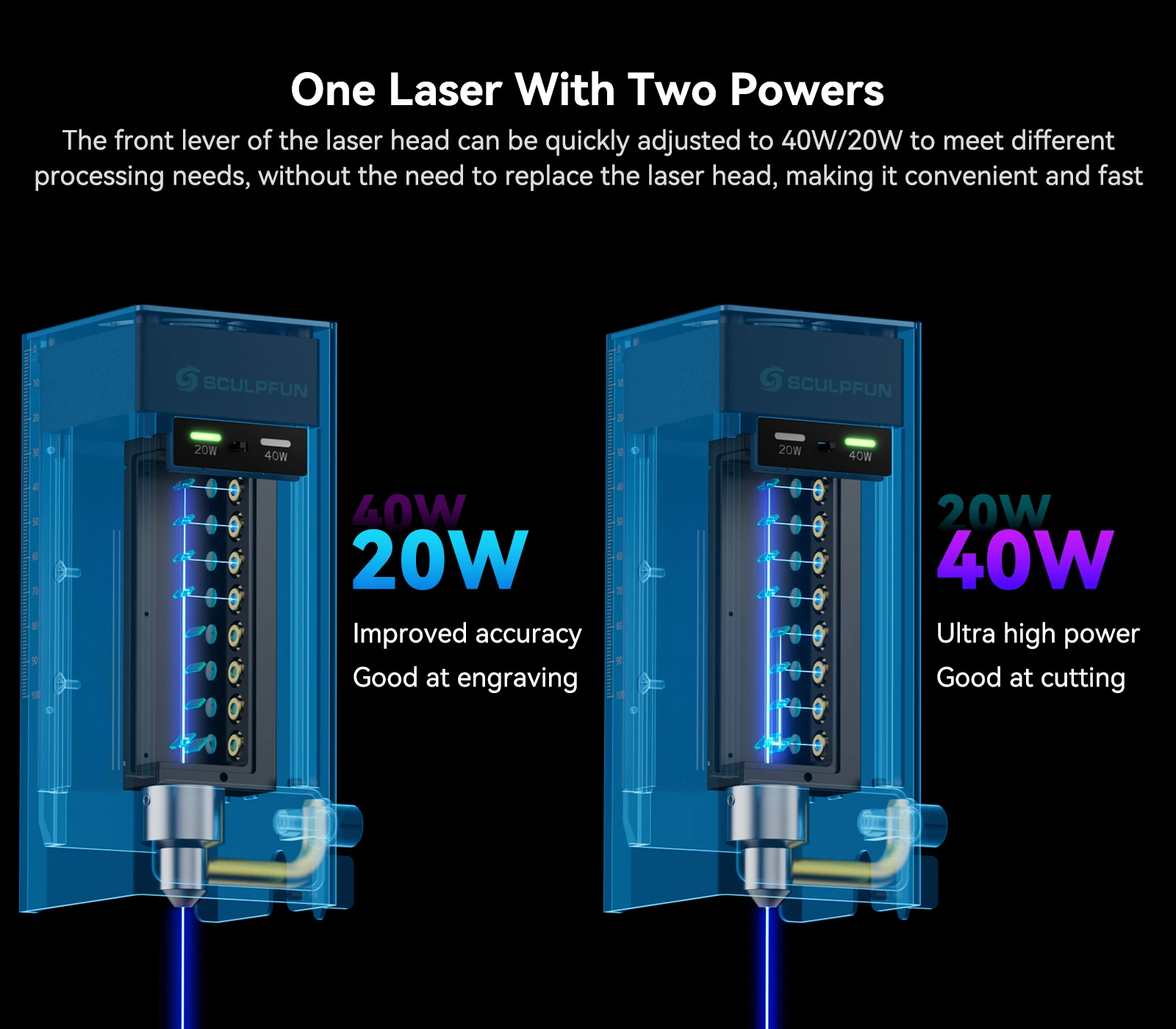

🔝 40W Powerful Laser: SF-A9 adopts the 40W laser head with a strong cutting ability, and supports the 40W/20W laser power switching, which can cut 20mm plywood and 6mm dark acrylic at one pass time. It uses the heat pipe radiator to provide a faster and more balanced heat dissipation performance.

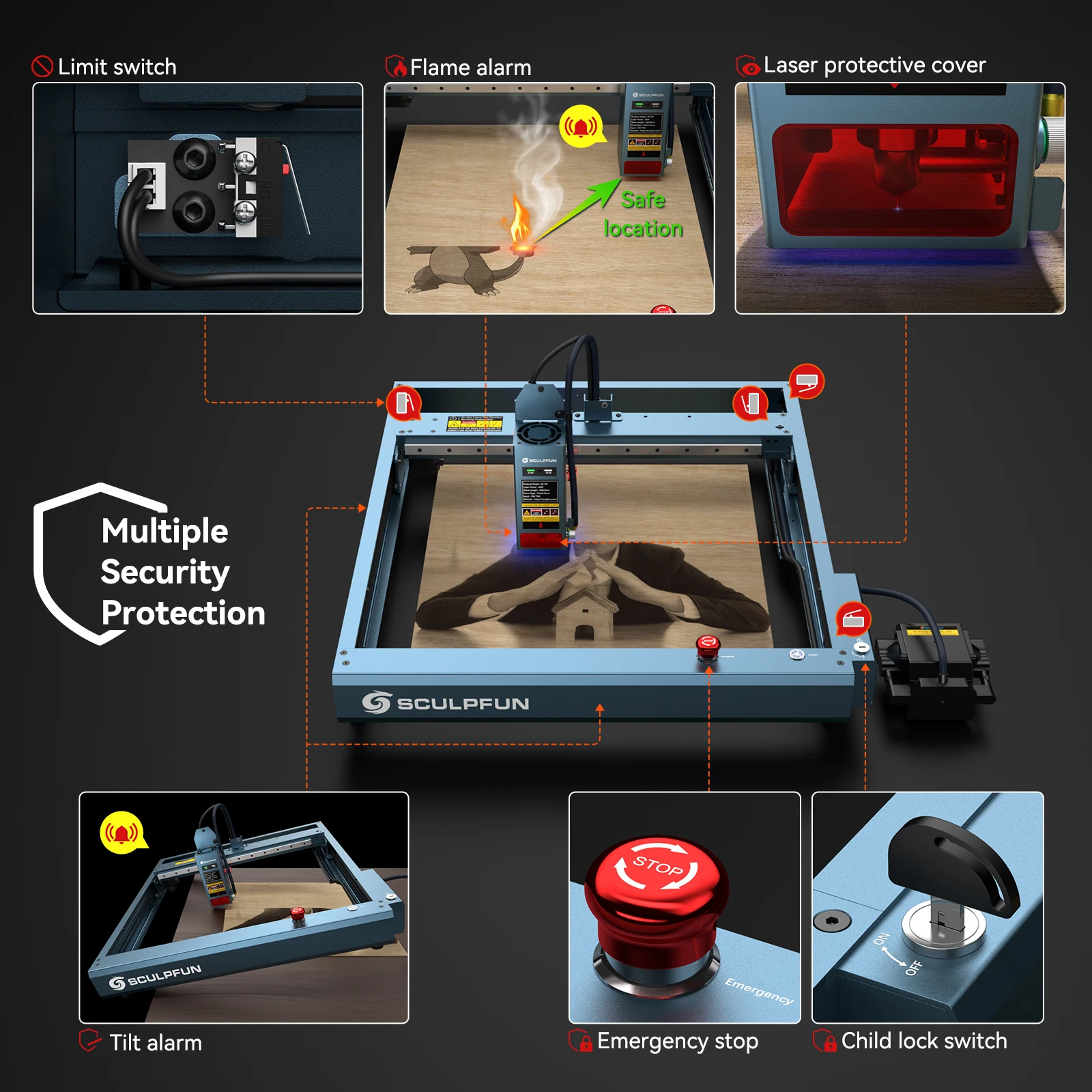

🔝 Safety Protection Design: Built with a tilt sensor, it will set off an alarm and stop emitting the laser light while the machine body is off-balance and tilts over 15°. It is also equipped with the functions of emergency stop and child safety lock switches, flame and temperature sensors. When it detects the flames during the working process, the flame and temperature sensors will be triggered and the machine will stop working with an alarm while automatically moves to the safest location.

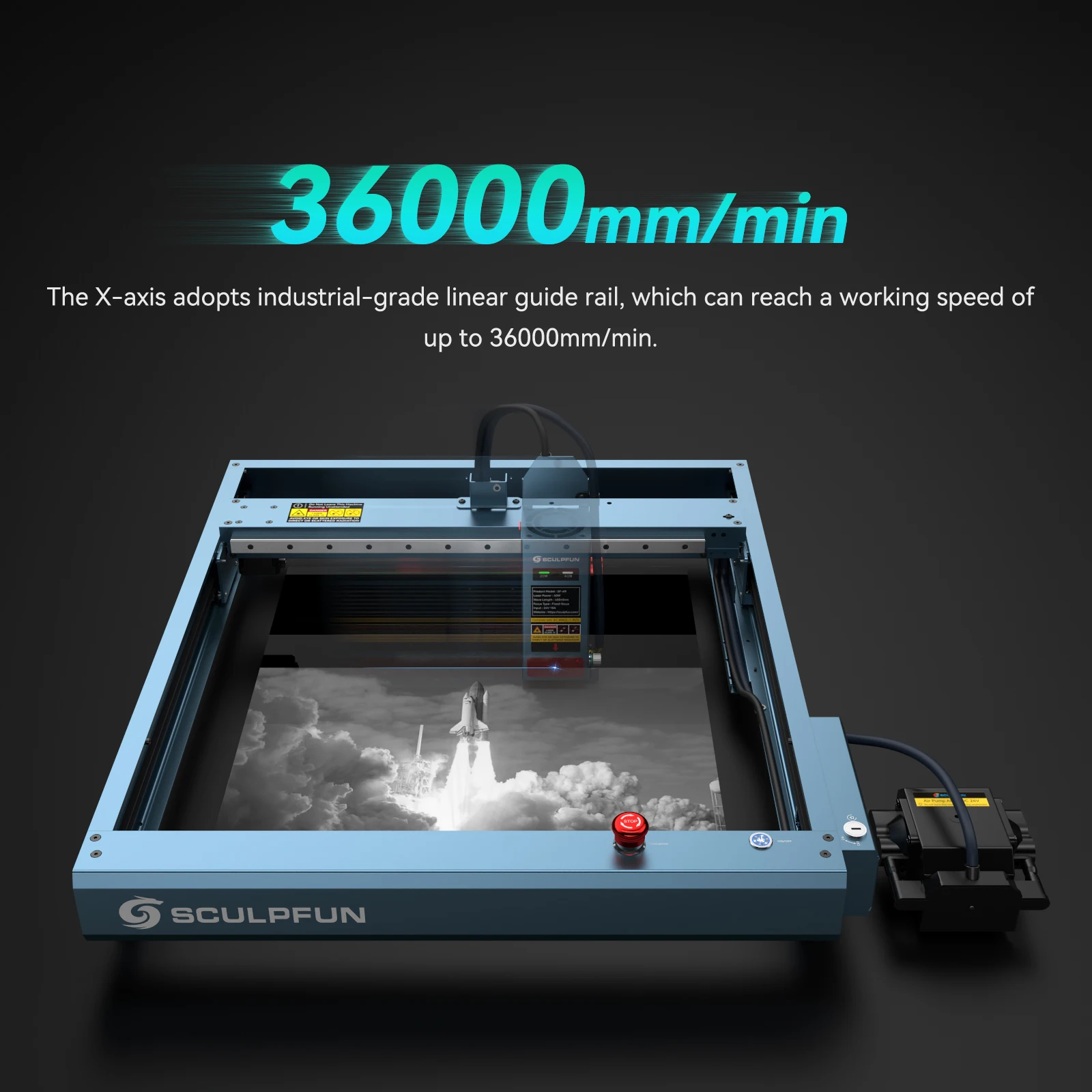

🔝 36000mm/min High Speed: The SF-A9 laser engraving machine supports the high speed engraving mode with a faster working speed of up to 36000mm/min as well as a stable machine body to bring a perfect engraving effect. And it supports precision mode to cut more accurately for a better components' assembly.

🔝 Precise Focusing Design: Designed with a most precise focusing, the focus lever on the laser head is stable that enables the focusing position more accurate. The red knob on the right side of the laser is to raise or lower the laser module for the quick height positioning according to the material's thickness, and the knob on the top of the laser is for the precise adjustment.

🔝 Sturdy and Easy Installation: Full metal structure design makes the machine robust. The levelling structure of the metal support pillar and the industrial-grade linear guide rail of the X-axis provide more stability to the machine, which increases the engraving motion accuracy to 0.01mm. Y-axis utilizes adaptive wheels to provide a more smooth motion. Easy installation in one step to complete the entire assembly.

🔝 Adjustable Machine Height: The Sculpfun SF-A9 comes with the additional metal support pillars that can adjust the height of the machine to facilitate the engraving of higher objects, meeting a variety of working needs.

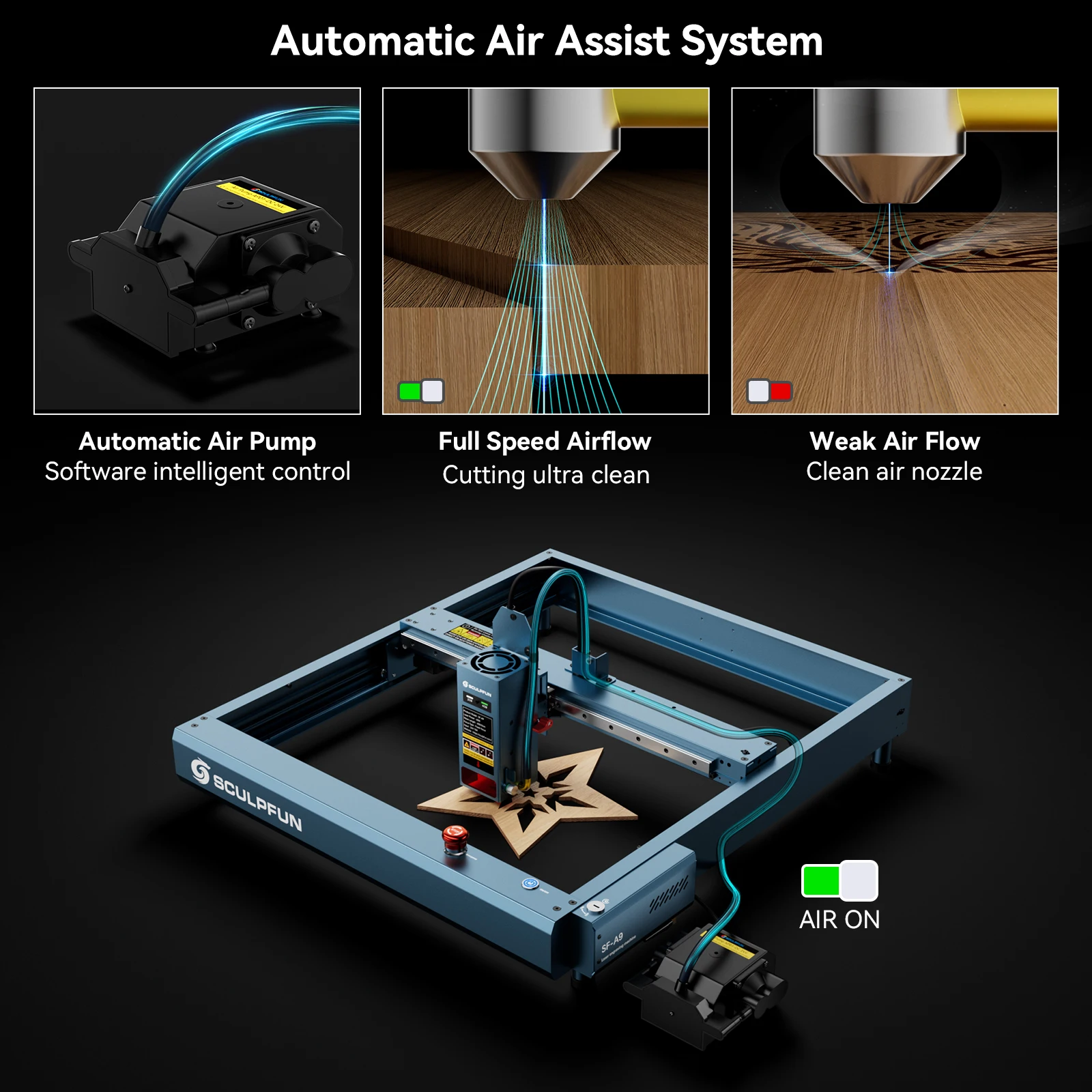

🔝 Automatic Air Assist: Upgraded large inner diameter air pipe with a better air channel design that can present a cleaner cutting effect and improve the service life of the laser lens.

Specification

Product Model: Sculpfun SF-A9

Flame Alarm: 60℃ trigger

Tilt Sensor: 15° trigger

BT: 4.2

Wi-Fi:2.4Ghz

Wavelength: 450nm±5nm

Working Area: 400*400mm

Laser Module Power: 40W

Laser Spot: Adjustable:0.1mm/0.15mm

Working Speed:MAX.36000mm/min

Working Voltage: DC24V

Working Current: 10A

Input Power: 240W

Support System: Win7/Win8/Win10/Win11/MAC/IOS/Android/Linux

Material for Engraving:Cardboard, MDF, Felt, Cardboard, Wood, Bamboo, Leather, Fabric, Dark Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc

Material for Cutting: Cardboard, MDF, Felt, Cardboard, Wood, Bamboo, Leather, Fabric, Dark Acrylic, etc.

Operation Application Software

Computer: LightBurn/LaserGRBL

Package Weight: 11.2kg/24.69lb

Package Size: 715x665x150mm/28.1x26.1x5.9in

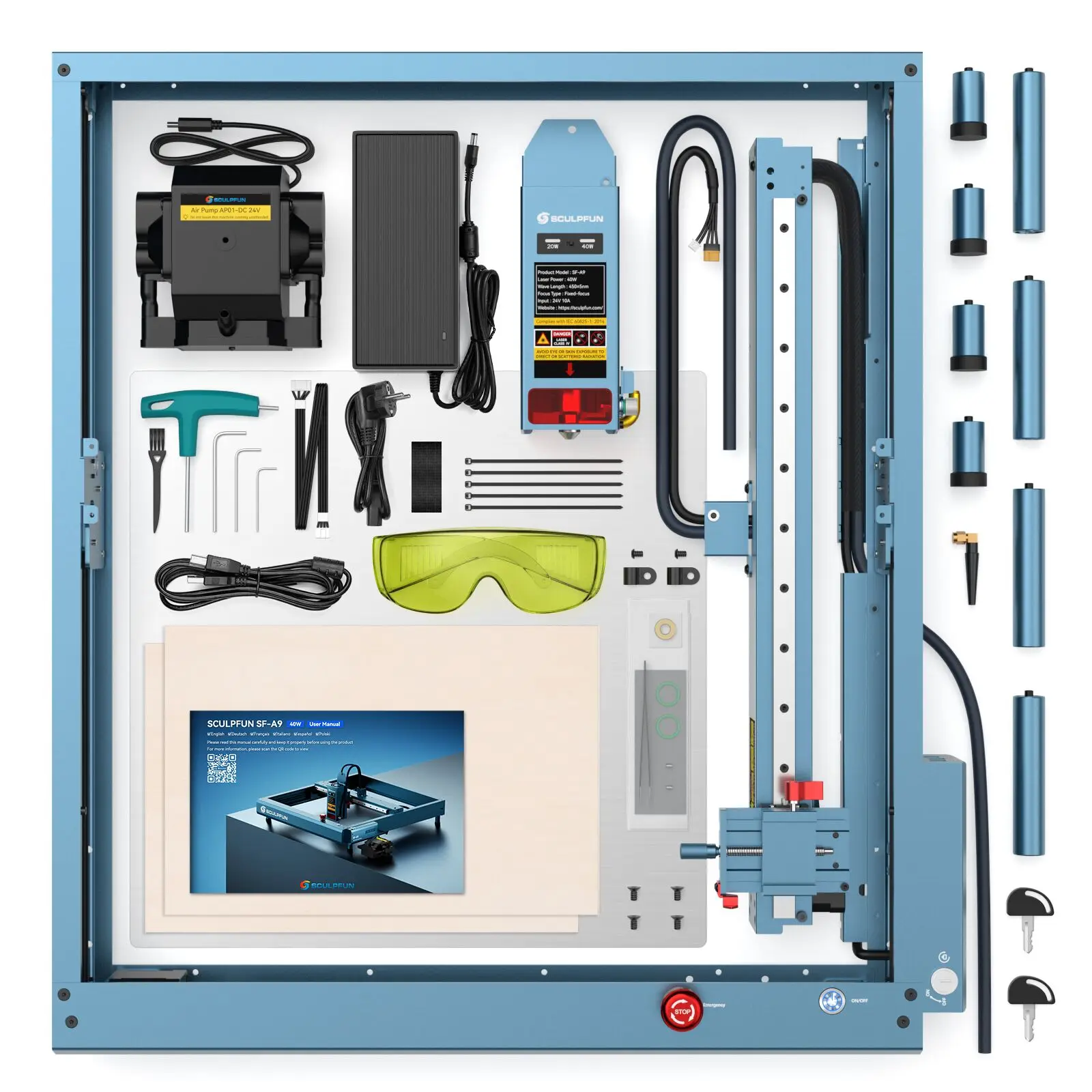

Packing List

1 x Laser Machine

1 x Laser Head

1 x Adapter

1 x Power Cable

4 * Metal Support Pillar

4 x Spare Metal Support Pillar

1 x Type-C Data Cable

1 x Air Pump

1 x Goggles

1 x Lens Repair Kit

1 x Tool Set

1 x Cable Tie Pack

1 x Antenna Pack

1 x Screw Kit

1 x Aluminium Plate

2 x Basswood Board

2 x Key
