PD3.0 140W Schnellladegerät Desktop-Auto-TELEFON Laden Multiprotokoll 12V 24V auf 5V 9V 12V 15V 20V TYPE-C USB DC Buck Converter
Rückgabe- und Erstattungsrichtlinie
Berechtigte Artikel sind durch Rückgabe- und Erstattungsunterstützung abgedeckt. Wenn der Artikel nicht ankommt oder nicht der Beschreibung entspricht, kann der Käufer Hilfe anfordern.
Sicherheit und Datenschutz
Sichere Zahlungen: Wir geben Ihre persönlichen Daten nicht ohne Ihre Zustimmung an Dritte weiter.
Geschützte persönliche Daten: Wir schützen Ihre Privatsphäre und bewahren Ihre persönlichen Daten sicher auf.
AI-Angebot für Ihren Markt
Empfohlene Auswahl basierend auf Kategorie, Versandroute, Liefergeschwindigkeit und Beliebtheit in Ihrem gewählten Markt.
Warum dieses Produkt zu Ihrem Markt passt
- • Geschätzte Lieferung: 7.
- • Starkes Kundensignal: 5.0★ aus 4 Bewertungen.
- • Die Empfehlungen konzentrieren sich auf diese Kategorie und Ihre Marktverfügbarkeit.
Produktspezifikationen
Detaillierte Produktbeschreibung
Dieses Produkt wird mit verfügbaren Optionen, Preis für den ausgewählten Markt und geprüften Spezifikationen angezeigt.
- Marke: DykbRadio
- Herstellerland: China
- Verkäufe: 17
- Paketgröße: 15 × 18 × 4 cm
- Paketgewicht: 0.04 kg
Wählen Sie vor dem Hinzufügen zum Warenkorb eine verfügbare Option und prüfen Sie die Menge.

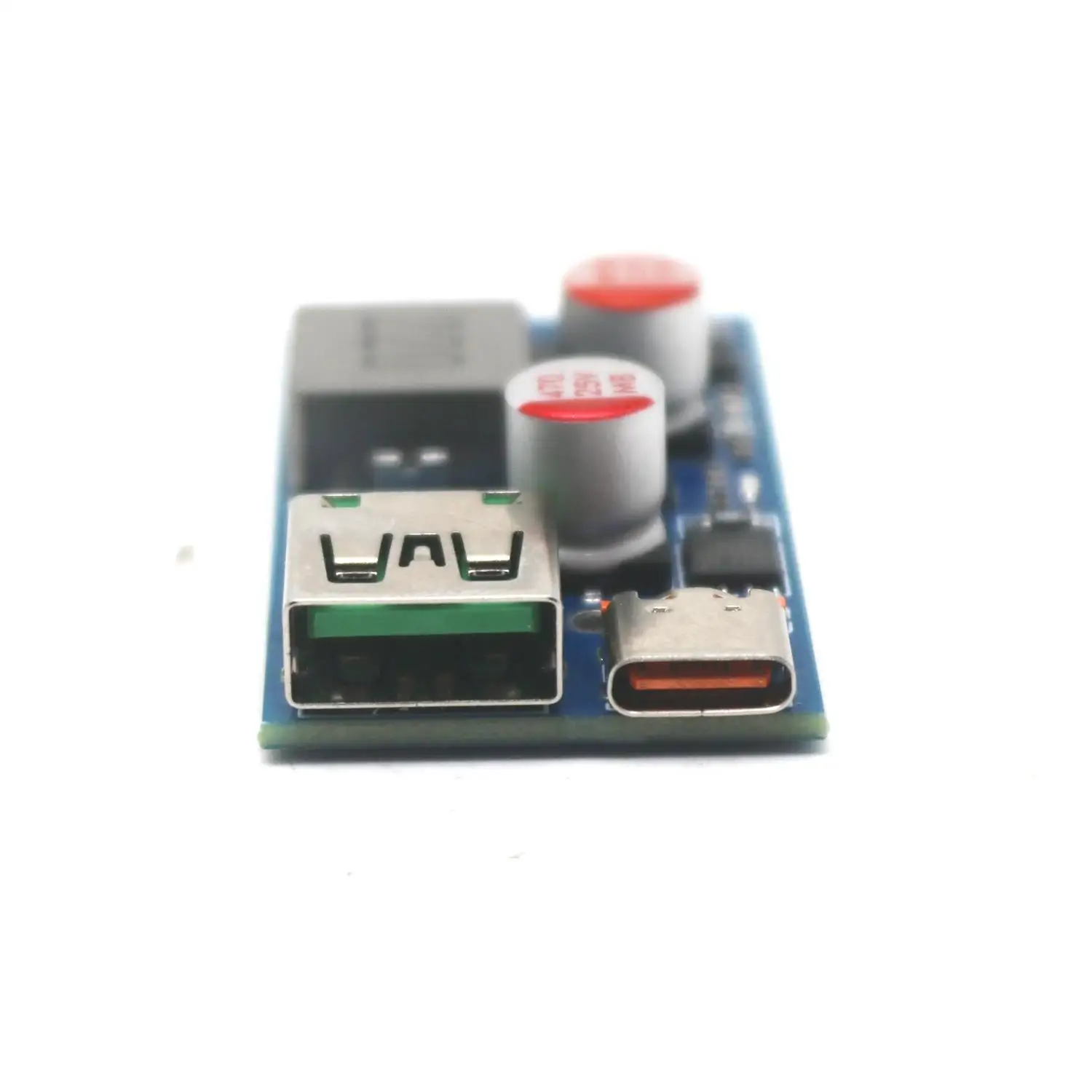

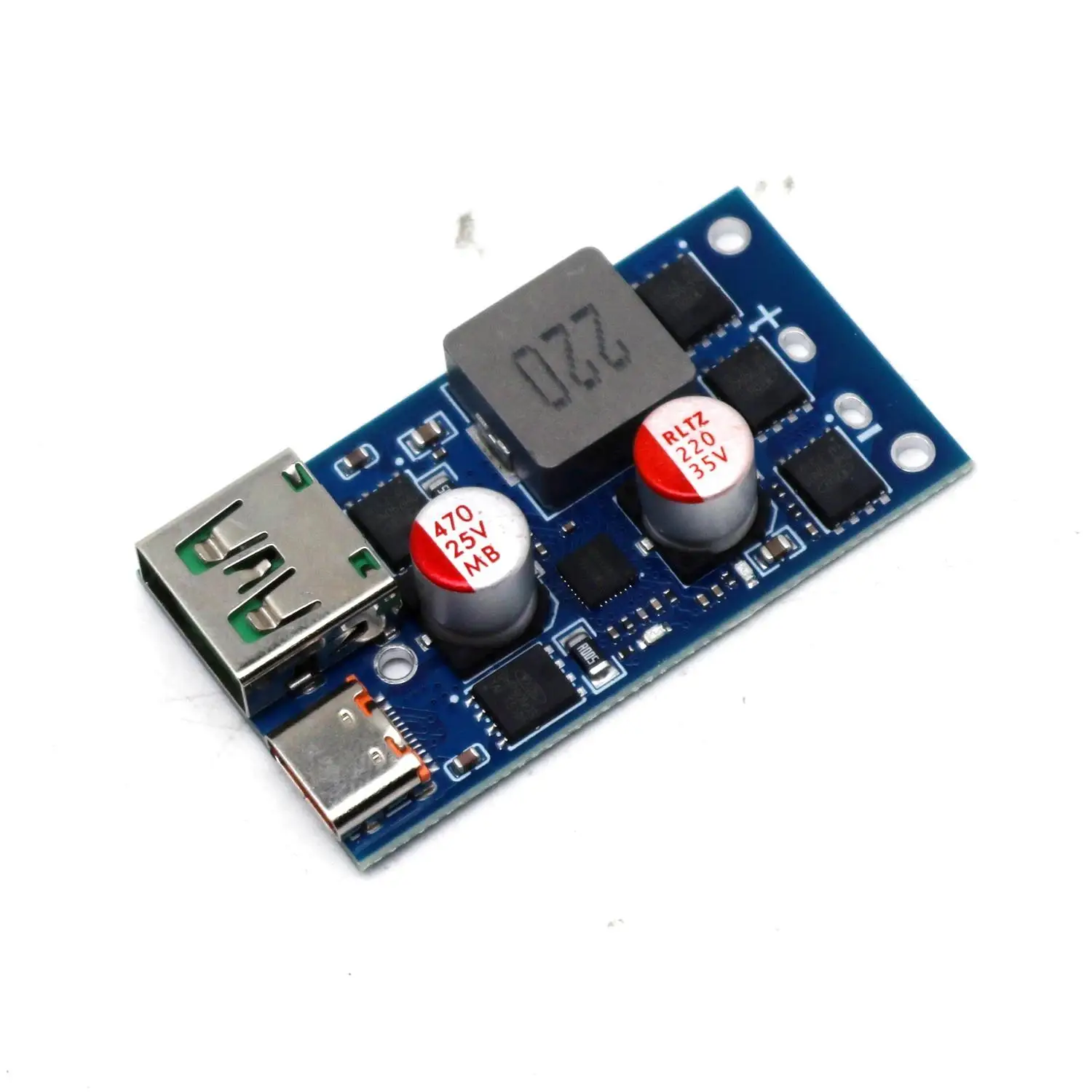

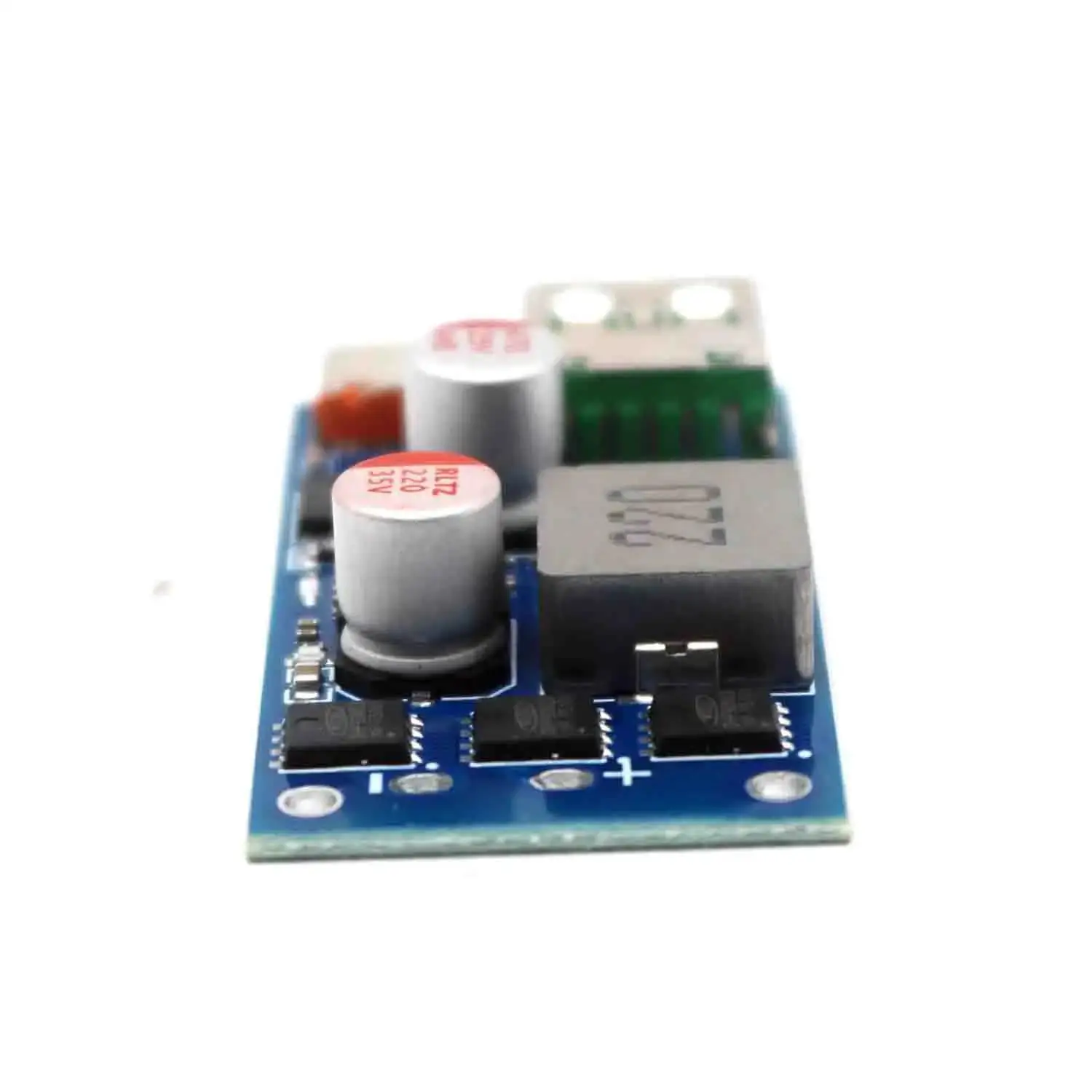

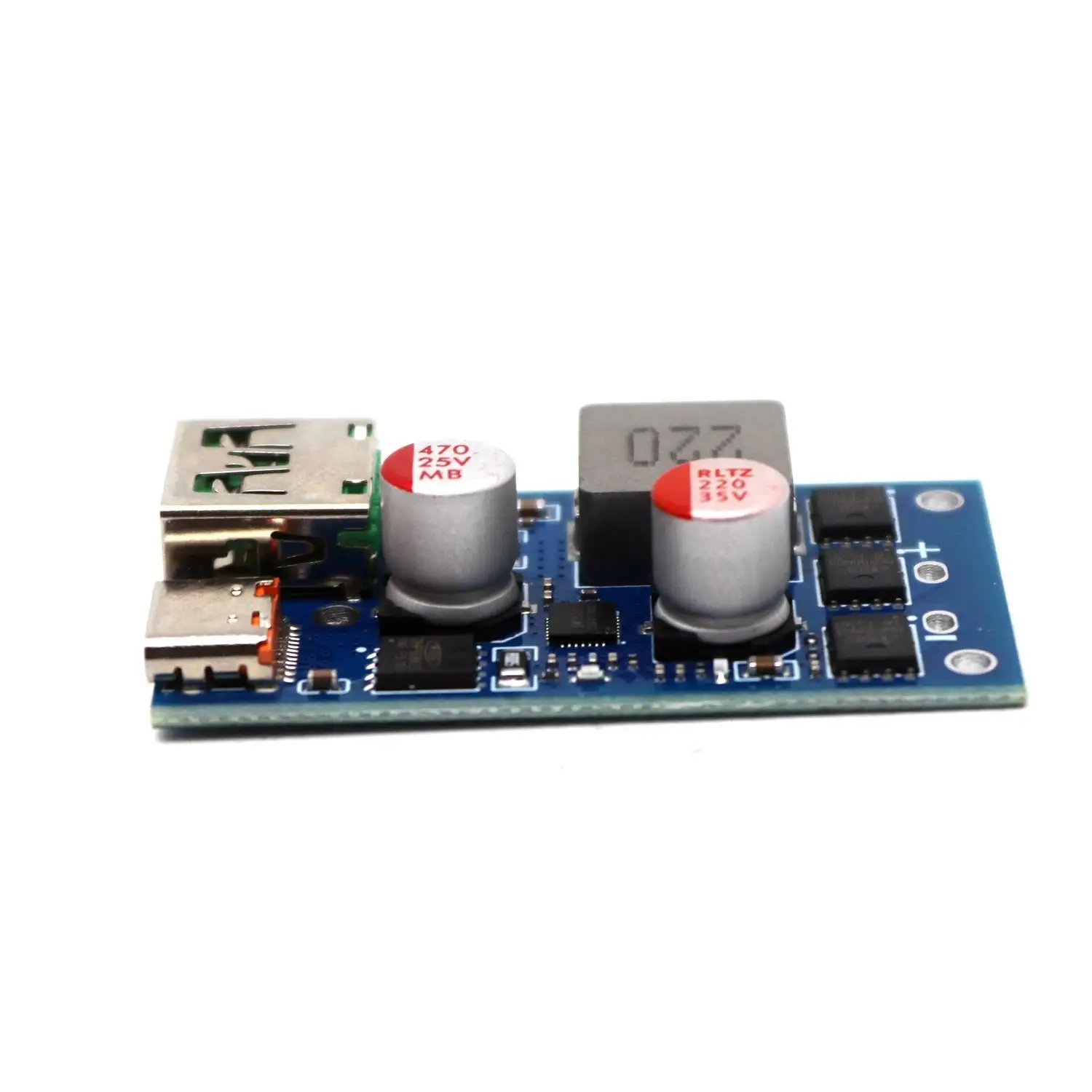

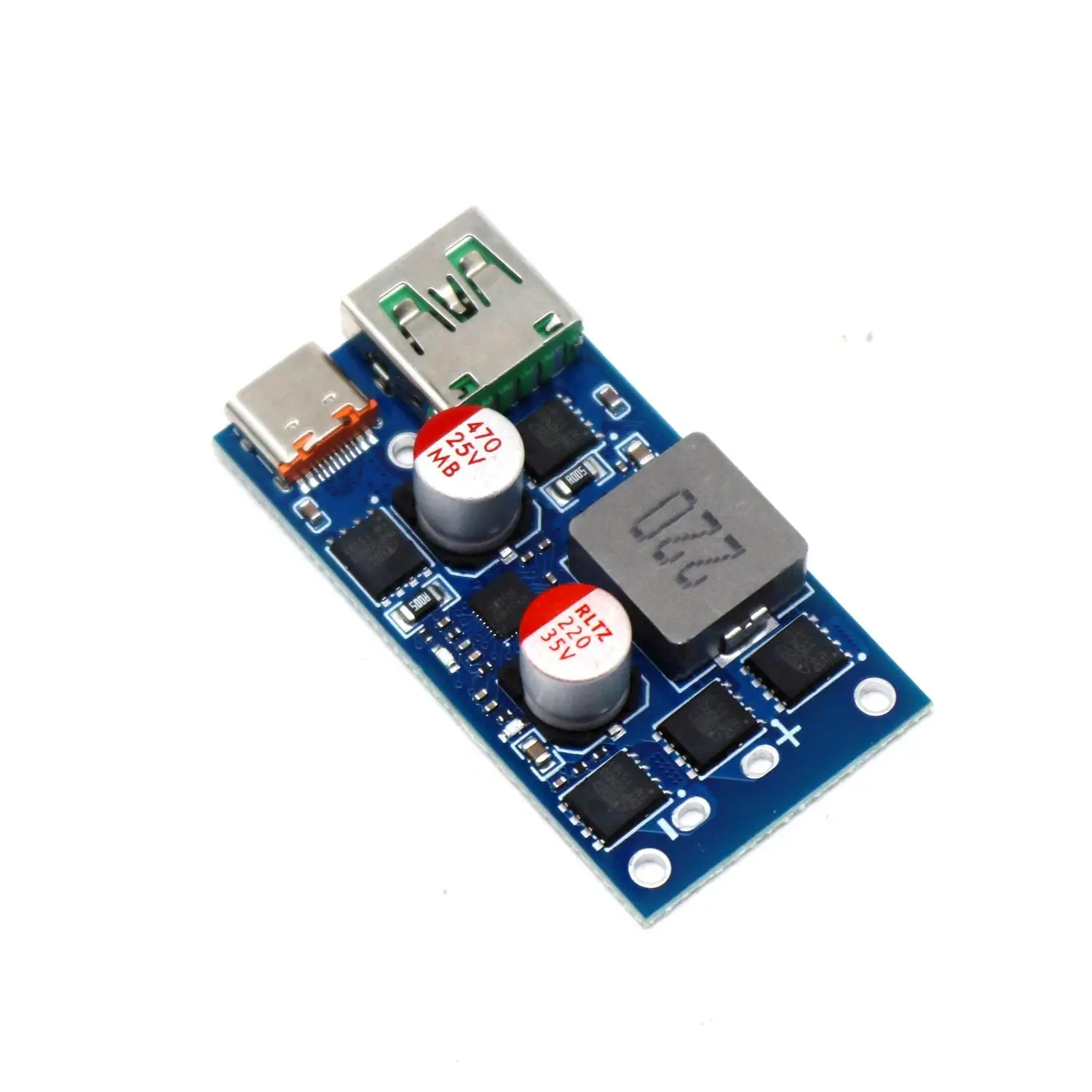

PD3.0 140W 20V 7A Fast Charging Converter Desktop Car Charger High-power TYPE-C USB Charger QC4.0+/5.0 PD PPS FCP SCP
This product is a step-down module... The input voltage should be greater than the output voltage 1.2v requires 20V output. The input voltage should be greater than 21v(24V recommended)
Product selling points
1. Supports fast charging protocols such as QC4+/PD3.0/PPS, and is compatible with mainstream devices
2. Up to 140W, meeting the fast charging needs of high-power devices such as laptops/phones
3. DC6-30V input, suitable for various power supply scenarios such as in car/power supply
4. Aluminum substrate (fast heat dissipation, safer for car use)
5. Multiple protection mechanisms for input overvoltage, undervoltage protection, output overcurrent, short circuit protection, etc
6: Reverse connection protection (positive and negative poles connected incorrectly will not burn)
Product parameters
Input voltage: DC6-30V
Suggested input parameters: DC20V 7A
PCB SIZE: 50x27mm
Input/output type: only supports output (battery power is not recommended)
Output interfaces: USB-A and USB-C
·Fast charging protocol
Support PPS/PD3.0/PD2.0
Support QC5/QC4+/QC3+/QC3.0/QC2.0- Support AFC
Support FCP
Supports high and low voltage SCP - Supports PE2.0/PE1.1- Supports SFCP
Support TFCP - Support VoOc
PD/SCP/V00C supports MCU
Module input method issue
This module can be understood as a charger that integrates multiple protocols, but cannot be connected to AC power. To use it, a DC power supply (power adapter) is required. It is recommended to use a 24V DC power supply. If a 100W output is needed, considering a lifespan of 20%, a 24V 5A power supply is chosen; A 24V10A power supply is required for a 200W output
Output power issue
Due to being a voltage step-down module, the output of the module should be greater than the input by 1.2V. Since 140W is the 20V7A of PD protocol, only voltages greater than 21.2V can achieve full power output
Battery power supply issue
Problem of simultaneous output of port A and port C
Single channel A and C ports can output simultaneously, but without fast charging, they are allocated as 5V2A/5V2A when outputting simultaneously
matters needing attention
