SURPASS HOBBY Brushless Motor for RC Fixed-wing Plane FPV Racing Drone Quadcopter
The original SURPASS brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for RC airplane fixed-wing.
Features
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion

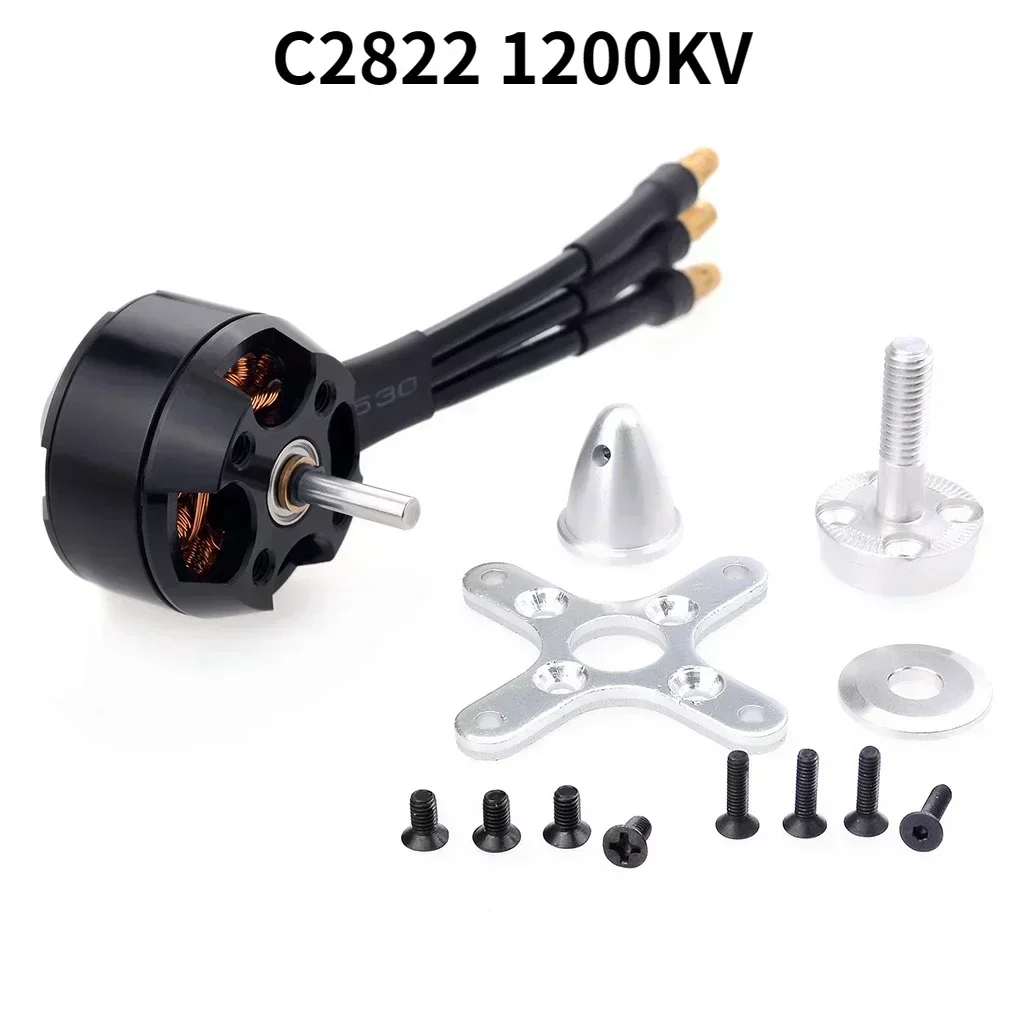

2204(C2822)
KV(RPM/Volt): 1200KV/1400KV Optional
Voltage range: 7-15V
Max amps: 11A
IO: 0.4A
Resistance: 0.368
Motor size: Ø28 * 22mm
Staror size: 2204
Recommended propeller: 7.5 * 3.5 / 8 * 4 / 9 * 5
Connector: 3.5mm golden banana connector
Weight: 28.1g
Suitable for: 100-350g airplane

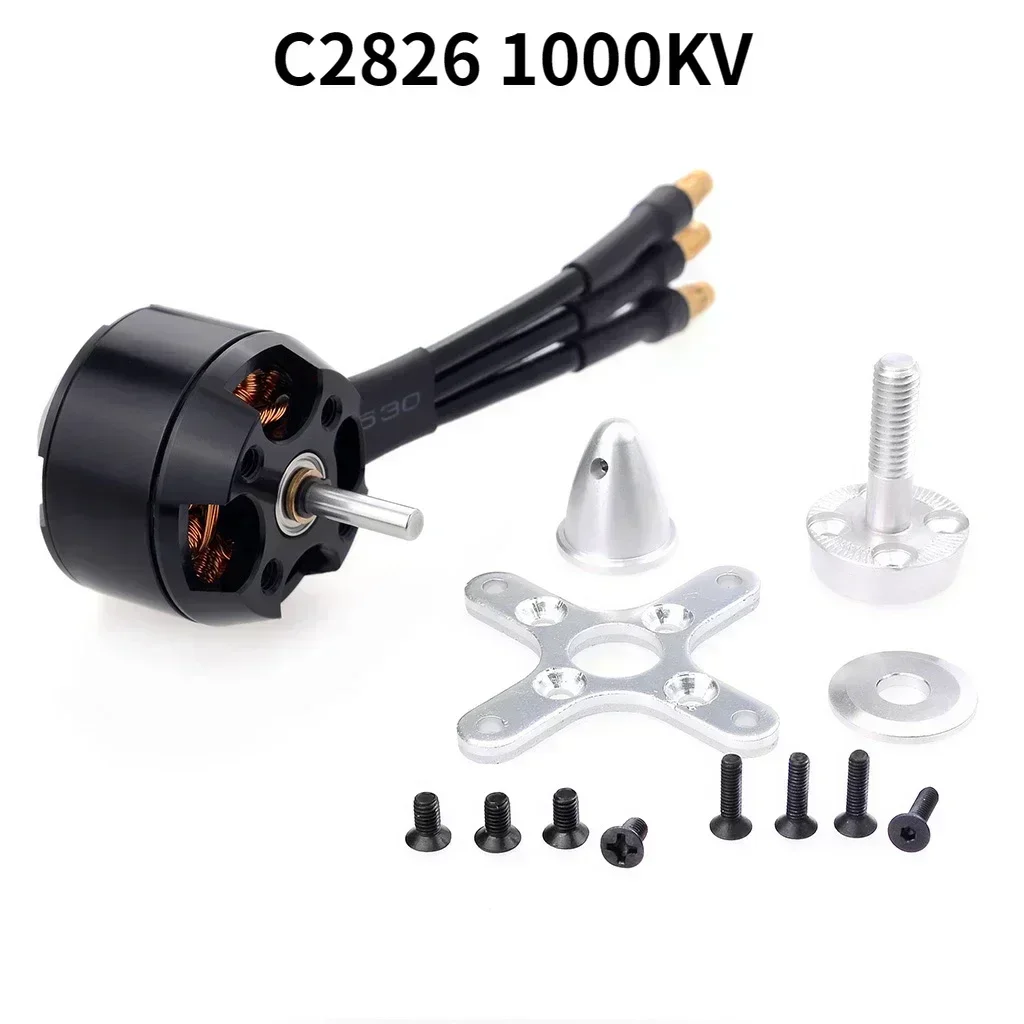

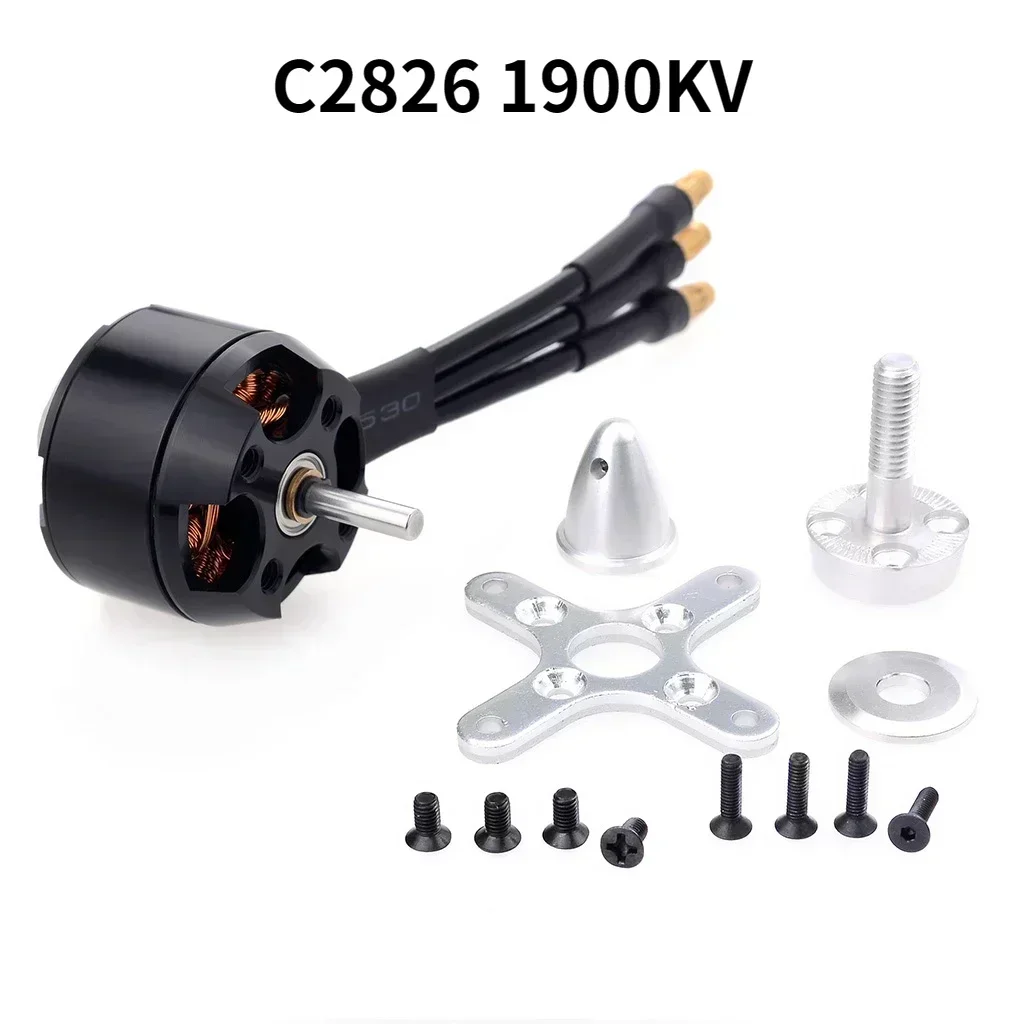

2208(C2826)
KV(RPM/Volt): 1000KV/1350KV/1900KV Optional
Motor type: Out-runner brushless
Voltage range: 7-12V
Max current: 24A
Rotor poles: 14
No load Current: 0.8A
Resistance: 0.097
Motor Size: ￠28 * 26mm
Stator size: 2208
Motor weight: 40.6g
Recommended prop: 8*3.8/7*4
Connector: 3.5mm banana

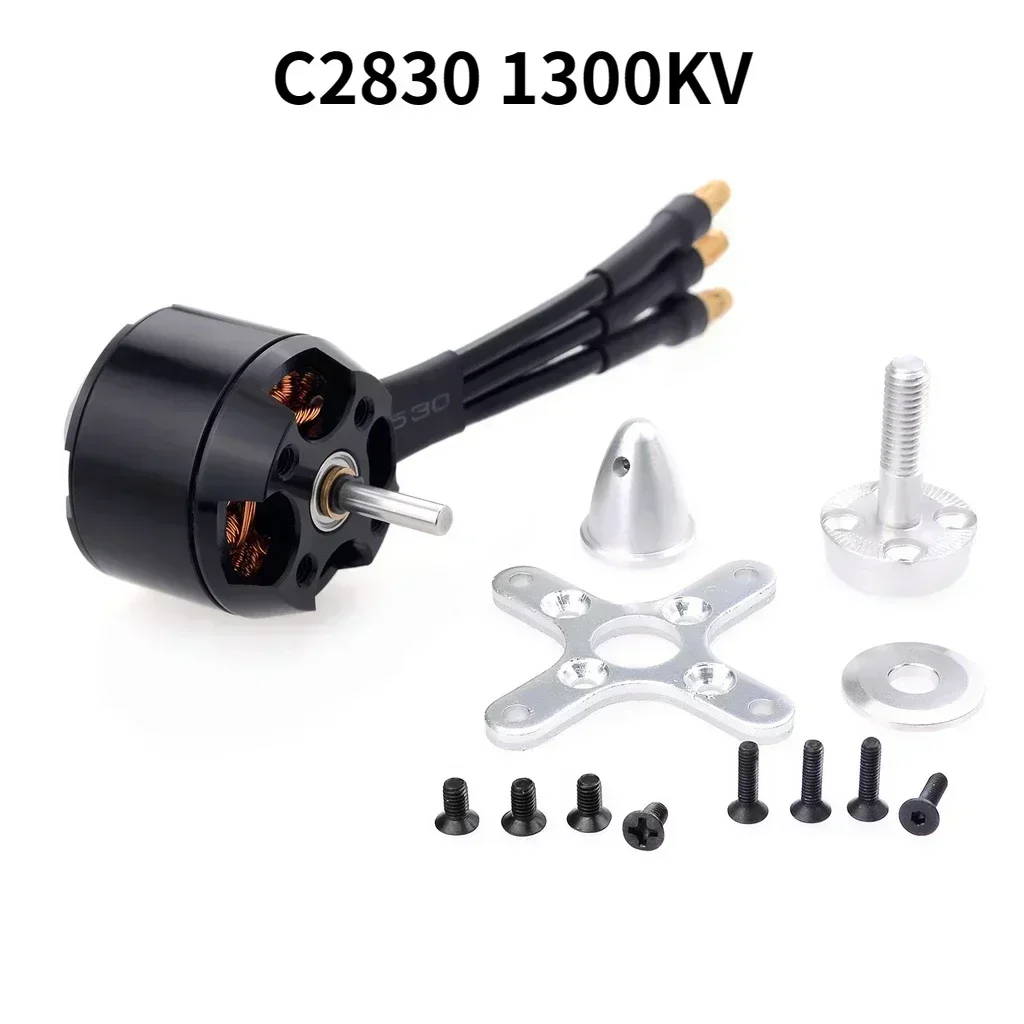

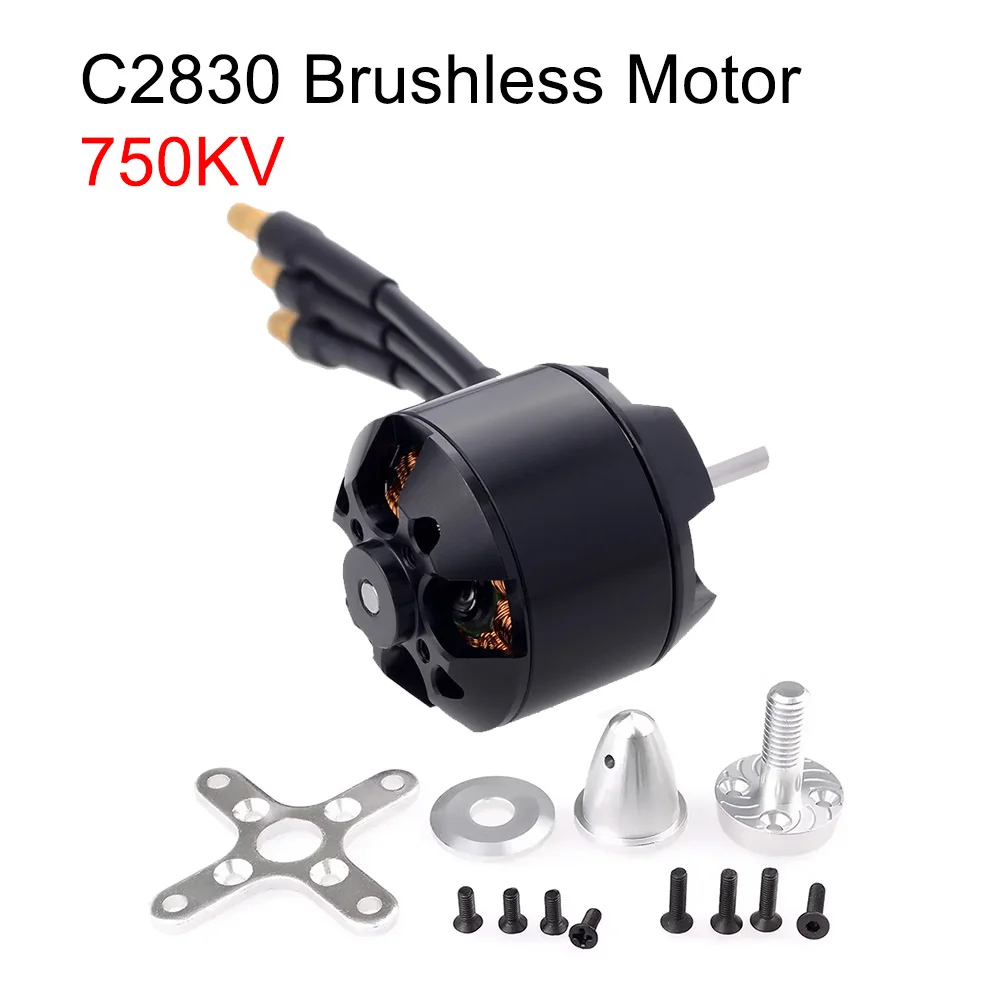

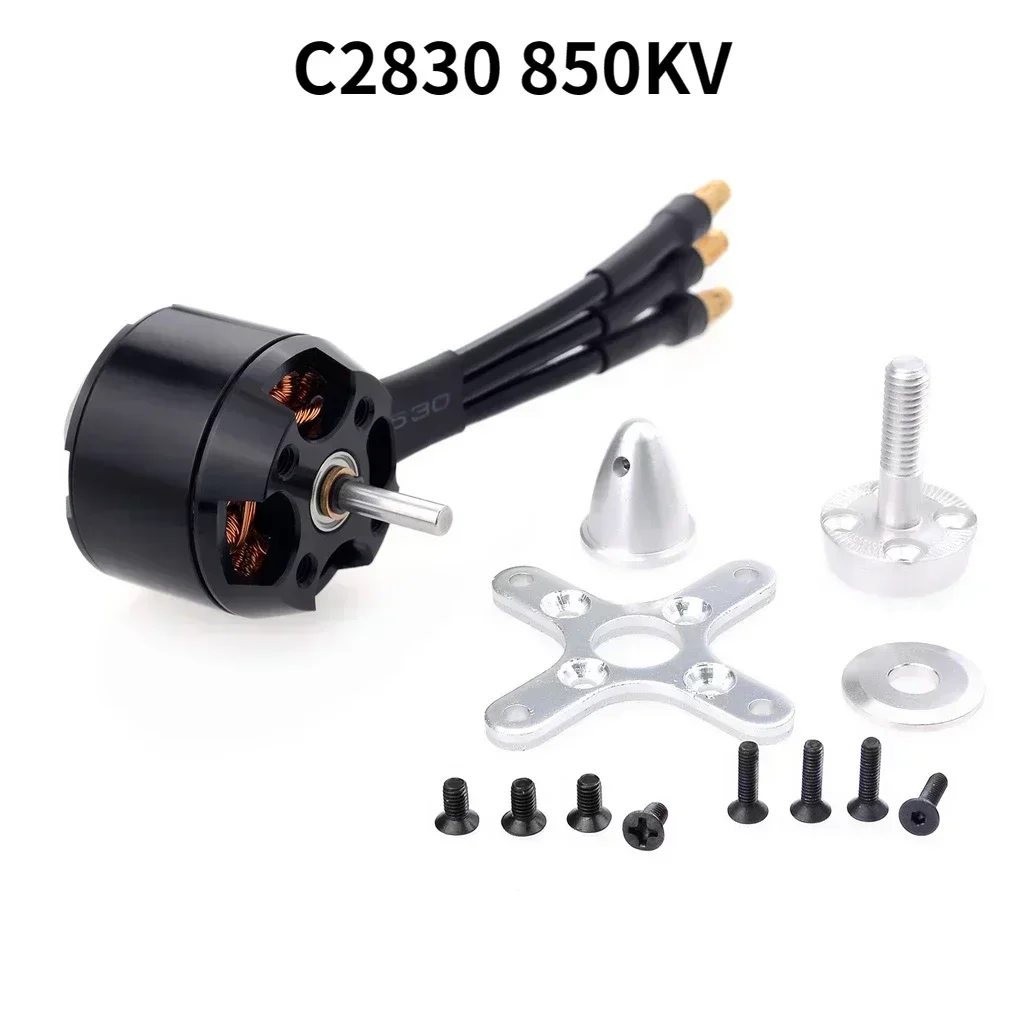

2212(C2830)
KV(RPM/Volt): 750KV /850KV/1000KV/1300KV Optional
Max current: 28A
No load Current: 1.4A
Resistance: 0.035
Motor Size: ￠28 * 30mm
Stator size: 2212
Motor weight: 53.3g
Recommended prop: 9*6/10*5/10*6
Suitable for: 300-700g airplane

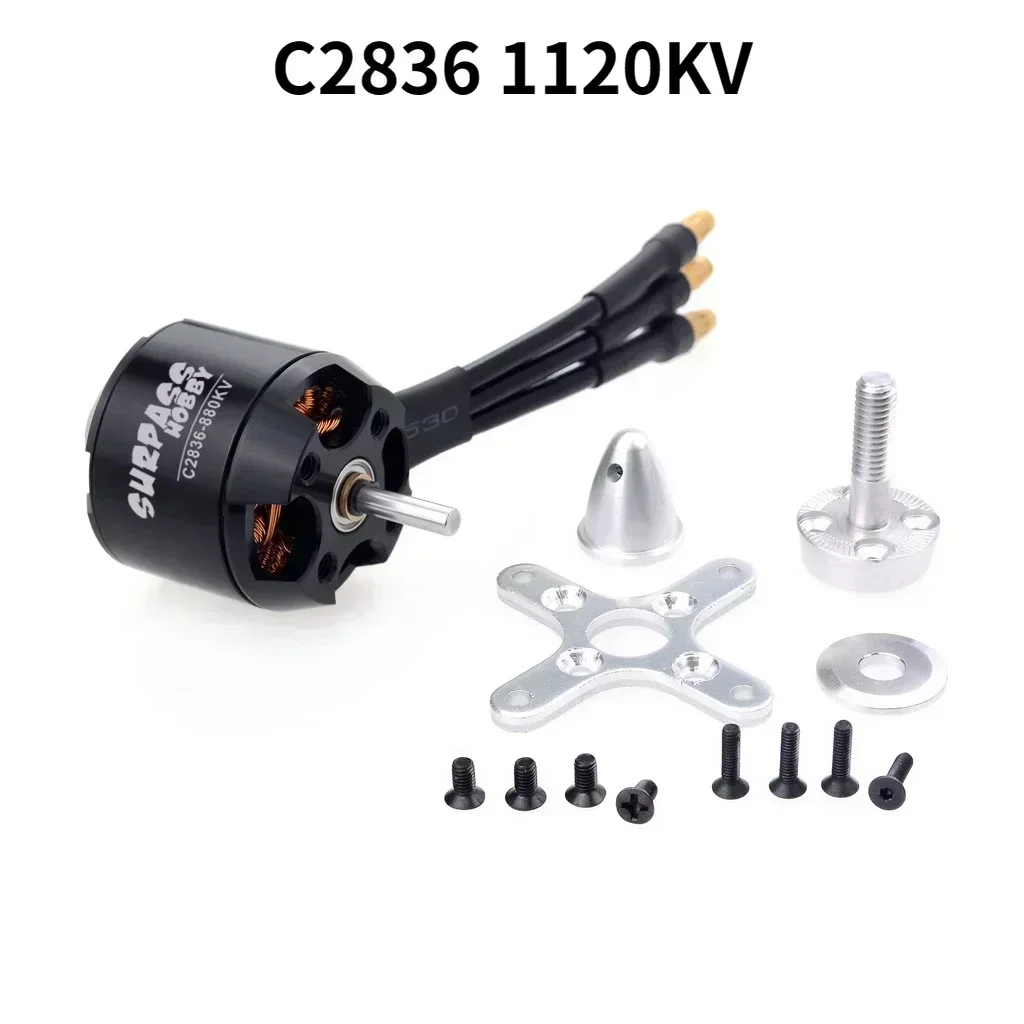

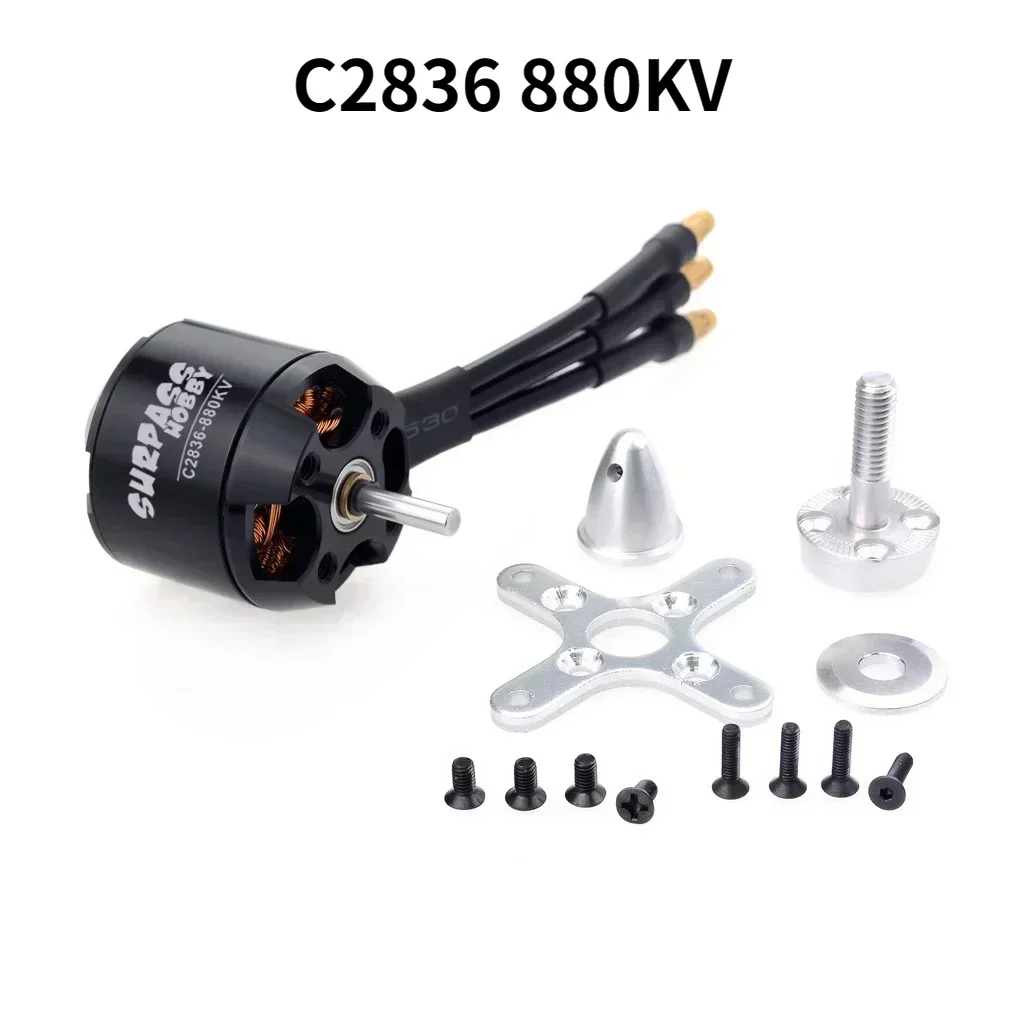

2216(C2836)
KV(RPM/Volt): 750KV/880KV/1120KV Optional
Motor Size: ￠28 * 36mm
Stator size: 2216

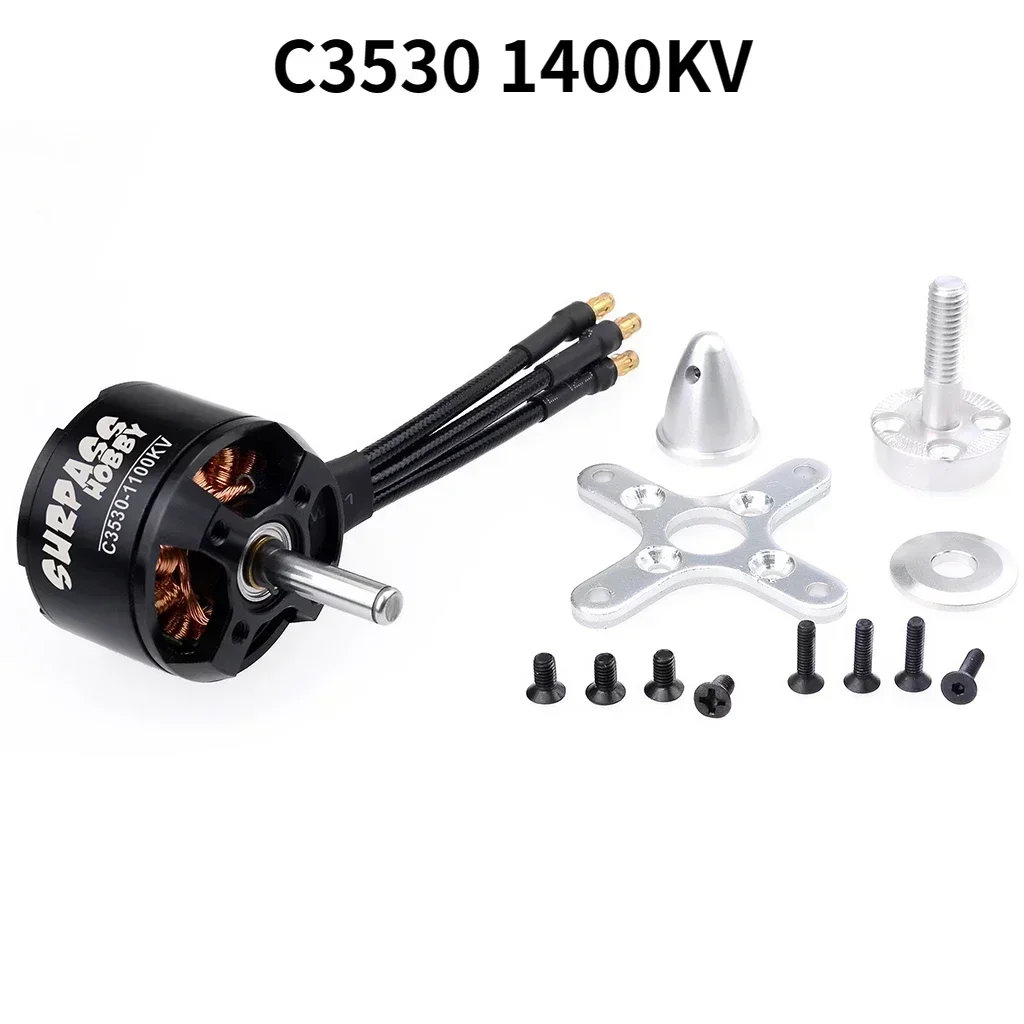

C3530 (2808)
Material: Metal
KV: 1100KV/1400KV /1700KV Optional
Power: 350W
Voltage: 7-15V
Current: 35A
Pole: 14
Load Current: 1.2A
Motor Size: Approx. 35 * 30mm
Stator Size: Approx. 28 * 8mm
Connector: 3.5mm Banana Male Plug
Type: RC Model Part & Acces

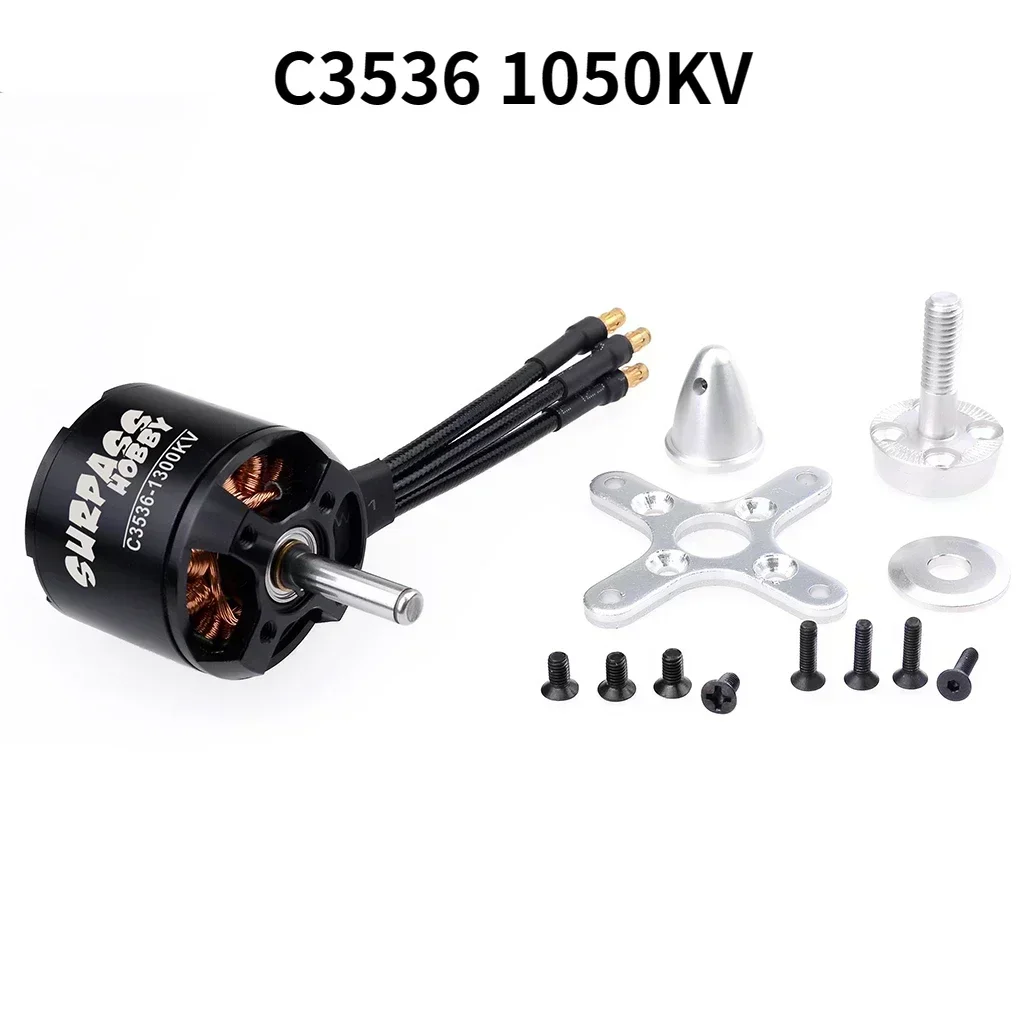

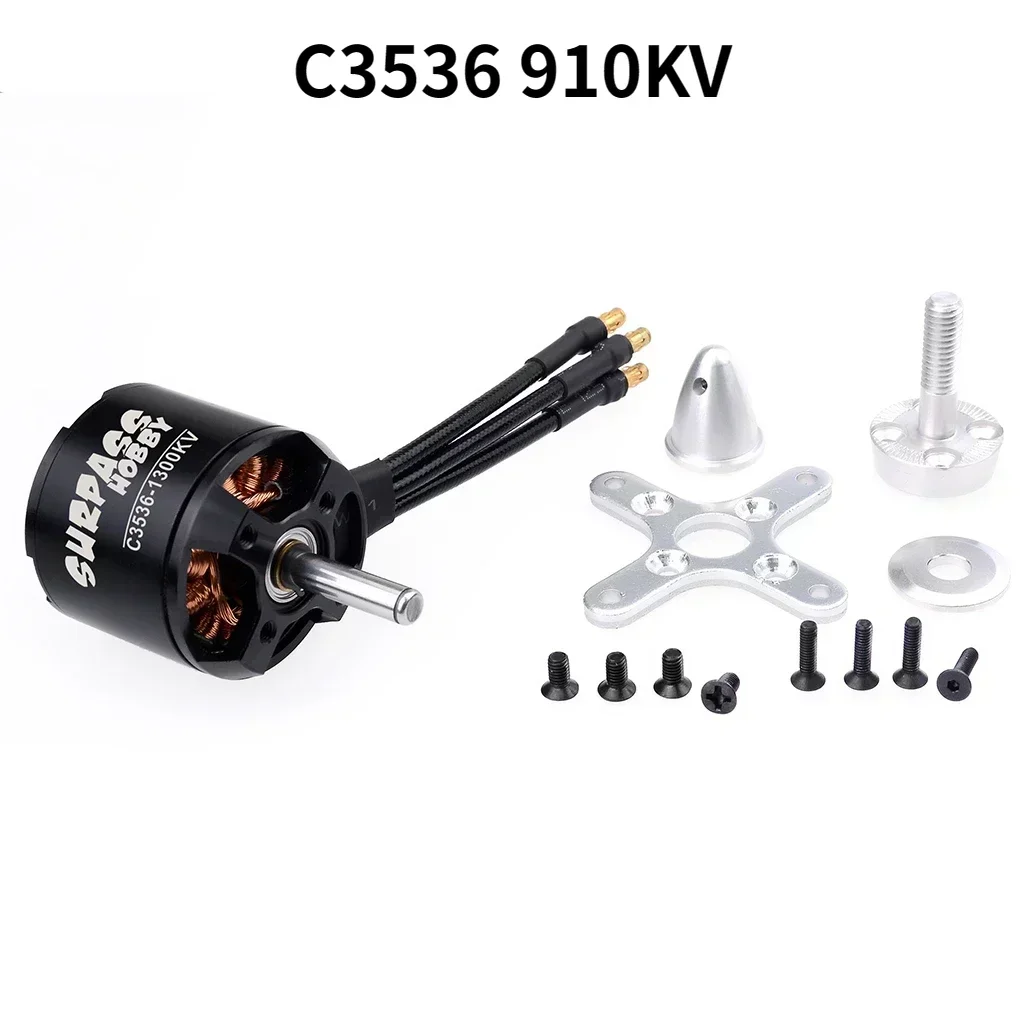

C3536 (2814)
KV(RPM/Volt): 910KV/1050KV/1300KV /1500KV
Max watts: 680W
Max current: 50A
No load Current: 1.8A
Resistance: 0.038
Motor Size: ￠35 * 36mm
Stator size: 2814
Motor weight: 159.2g
Recommended prop: 9*4.5 / 10*4.7 / 9*5
Suitable for: 1-1.5kg airplane

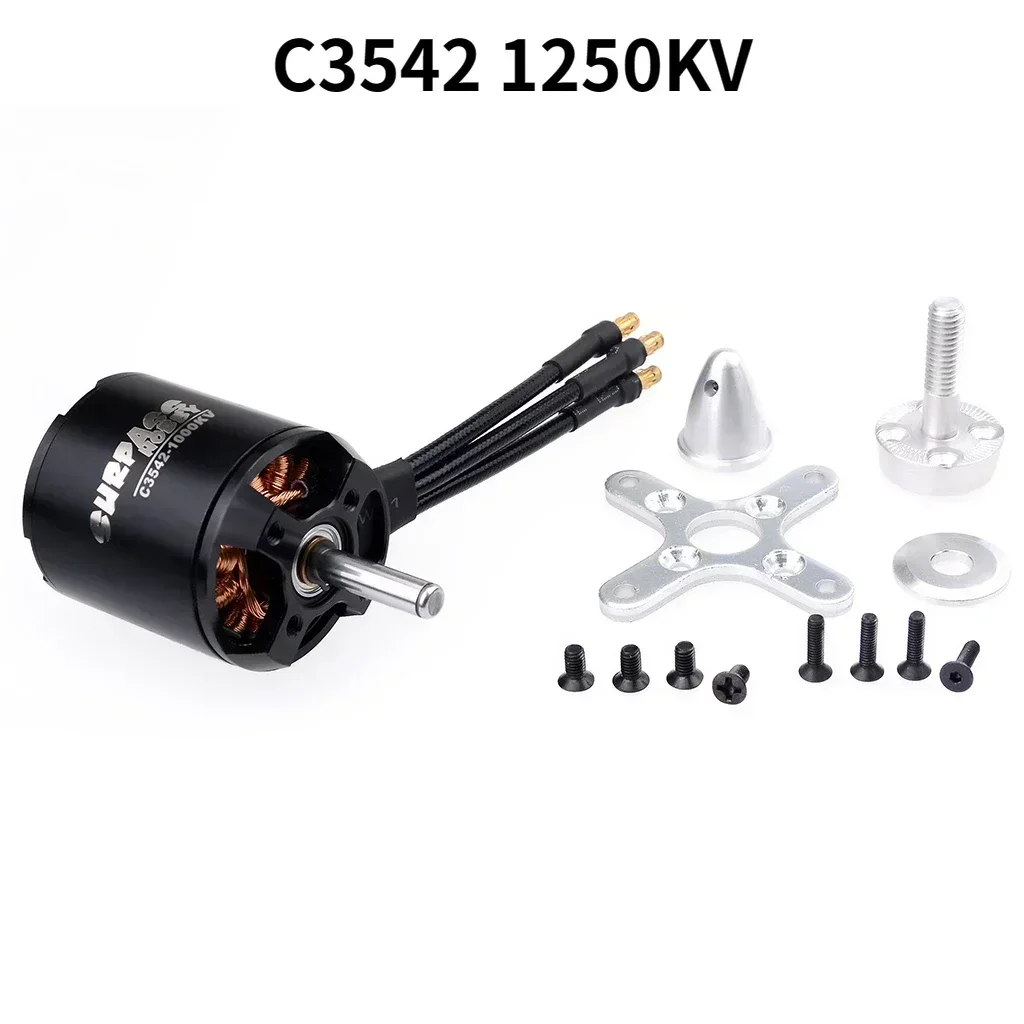

C3542 (2820)
Rotational Speed: 1000KV/1250KV/1450KV Optional
Continuous Current: 45A
Max. Current: 55A
Input Voltage: 6 - 14.8V
Max. Efficiency: 98%
No Load Current: 2.0A
Internal Resistance: 26m(Omega)
