Tuya Zigbee&Wifi&Modbus Smart Thermostat for Gas Boiler/Electric Floor Heating/Radiator TRV | Voice Control with Alexa Google

Tuya Zigbee MQTT&Wifi&Modbus RS485 Smart Thermostat | 7-Day Programmable Controller for Gas Boiler/Electric Floor Heating/Radiator TRV | Voice Control with Alexa Google Home YANDEX Alice | Energy Saving Heating Solution

Note

If you choose Zigbee thermostat, Zigbee gateway is a must-have product. If you do not have a gateway, please click to purchase

Note: There will be some compatibility issues with the zigbee and yandex versions. This is related to the gateway. The background will be continuously updated.

The zigbee version does not have weather function, because the weather function comes from the network

Welcome

If you are not a technician, please communicate with the store customer service before purchasing to see if it is supported. Our customer service will be very enthusiastic to communicate with you.

Please confirm that this product is suitable for your heating

equipment before installation

*Before installation or maintenance, please make sure to keep the power off

*Please strictly follow the wiring diagram for wiring installation

*Installation to the wall, please confirm that the fasteners are suitable for

this product

*Do not pull the cable too hard, otherwise the product will be damaged

*If a hard plastic wire is used in the installation process, it must be bent to

an appropriate angle in advance

*Please arrange for professionals to install

try to repair it yourself

* After installation, please refer to this manual to check again to ensure

normal and safe use, and keep this manual properly.

The NEW SHOJZJ range has been developed to control electric

underfloor,water heating or water/gas boiler system. These units

are designed for use in commercial, industrial, civil and domestic

properties.

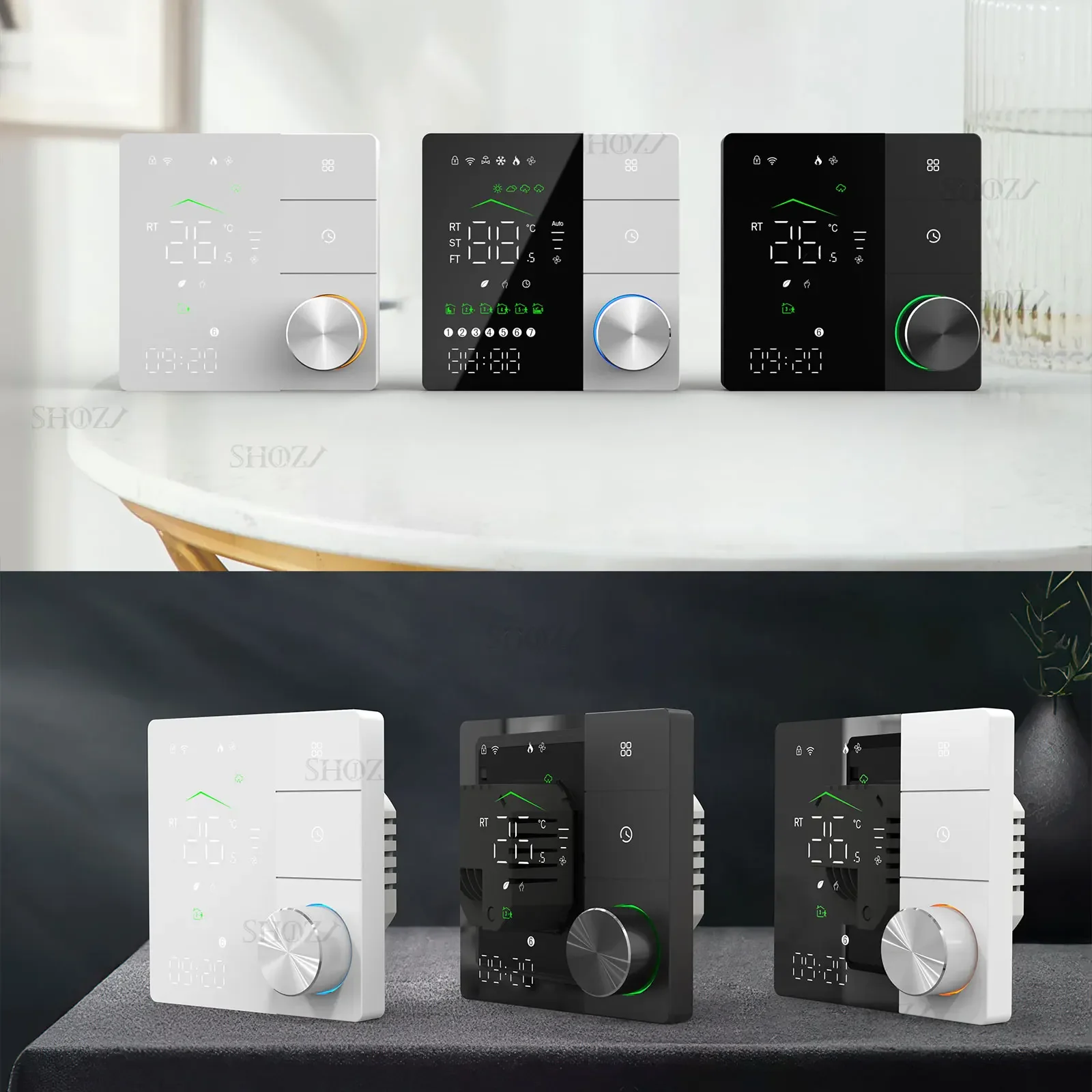

On Appearance

1. LED display, more friendly interface;. LED matrix light, simple display, energy

saving, protect your eyes.

2. Touch buttons to make simple operation.

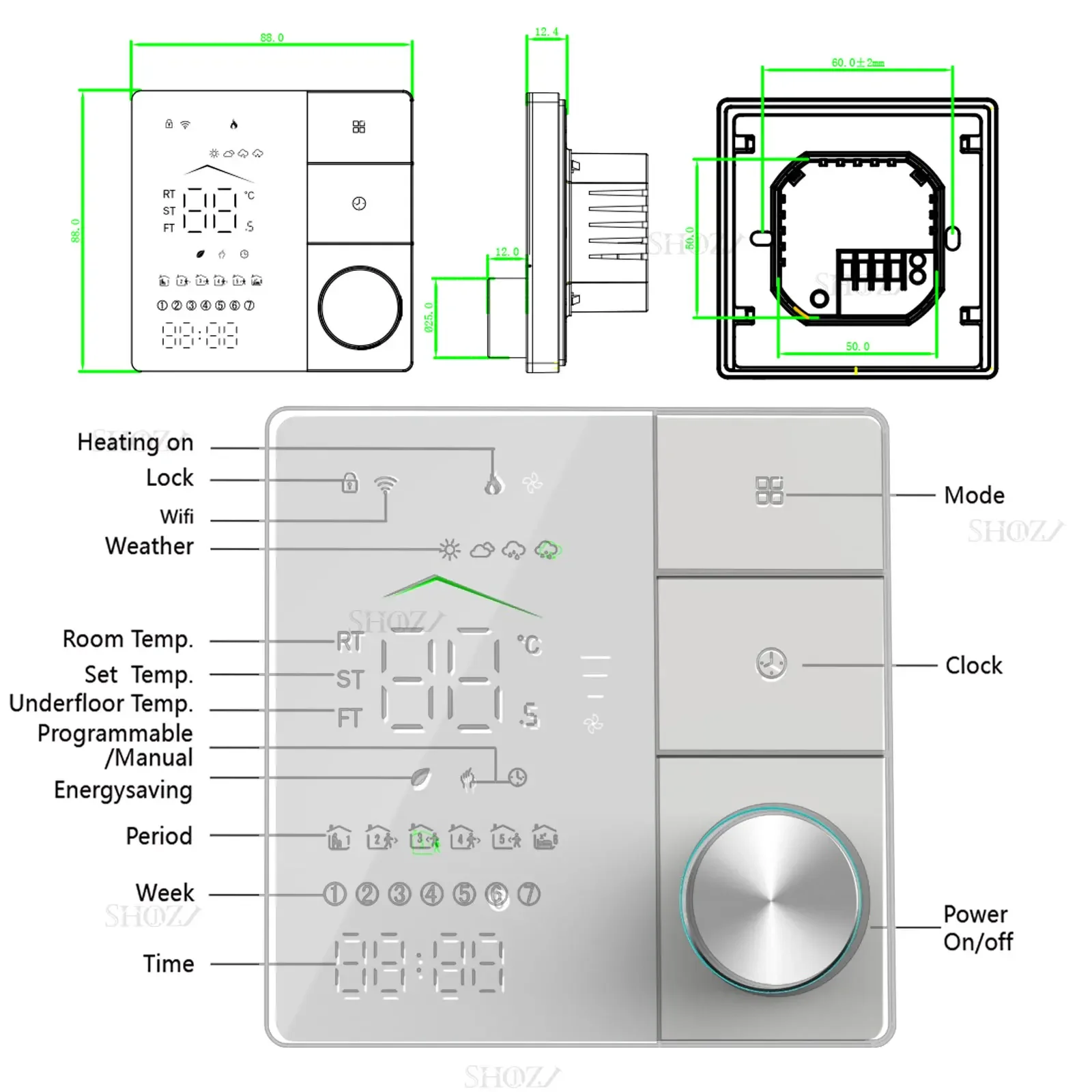

3. The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable

thickenss above the wall is only 12.4mm.

4. Frameless acrylic panel design, simple and elegant

5. Classic black/white color scheme, seamlessly integrated.

6. Compatible with standard 86mm square cassettes and 60mm European

cassettes to meet all installation environments

7. Interlock to connect gives you easy installation.

1. Rich function options, Modbus, WIFI, keycard, etc, to meet all your needs

2. Strict temperature control accuracy (± 1°C) to provide the warmth you want

3. Power off protection, save all your settings safely

4. Preset adjustment of 5+1+1 mode in a week, programmable setting of 6 time

periods a day, green energy saving, Less cost, more intelligent and

environmental protection

5. Support the creation of product local groups/shares to achieve unlimited

centralized control of the number of products/ multi-terminal control

6. Perfect access: Yandex Alice Amazon echo, Google Home, full experience new

voice control method

Current Load: 5A (water heating, waterlgas boiler)

16A (electric heating)

Sensor: NTC3950, 10K

Accuracy: ±1°C

Set Temp. Range: 5-35°C

Room Temp. Range: 5-70°C

Display Temp. Range: 5 ~ 70°C

Ambient Temp.: 0~ 45°C

Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

Storage Temp.:-5~ 45°C

Power Consumption

Timing Error: < 1%

Shell Material: PC +ABS ( Fireproof)

Installation Box: 86 * 86mm Square or European 60mm Round Box

Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

Protection Class: IP20

Buttons: Capacitive Touch Buttons

GA is for water heating

GB is for electric heating

GC is for water/gas boiler

NTC and Modbus is optional.
